Agin Bridge
Agin Köprü
Ağın, Elazığ, Turkey
328 feet high / 100 meters high
919 foot span / 280 meter span
2015



Agin Bridge is part of a local provincial road that crosses the giant reservoir from the building of the Keban Baraji Dam. The route connects Elazığ and Apapgir, Turkey.

The 520 meter long fan-style cable stayed bridge has a span configuration of 120+280+120 meters supported by towers as tall as 55 meters above the 13 meter wide deck.

An early design called for a 280 meter concrete cantilevered beam bridge before it was redesigned into a cable stayed bridge.

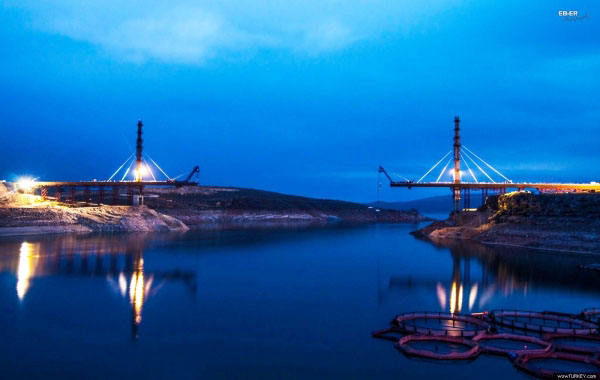

Image by By erseteknoloji.





Image by By erseteknoloji.

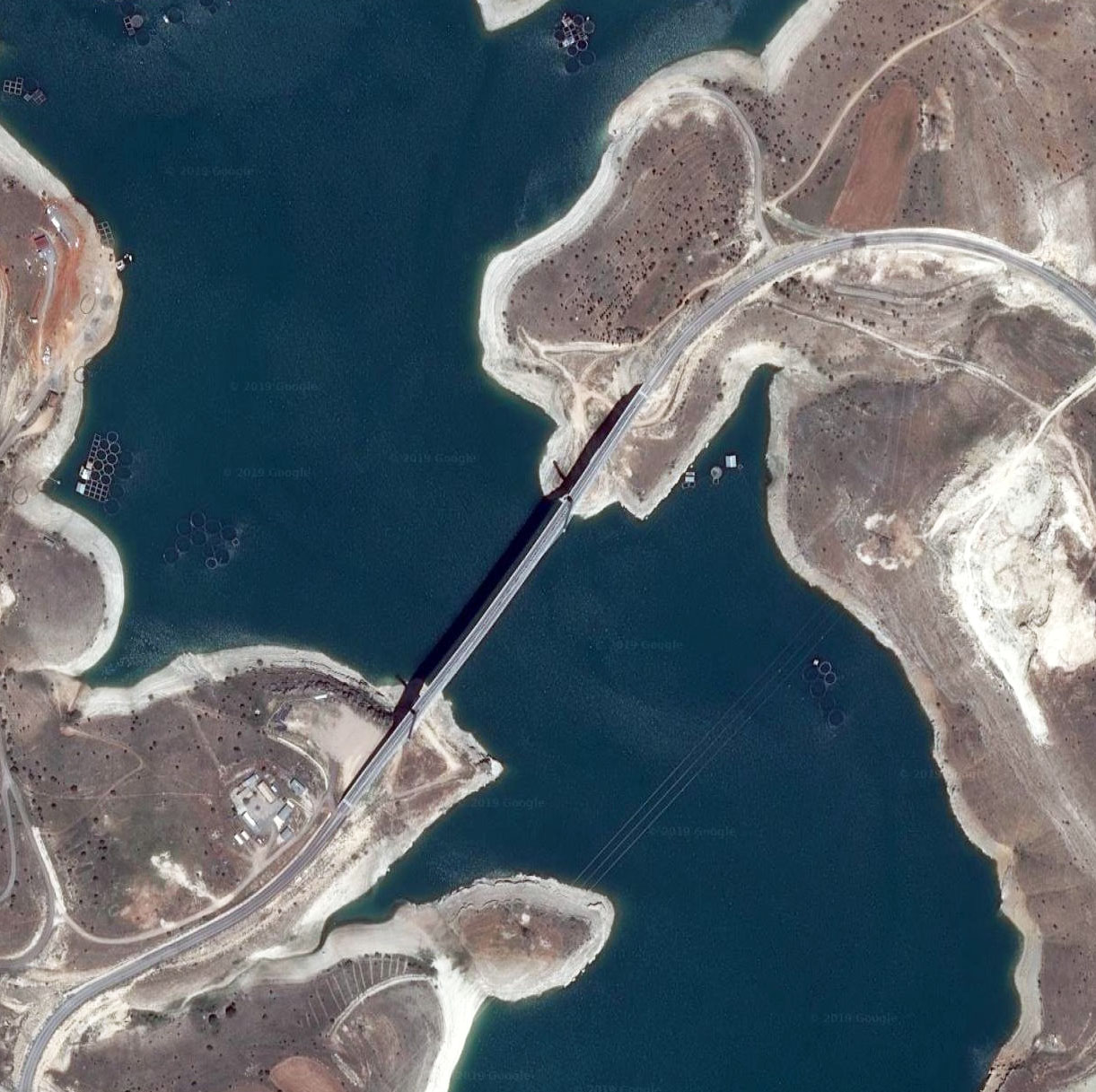

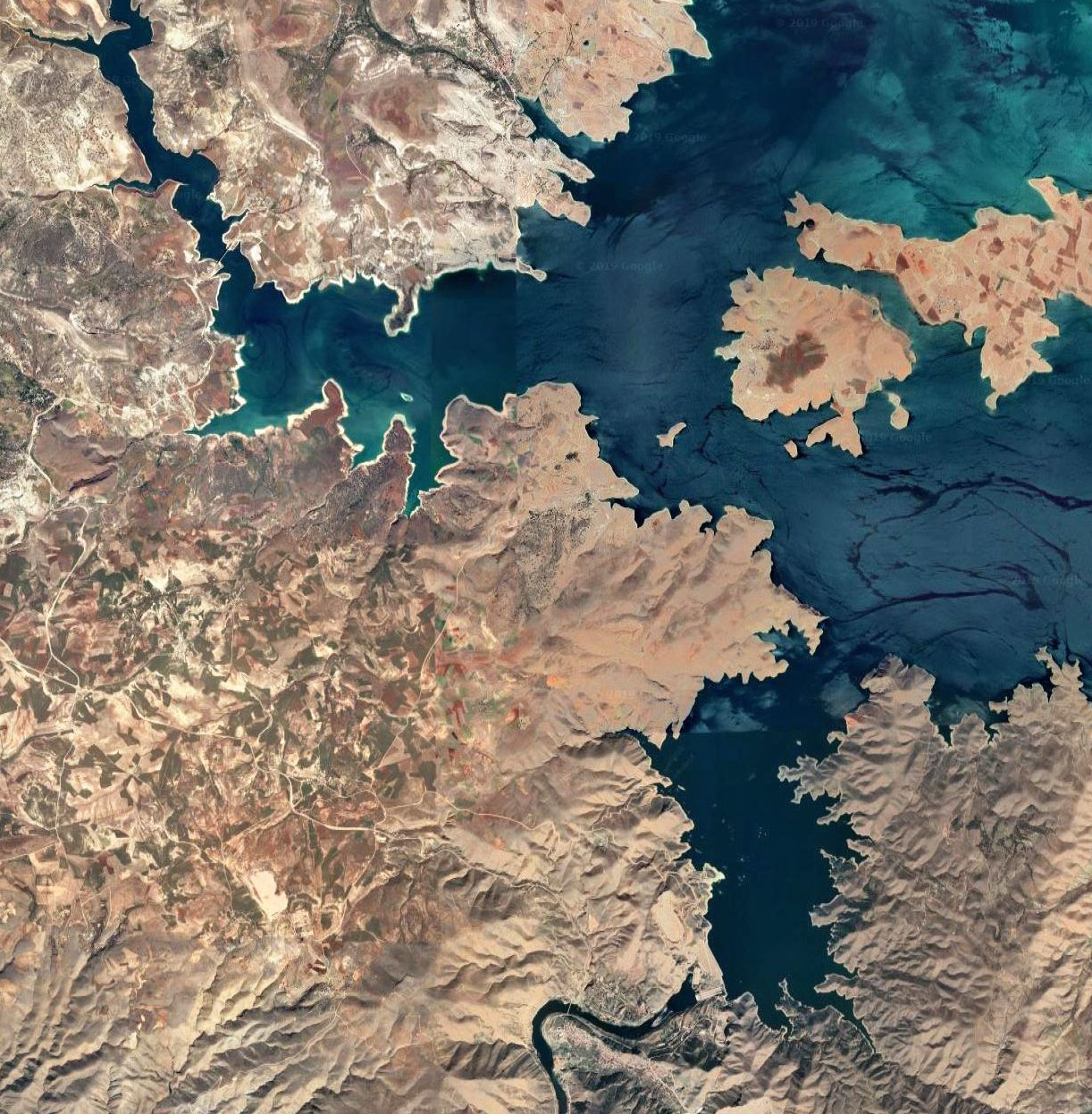

Agin Bridge satellite image.





Agin Bridge location map.
