Dinahe Railway Bridge
底那河大桥
Zhijin, Guizhou, China
427 feet high / 130 meters high
420 foot span / 128 meter span
2016



One of two giant beam bridges on the single track Zhijin to Bijie Railway line, the Dinahe Railway Bridge can easily be seen from the local road S209 Dinahe arch bridge crossing north of Zhijin City.

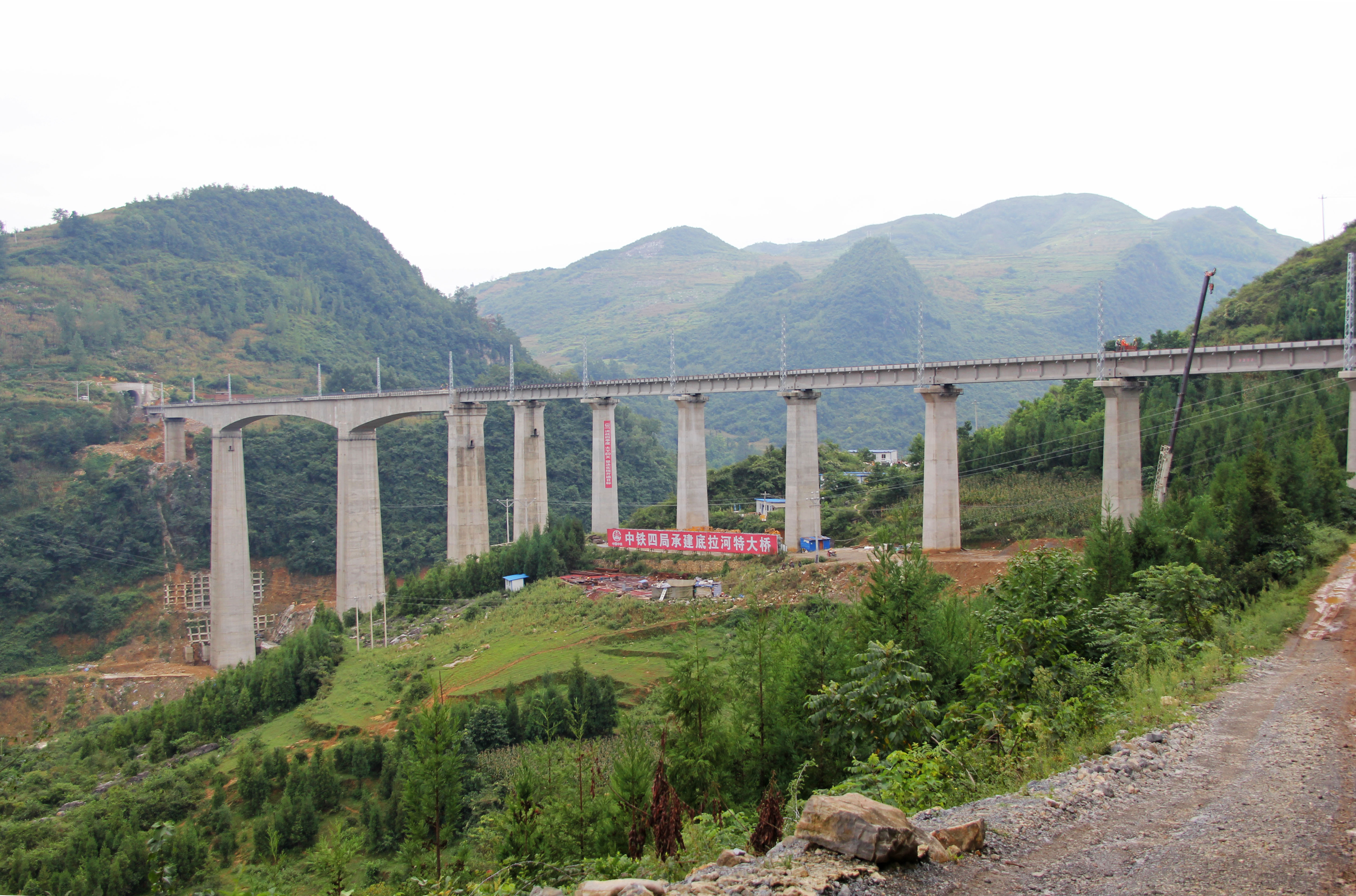

The tunnel to tunnel bridge measures 580 meters long with a central span configuration of 72+128+72 meters with 8 approach spans of 32 meters on the north end and 1 span of 32 meters on the south end. The 2 main piers are 81 meters tall.



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com





Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com


DinaheRailwayTop Panorama.jpg

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com







Dinahe Railway Bridge satellite image. Note the Route S209 Dinahe arch bridge to the north.
