Huayuan Bridge
花垣河大桥
Huayuan, Hunan, China
(394) feet high / (120) meters high
476 foot span / 145 meter span
2013



One of 4 high bridges on the new S10 Zhangjiajie to Huayuan Expressway, the Huayuan Bridge is located less then a kilometer north of the city of Huayuan in Hunan Province. The large T-beam frame bridge has a configuration of 5x 40, 78+145+78 and 3x40 meters for a total length of 625 meters. The two main piers are 82 and 84.5 meters tall. The bridge is just over 100 meters above the water surface of a reservoir some 15 meters deep.

This short but spectacular new spur highway is also home to the Qingping, Mengdong and Lishuihe Bridges - all of which rank among the highest in Hunan Province.



Huayuan Bridge Elevation



A construction view before the 15 meter deep reservoir had formed beneath the bridge.









An early drawing of the Huayuan Bridge.

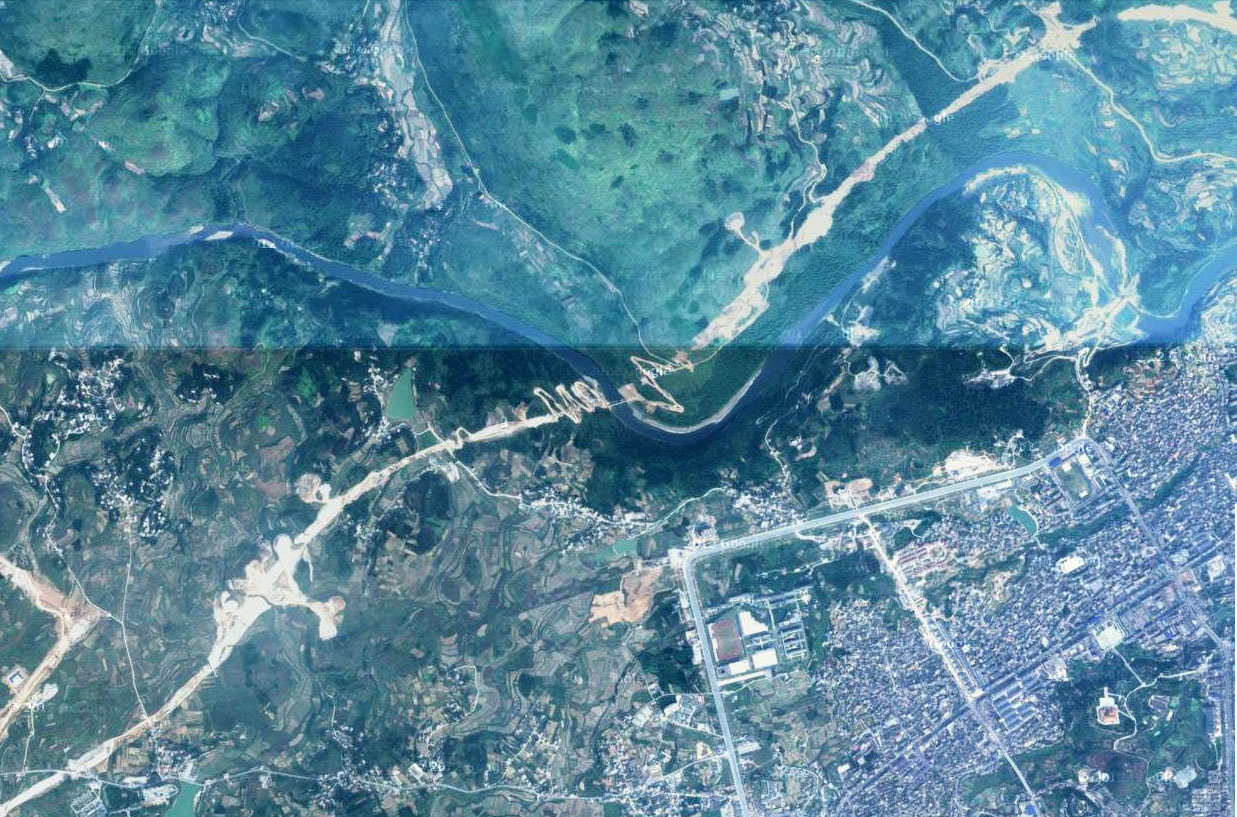

Huayuan Bridge satellite image.



Huayuan Bridge and the city of Huayuan.



Huayuan Bridge location map.
