Liuguanghe Bridge Xiqian
息黔高速公路六广河特大桥
Liutongxiang, Guizhou, China
1,230 feet high / 375 meters high
1,903 foot span / 580 meter span
2017



The second highest and longest span bridge ever built over the great Wujiang River, the Liuguanghe Bridge is also one of the tallest with the west pier stretching 248 meters into the sky.

The S30 Xiqian expressway bypasses the older 2-lane Guibi Road that opened in 2001 and connected Qianxi with the G75 expressway. The newer route also allowed a more direct connection with the cities of Xifeng and Kaifeng.

The giant main span of 580 meters is most notable for the short back spans that required the higher cable stays to be bundled more closely together. Like many giant spans that cross the Wu River, Liuguanghe Bridge crosses a reservoir from a downstream dam that can vary the height from 328 meters when the lake is full to as high as 375 meters if measured down to the original level of the Wujiang River. The truss sections are 12 meters long.



Liuguanghe Bridge Xiqian Elevation


作为乌江上第二高也是第二大桥,六广河高速公路桥也是桥塔最高的桥之一,西桥塔高248米。

息黔高速公路取代了2001年修建的贵毕公路,将黔西县和G75兰海高速连接起来。新高速也使黔西、息烽、开阳之间有更便捷的交通要道。

该桥主跨580米,引人注目的是边跨较短。和乌江上许多其它高桥一样,此桥跨越一个水库,当水库满水位时,桥面距离水面高328米;距离原始水面高375米。




LiuguangheXiqianComputerRender2 .jpg














Liuguanghe Xiqian 20160113.jpg


Liuguanghe Bridge Xiqian56.JPG

Image by Eric Sakowski / HighestBridges.com


Liuguanghe Bridge Xiqian57.JPG

Image by Eric Sakowski / HighestBridges.com


Liuguanghe Bridge Xiqian60.JPG

Image by Eric Sakowski / HighestBridges.com


Liuguanghe Bridge Xiqian58.JPG

Image by Eric Sakowski / HighestBridges.com


Liuguanghe Bridge Xiqian63.JPG

Image by Eric Sakowski / HighestBridges.com


Liuguanghe Bridge Xiqian61.JPG

Image by Eric Sakowski / HighestBridges.com


Liuguanghe Bridge Xiqian69.JPG

Image by Eric Sakowski / HighestBridges.com


Liuguanghe Bridge Xiqian71.JPG

Image by Eric Sakowski / HighestBridges.com


Liuguanghe Bridge Xiqian72.JPG

Image by Eric Sakowski / HighestBridges.com


Liuguanghe Bridge Xiqian75.JPG

Image by Eric Sakowski / HighestBridges.com


Liuguanghe Bridge XiqianSteelDeck.JPG

Image by Eric Sakowski / HighestBridges.com


Liuguanghe Bridge XiqianVBase.JPG

Image by Eric Sakowski / HighestBridges.com


Liuguanghe Bridge Xiqian77.JPG

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com


Liuguanghe Panorama1.jpg

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com





Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com




LiuguangheXiqian20150823 084100.jpg

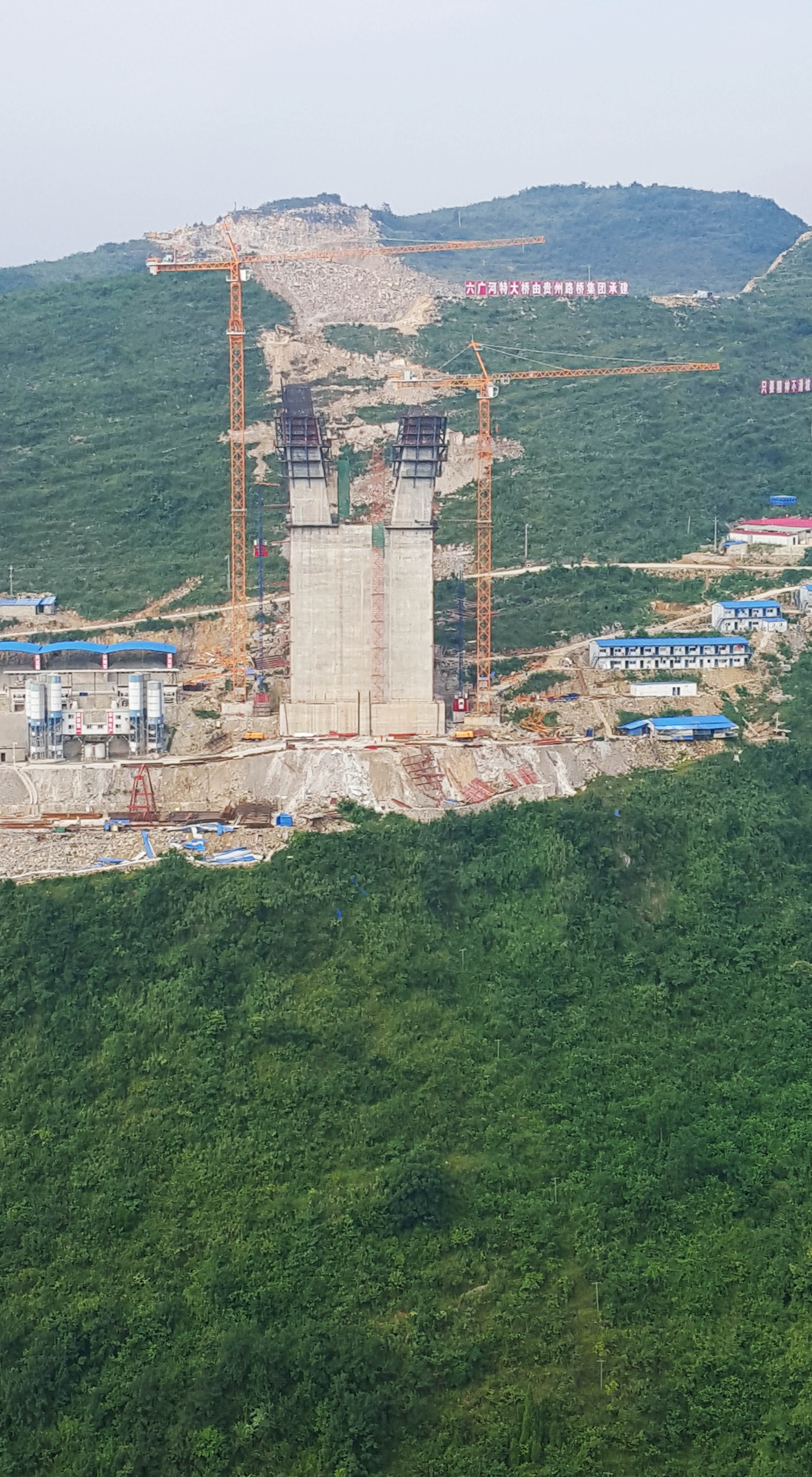

LiuguangheXiqian20150823 084041.jpg


LiuguangheXiqian20150823 091433.jpg




LiuguangheXiqian20150823 085156.jpg


LiuguangheXiqian20150405 094730.jpg



Image by Eric Sakowski / HighestBridges.com


LiuguangheXiqian20150317 125637.jpg


LiuguangheXiqian20150405 100423.jpg


LiuguangheXiqianDSC 1521.JPG



Liuguanghe Bridge Xiqian satellite image.

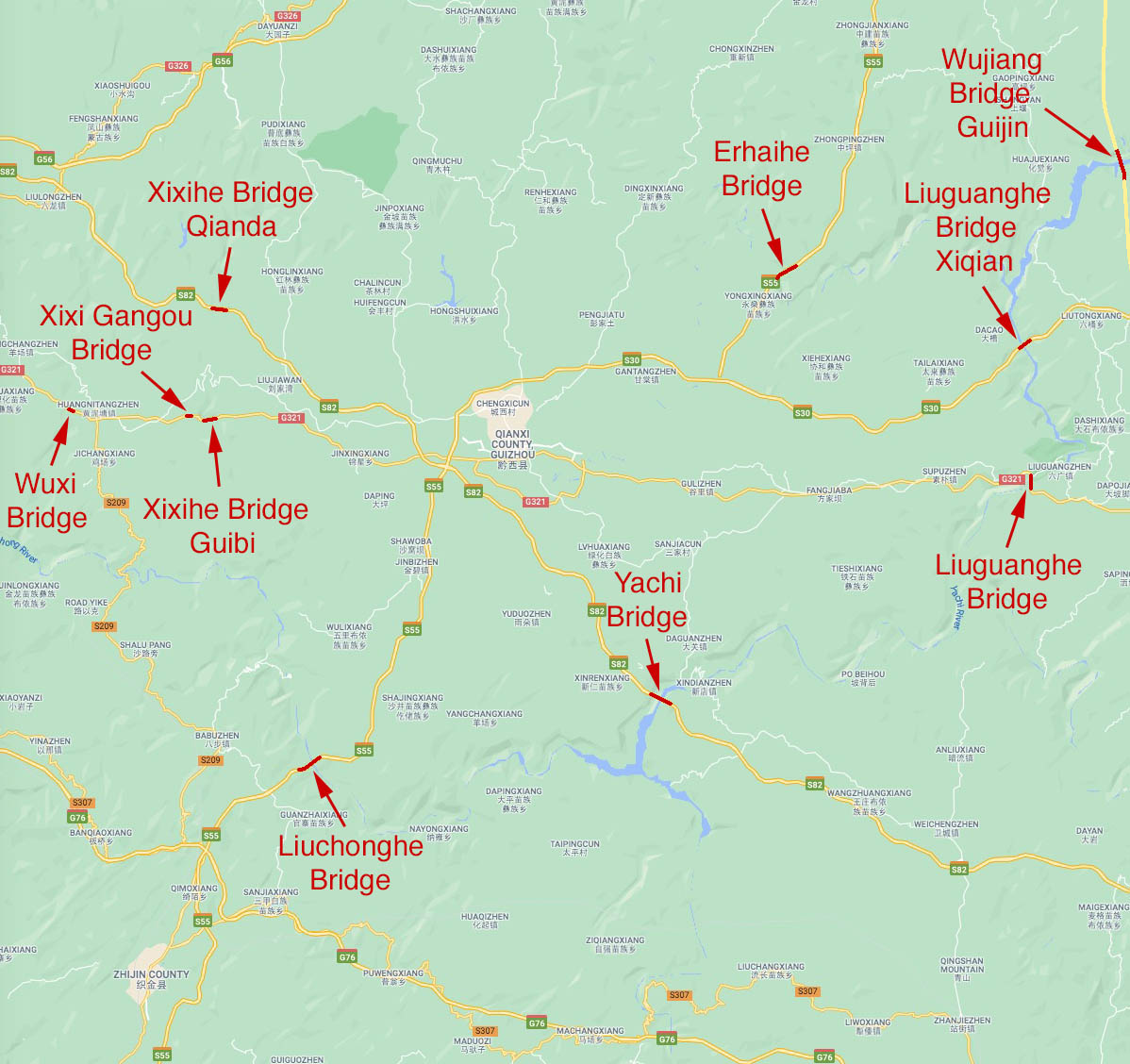

Liuguanghe Bridge Xiqian location map.
