Liutonghe Bridge

From HighestBridges.com
Jump to navigationJump to search

Liutonghe Bridge
溜筒河特大桥
Leibo, Sichuan, China
(951) feet high / (290) meters high
(984) foot span / 300 meter span
2024



Liutonghe Bridge is a large concrete filled steel tubular crossing on the amazing G4216 Yibin to Panzhihua Expressway in Sichuan Province. The route has Sichuan's largest collection of high level bridges. The lower two-thirds of the Liutonghe Bridge is hidden below a portion of the Jinshajiang reservoir that was formed by the giant Xiluodu Dam. The 489.5 meter long Liutonghe Bridge has a main span of 300 meters.

The route is also unique for having more large span arch bridges than any other highway on earth with a total of seven. These massive concrete and CFST arches include Xi'ninghe, Dahegou, Shangwujiao, Xisujiaohe, Yuewulada, Liutonghe and Daheba Bridges.

The G4216 Expressway parallels much of the Jinshajiang reservoir that was formed by the giant Xiluodu Dam. With a height of 285.5 meters, Xiluodu is among the 5 tallest concrete dams in the world and is located on the border of Sichuan and Yunnan Provinces 50 kilometers downstream from the Jinshajiang Bridge Kahaluo.

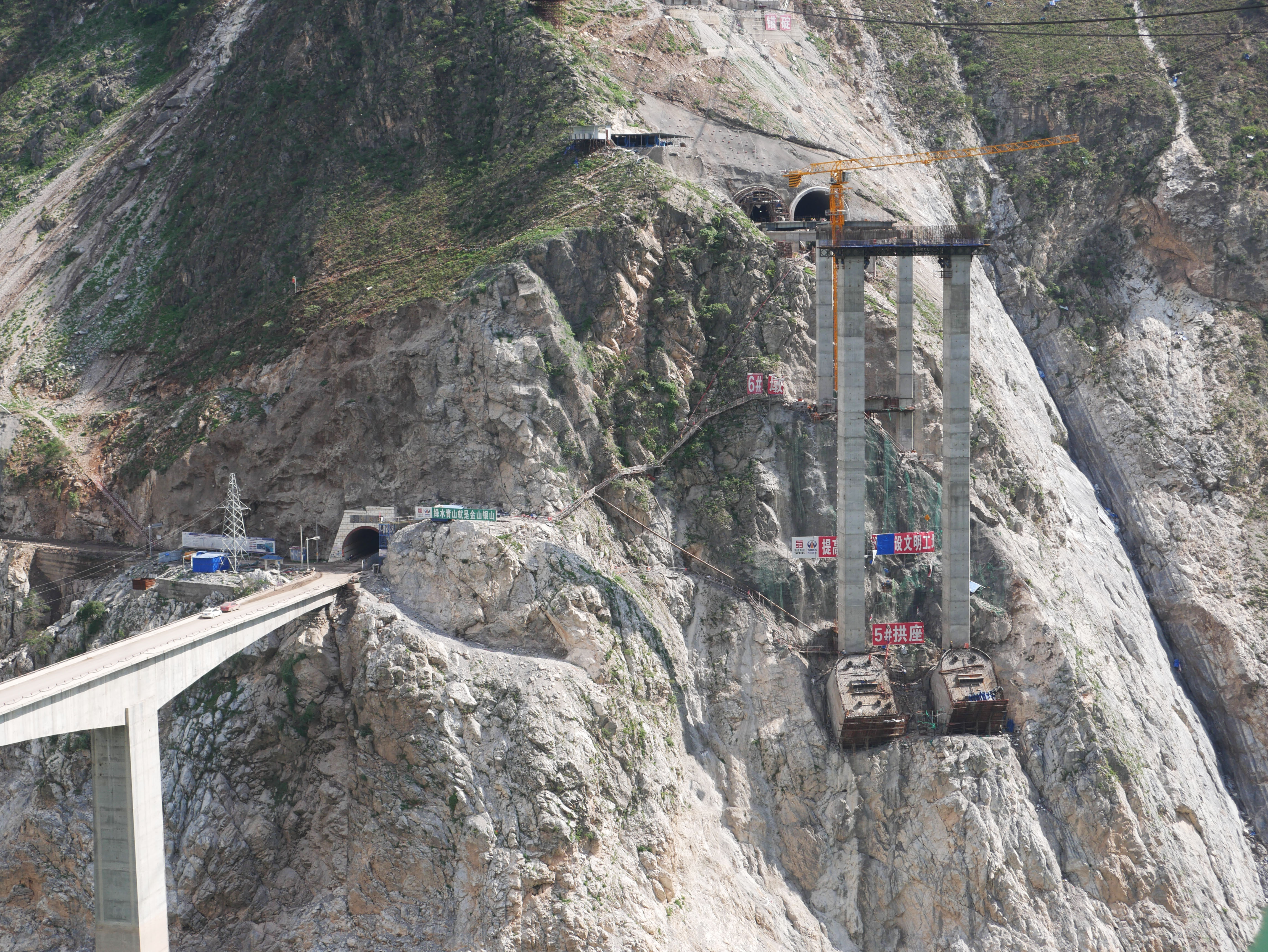

Image by Eric Sakowski / HighestBridges.com

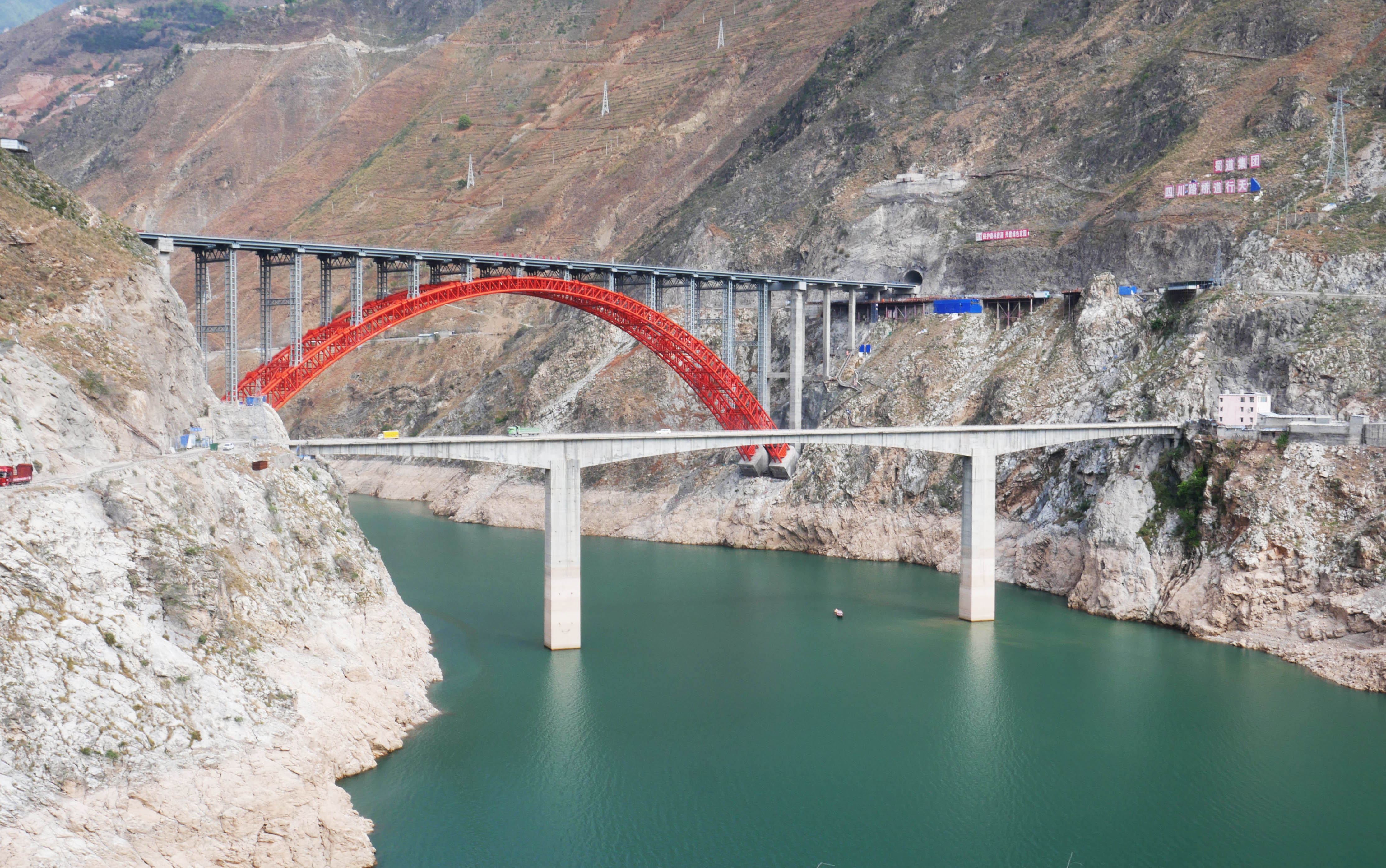

Image by Eric Sakowski / HighestBridges.com

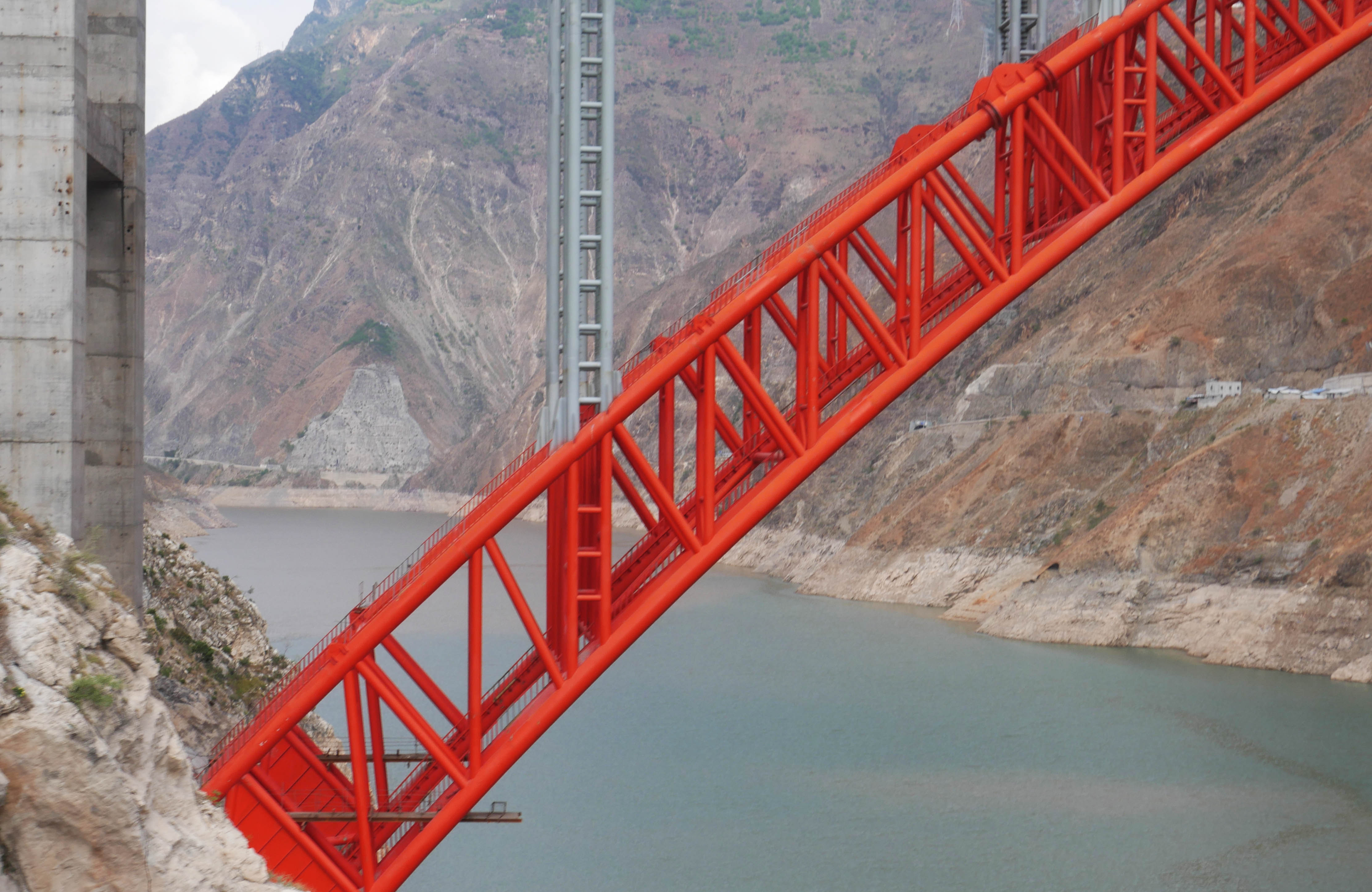

Image by Eric Sakowski / HighestBridges.com

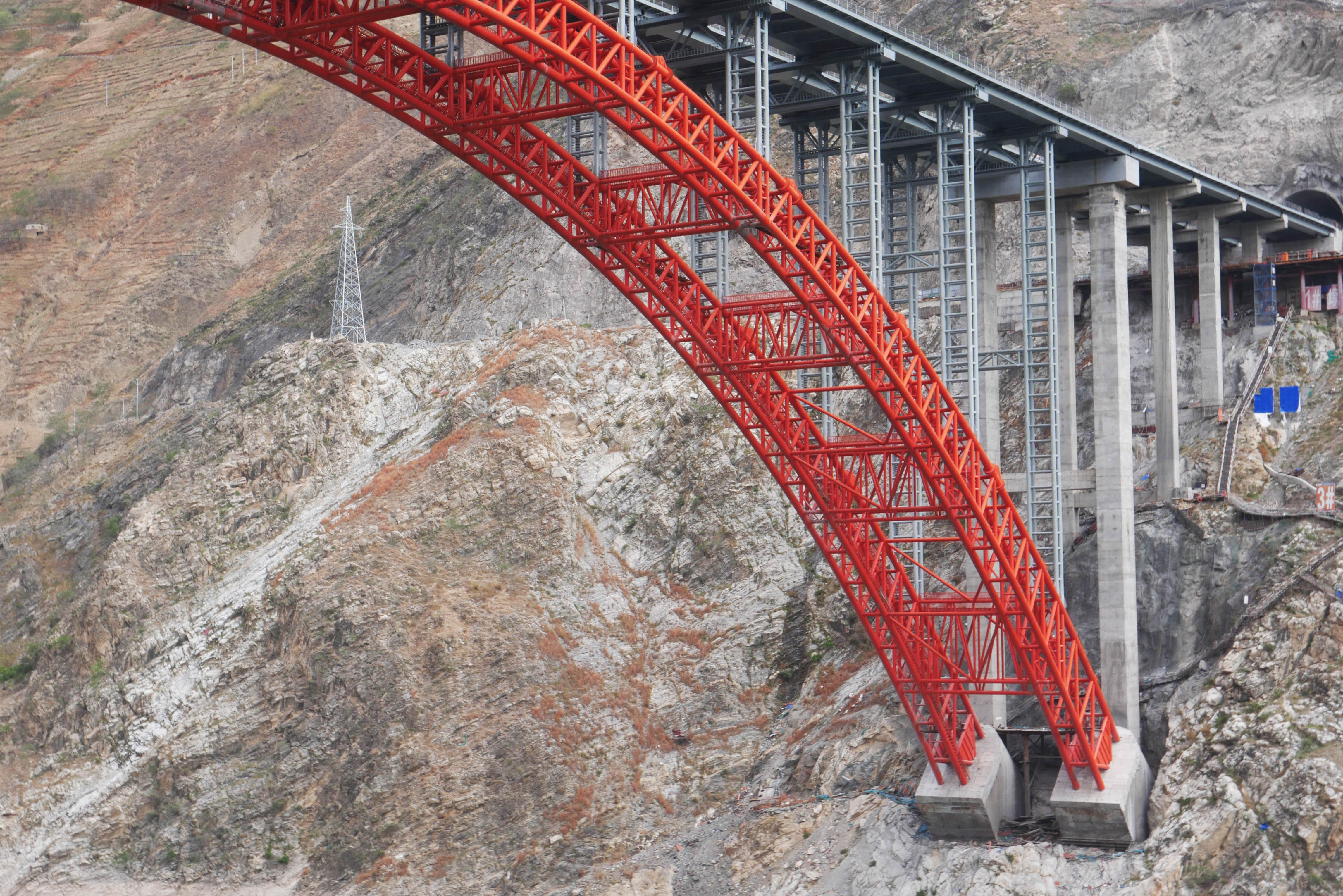

Image by Eric Sakowski / HighestBridges.com

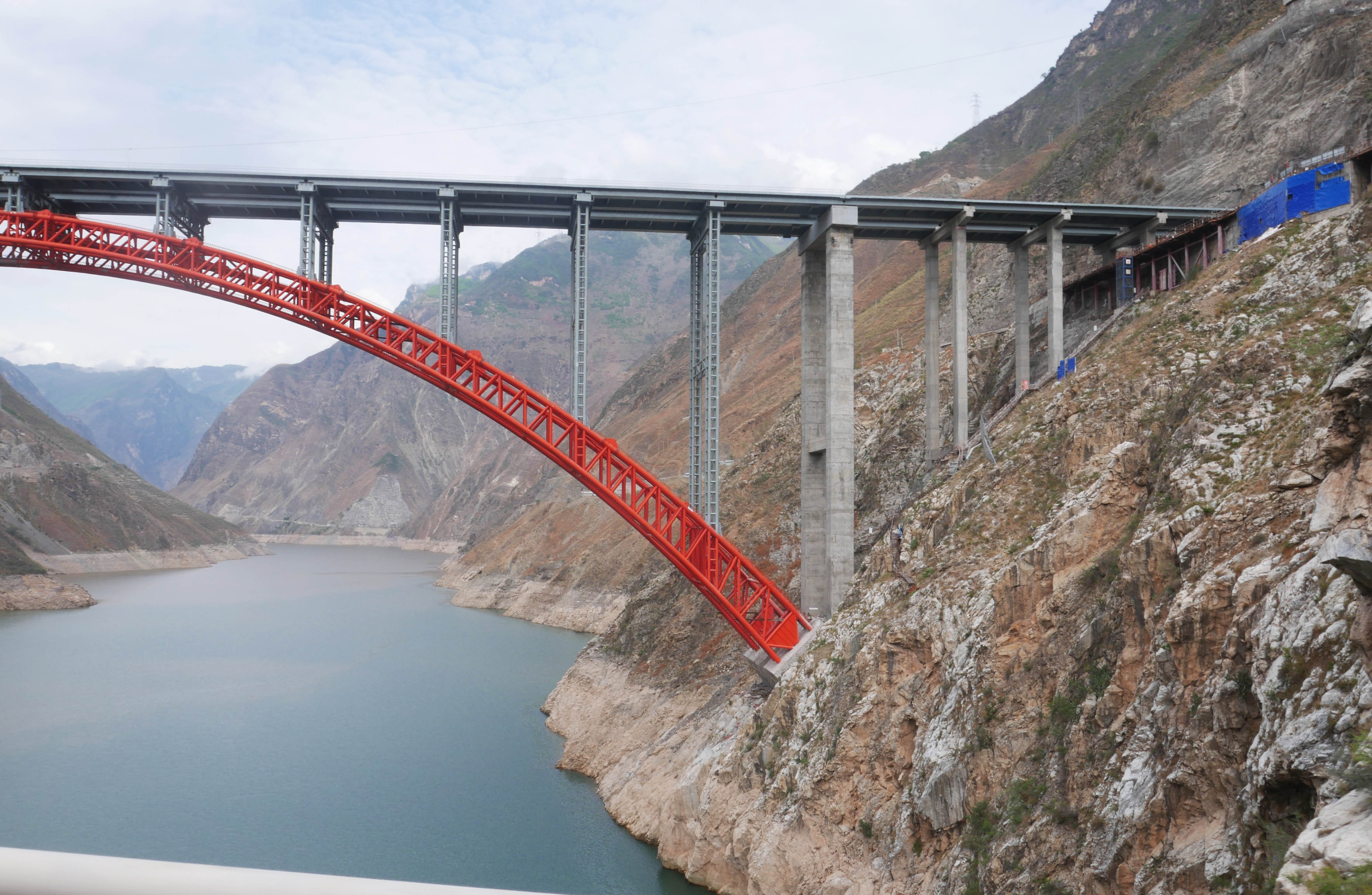

Image by Eric Sakowski / HighestBridges.com

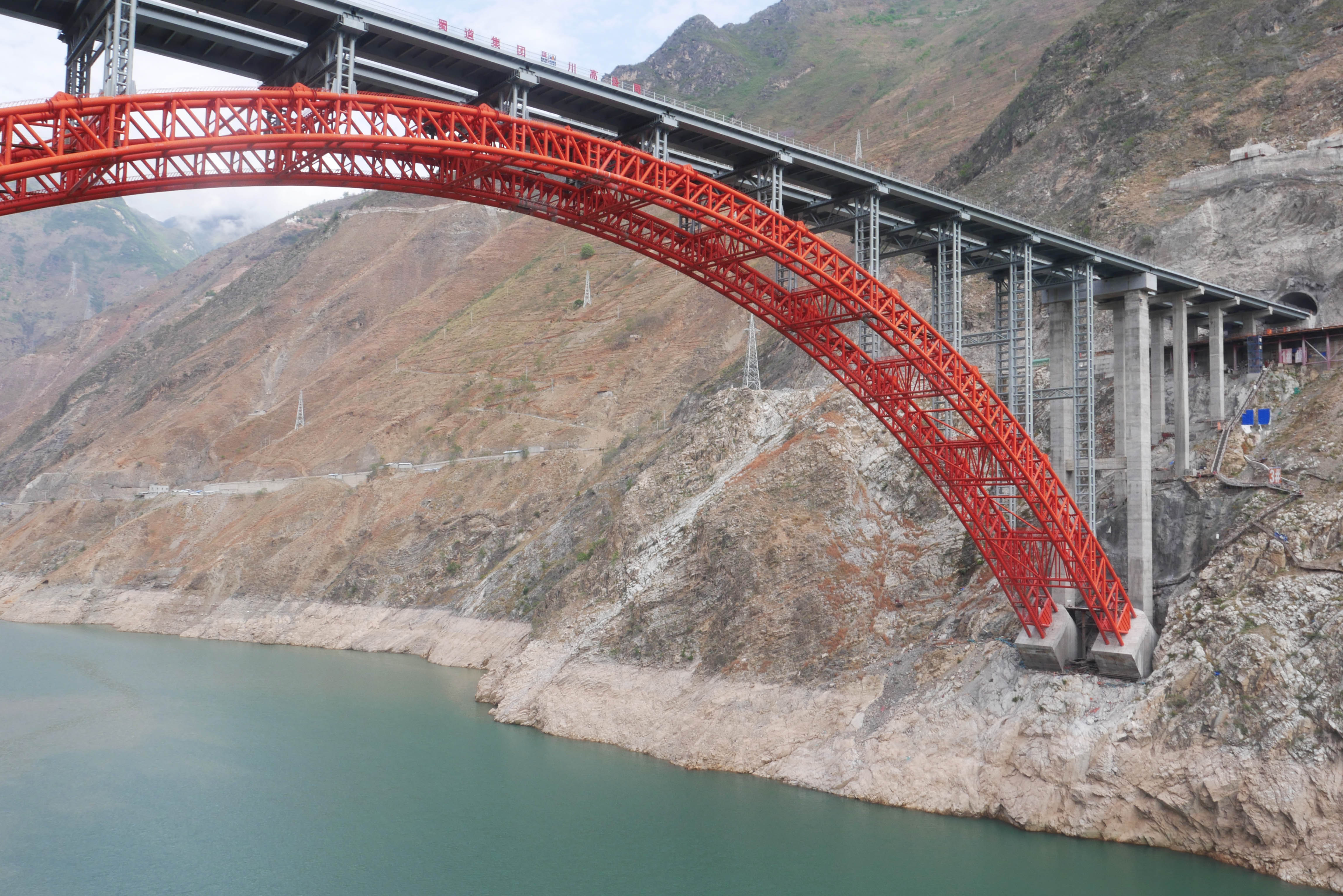

Image by Eric Sakowski / HighestBridges.com

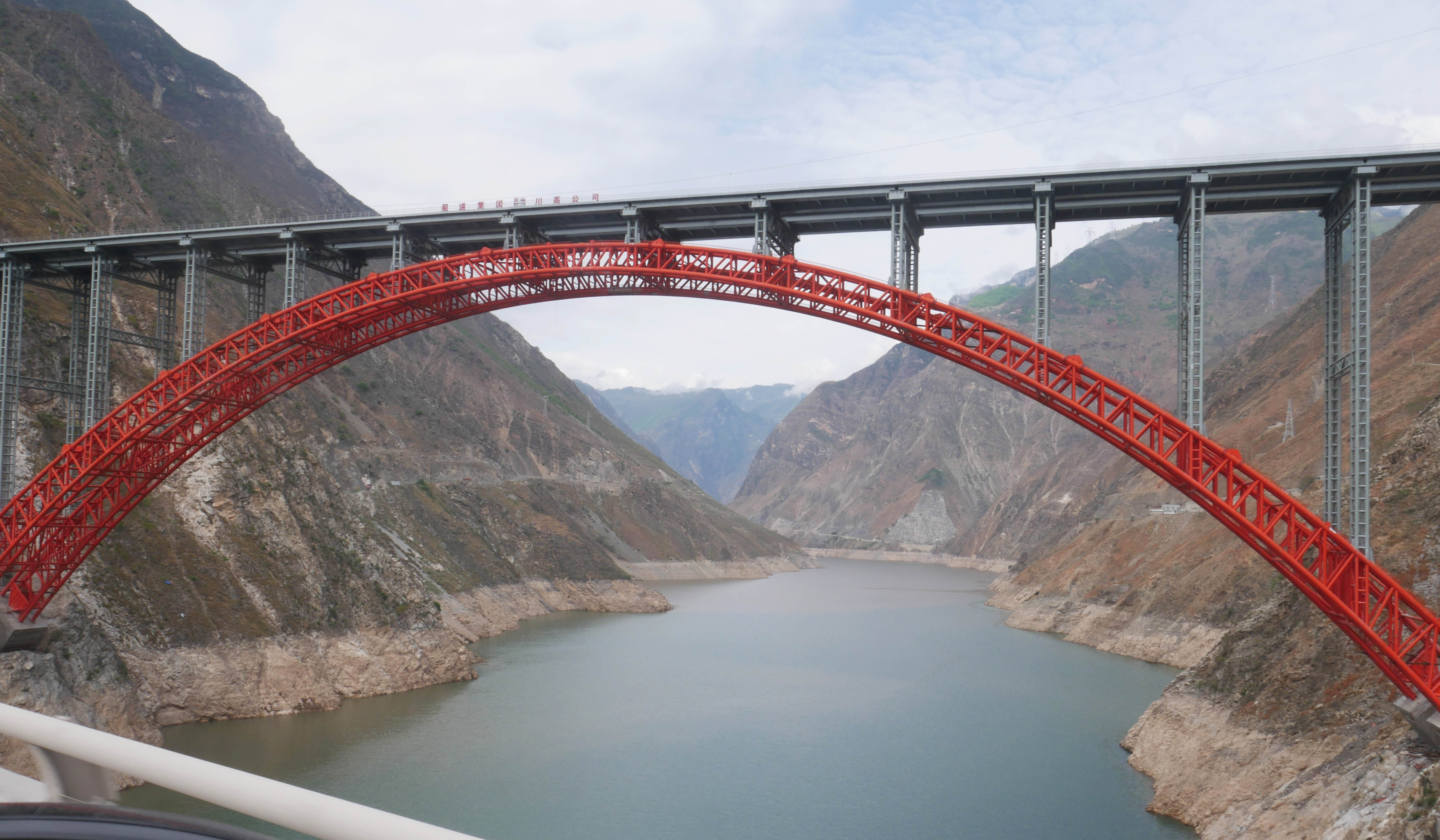

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com





Image by Eric Sakowski / HighestBridges.com





Image by Eric Sakowski / HighestBridges.com

















Liutonghe Bridge satellite image.







Liutonghe Bridge location map.
