Maling Bridge
马岭大桥
Malingzhen, Guizhou, China
423 feet high / 129 meters high
459 foot span / 140 meter span
2026



The Maling River and its upstream neighbor the Qingshui River are not as long or have gorges as deep as other more famous rivers in Guizhou Province but this river region will soon be home to a higher concentration of high bridges then any other location in the world.

The highest of these super size bridges will be near the city of Xingyi and will include Malinghe Bridges 1 to 5 as well as the older route 324 arch bridge.

The 2-lane Maling Bridge has a total length of 516 meters in a span configuration of 6x30 +77+140+77 +30 meters. Although the north end approach span piers were completed in 2015, construction on the bridge has been halted for 7 years and has still not resumed yet in 2023.

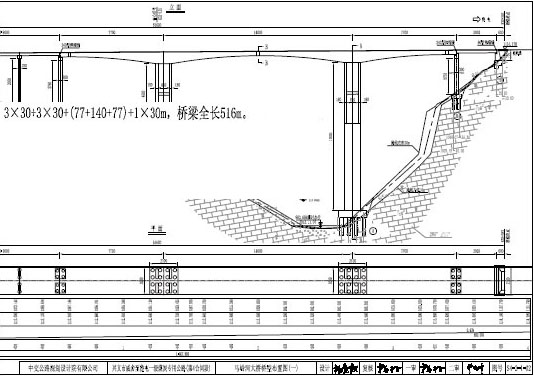

Maling Bridge Elevation



Maling Bridge satellite image.



Maling Bridge location map.
