Wujiang Bridge Zunyu
遵余高速乌江特大桥
Shilianxiang, Guizhou, China
974 feet high / 297 meters high
2,231 foot span / 680 meter span
2021

Wujiang Bridge Zunyu SideClosure.jpg


Despite a length of only 83 kilometers, the Zunyu expressway is another one of Guizhou's impressive mountain routes filled with high bridges including the spectacular Wujiang Zunyu suspension bridge and the Xingjiang cable stayed bridge that are both in the 300 meter height range.

The Wujiang Bridge is a large truss stiffened suspension crossing with a main span of 680 meters approximately 297 meters above the surface of the now hidden Wujiang River that is under a reservoir formed by the giant Goupitan Dam downstream.

The Wujiang Zunyu Bridge is located at kilometer 48 and has a total deck length of 1,240 meters with a span configuration of 9x40 +680+5x40 meters.

The route connecting Zunyi with Yuqing has several other high beam bridges including Luoquandong, Shanwangding, Yingpanshang and Shaba Bridges.


Wujiang Bridge Zunyu Elevation Final.jpg

Wujiang Bridge Zunyu Elevation


Wujiang Bridge ZunyuLakeDrone.jpg


Wujiang Bridge ZunyuDrone20.jpg


Wujiang Bridge ZunyuDrone26.jpg


Wujiang Bridge ZunyuDrone23.jpg


Wujiang Bridge ZunyuDroneFar.jpg


Wujiang Bridge ZunyuDrone22.jpg


Wujiang Bridge Zunyu DeckSky.jpg


Wujiang Bridge Zunyu 56.jpg


Wujiang Bridge Zunyu TrussRiver.jpg


Wujiang Bridge Zunyu TrussBend.jpg


Wujiang Bridge Zunyu DeckSign.jpg


Wujiang Bridge Zunyu TrussFinal.jpg


Wujiang Bridge Zunyu 59.jpg

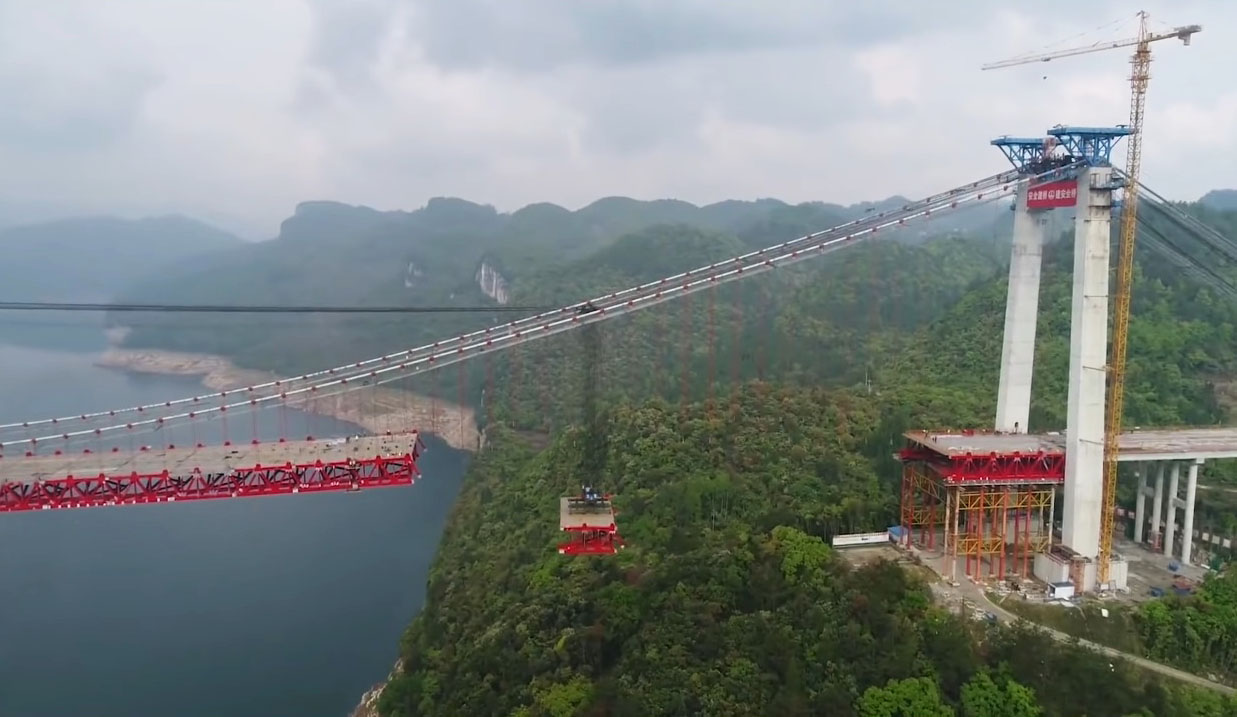

Wujiang Bridge Zunyu 58.jpg


Wujiang Bridge Zunyu 54.jpg


Wujiang Bridge Zunyu TrussMove.jpg


Wujiang Bridge Zunyu 57.jpg


Wujiang Bridge Zunyu 55.jpg


Wujiang Bridge Zunyu HighSky.jpg


Wujiang Bridge Zunyu 50.jpg


Wujiang Bridge Zunyu 51.jpg


Wujiang Bridge ZunyuWiderDrone.jpg


Wujiang Bridge ZunyuDroneReservoir.jpg


Wujiang Bridge ZunyuApproachDrone.jpg


Wujiang Bridge ZunyuTowerDrone.jpg


Wujiang Bridge ZunyuTower.JPG

Image by Eric Sakowski / HighestBridges.com


Wujiang Bridge ZunyuTowerBottom.JPG

Image by Eric Sakowski / HighestBridges.com


Wujiang Bridge Zunyu Render.jpg


Wujiang Bridge ZunyuModel.JPG

Image by Eric Sakowski / HighestBridges.com


Wujiang Bridge ZunyuModel3.JPG

Image by Eric Sakowski / HighestBridges.com


Wujiang Bridge ZunyuModel2.JPG

Image by Eric Sakowski / HighestBridges.com


Wujiang Bridge ZunyuModel7.JPG

Image by Eric Sakowski / HighestBridges.com


Wujiang Bridge ZunyuModel4.JPG

Image by Eric Sakowski / HighestBridges.com

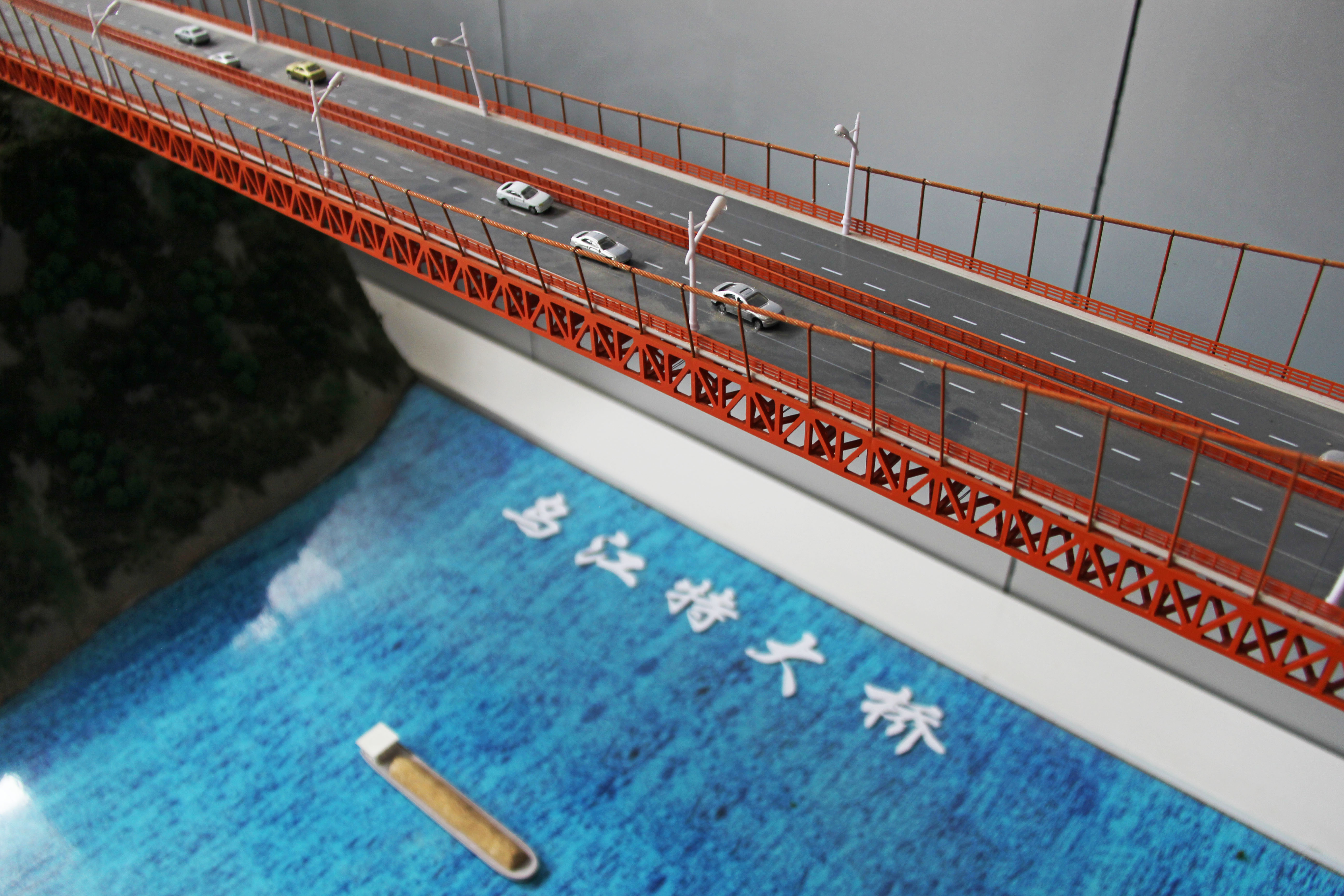

Wujiang Bridge ZunyuModel5.JPG

Image by Eric Sakowski / HighestBridges.com


Wujiang Bridge ZunyuModel8.JPG

Image by Eric Sakowski / HighestBridges.com


Wujiang Bridge ZunyuModel9.JPG

Image by Eric Sakowski / HighestBridges.com



Wujiang Bridge Zunyu satellite view. Image courtesy of Planet Labs, Inc.





Wujiang Bridge Zunyu location map.


Wujiang bridge Zunyu with Goupitan reservoir.JPG


ZunyuExpressway copy.jpg

Zunyu older expressway map. The west end of the route was modified somewhat from this early map.
