Wuyanghe Bridge
舞阳河特大桥
Zhenyuan, Guizhou, China
459 feet high / 140 meters high
591 foot span / 180 meter span
2013



Wuyanghe is one of several high beam bridges on the north-south highway between Sinan and the G60 expressway in Guizhou Province. Several different configurations were studied before they decided on a double beam span of 180 meters on piers as high as 120 meters. The other designs included a cable stayed bridge with a span of 270 meters and single span beams as long as 230 meters.

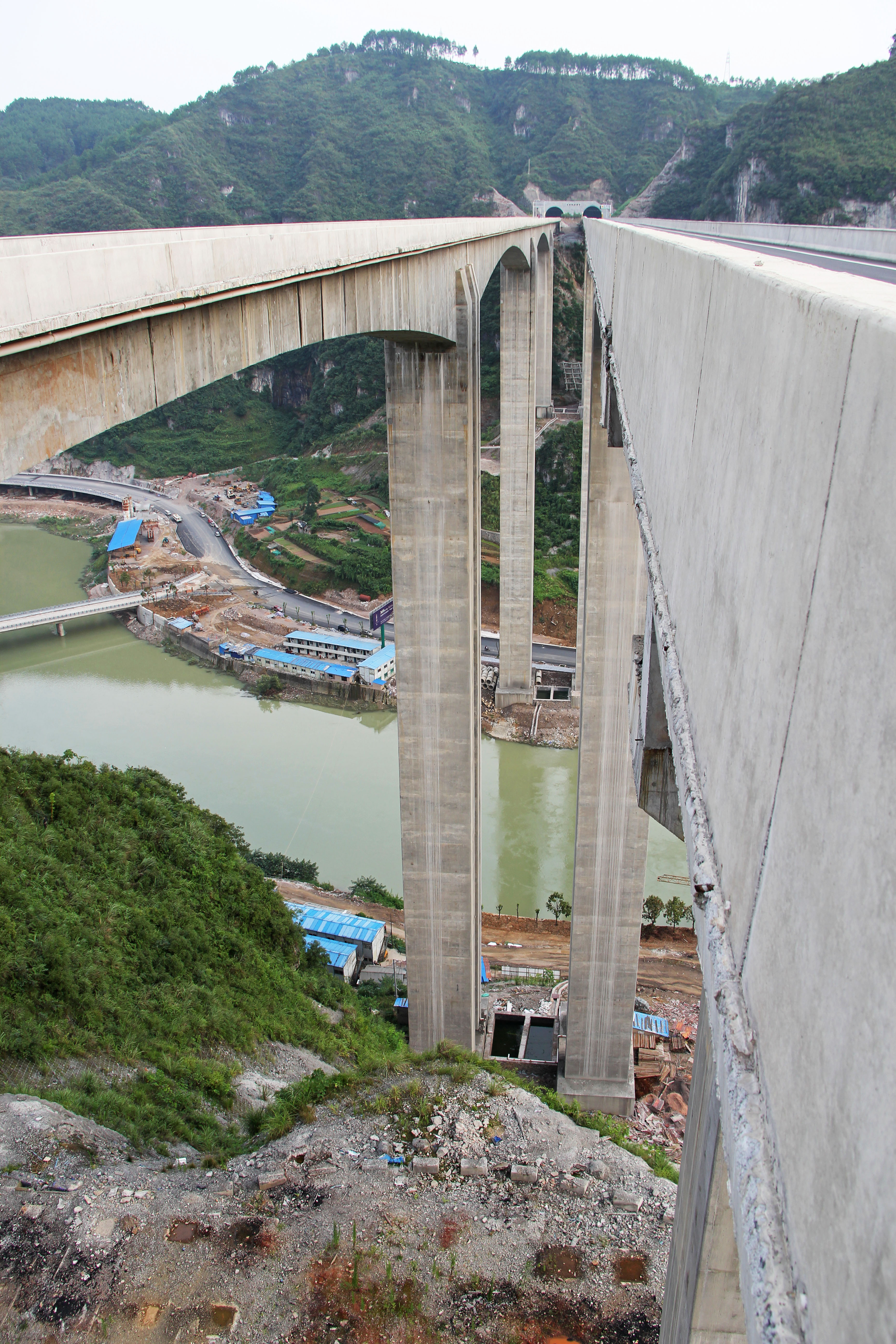

Image by Eric Sakowski / HighestBridges.com

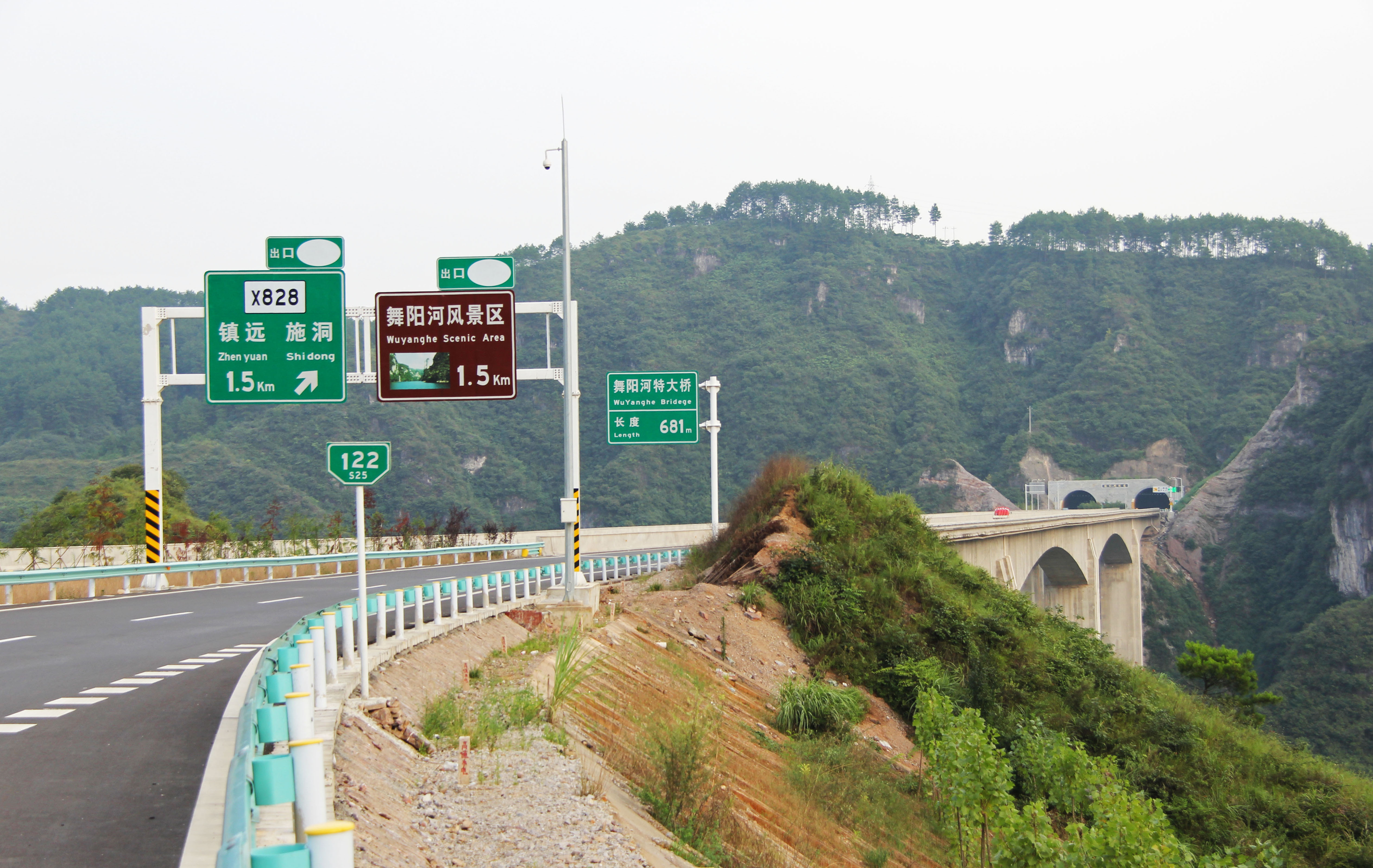

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com





Wuyanghe crosses one of eastern Guizhou's biggest rivers before the expressway meets up with the older G60 expressway. Image by Eric Sakowski / HighestBridges.com



Wuyang River canyon. Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com








Early computer rendering of the Wuyanghe Bridge.



Wuyanghe Bridge satellite image with approximate location of bridge drawn in.





Wuyanghe Bridge location map with approximate location of bridge drawn in.
