Wuzuohe Bridge

From HighestBridges.com
Jump to navigationJump to search

Wuzuohe Bridge
武佐河特大桥
Yinazhen, Guizhou, China
738 feet high / 225 meters high
1,247 foot span / 380 meter span
2015



The Wuzuohe Bridge is a welcome site along the G76 expressway as it is just one of only 3 cable stayed or extradosed bridges on the 2,192 kilometer long highway that is otherwise filled with more then two dozen of the world's highest concrete beam bridges. The gargantuan Chishi Viaduct and the nearby Longjiang Bridge are the only other non-beam spans along the entire route.

The 380 meter main span of Wuzuohe crosses the mouth of the Wuzuo River just 200 meters from its junction with the giant Liuchong River. Measuring 1.46 kilometers in length, the span configuration of Wuzuohe is 13×40 +178+380+178 +5×40 meters. The two piers measure 214.6 and 204 meters tall. The deck has a width of 27 meters and a depth of 2.6 meters. The cable stays are spaced 7.5 meters along the main span but vary between 6.5 and 5.5 meters on the side spans.

The equally high Wuzuohe Railway Bridge is located 5 kilometers upstream of the G76 crossing.

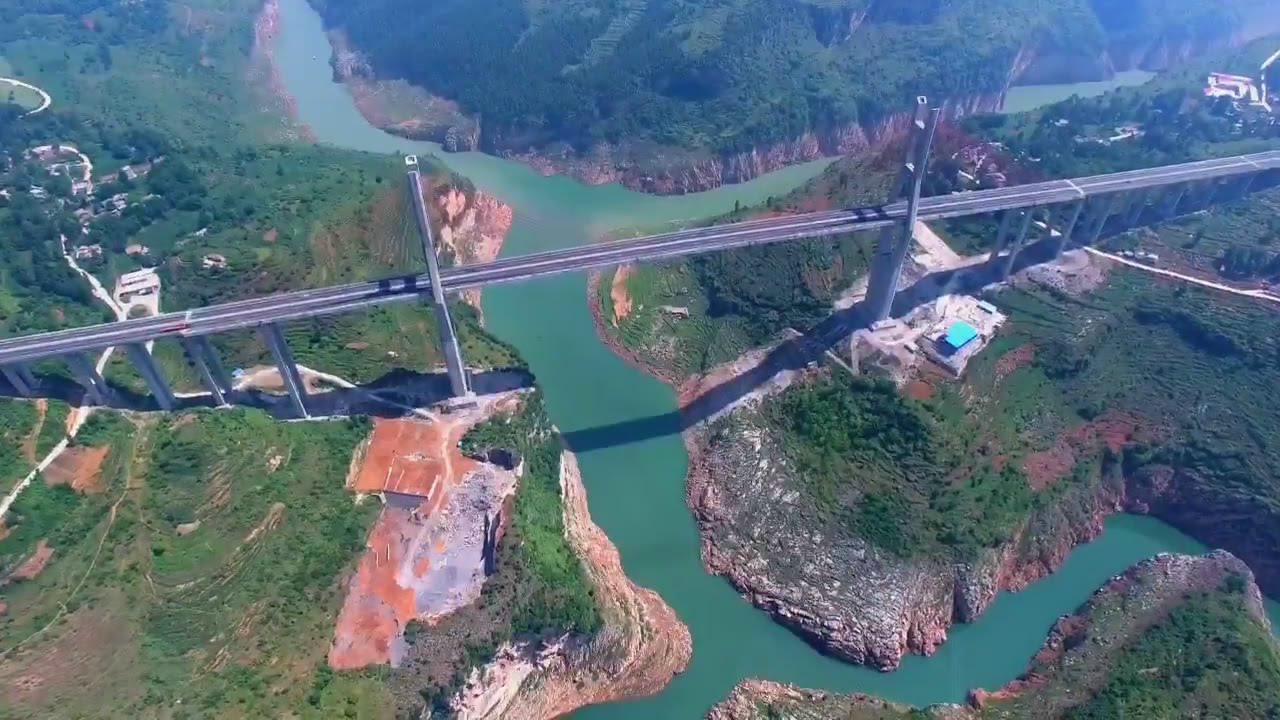

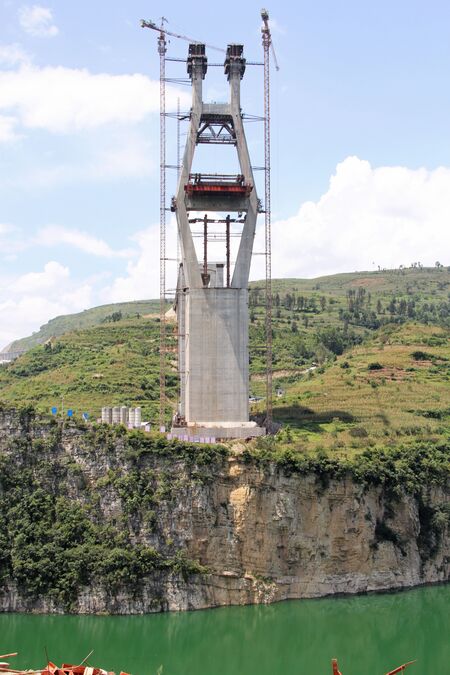

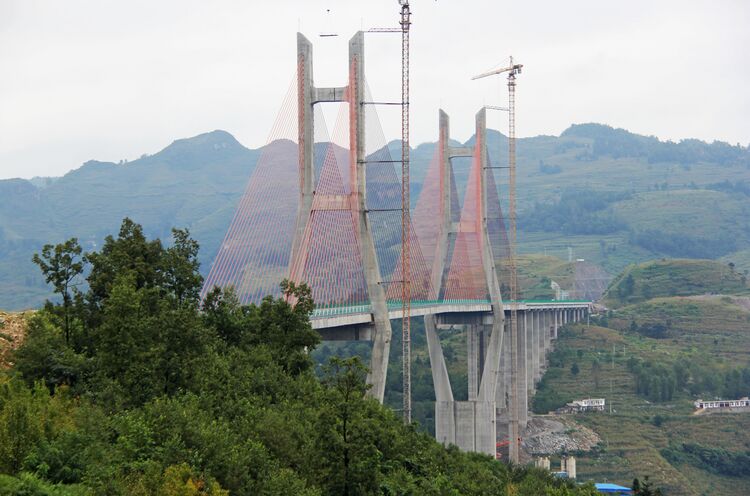

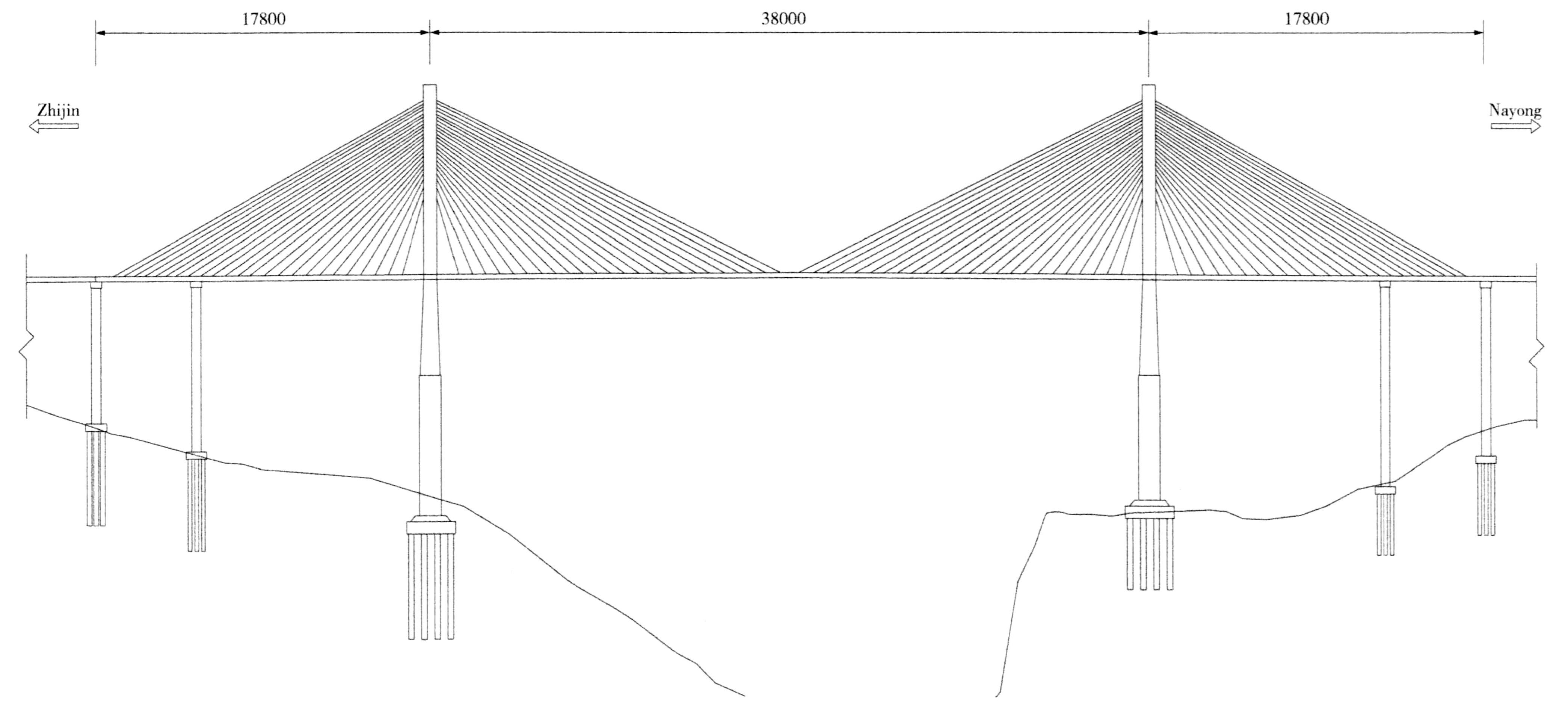

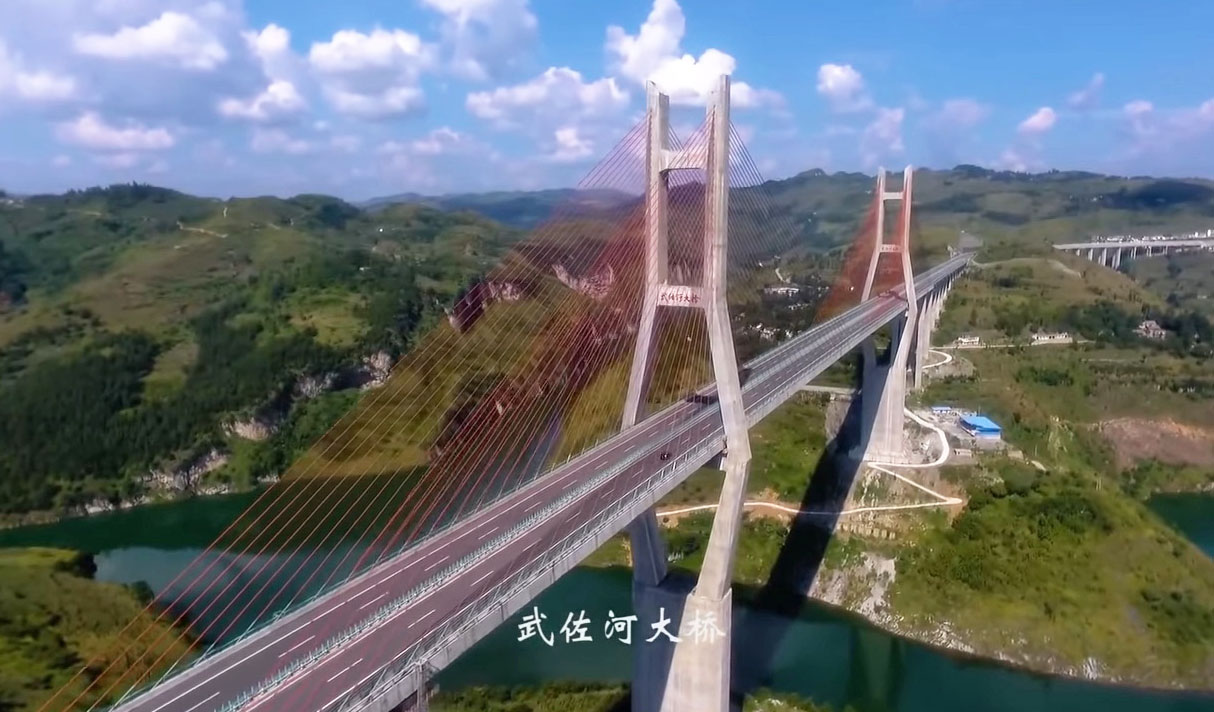

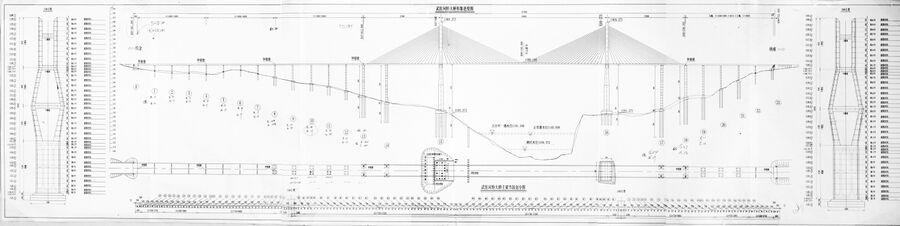

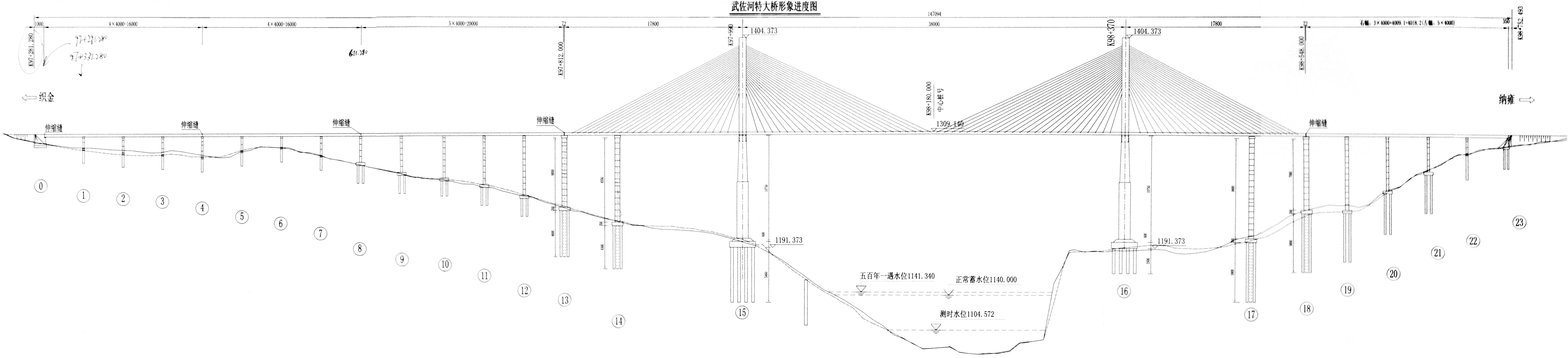

Wuzuohe Bridge Elevation













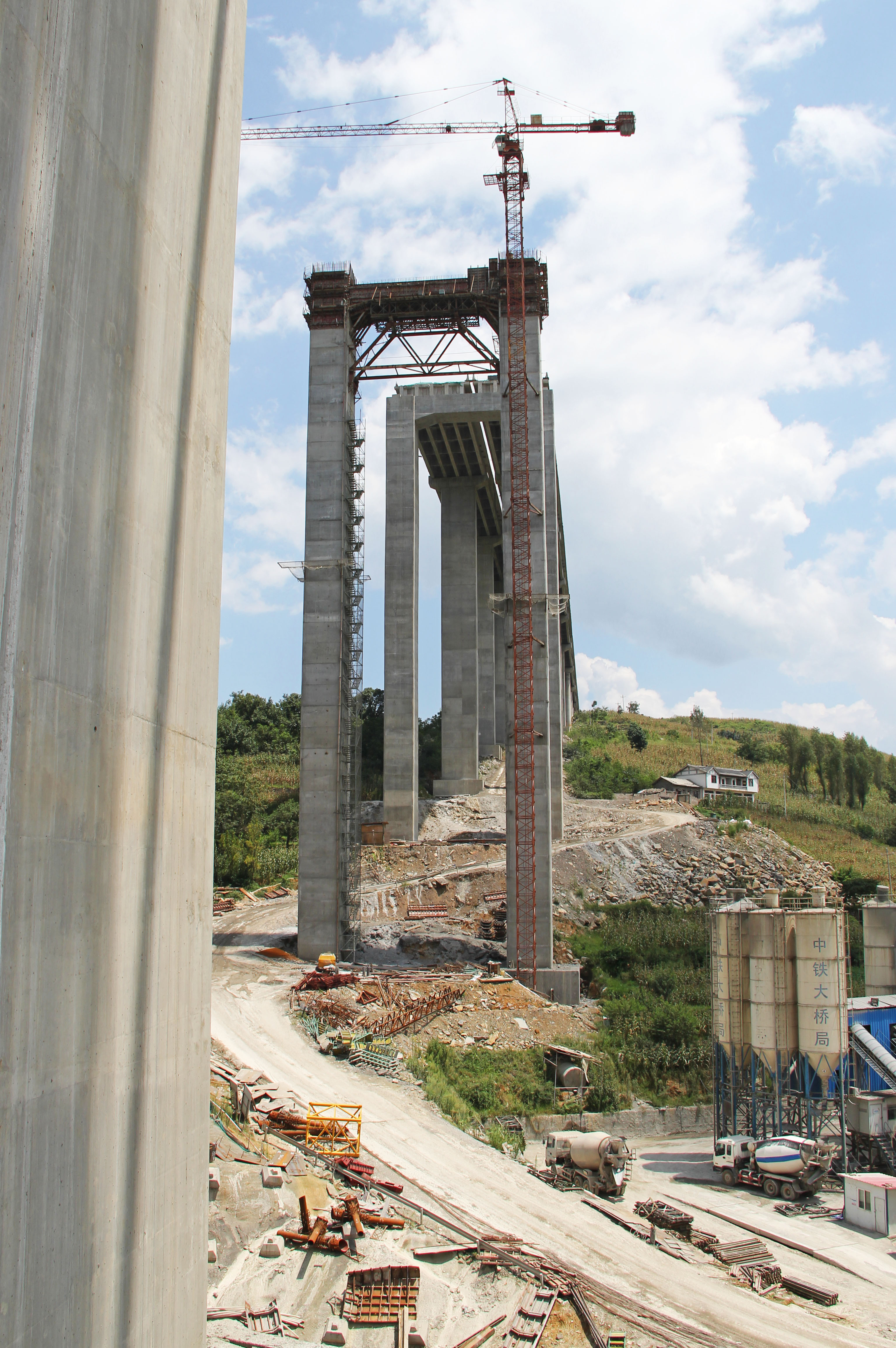

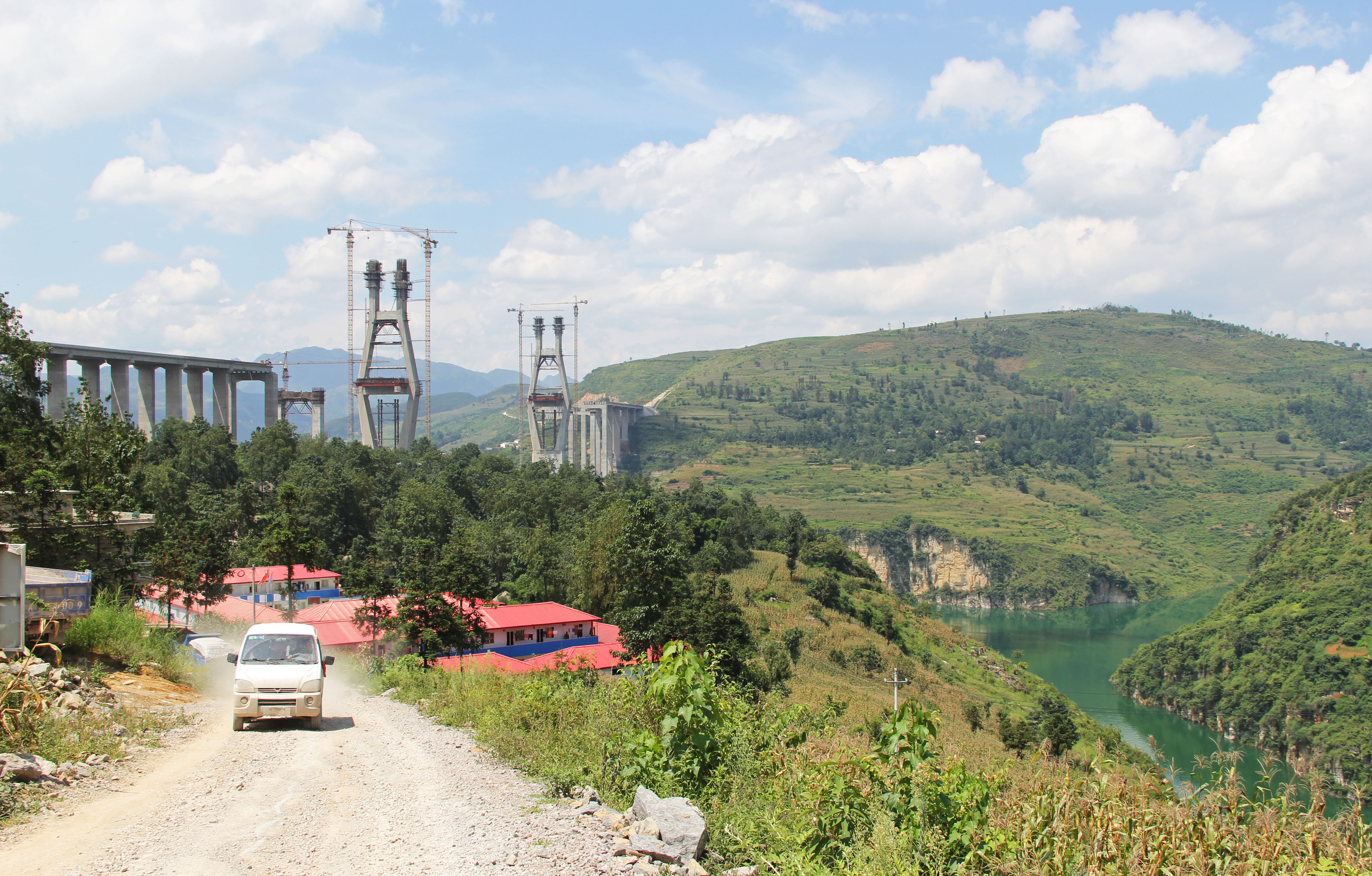

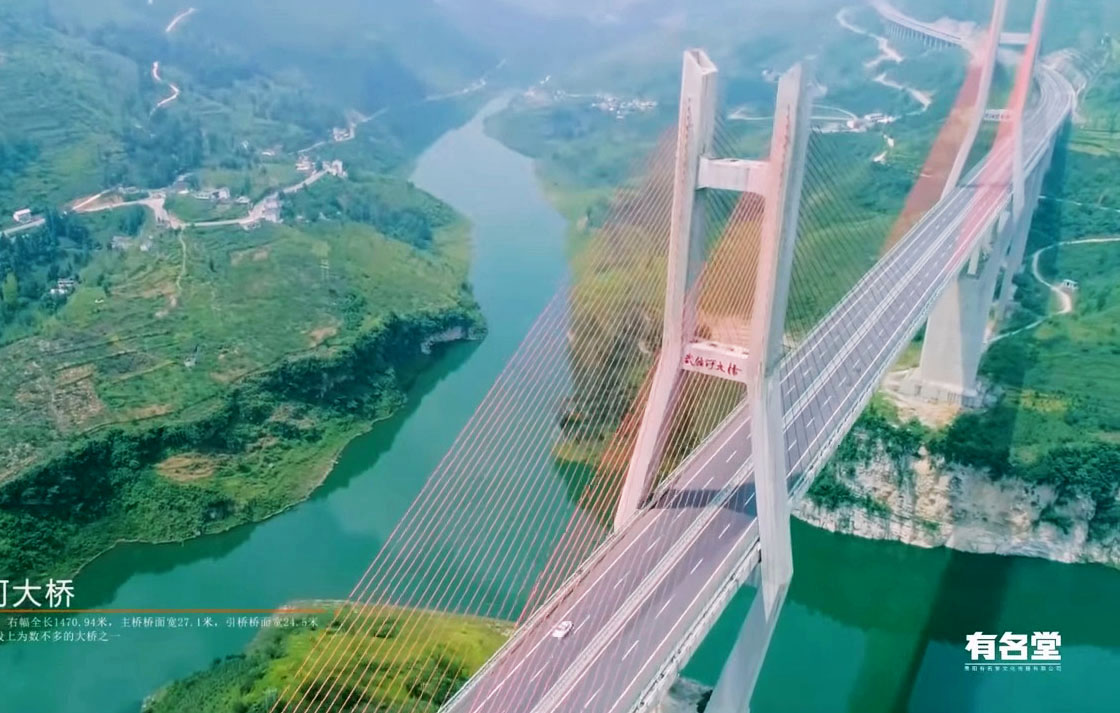

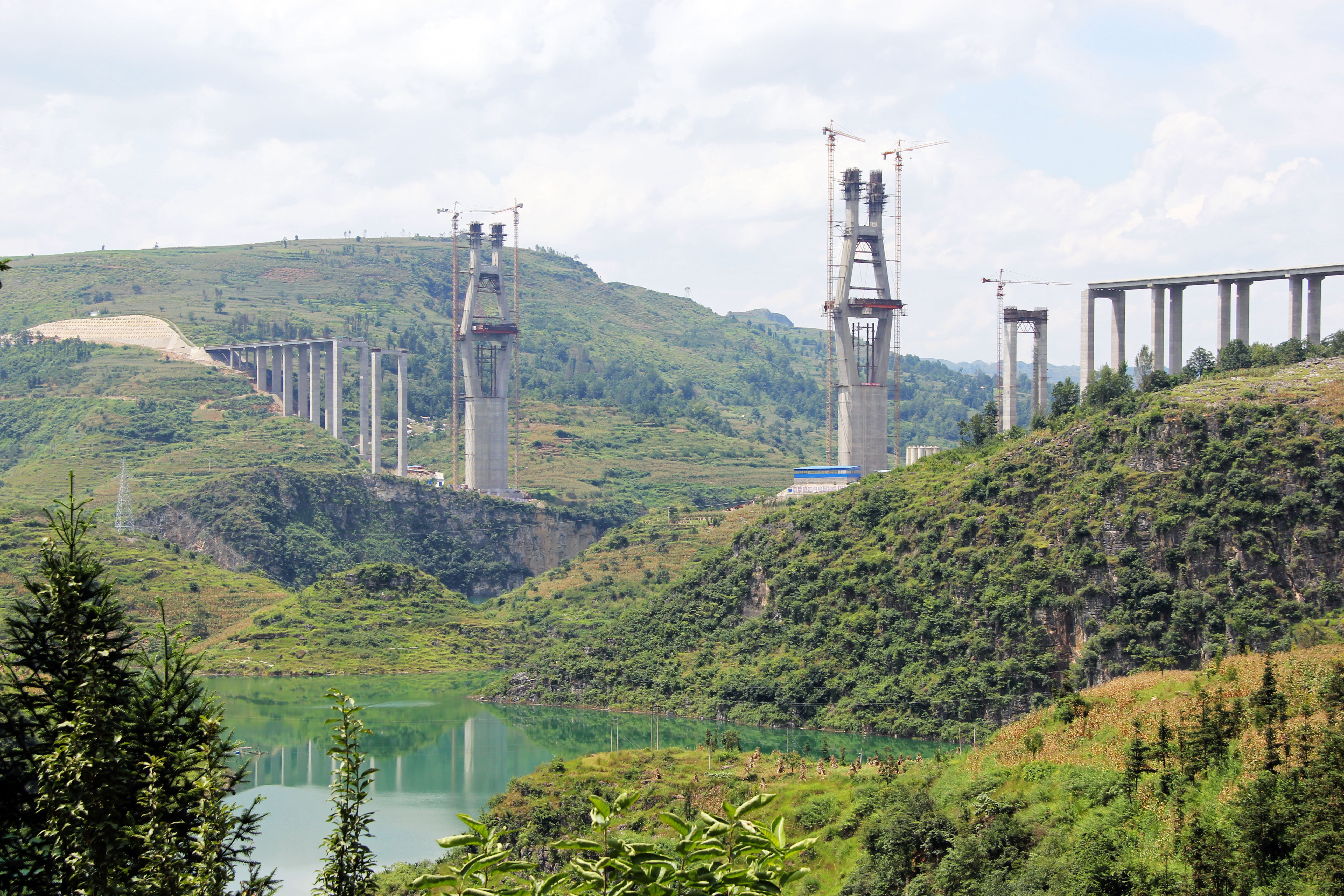

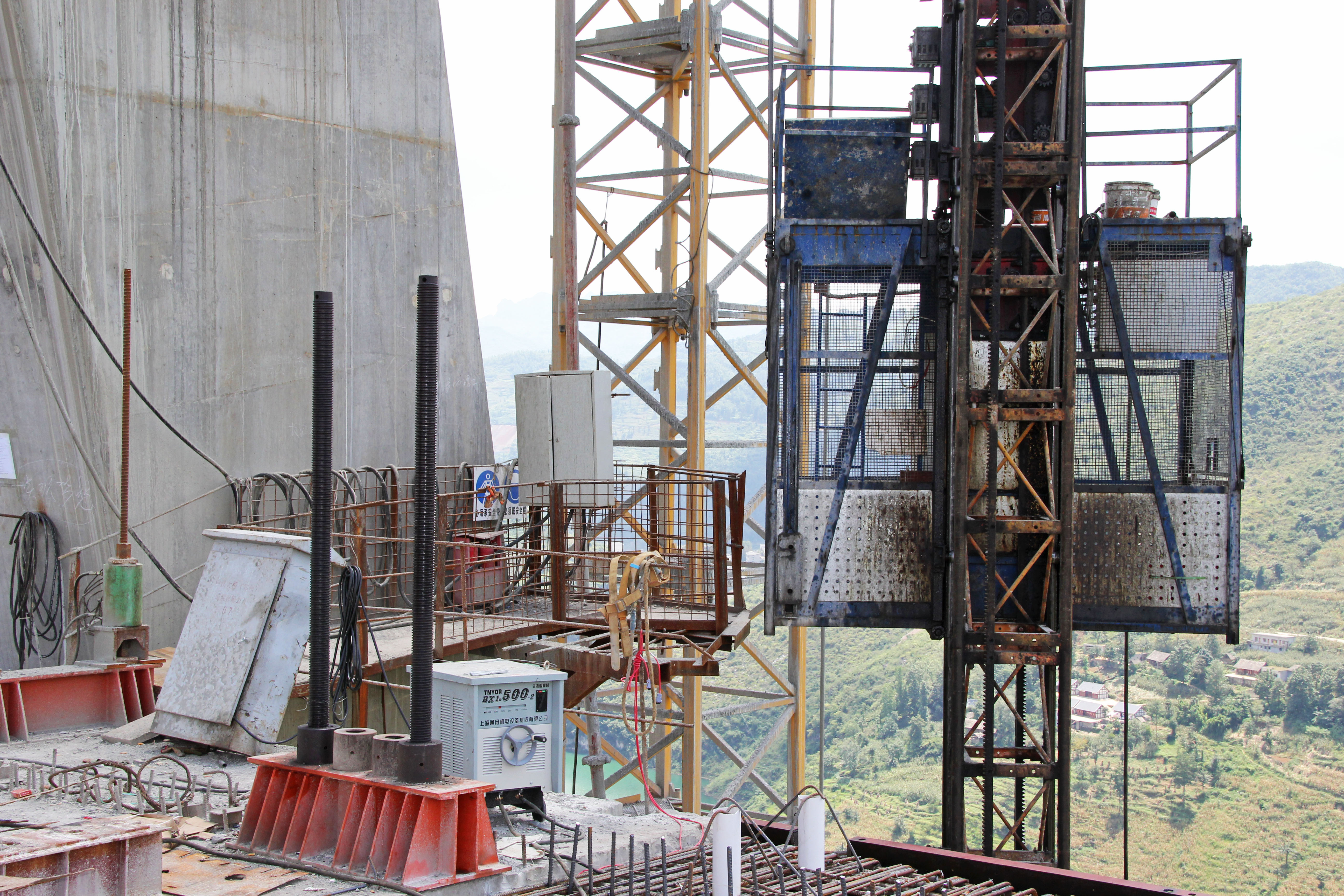

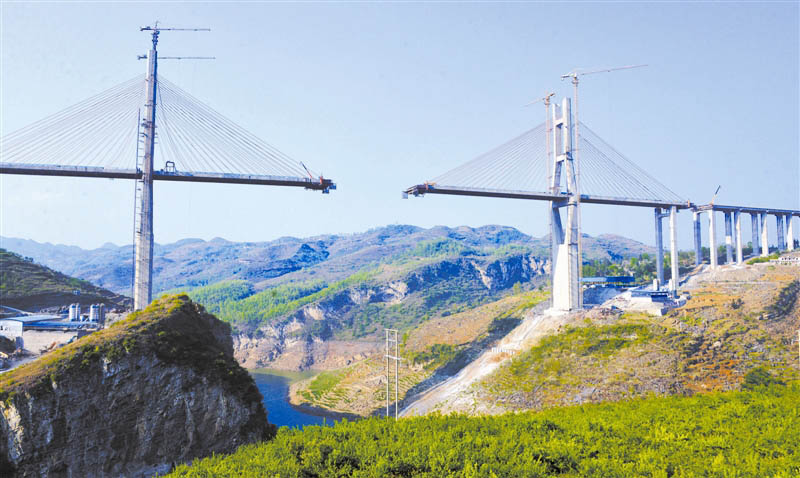

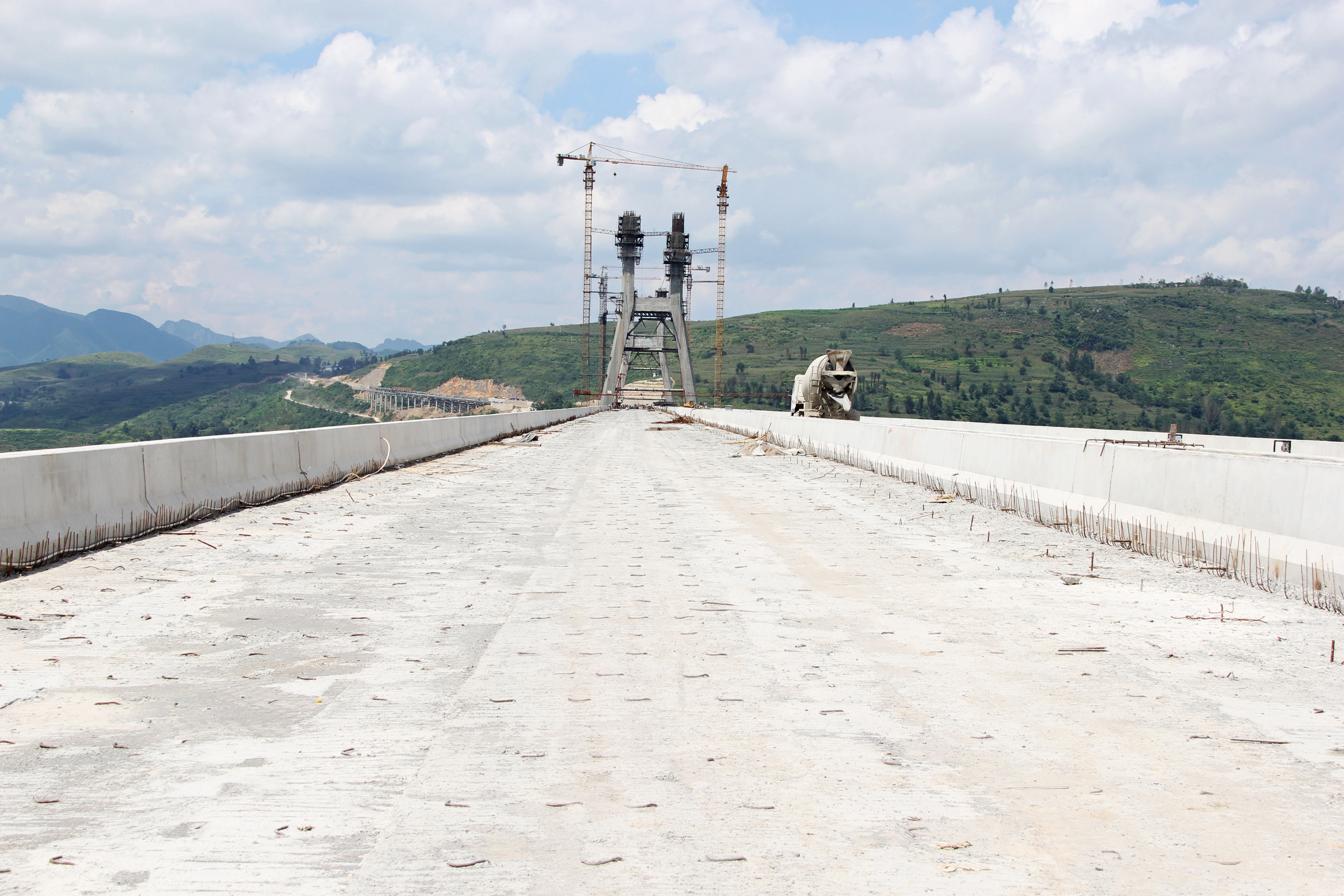

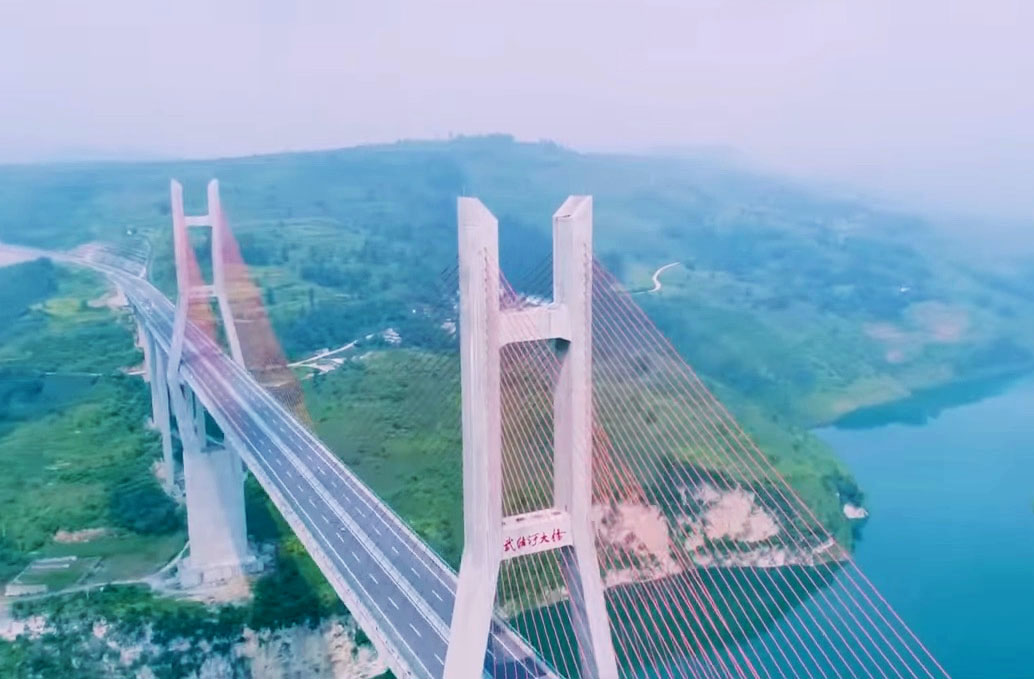

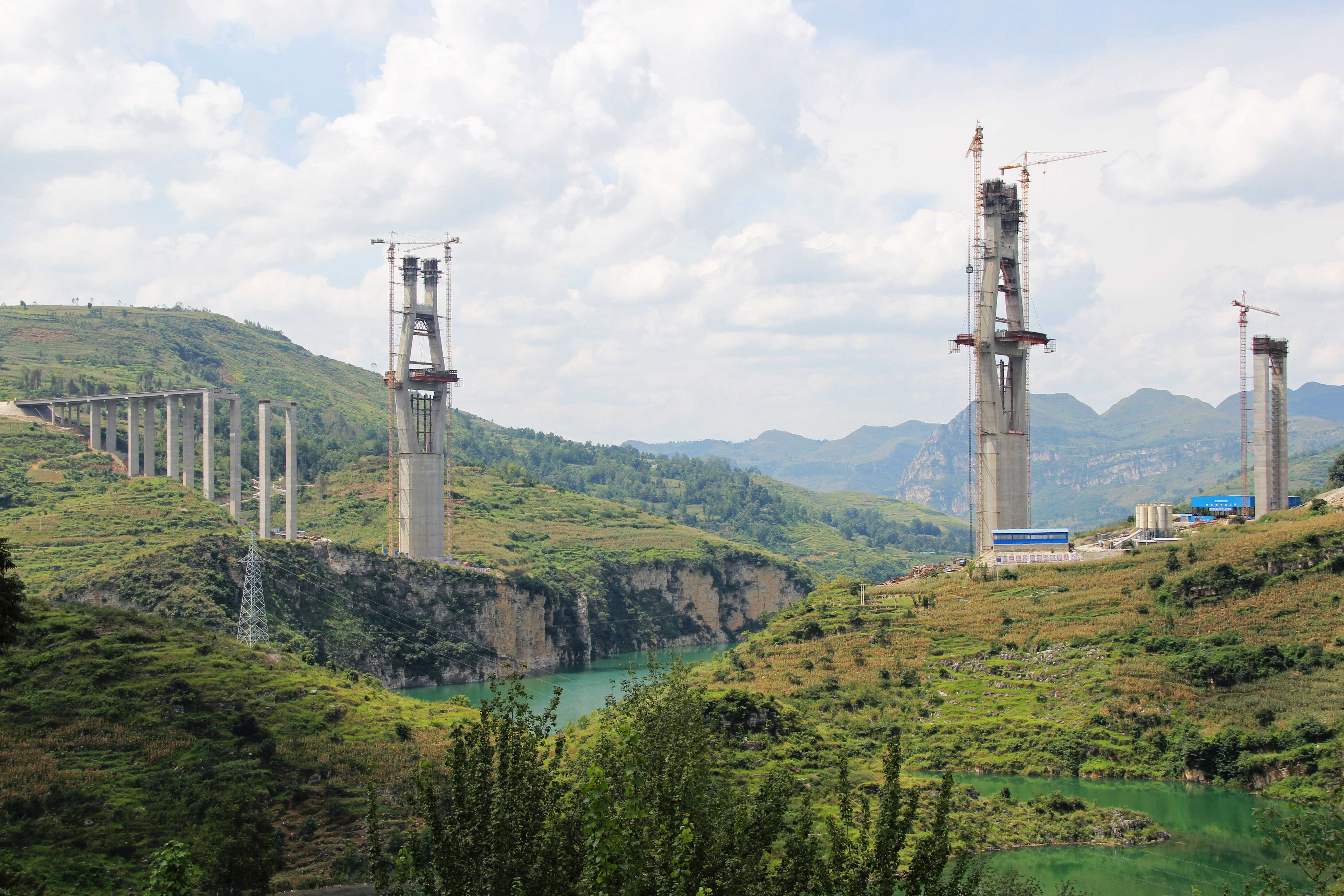

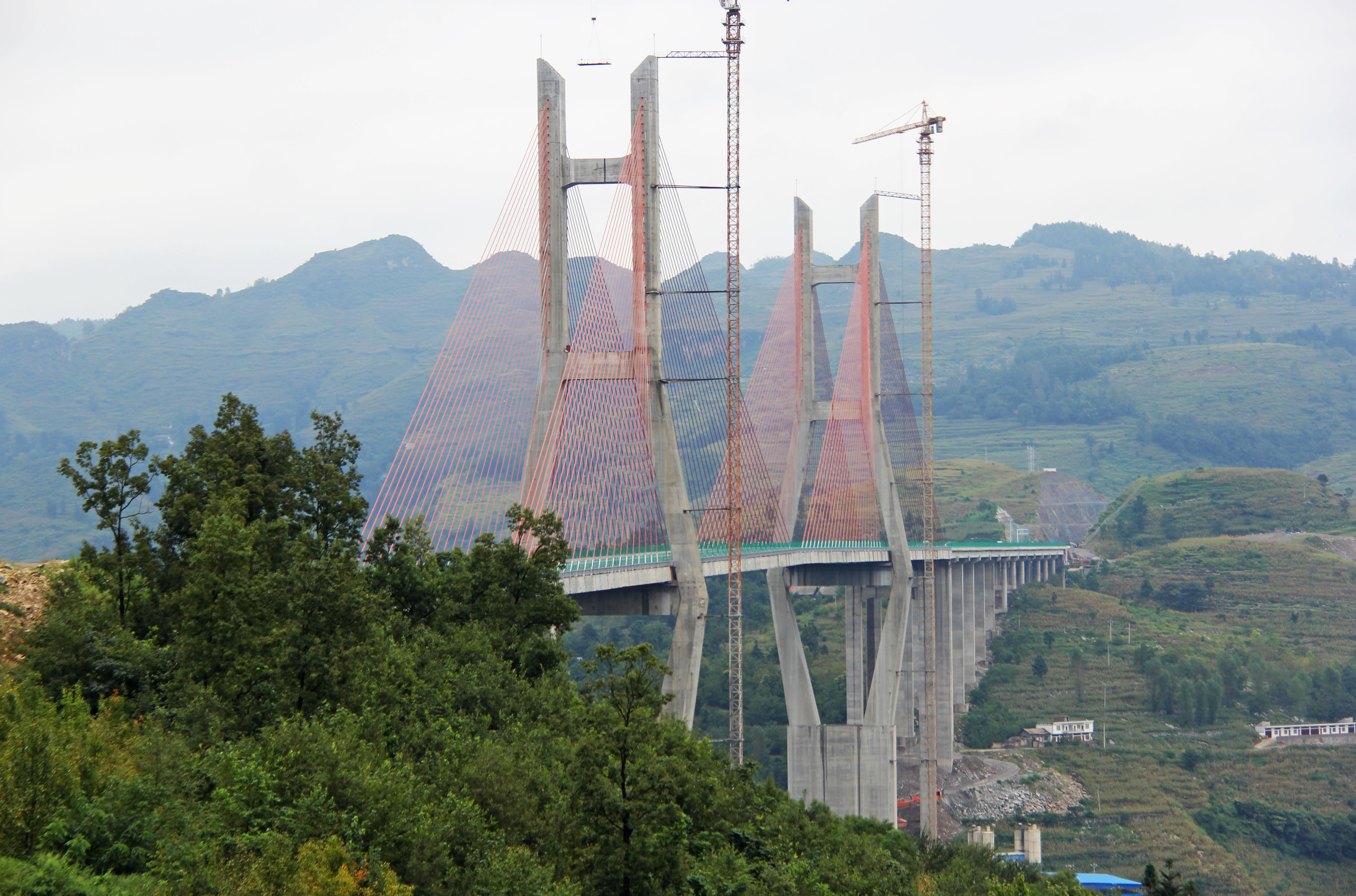

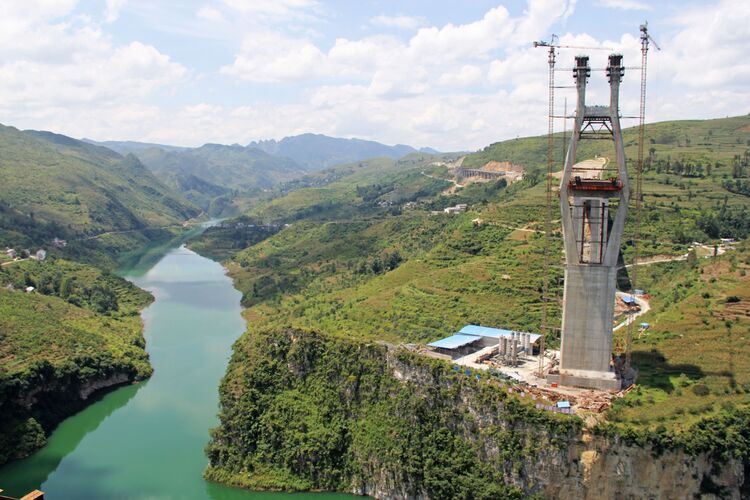

Image by Eric Sakowski / HighestBridges.com



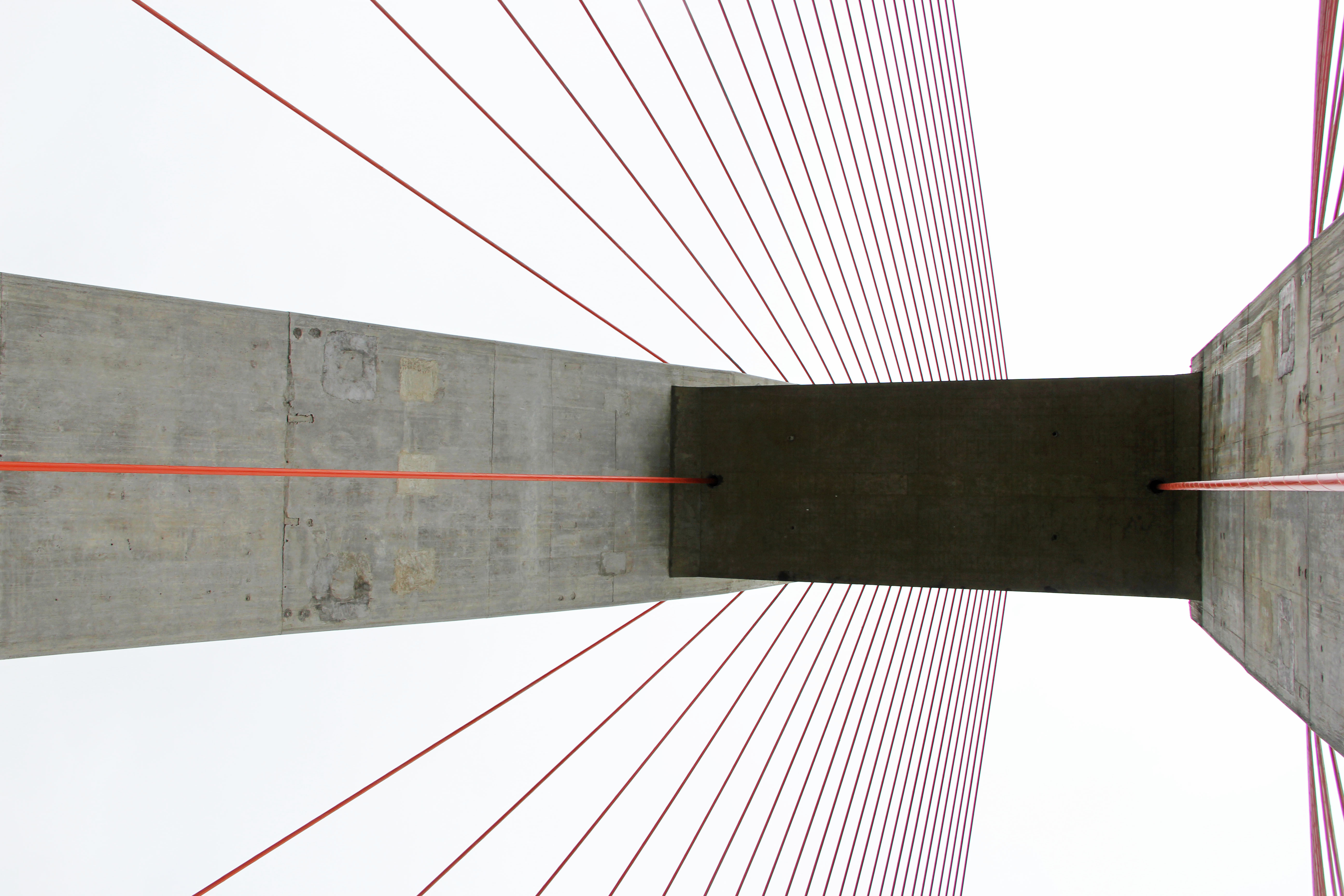

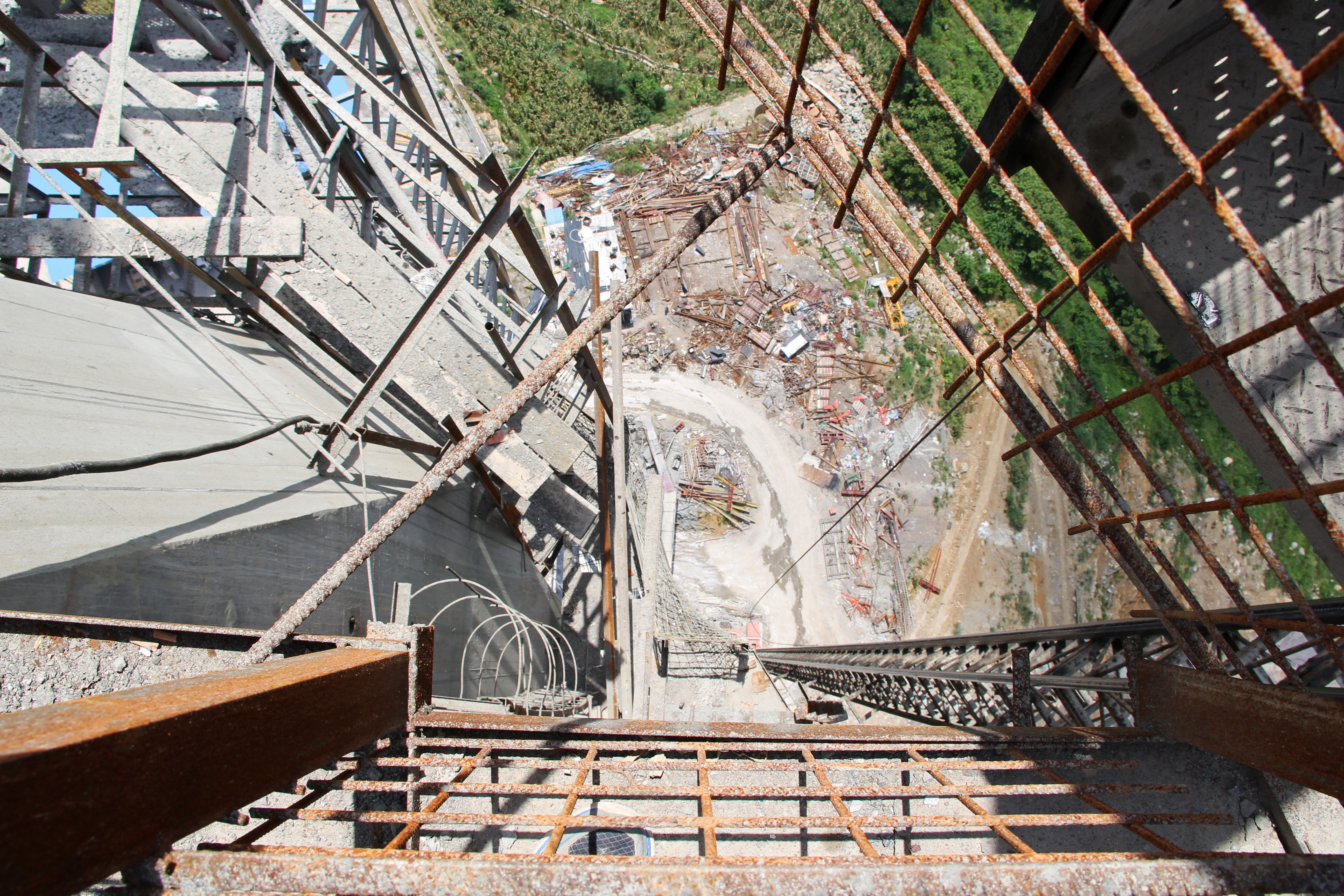

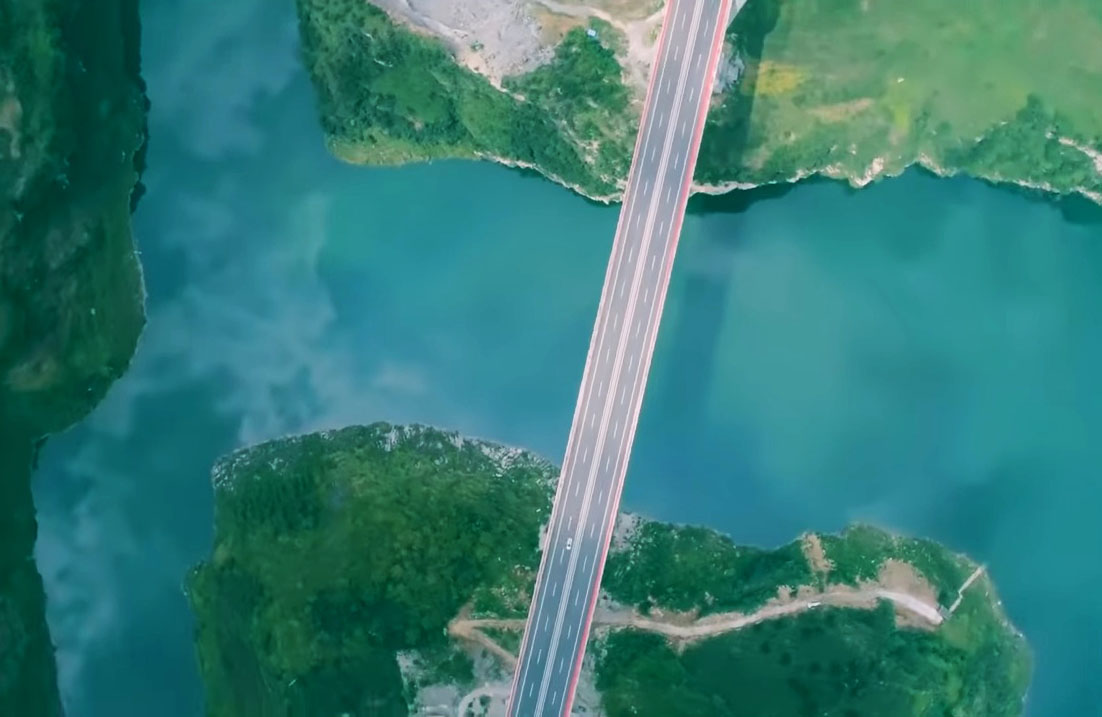

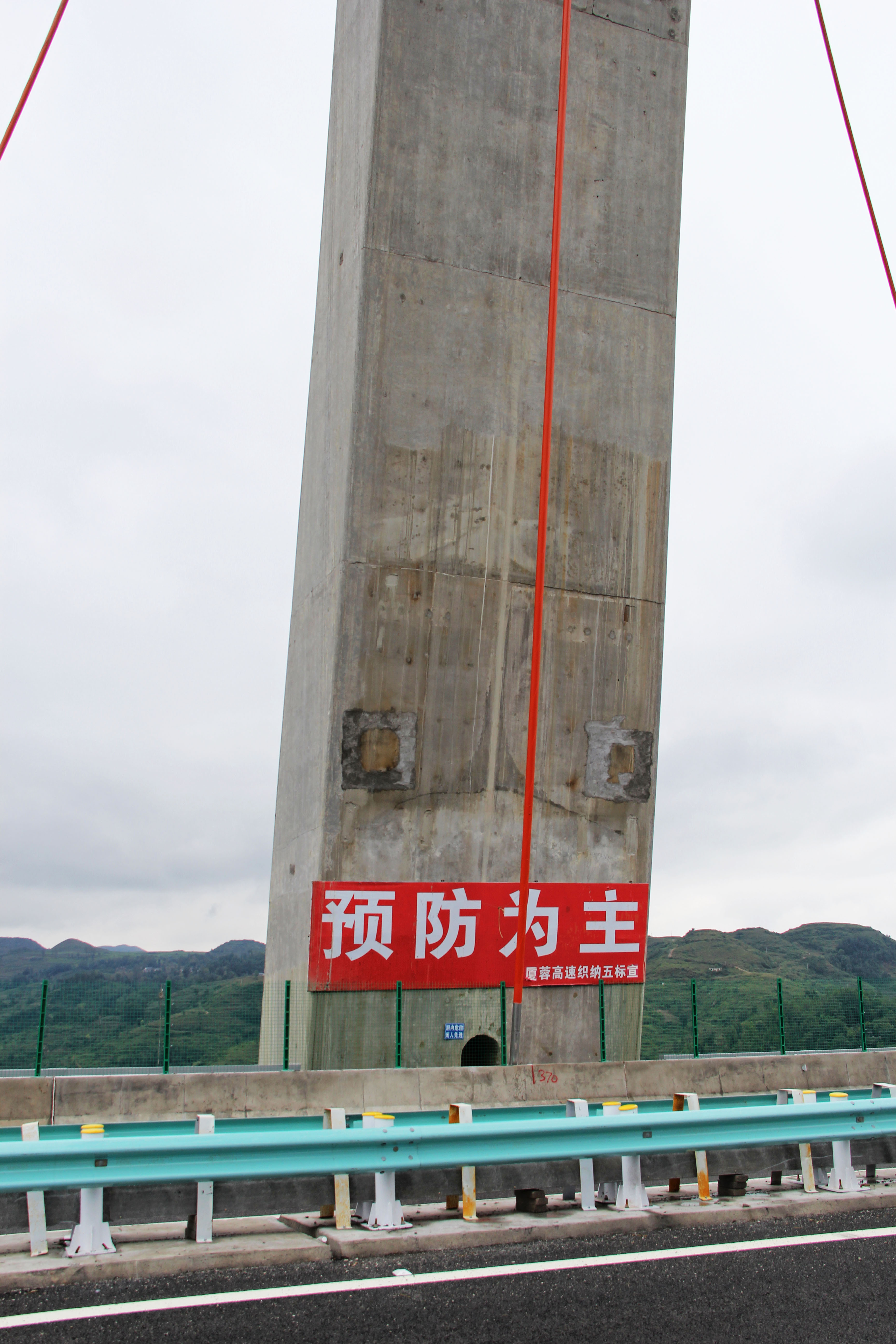

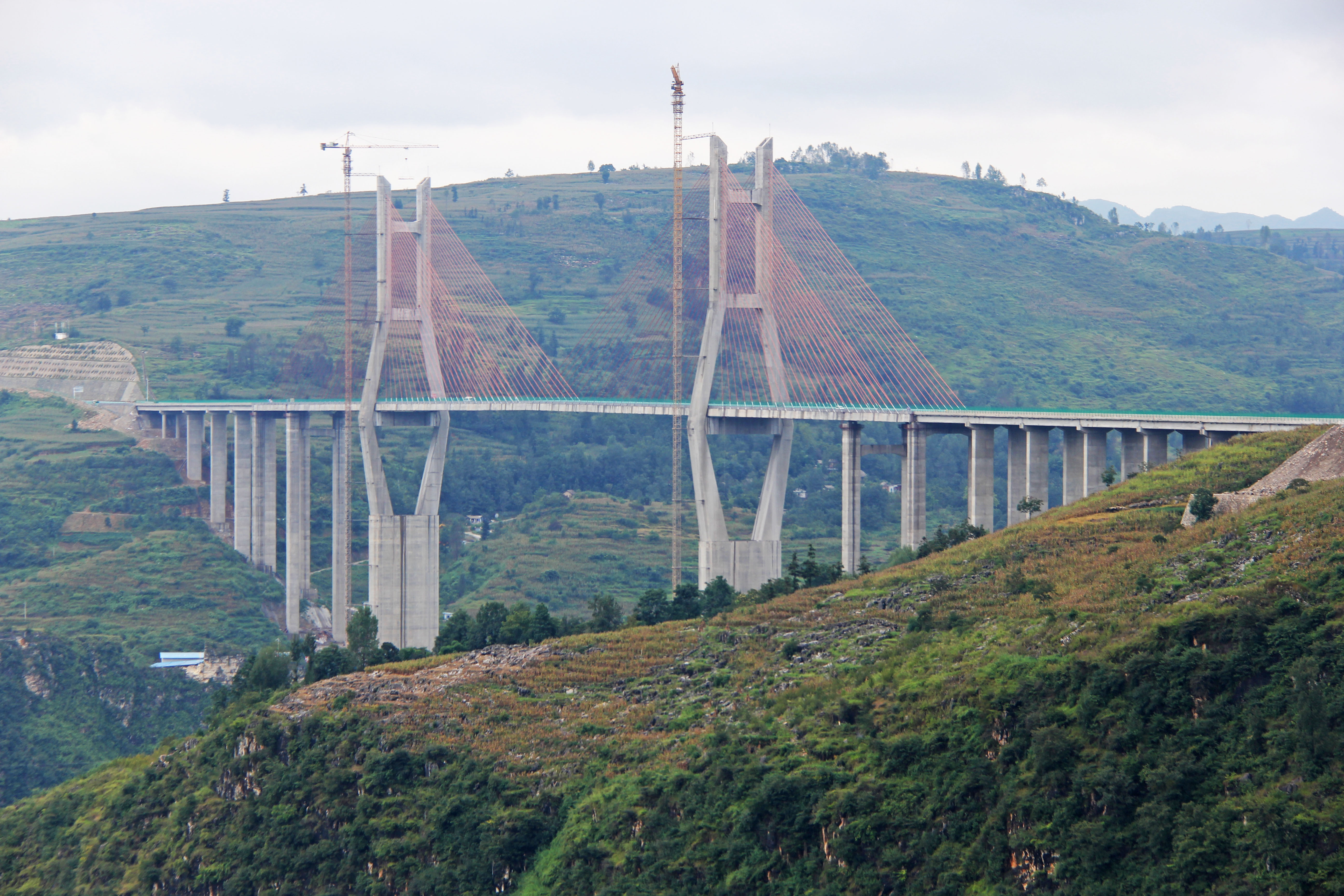

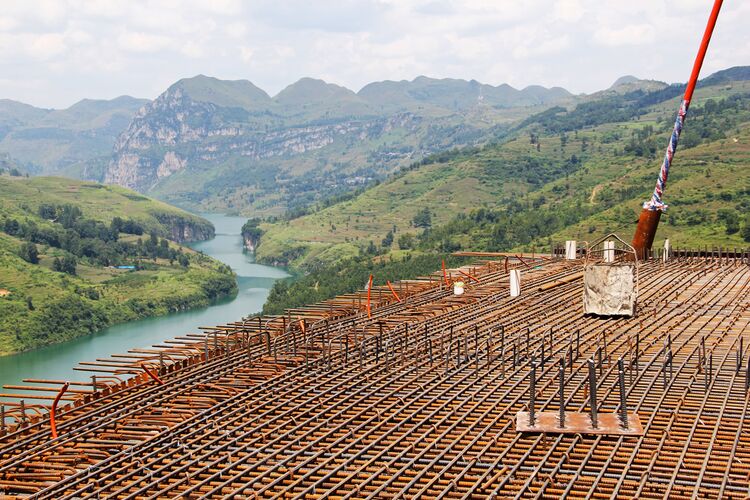

Image by Eric Sakowski / HighestBridges.com

























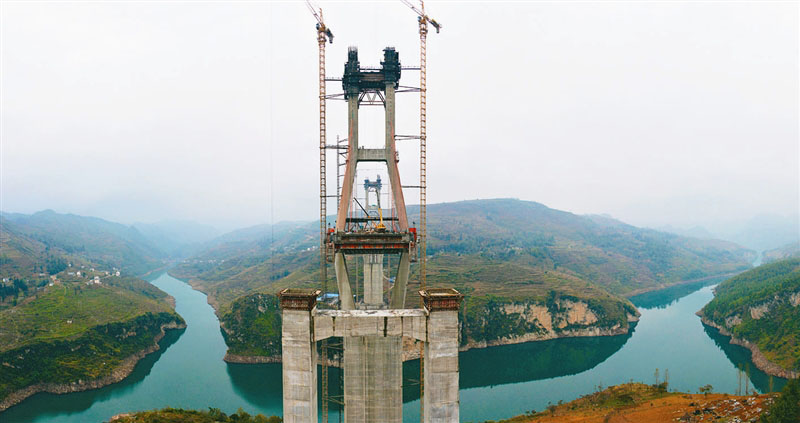

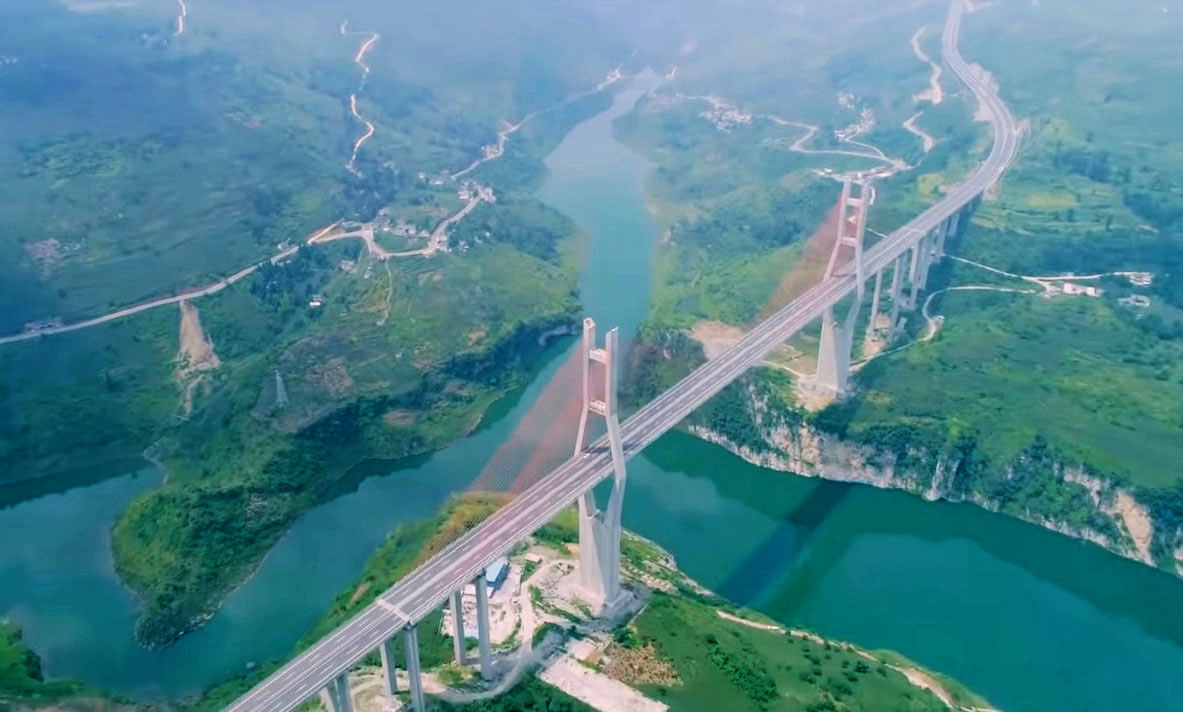

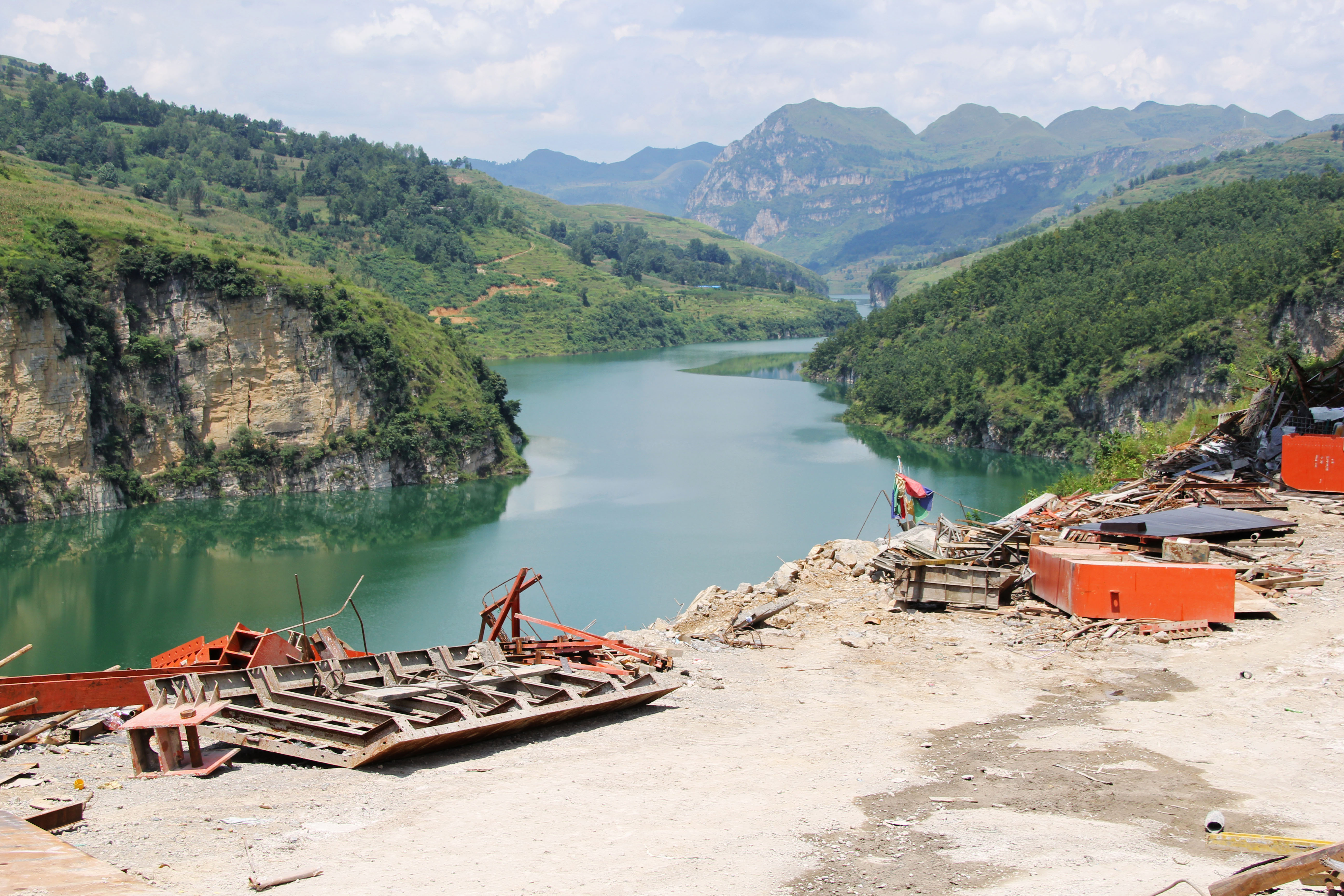

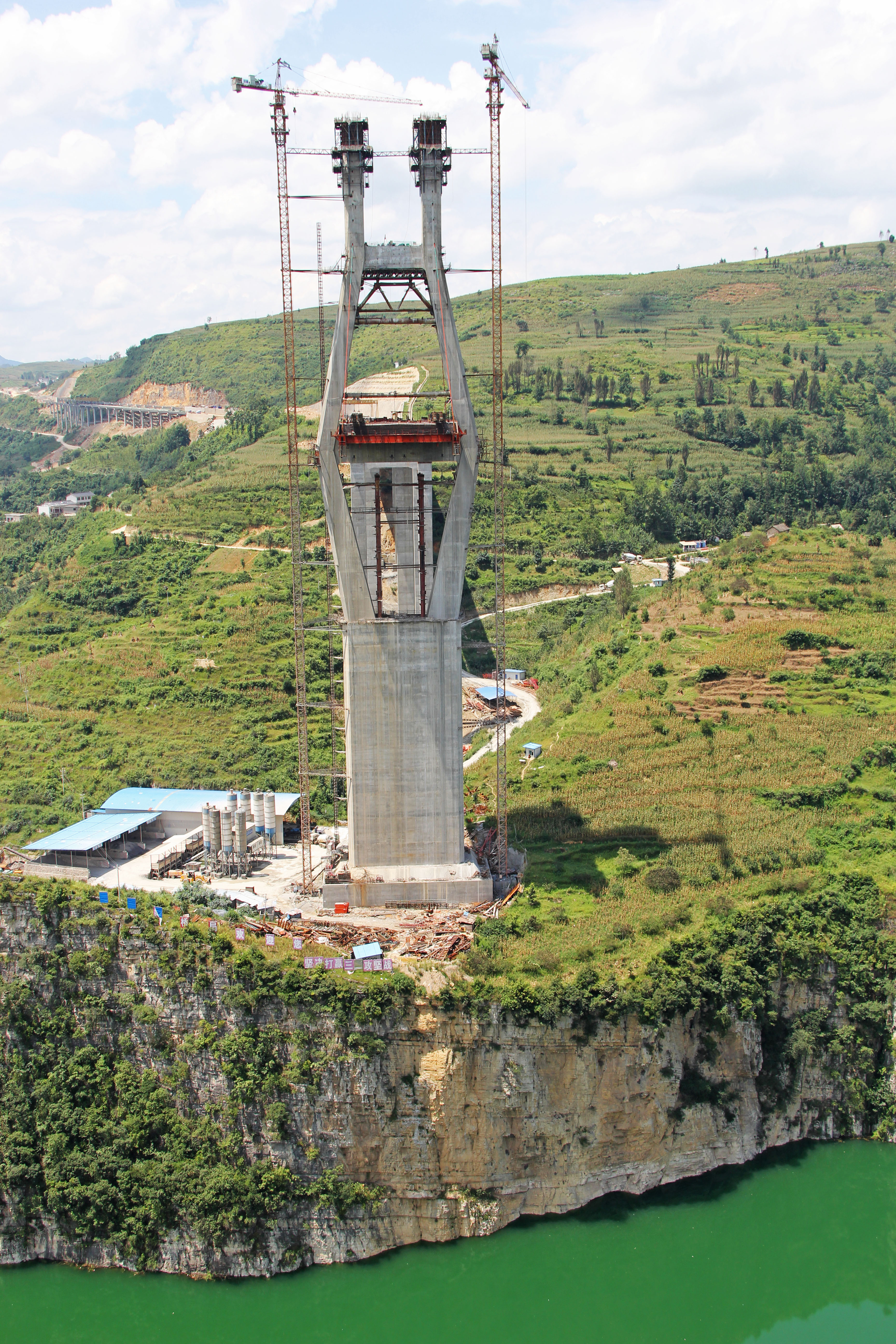

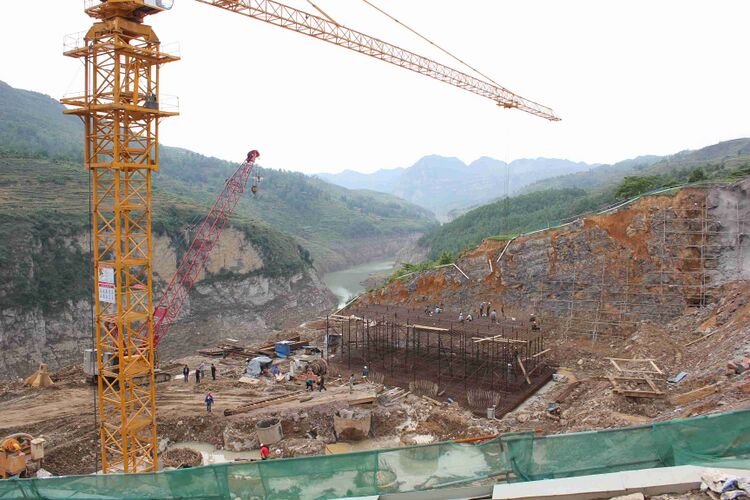

Image by Eric Sakowski / HighestBridges.com



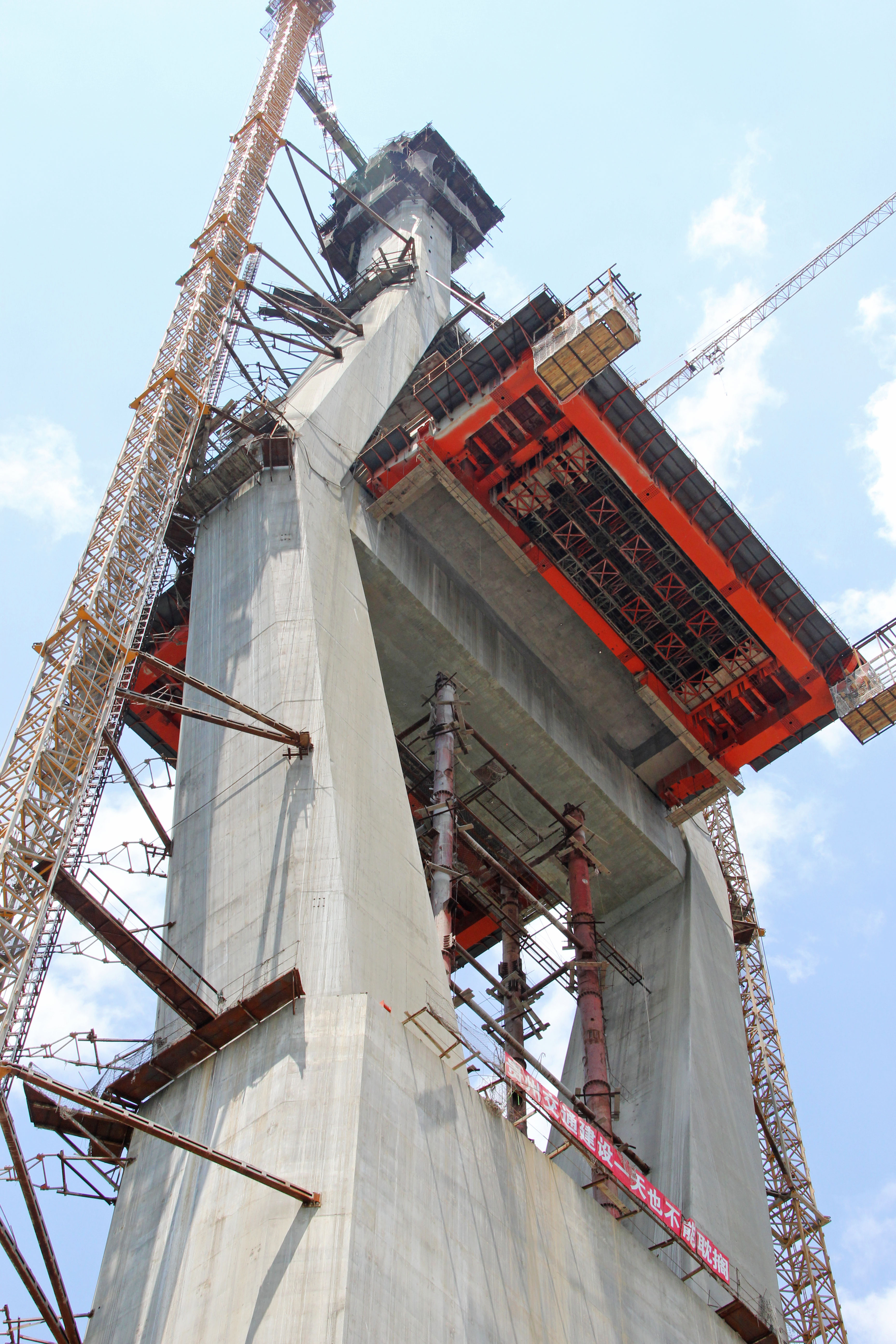

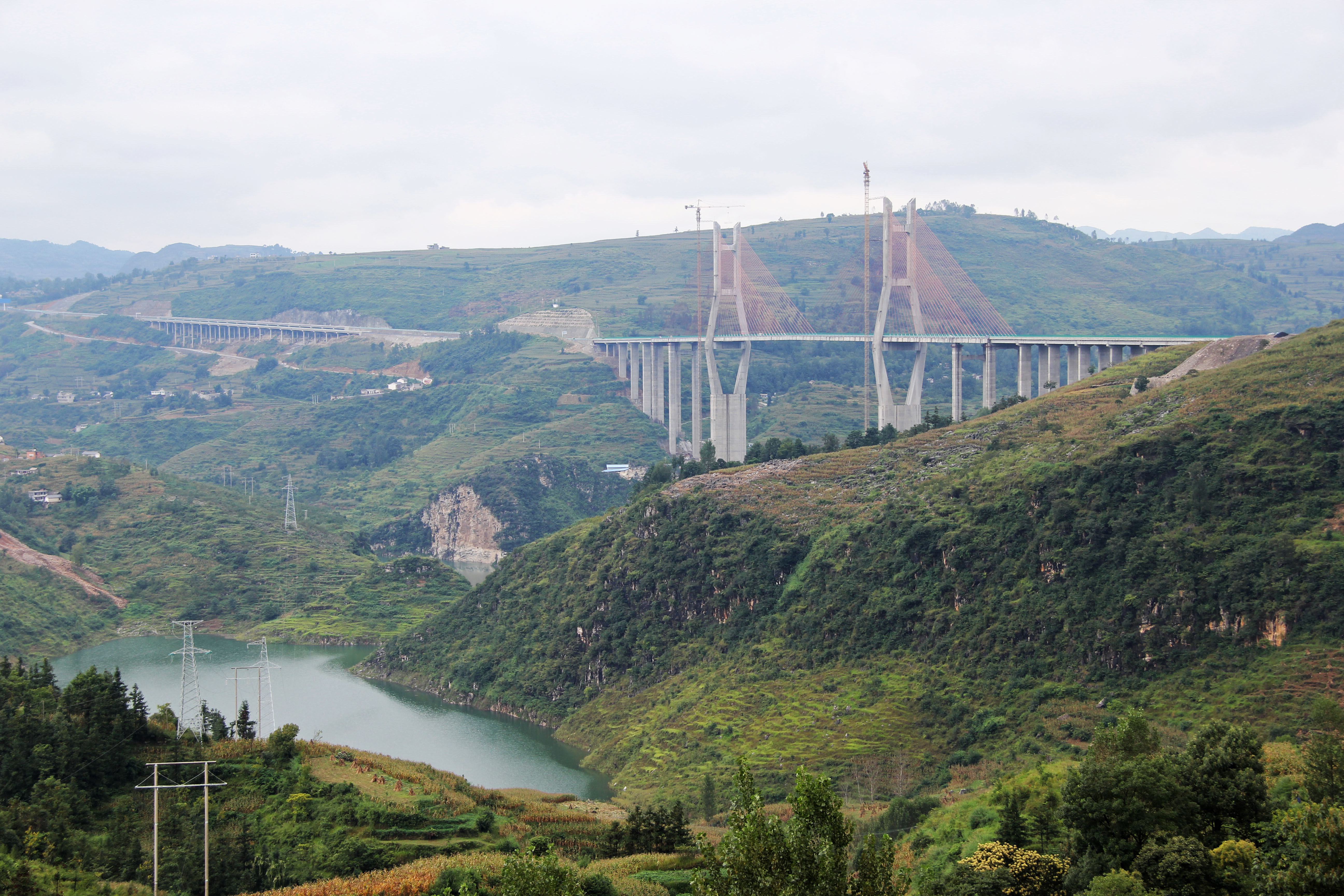

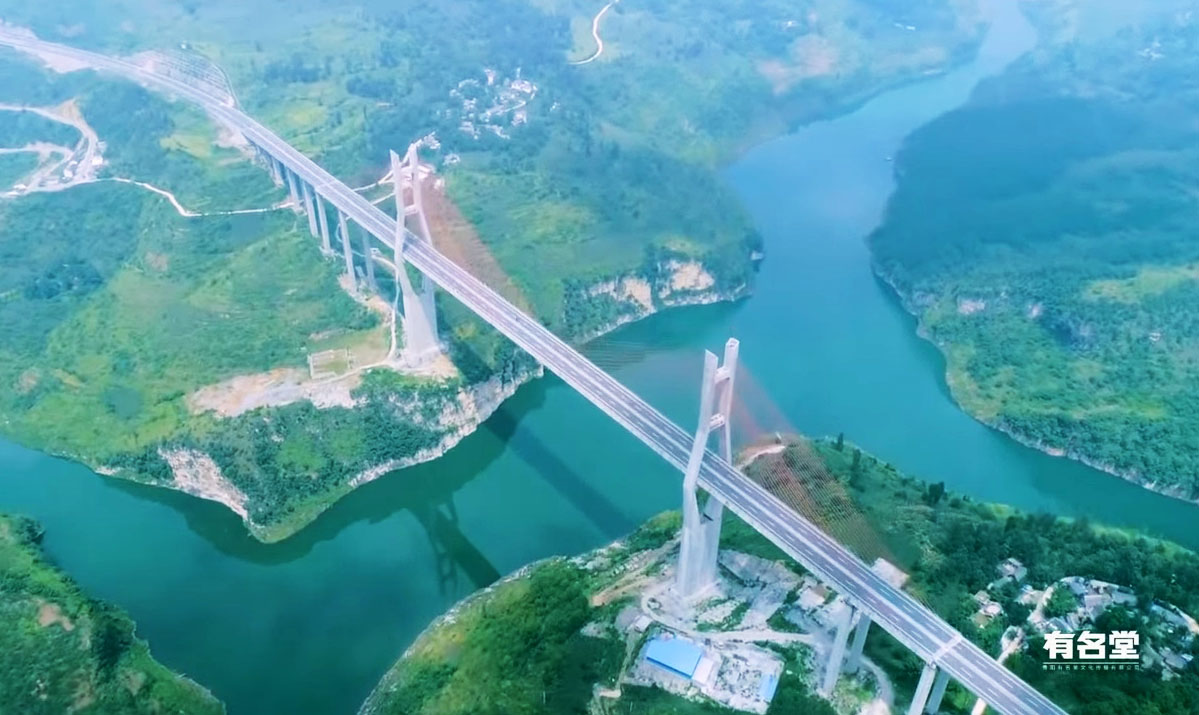

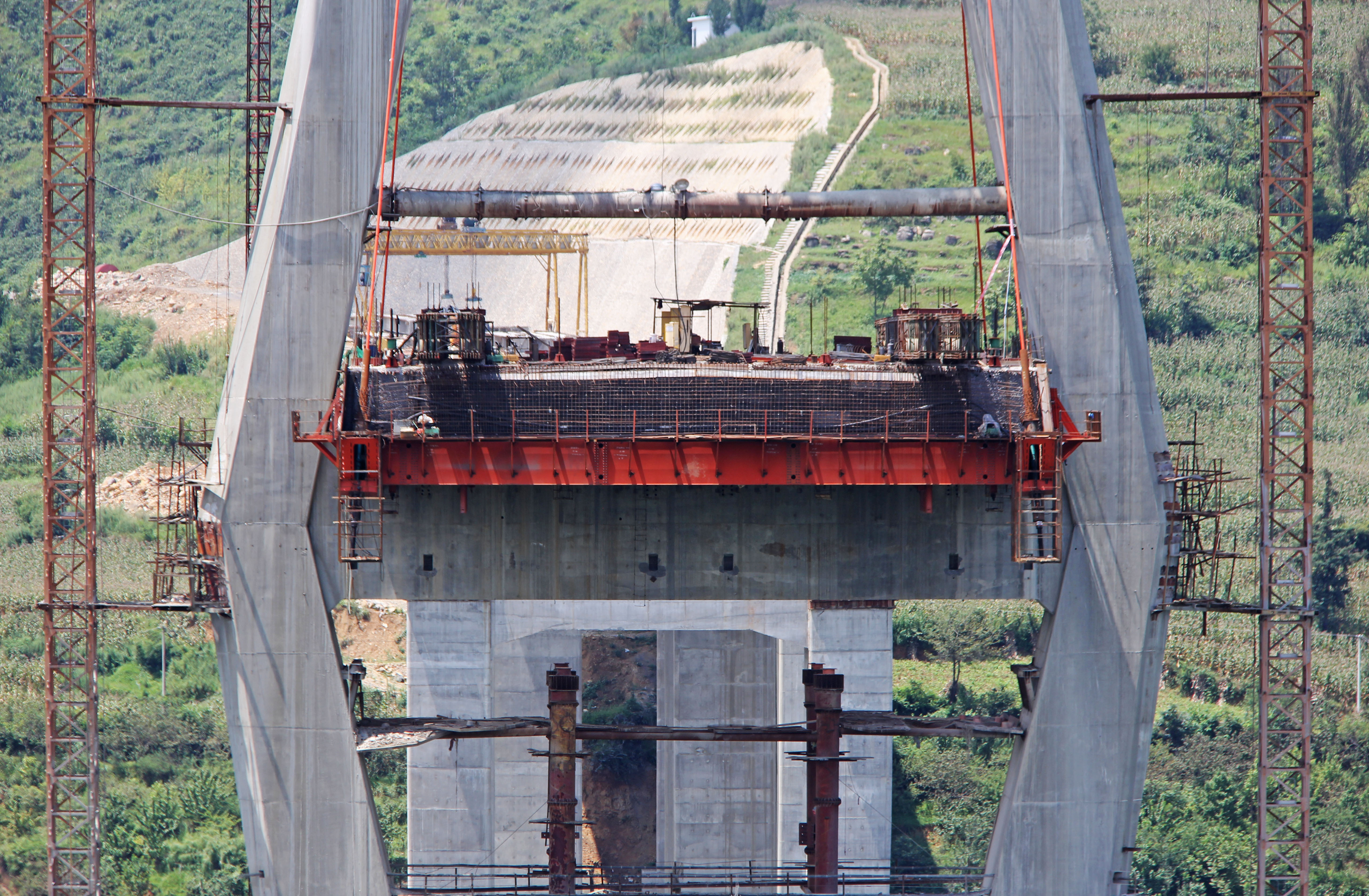

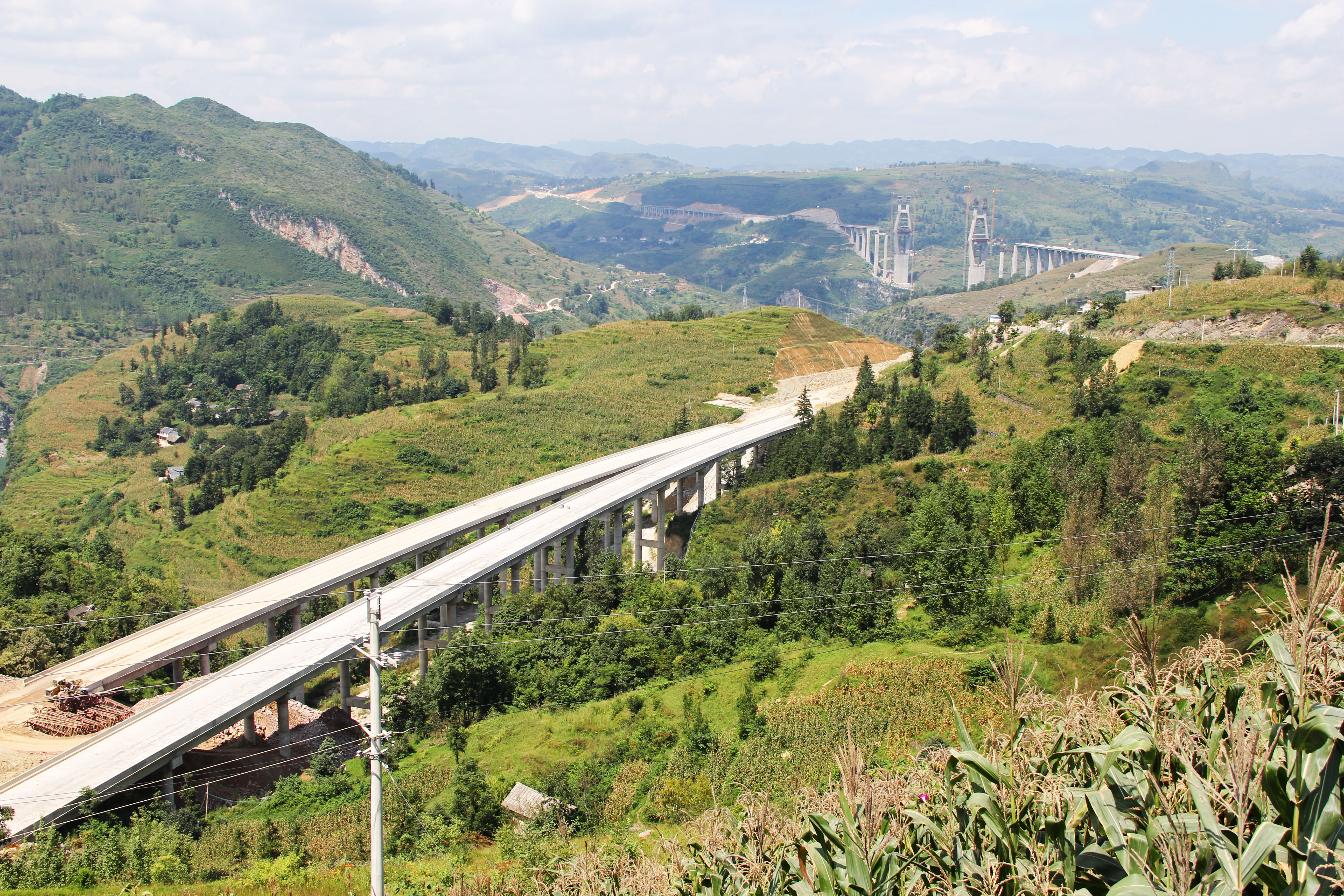

Image by Eric Sakowski / HighestBridges.com



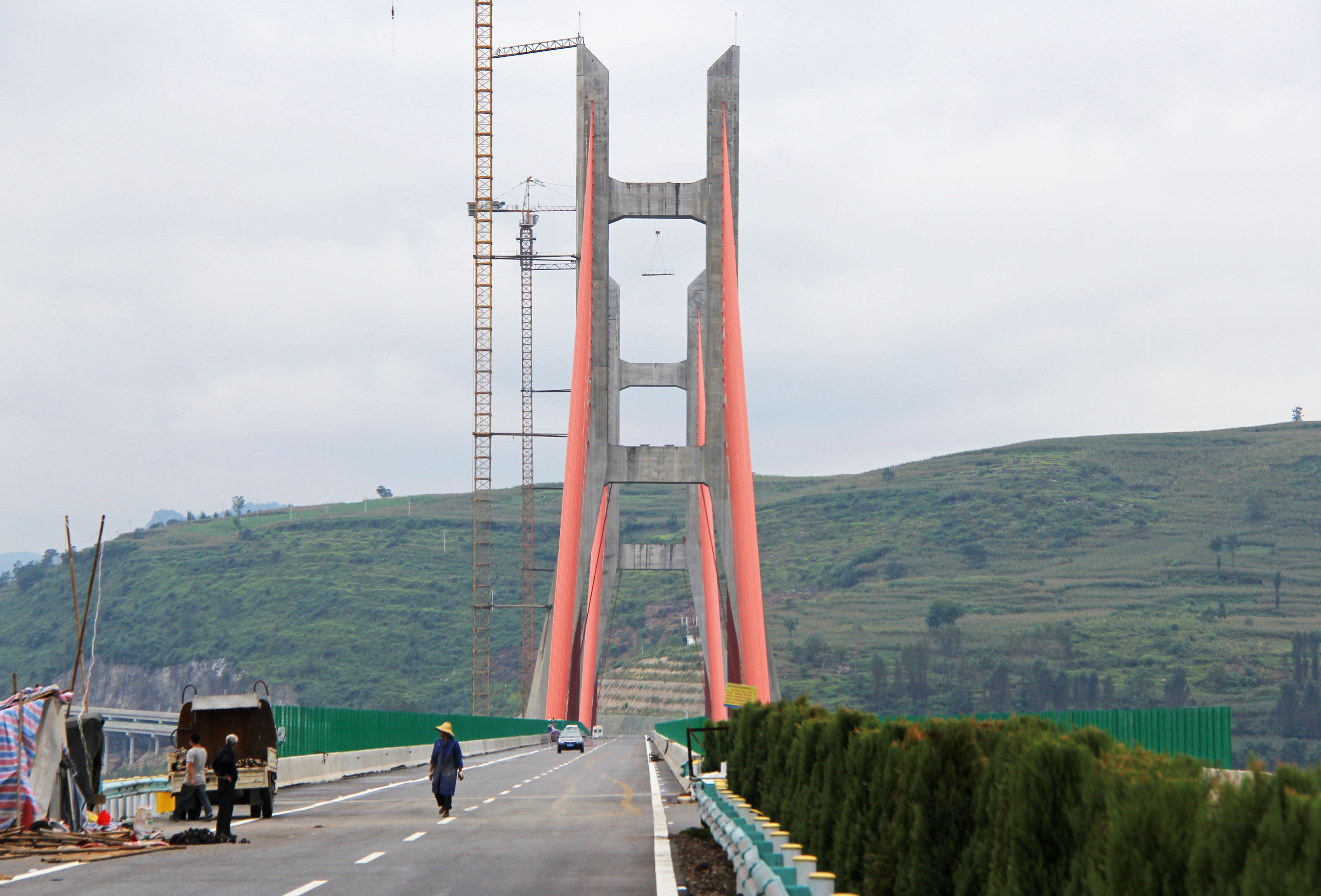

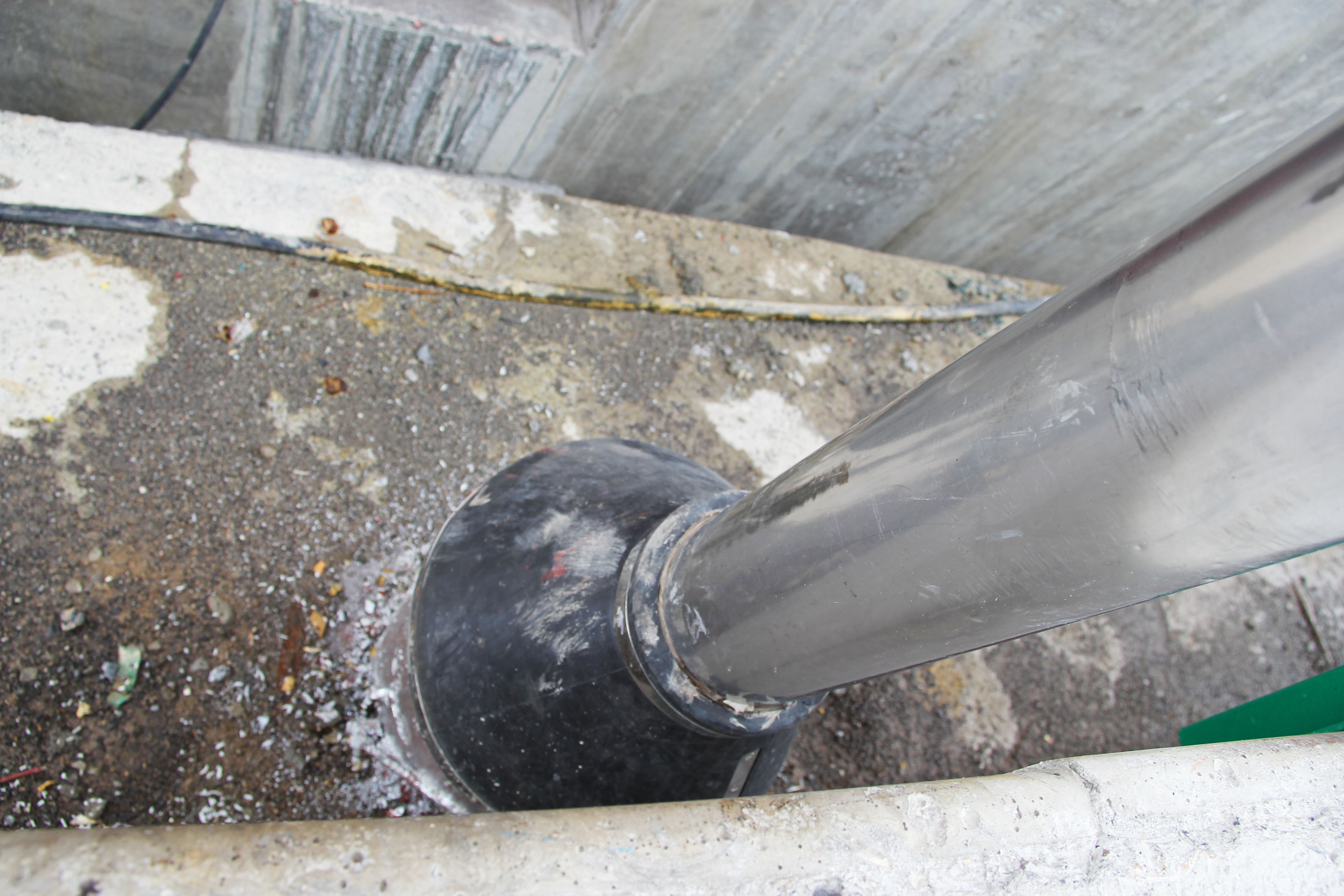

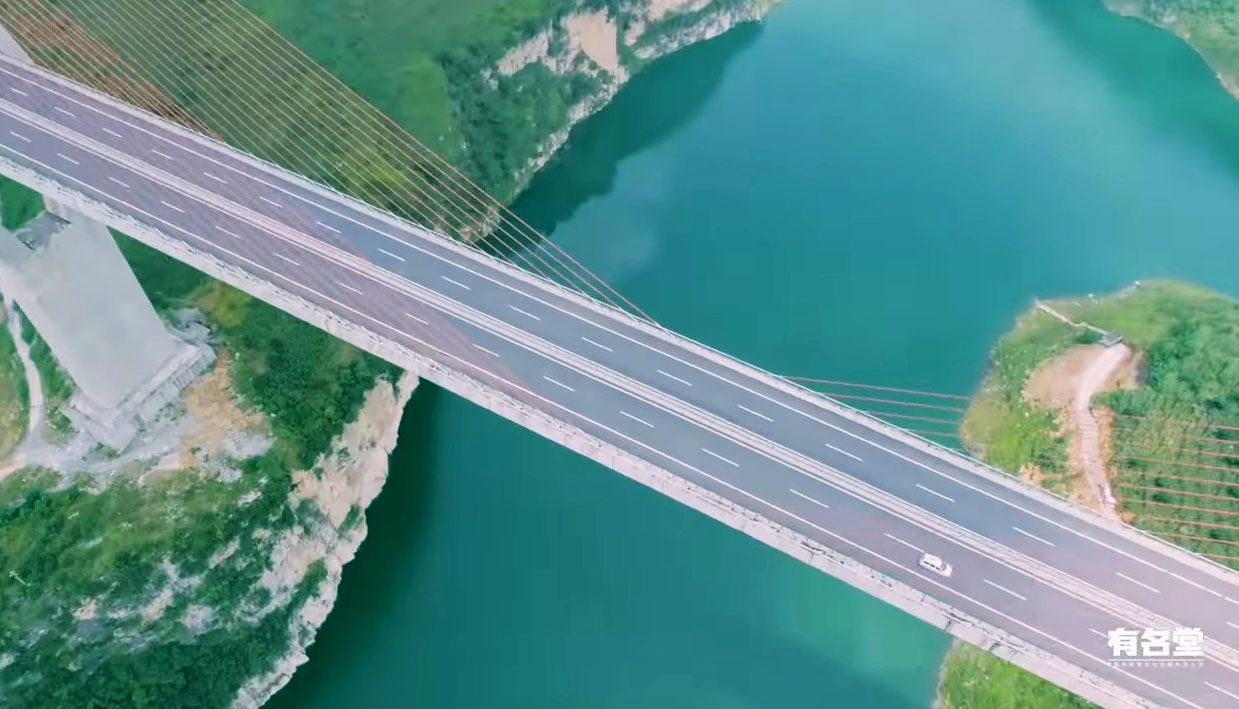

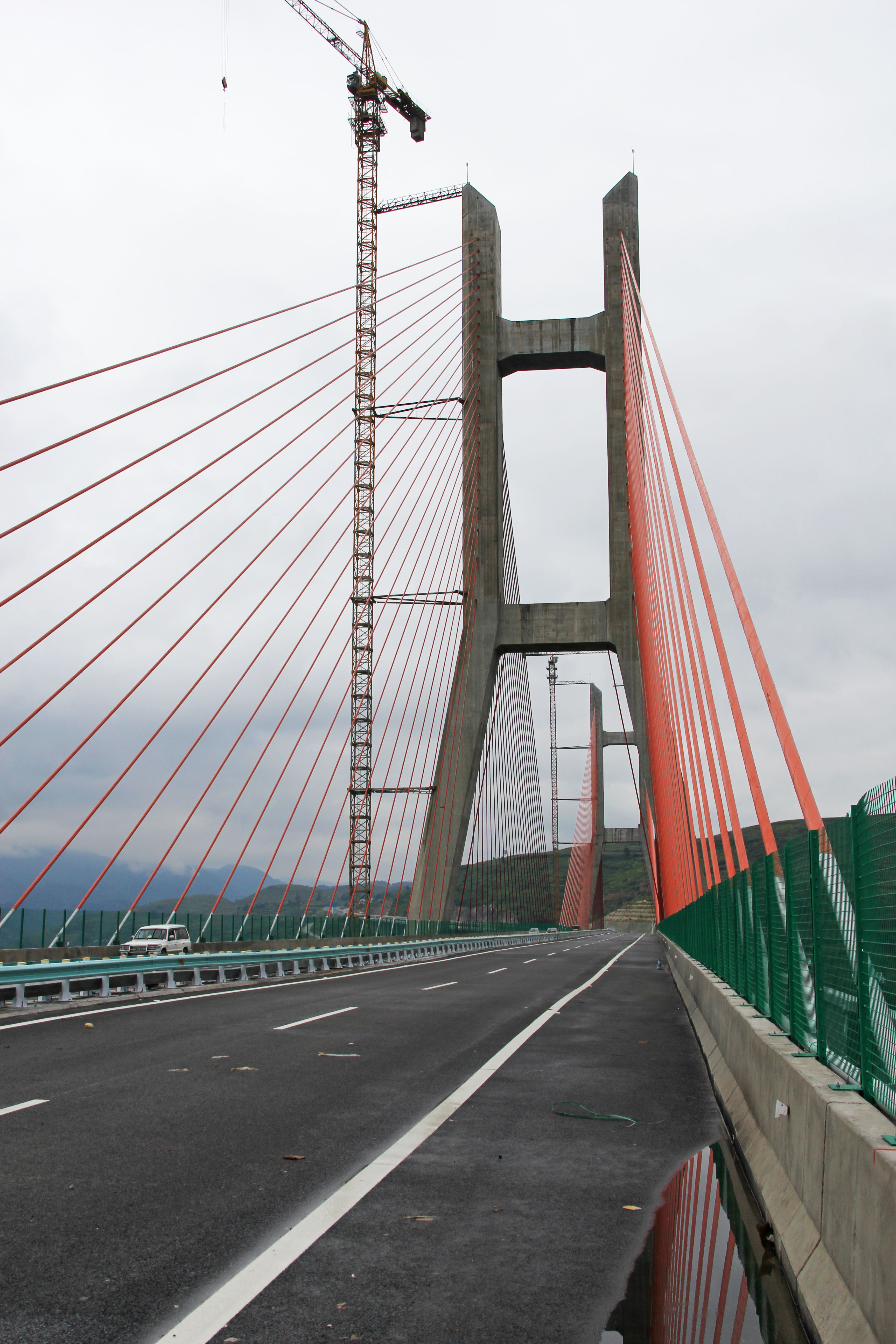

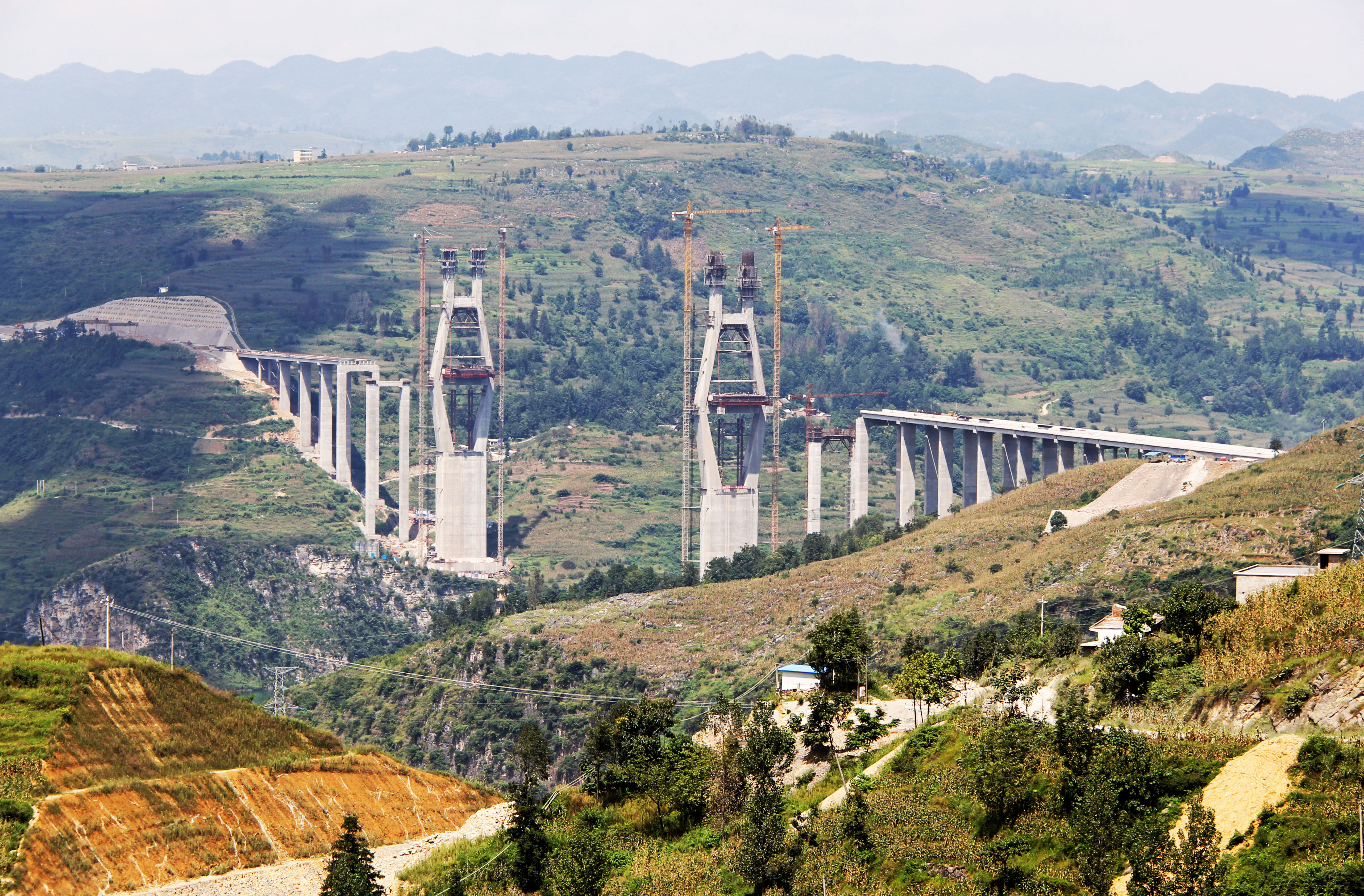

Image by Eric Sakowski / HighestBridges.com



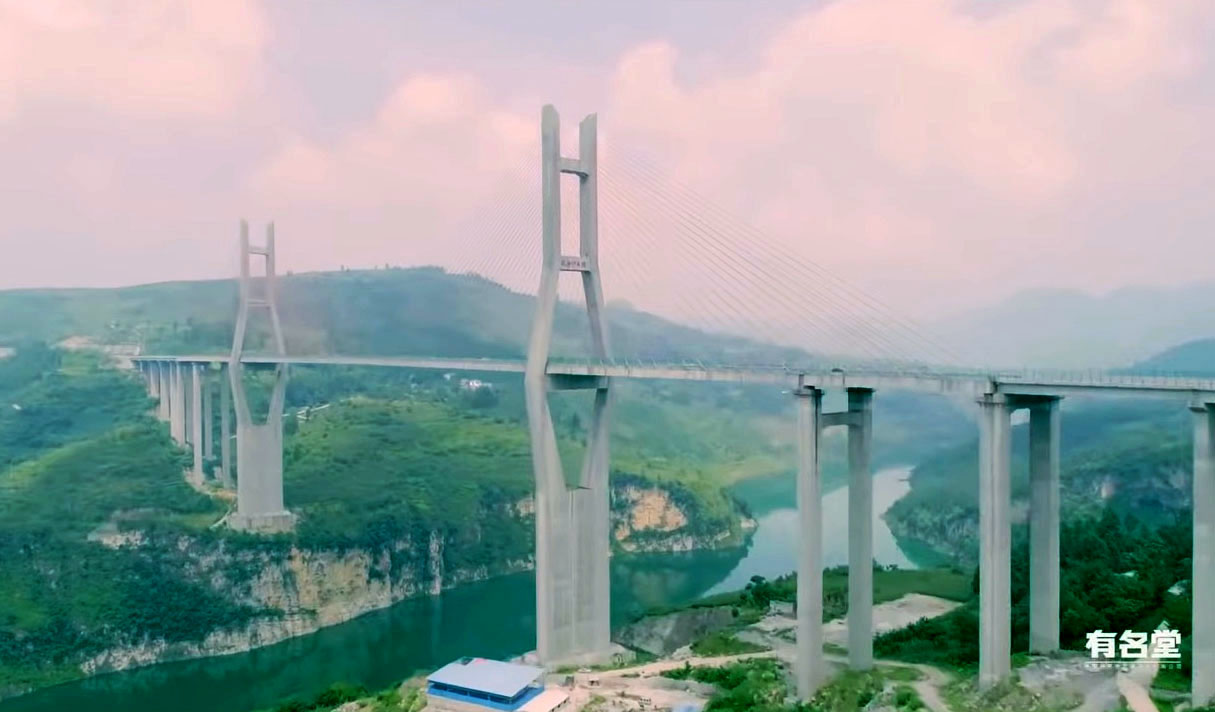

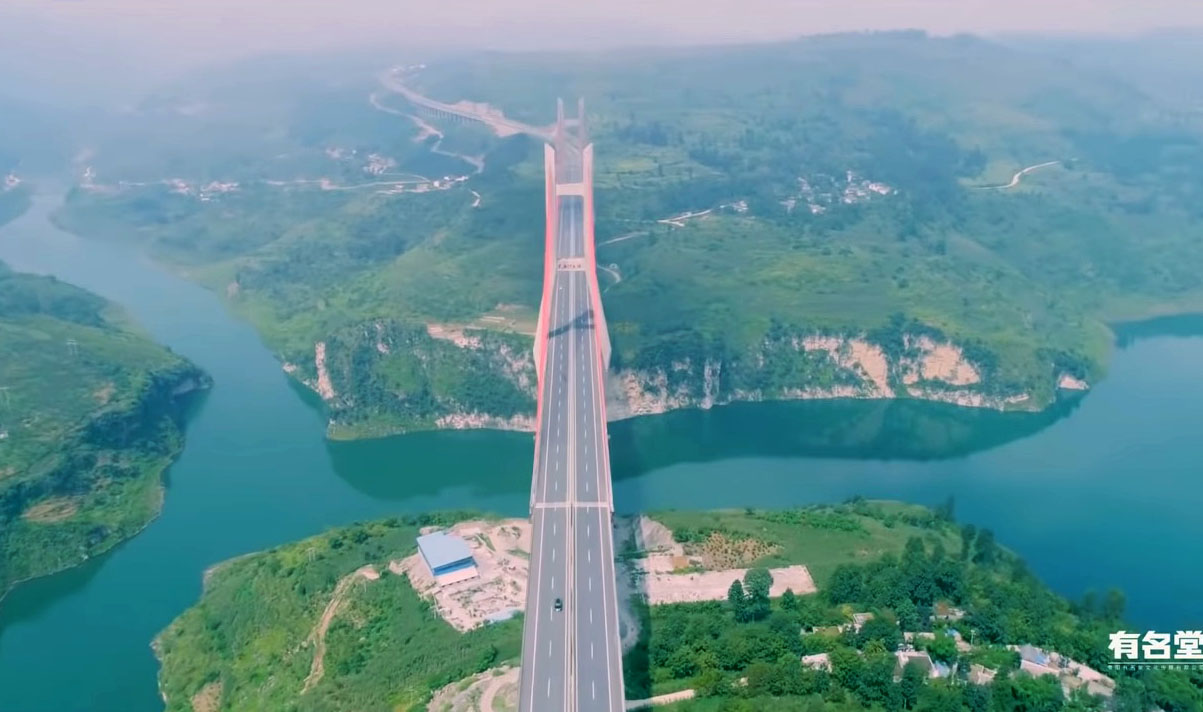

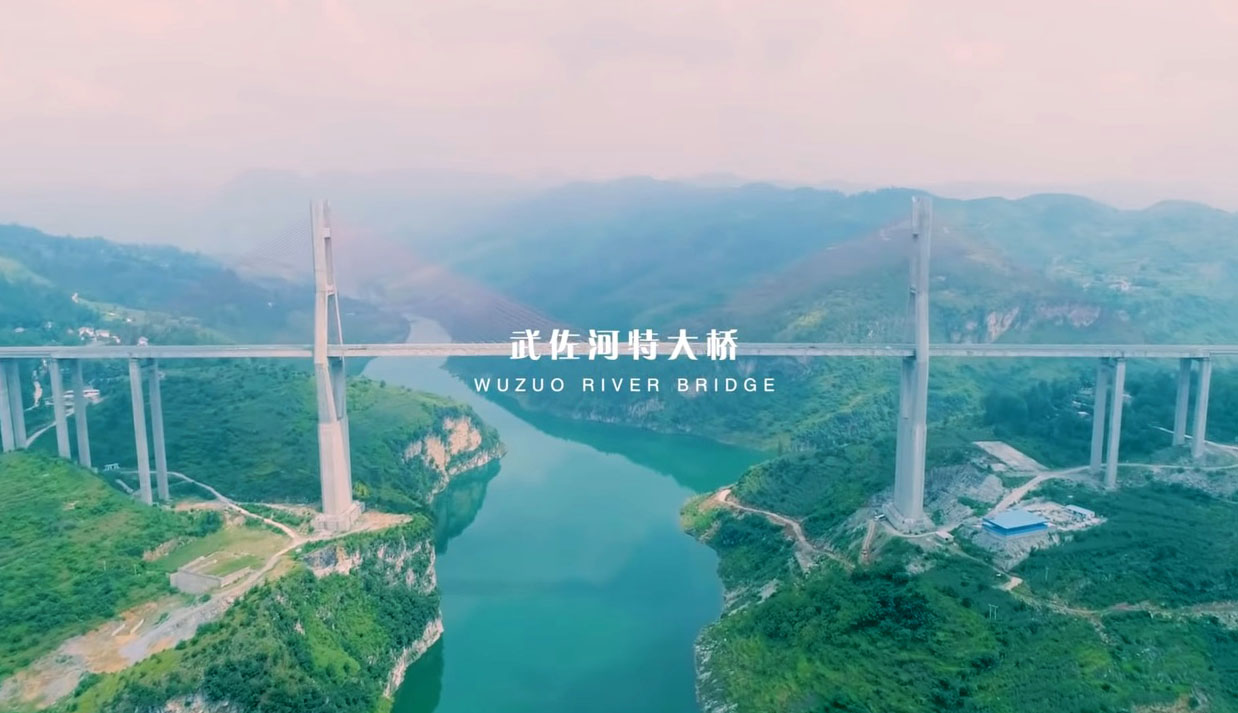

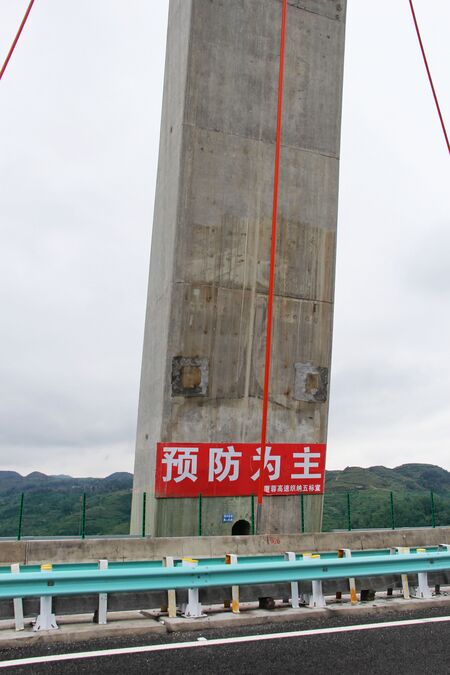

Image by Eric Sakowski / HighestBridges.com



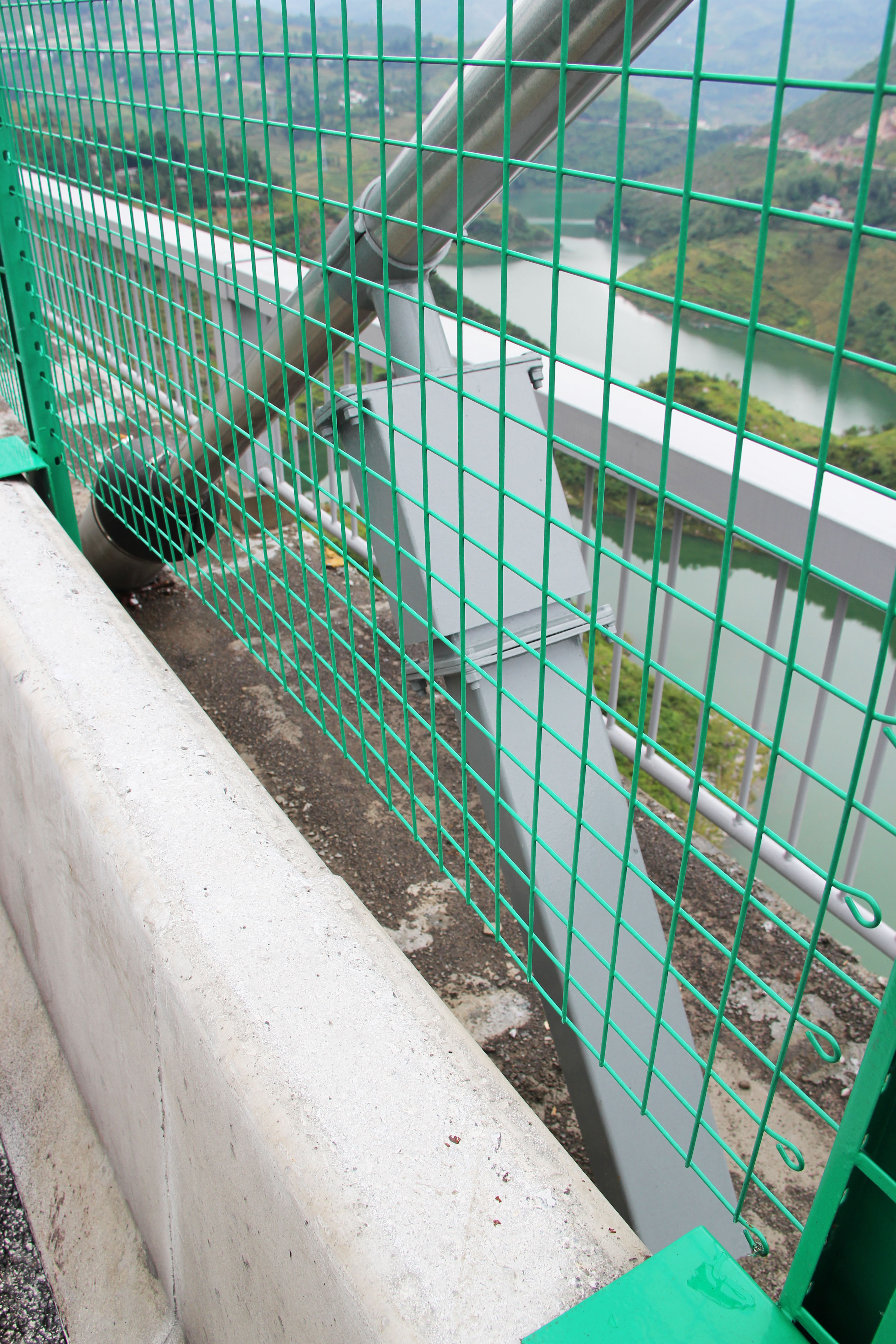

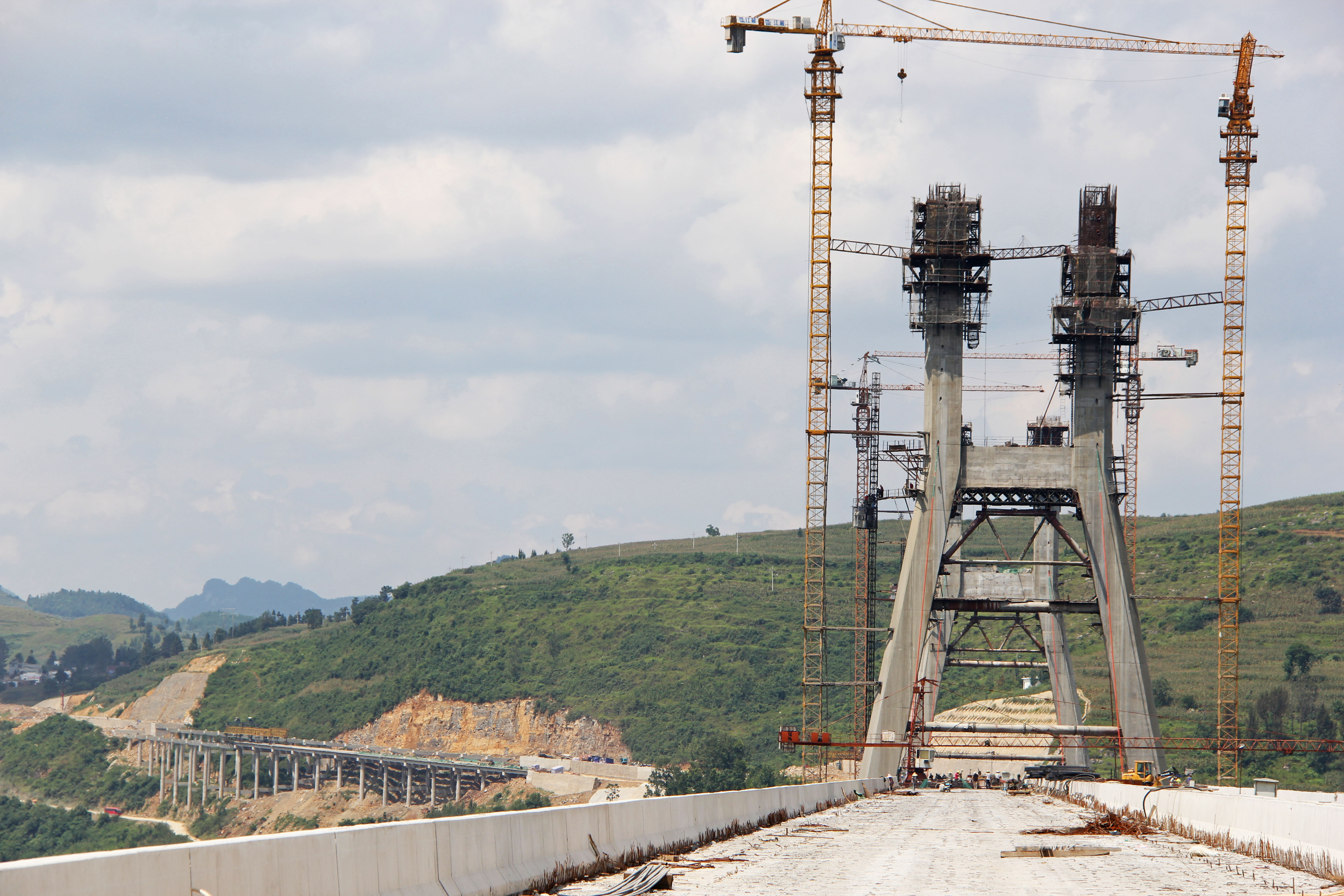

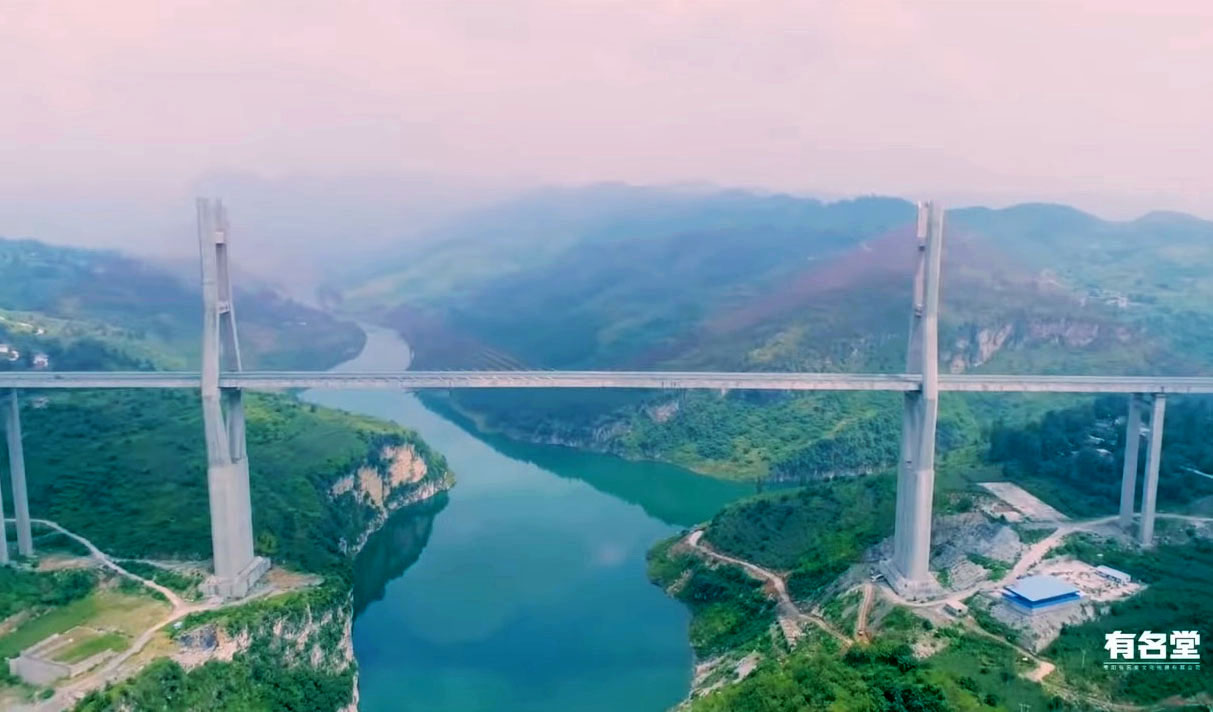

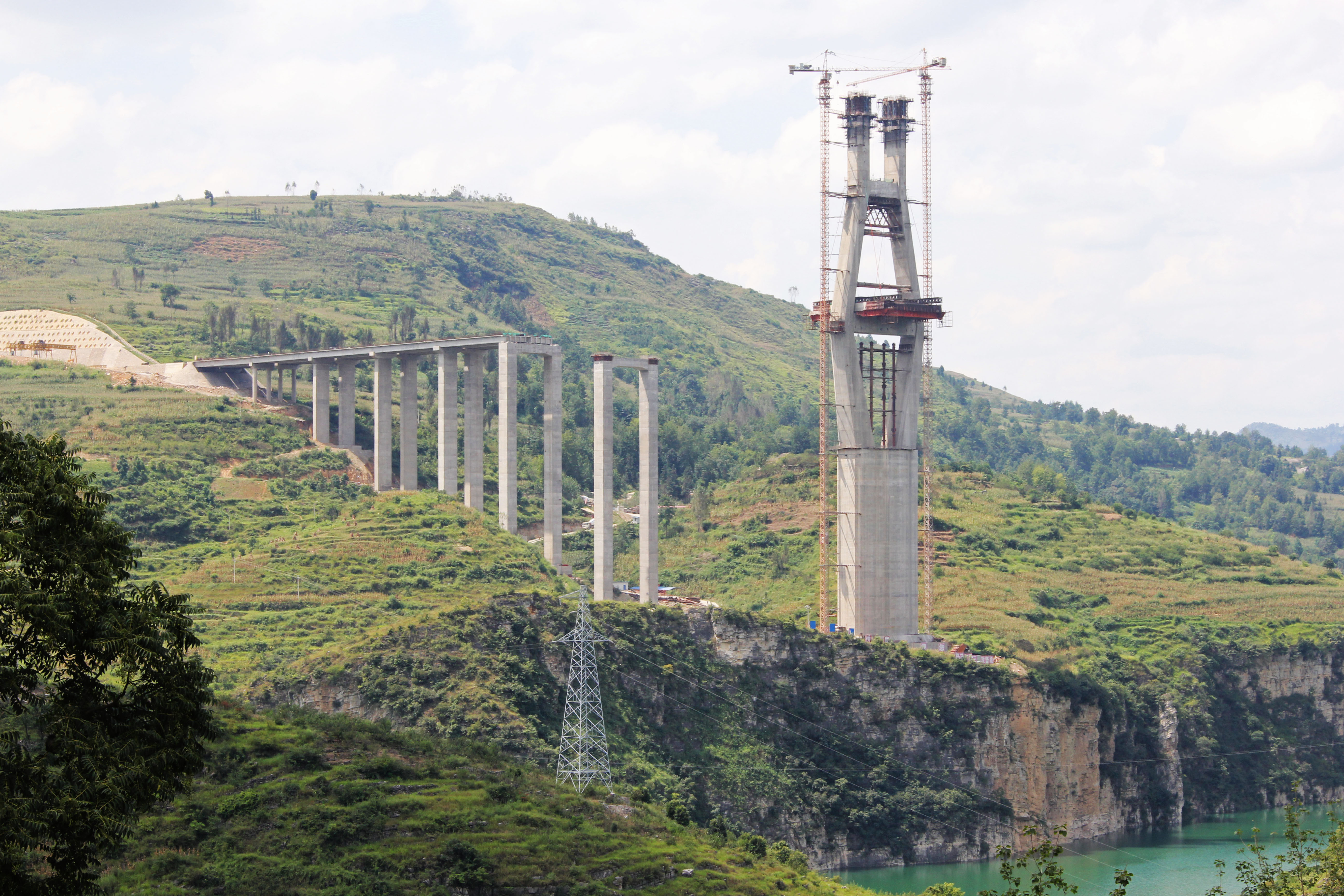

Image by Eric Sakowski / HighestBridges.com



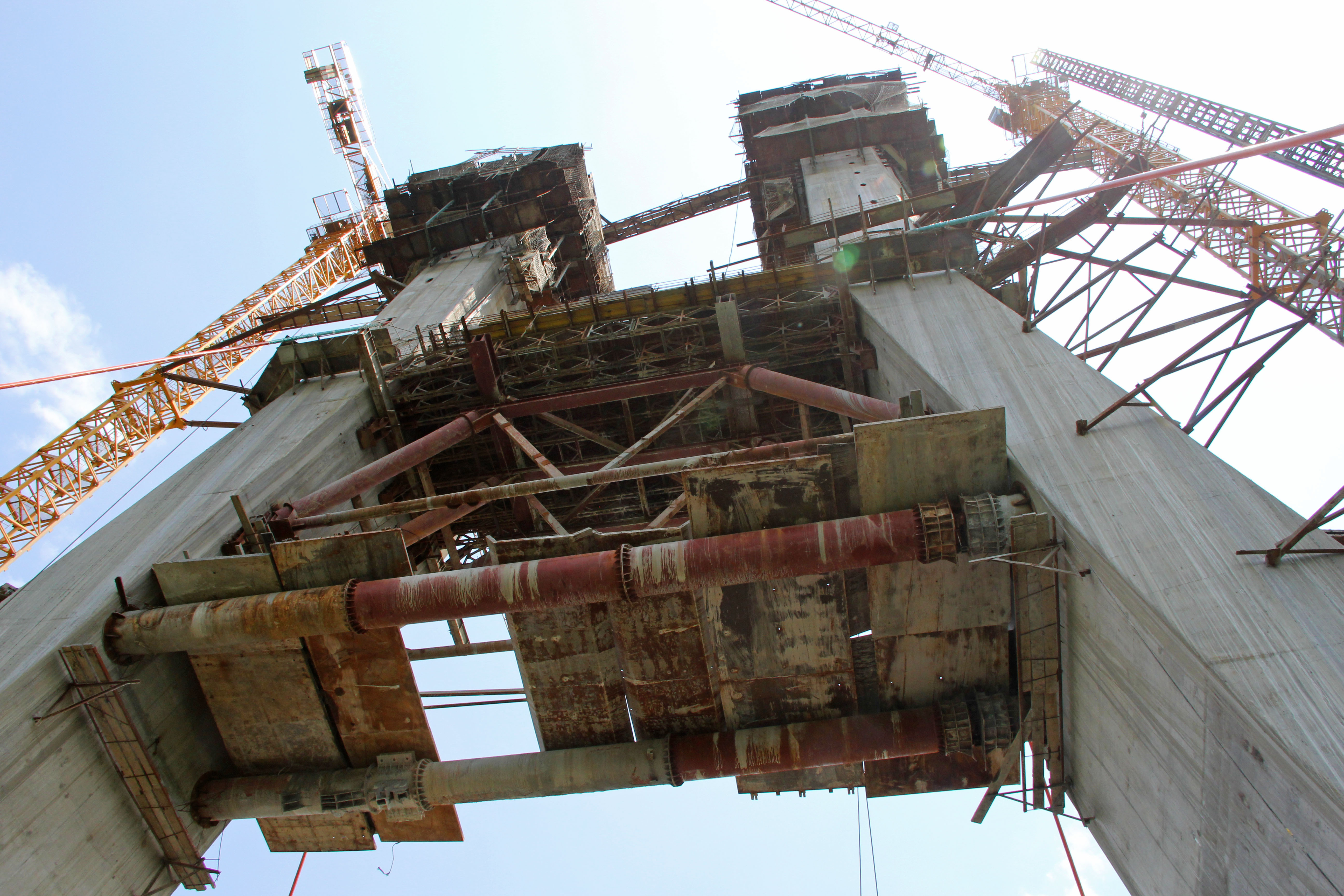

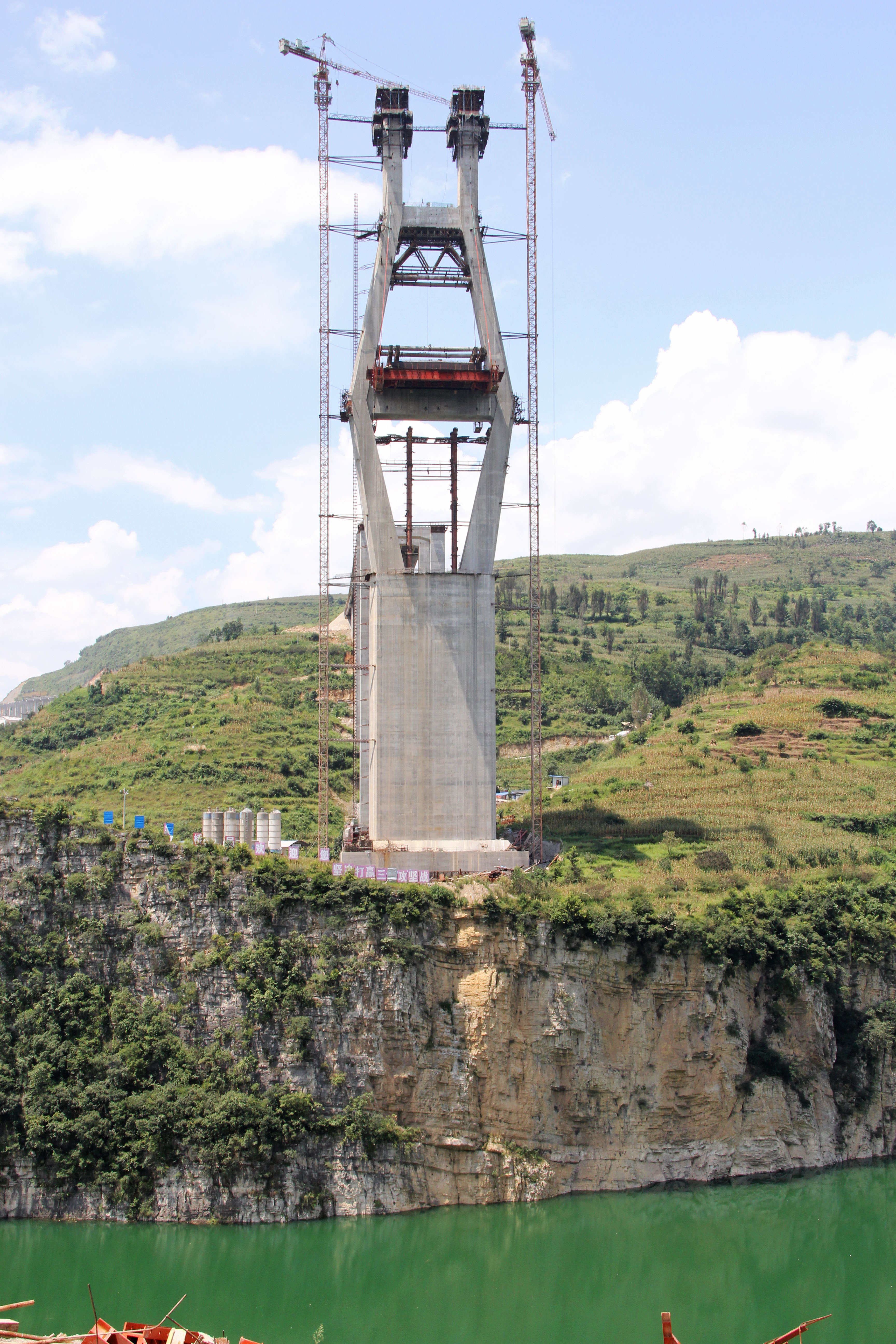

Image by Eric Sakowski / HighestBridges.com

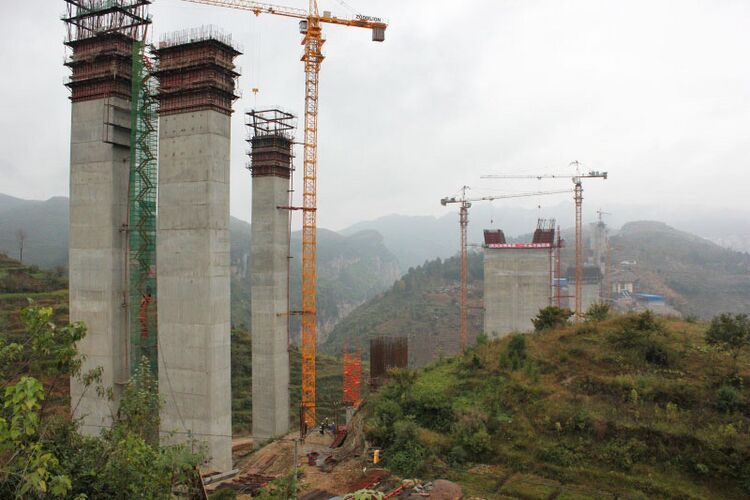

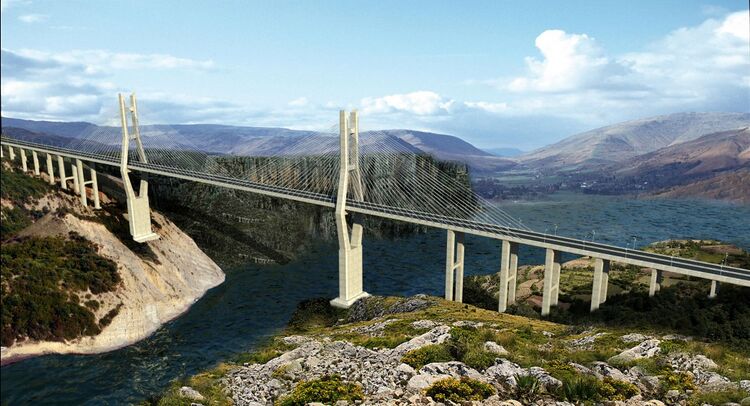

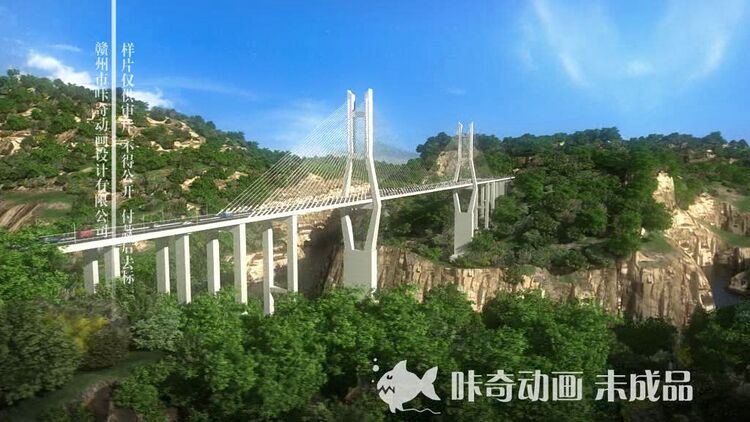

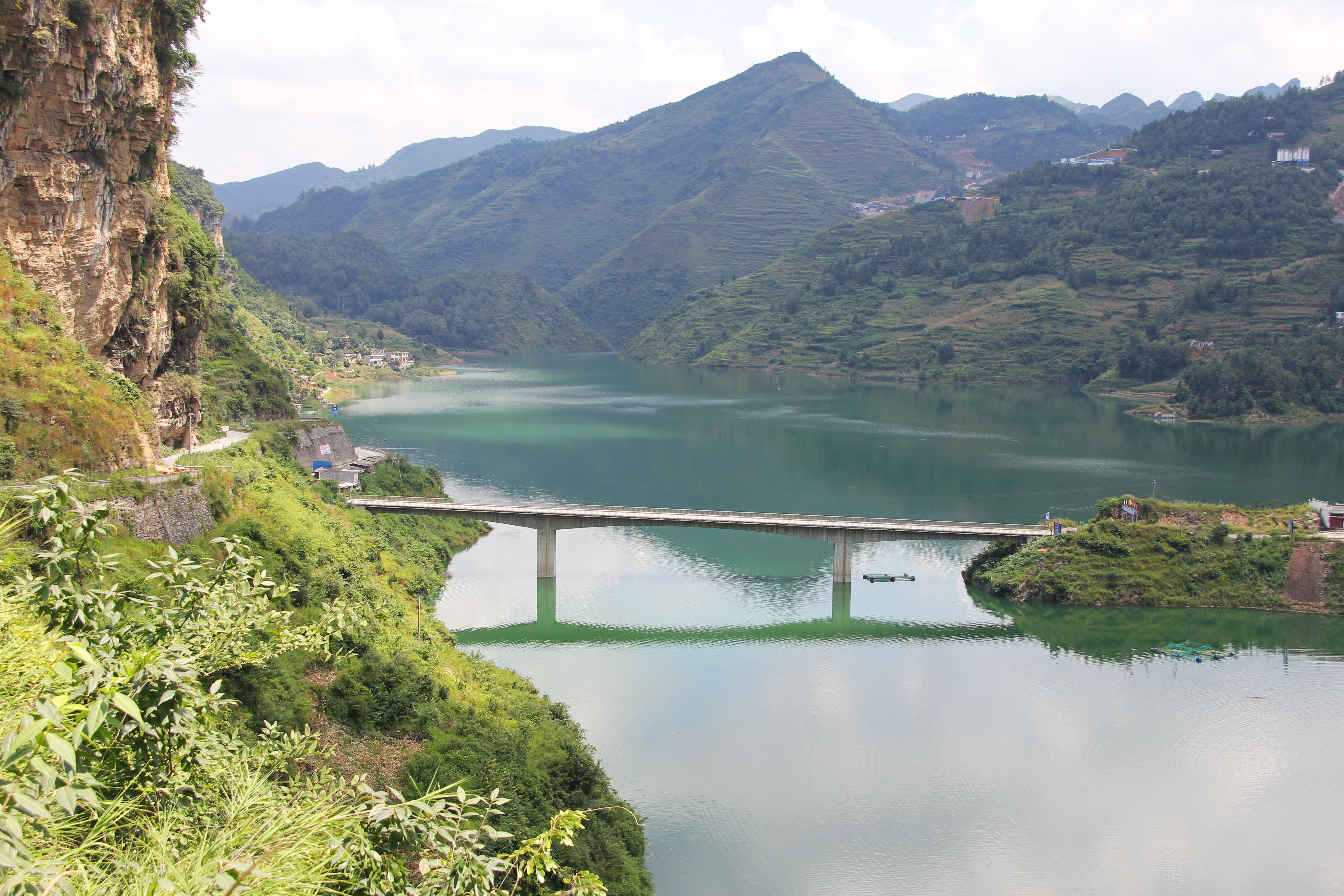

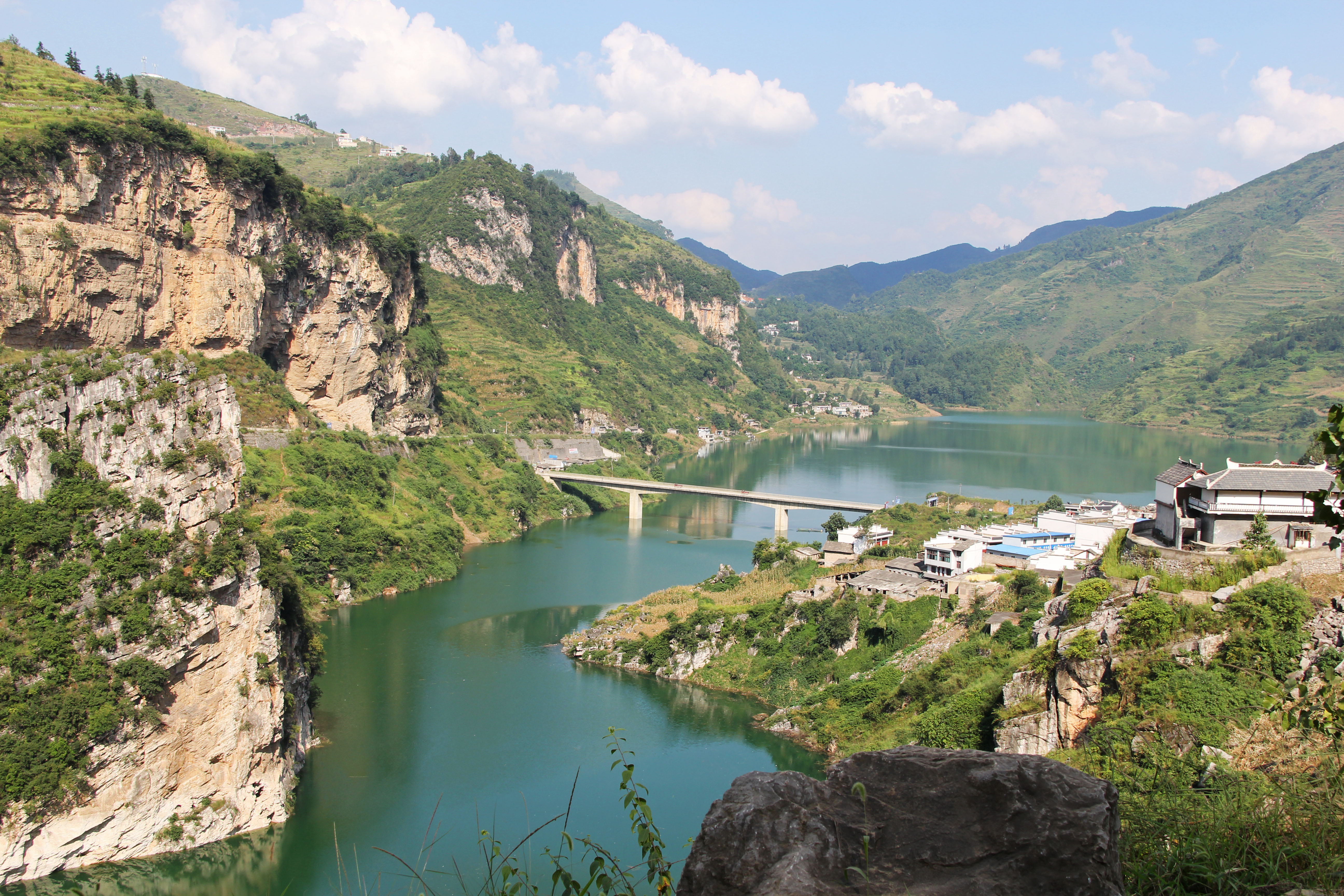

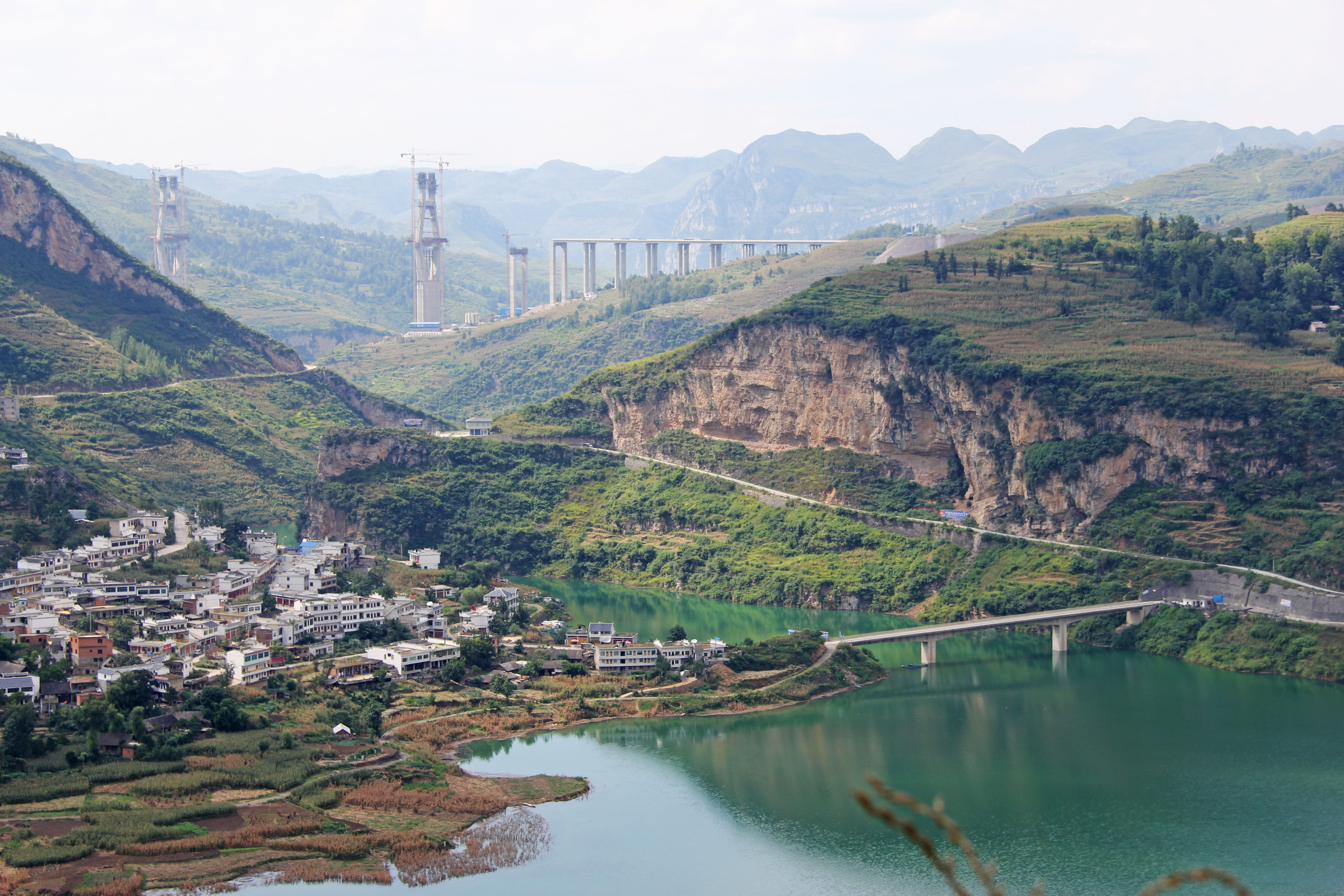

The local Wuzuohe 2-lane reservoir crossing. mage by Eric Sakowski / HighestBridges.com



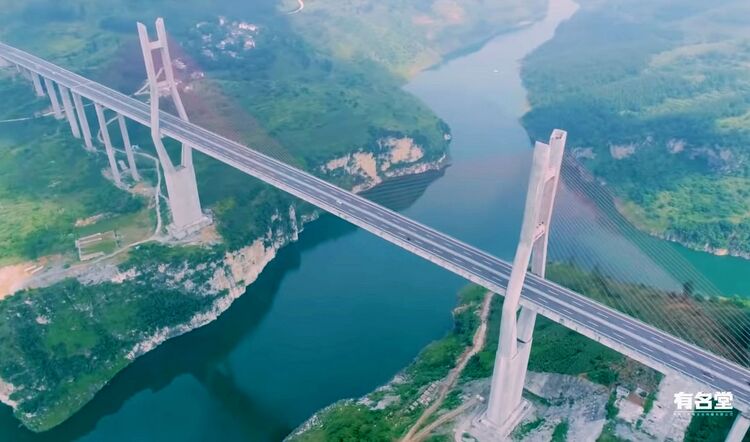

Image by Eric Sakowski / HighestBridges.com







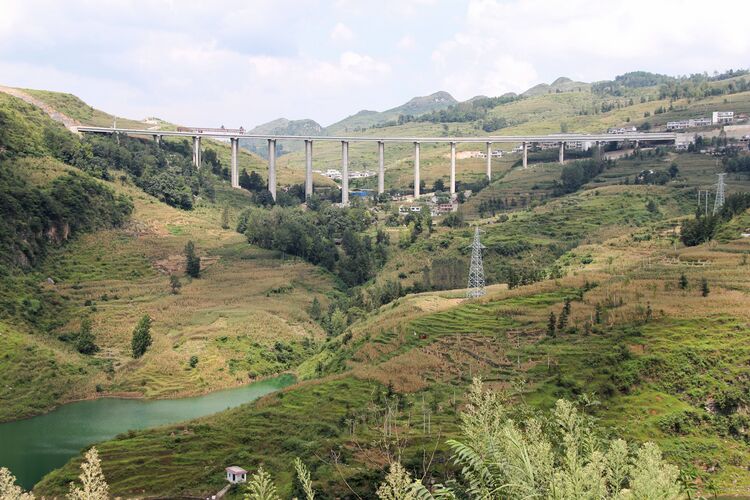

Image by Eric Sakowski / HighestBridges.com



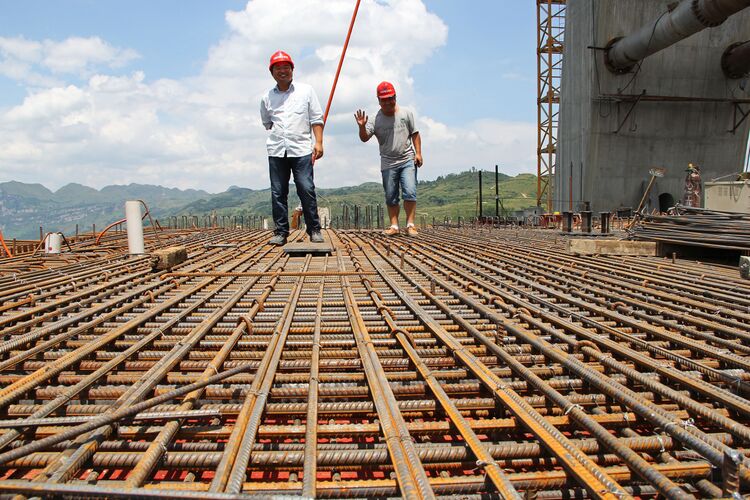

Image by Eric Sakowski / HighestBridges.com



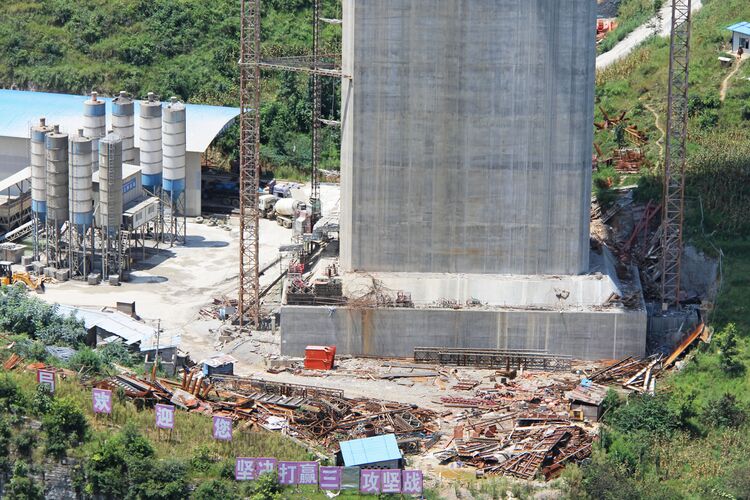

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com












Wuzuohe Satellite.jpg

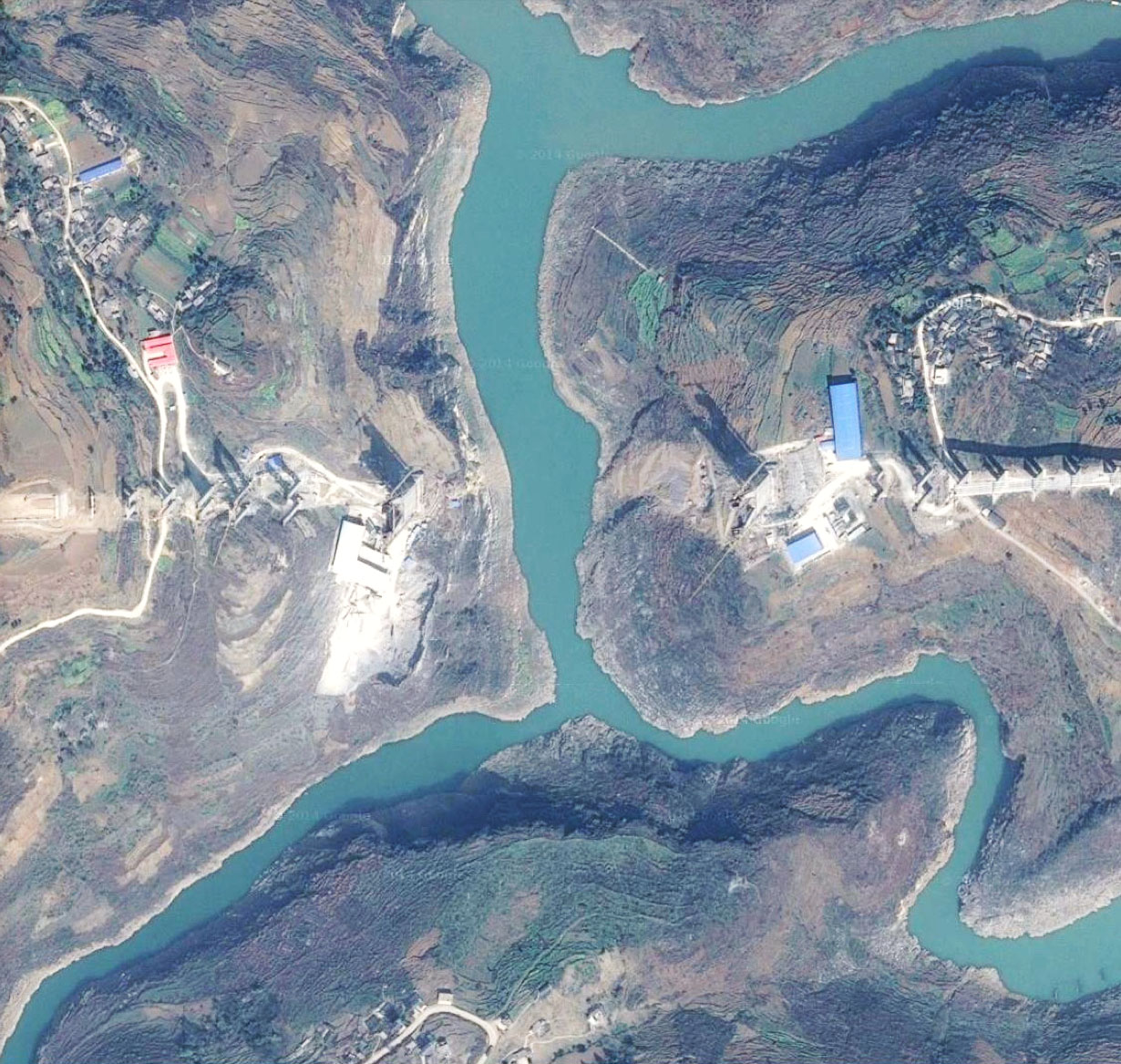

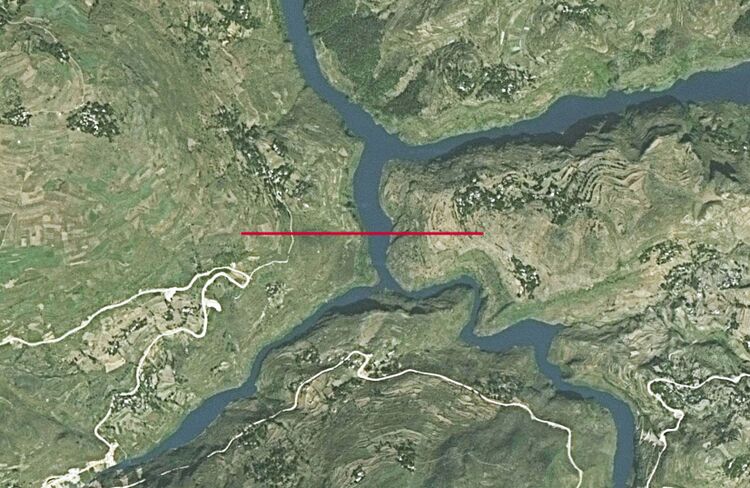

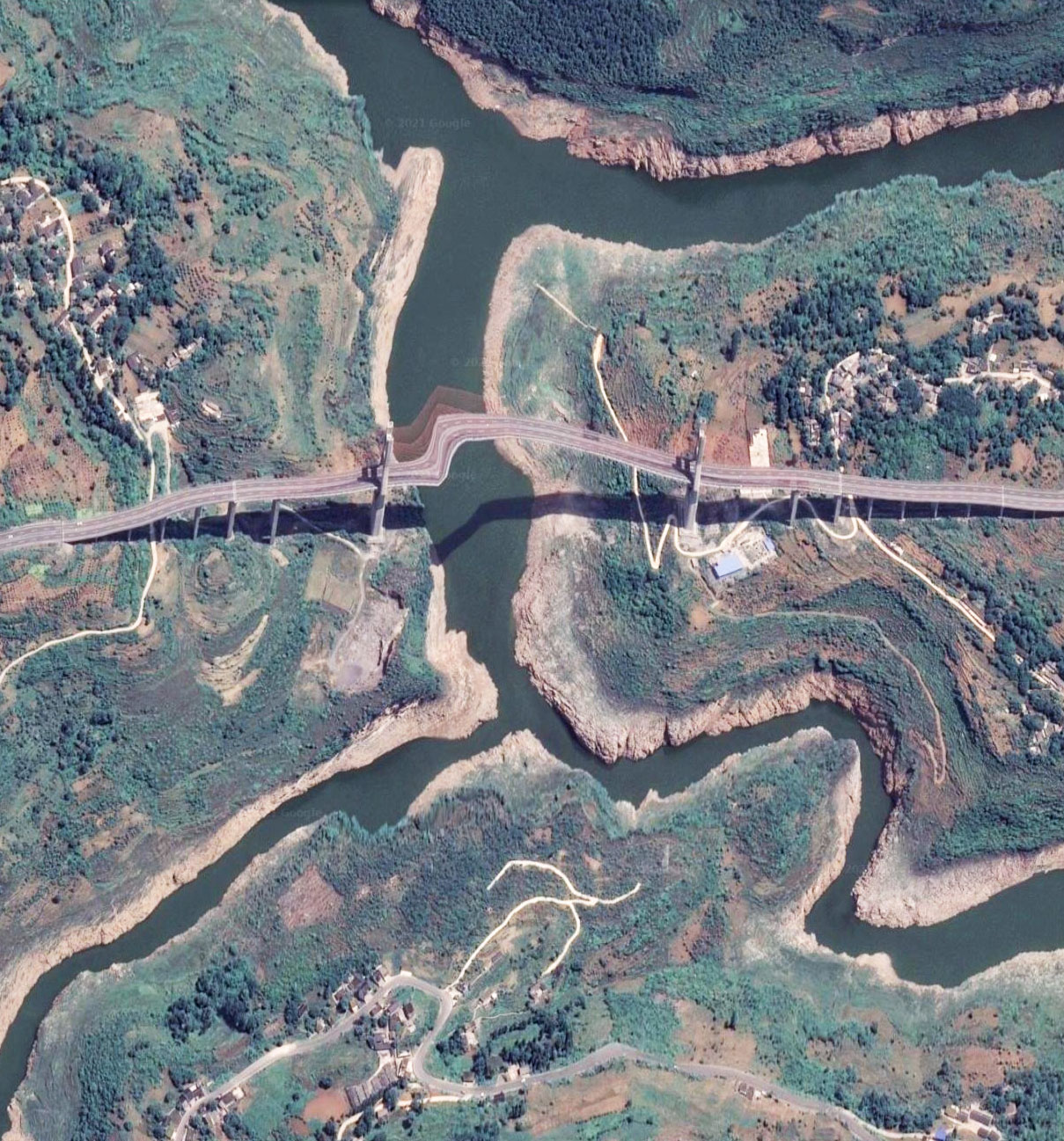

Wuzuohe Bridge satellite image.

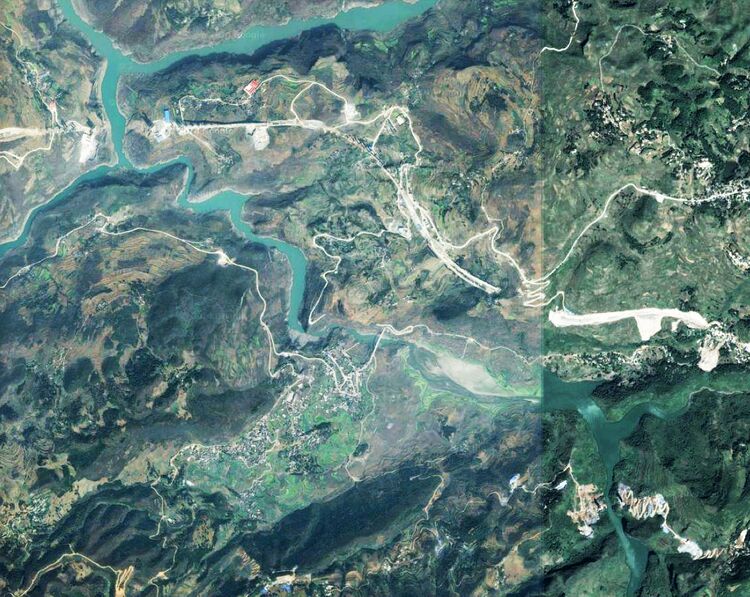

Wuzuohe Bridge satellite image before construction began.

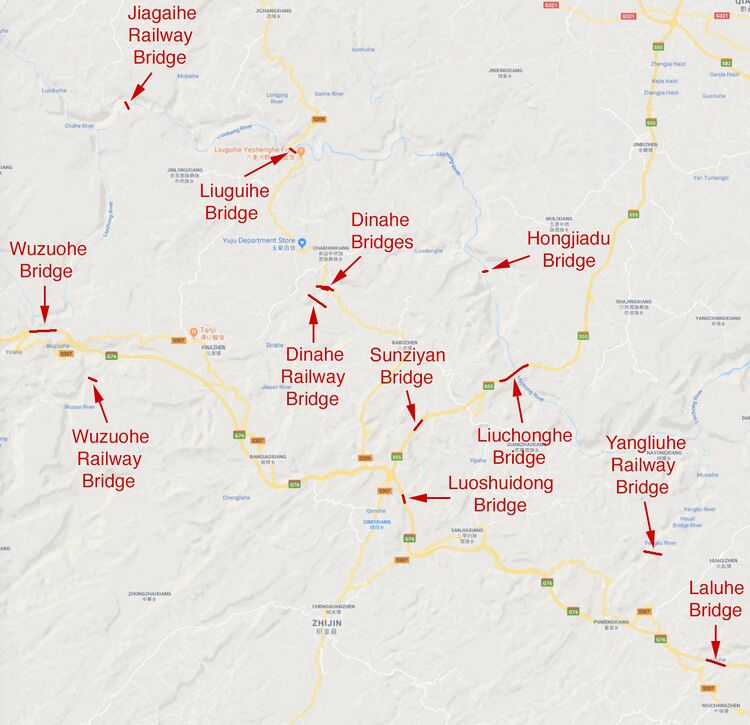

A wider view showing the Wuzuohe expressway bridge in the upper left, the local Wuzuohe 2-lane road bridge in the middle and the Wuzuohe Railway Bridge in the lower right.
