Zhaoxing Bridge
肇兴大桥
Zhaoxingxiang, Guizhou, China
417 feet high / 127 meters high
492 foot span / 150 meter span
2010

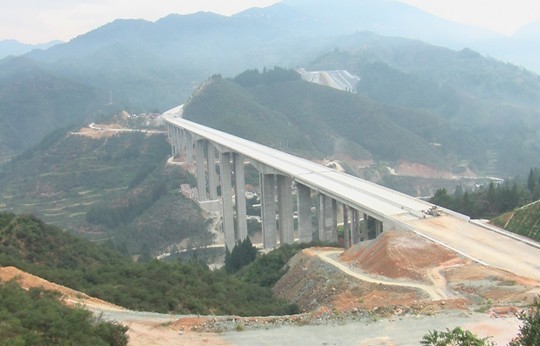

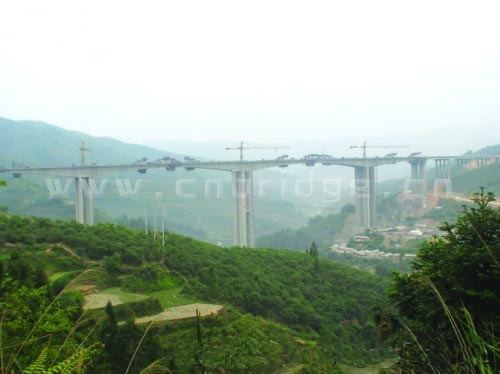

Zhaoxing is one of more then a dozen beam bridges along the G76 that exceed 100 meters in height. The double 150 meter spans of Zhaoxing are supported on piers as high as 113 meters. The 845 meter long structure has a span configuration of 6x40 +83 +150x2 +83 +3x40 meters.



Zhaoxing Bridge Elevation









Zhaoxing Bridge satellite image.





Zhaoxing Bridge location map.
