Beipanjiang Bridge Shuipan
水盘高速北盘江大桥
Fa’er Bouyei, Guizhou, China
804 feet high / 245 meters high
951 foot span / 290 meter span
2013

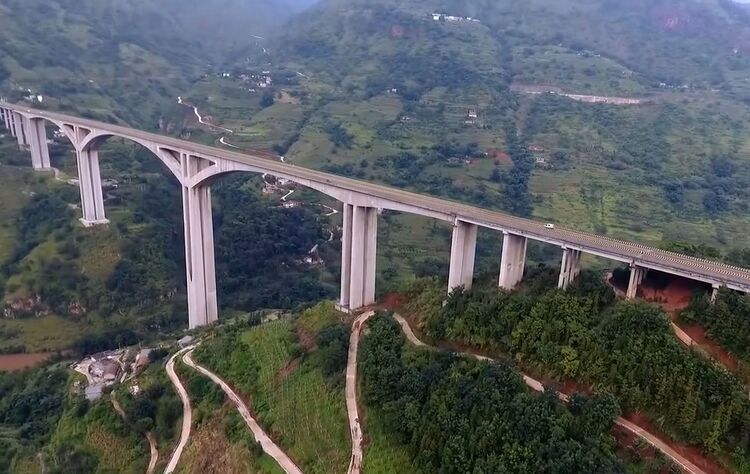

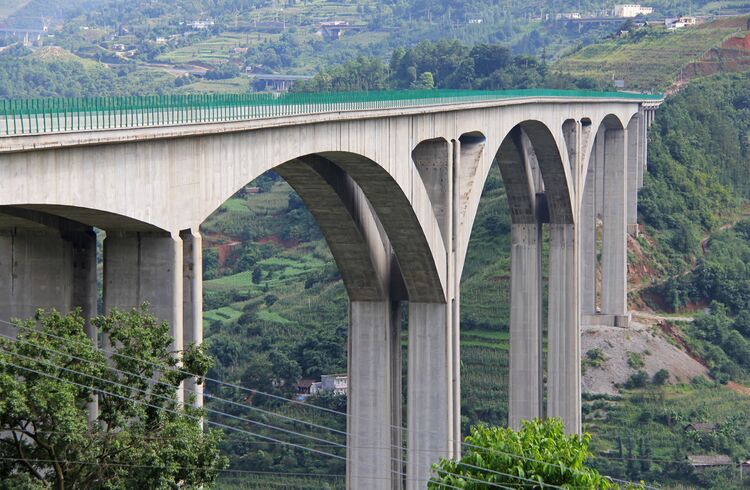

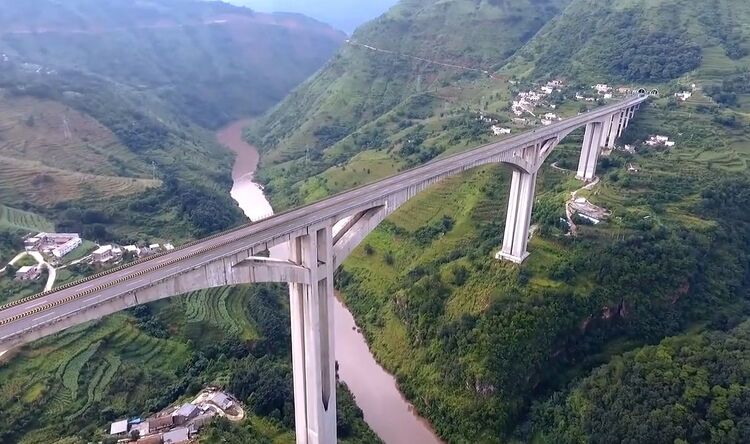

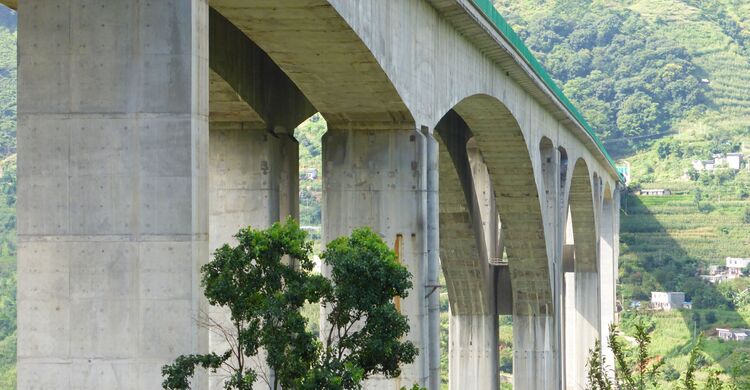

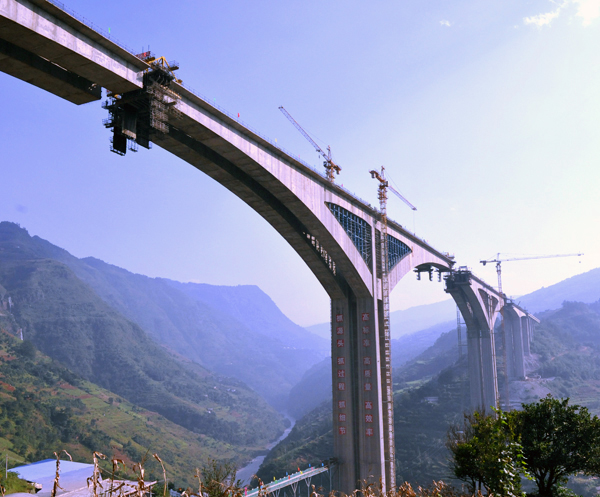

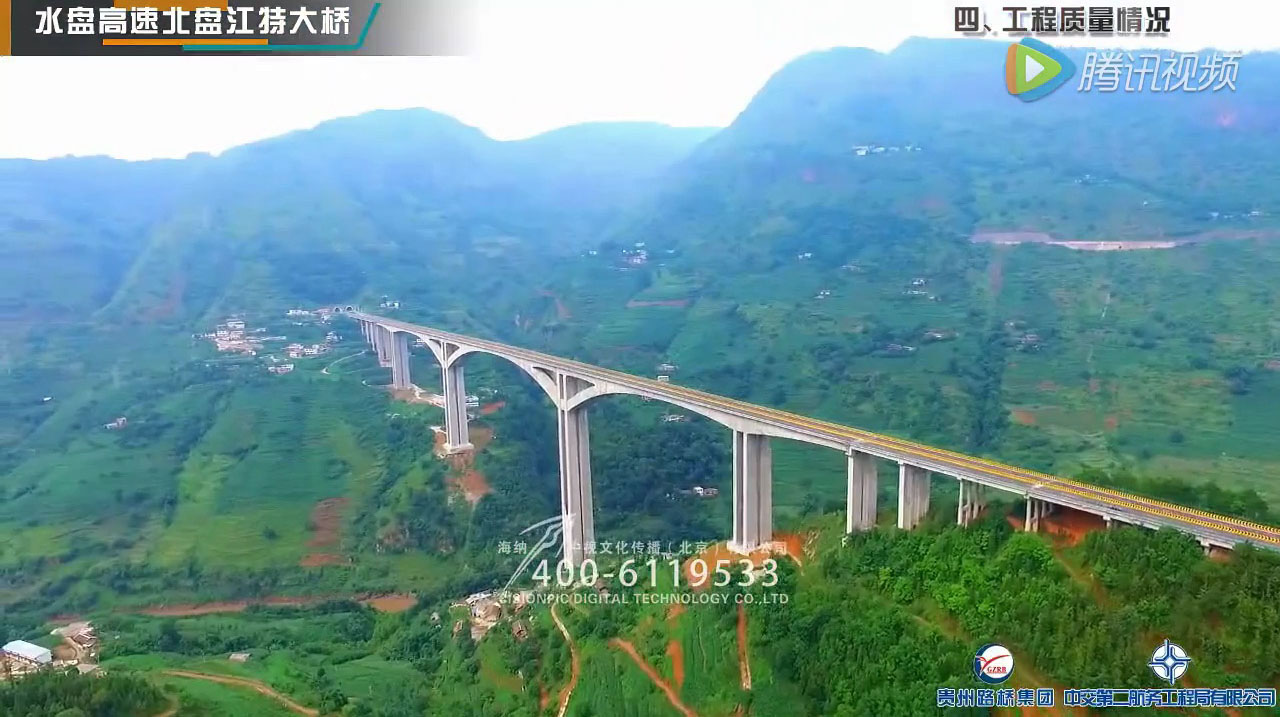

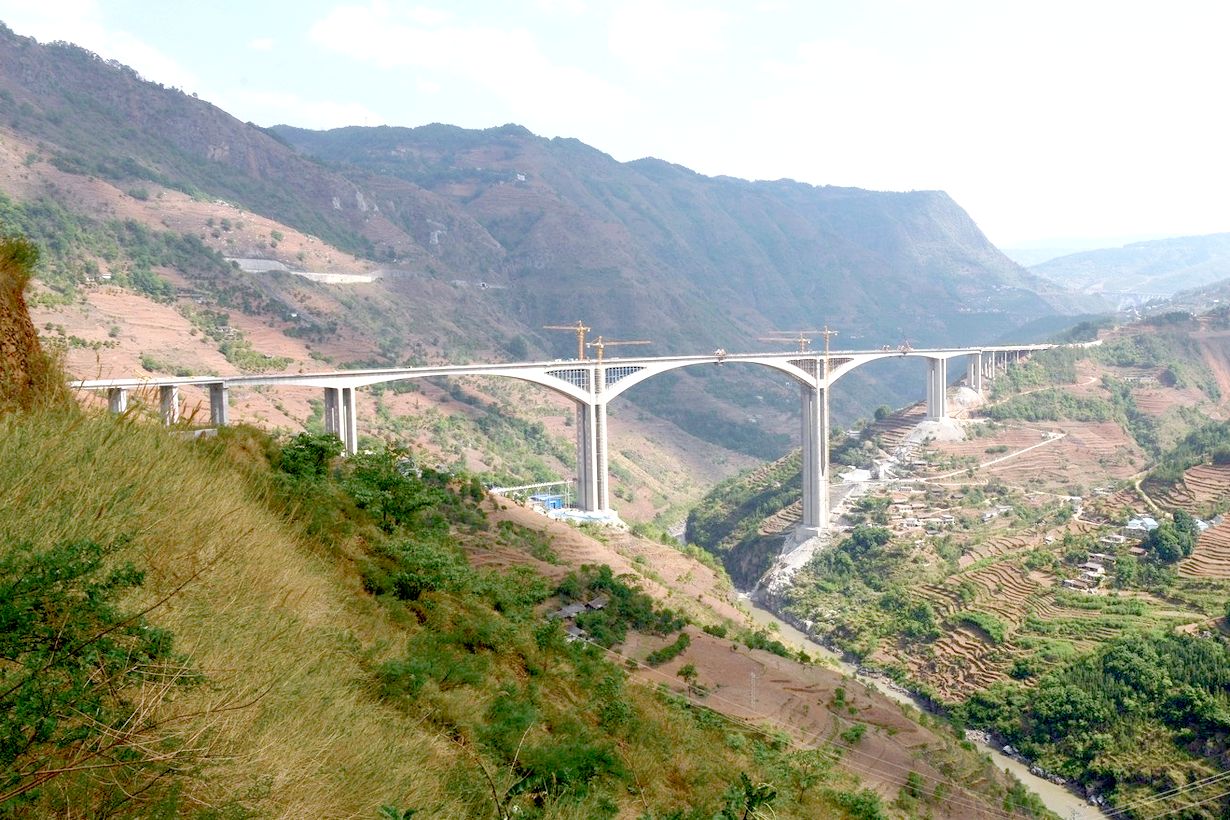

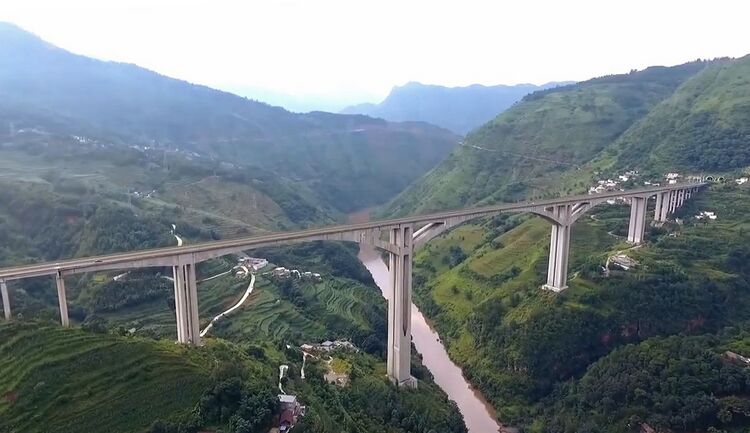

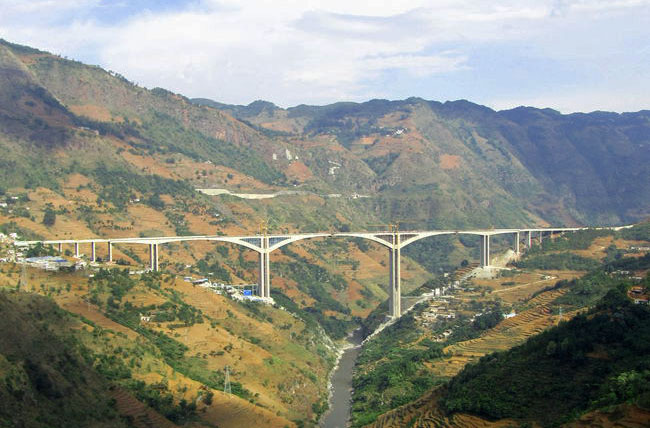

Just upstream of the famous Beipanjiang Railway bridge is the monstrous Shuipan expressway crossing with an massive span configuration of 220, 290 and 220 meters. The central span of 290 meters is one of the 10 longest concrete beam spans on earth and the first to be built with an unusual "open window" design that makes the beams look less bulky and more arch-like.

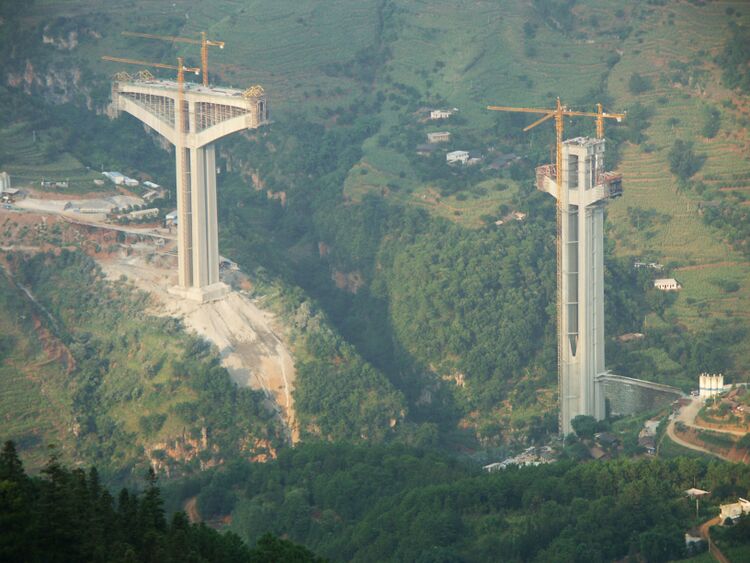

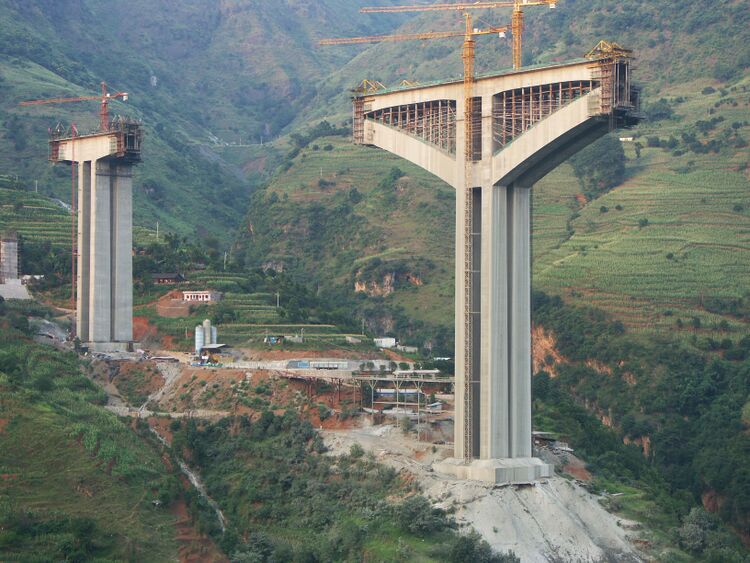

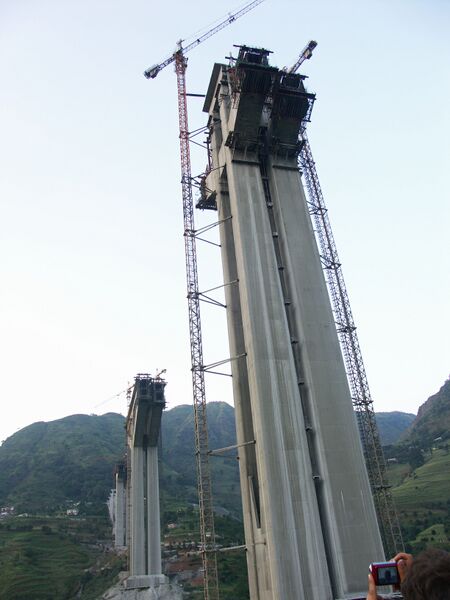

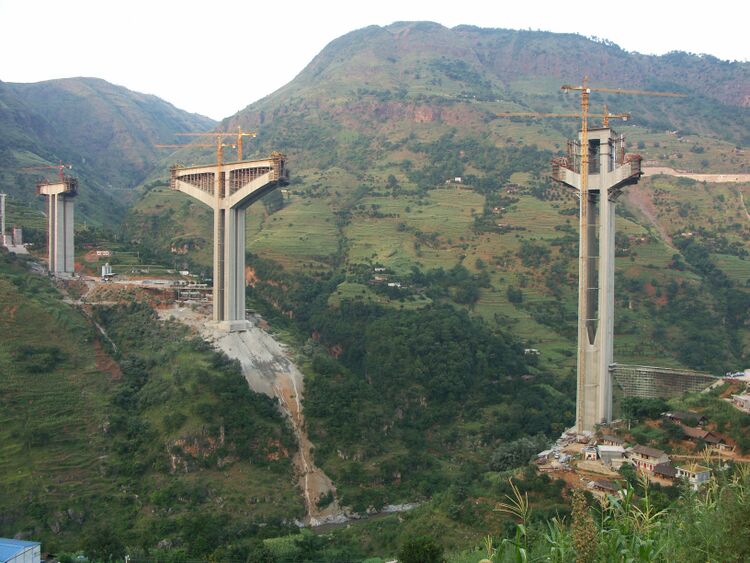

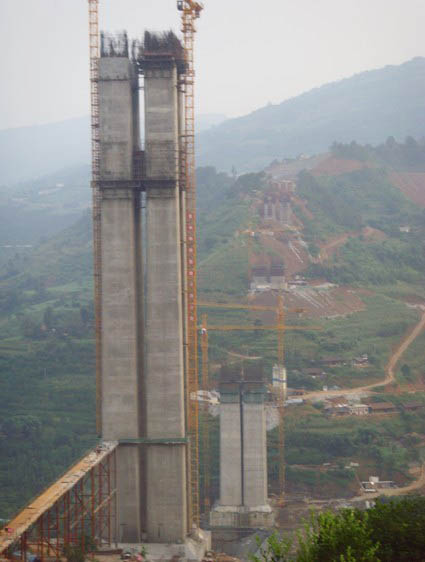

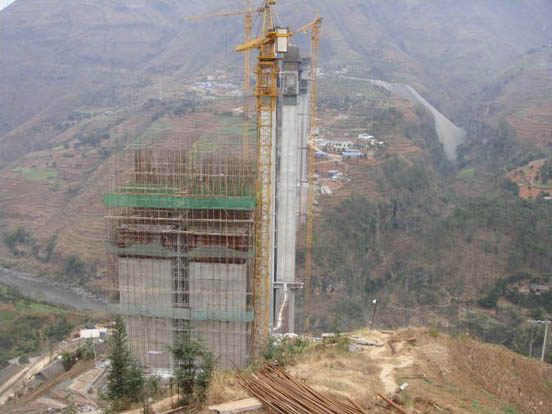

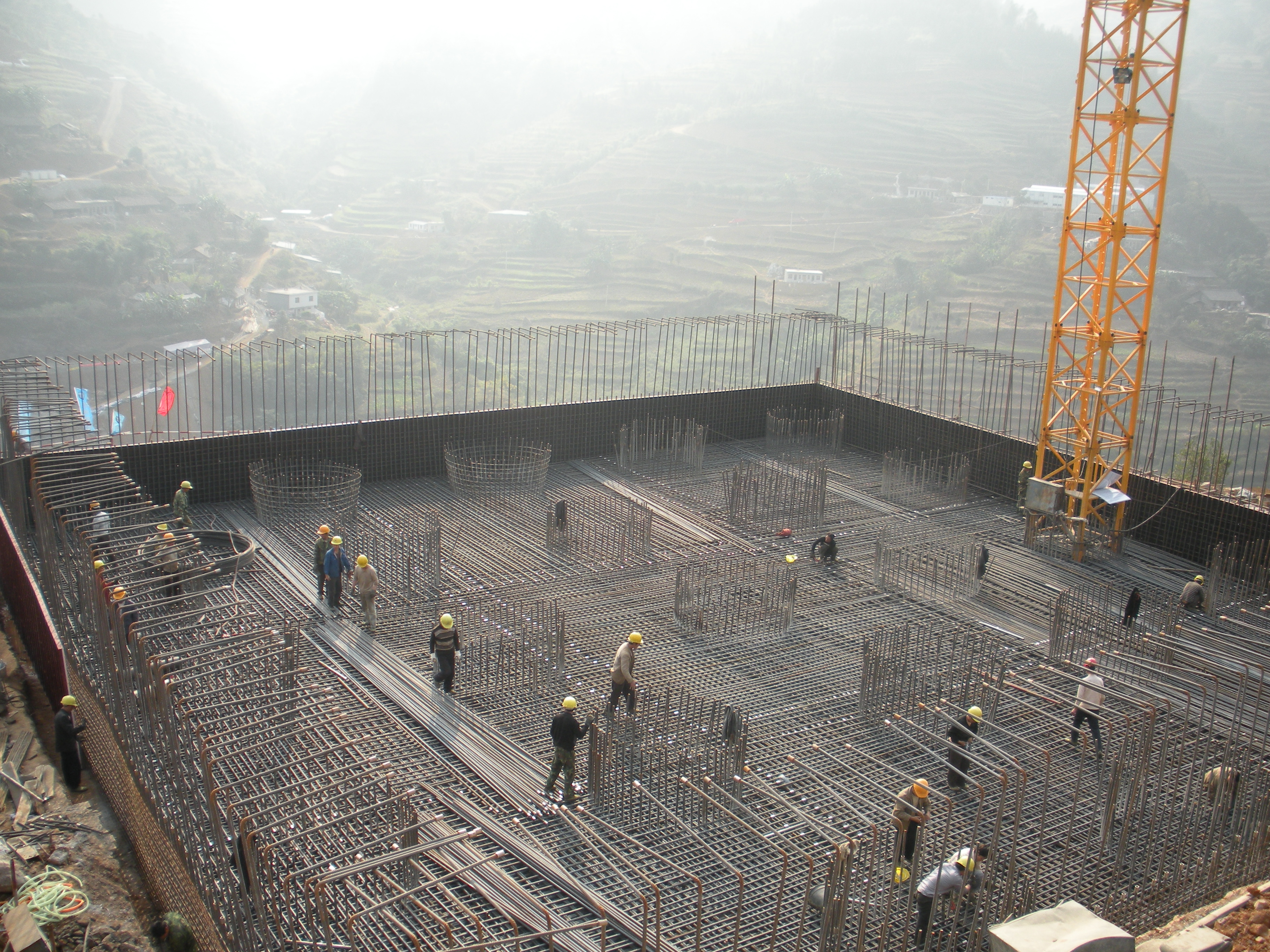

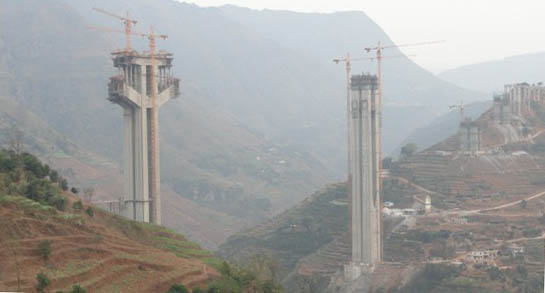

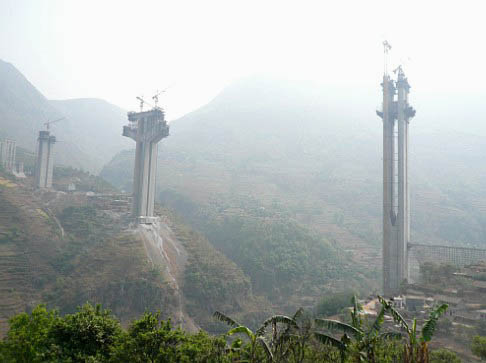

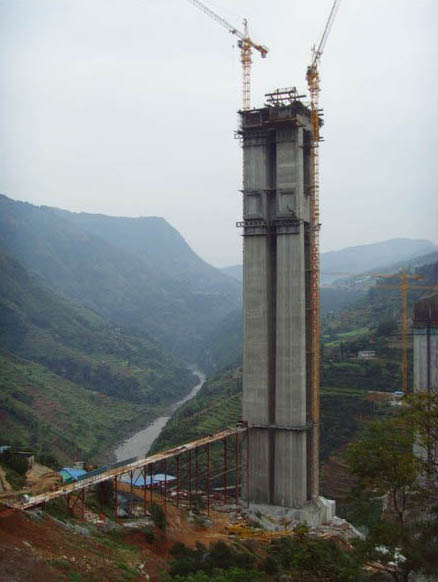

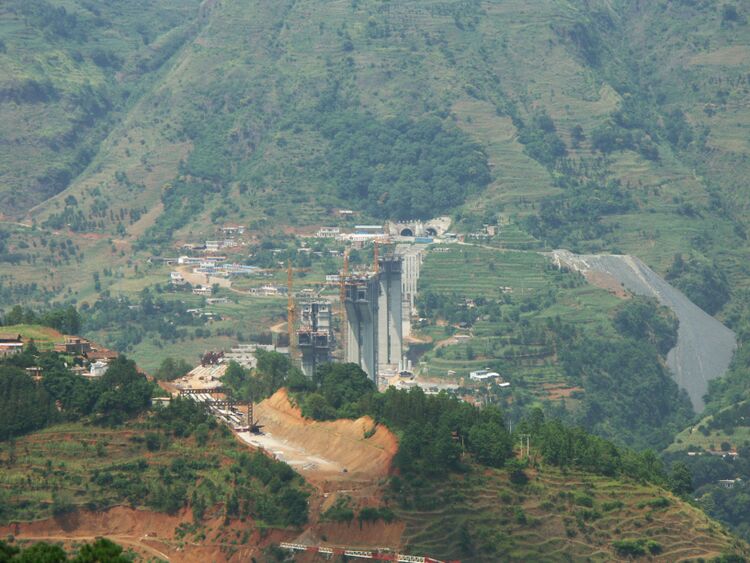

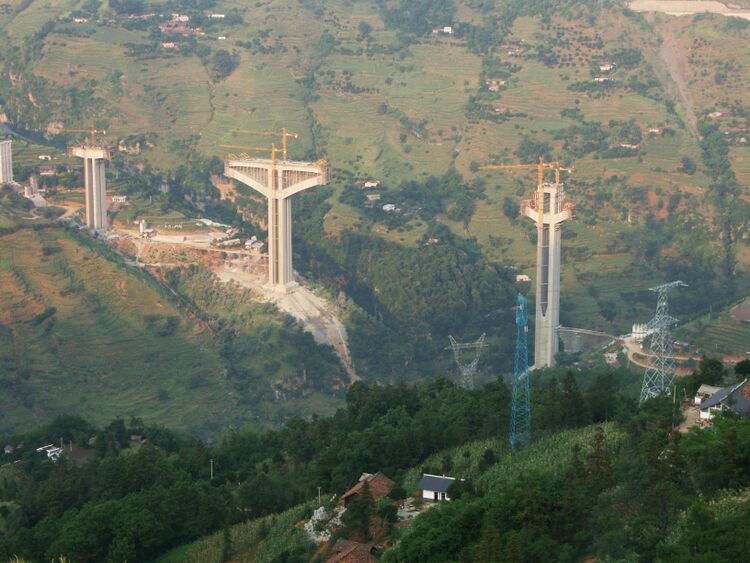

The west pier is one of the 30 tallest on earth with a foundation to beam height of 176 meters. The configuration was largely chosen due to a large finding of 5 layers of karst caves on the east side of the river canyon. The volume of 200,000 cubic meters was too great to fill in. The curve along the underside of the beam follows a parabola of 2.5. The full width of the deck is 21.5 meters.

No other river on earth outside China has more than one high bridge over it - the Beipanjiang now has a dozen with even more to come! The word Beipanjiang (pronounced Bay-Pan-Gee-Ang) translates into North Winding River with the word “bei” meaning north and “pan” meaning winding. Cutting a huge swath from the northwest end of Guizhou Province to the southwest where it becomes the Hongshui he river at the border of Guangxi Province, the Beipanjiang River traverses through some of China’s most spectacular mountain gorges. When China began to expand its road and railway system in the 1990s, the river became the biggest obstacle between the giant cities of Guiyang and Kunming.

The entire area where the Shuipan expressway travels through the Beipan River canyon has become a hotbed of high bridge activity with no less then 6 bridges exceeding 100 meters in height in a distance of just 6 kilometers. Only the Malinghe River near Xingyi has as many high bridges in such close proximity.

In 2021 an even larger version of the arch-like beam design with the open windows at the pier tops was completed in central Guizhou Province. Called Ganxi Bridge, the main span of 300 meters is just 10 meters longer then the Beipanjiang Shuipan main span of 290 meters. Then in 2024 the largest arch-beam span ever opened in the form of the Liuzhi Bridge with three back-to-back spans of 320 meters.

The current roster of arch-beam hybrids in China includes the Liuzhi Bridge, Ganxi Bridge, the Beipanjiang Bridge Shuipan, the Yunnanzhuang Bridge, Lijia Jialing Bridge and Liaojiaxi Jialing Metro Bridge.

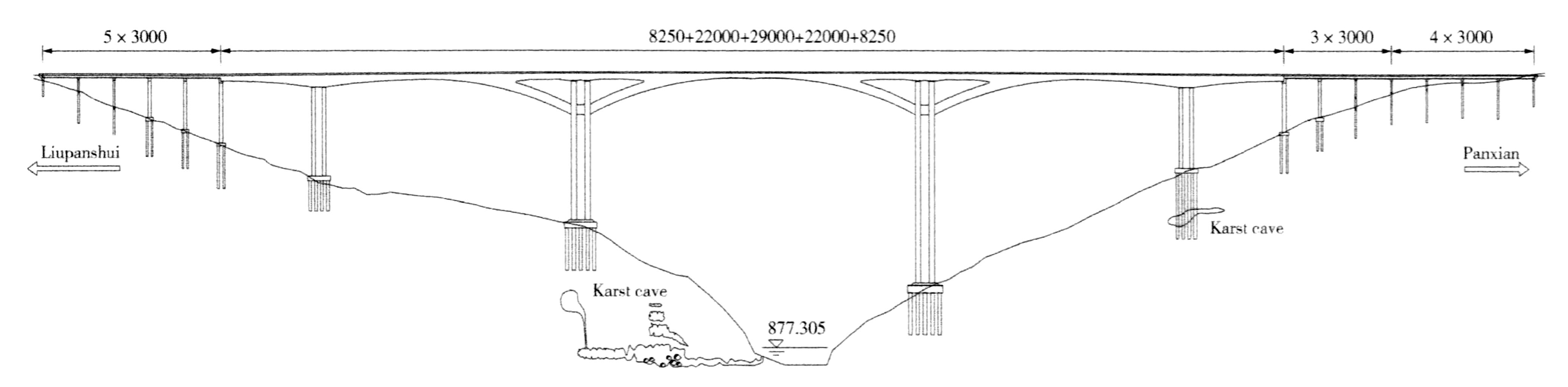

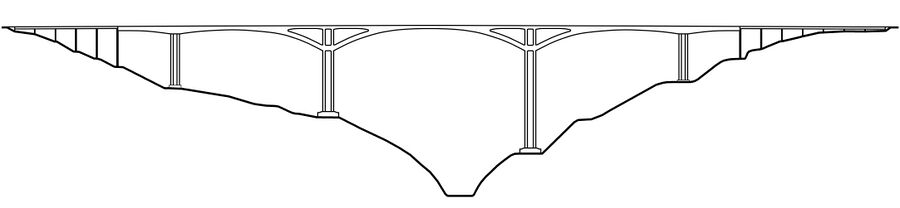

Beipanjiang Bridge Shuipan Elevation

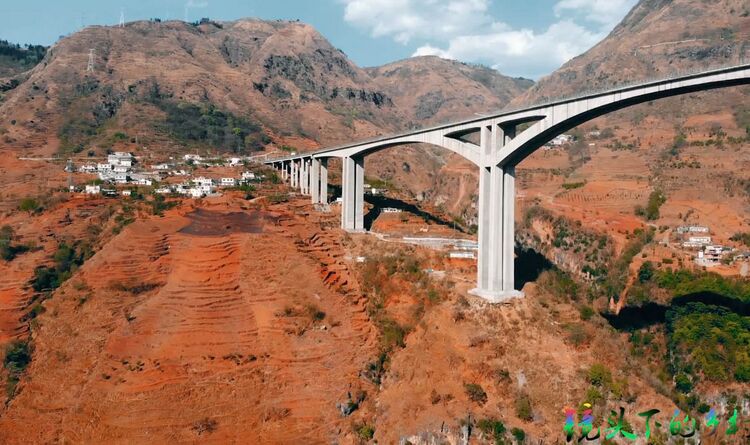

Beipanjiang Bridge ShuipanBrown.jpg

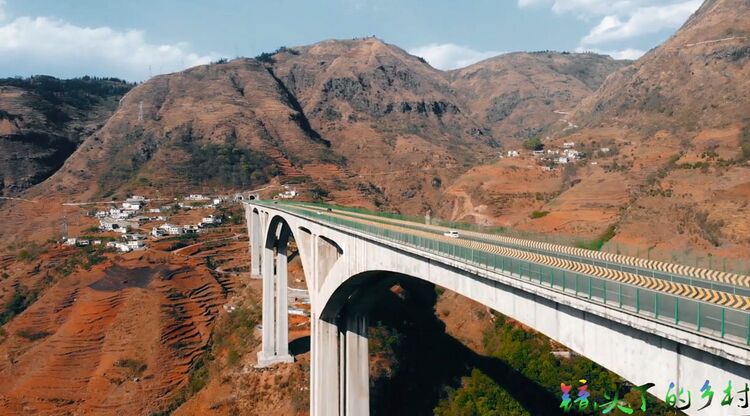

Beipanjiang Bridge ShuipanDeckSide.jpg


Beipanjiang Bridge ShuipanLateDay.jpg

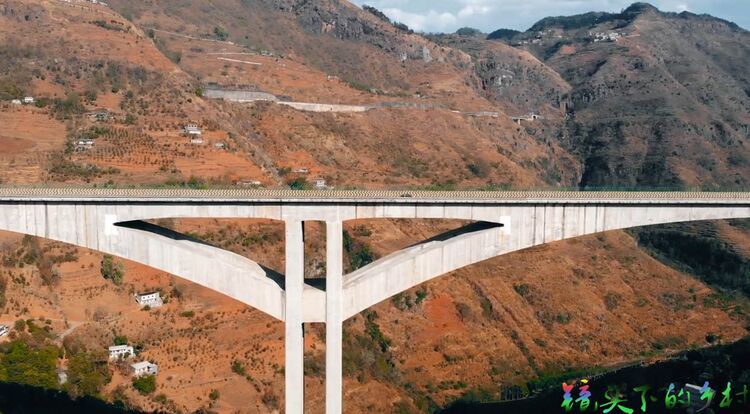

Beipanjiang Bridge ShuipanSidePier.jpg









Image by Eric Sakowski / HighestBridges.com



Image by John Filmer.



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com


BeipanjiangBeam15 copy.jpg

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

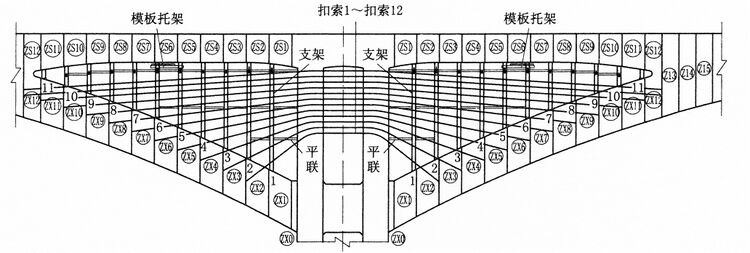

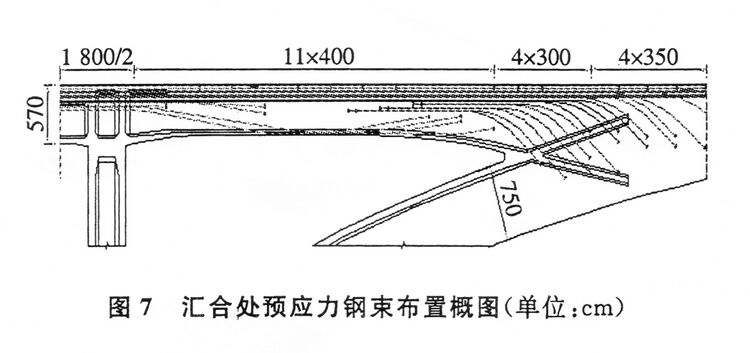

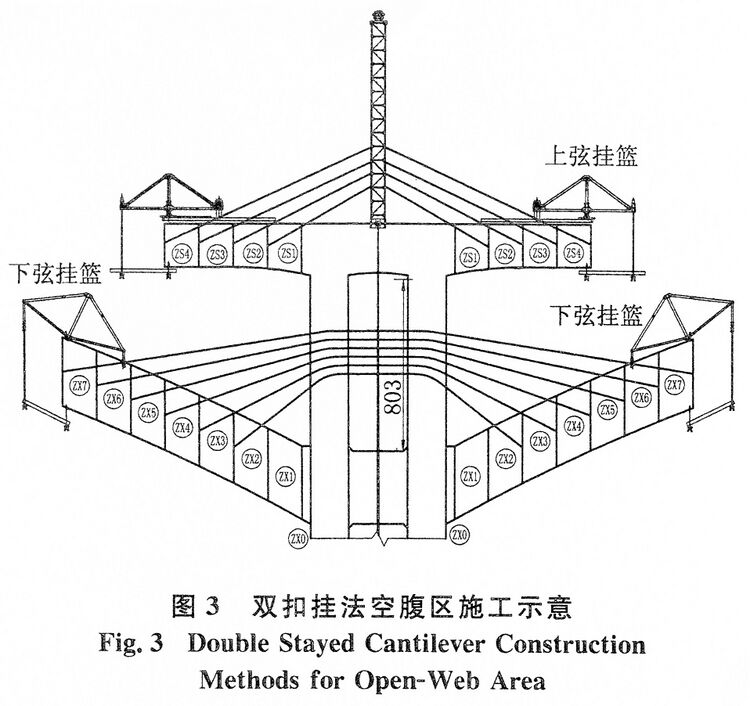

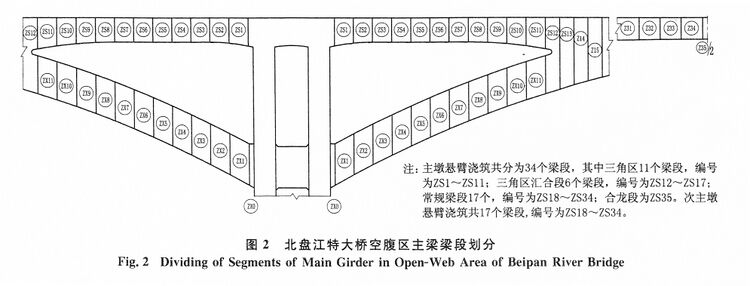

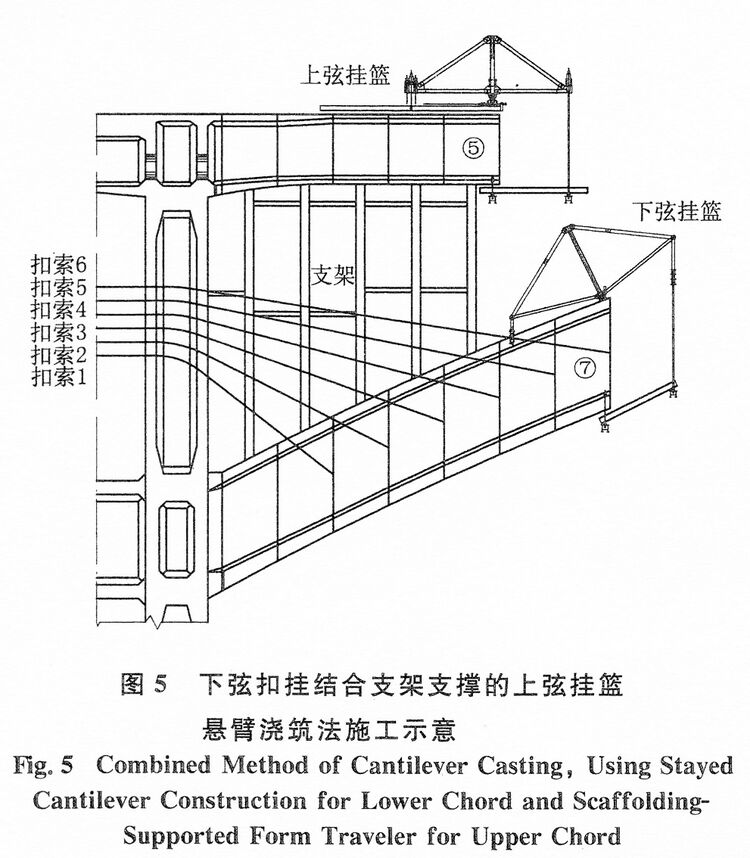

A diagram of tendons within the unusual openings of the 290 meter main span.

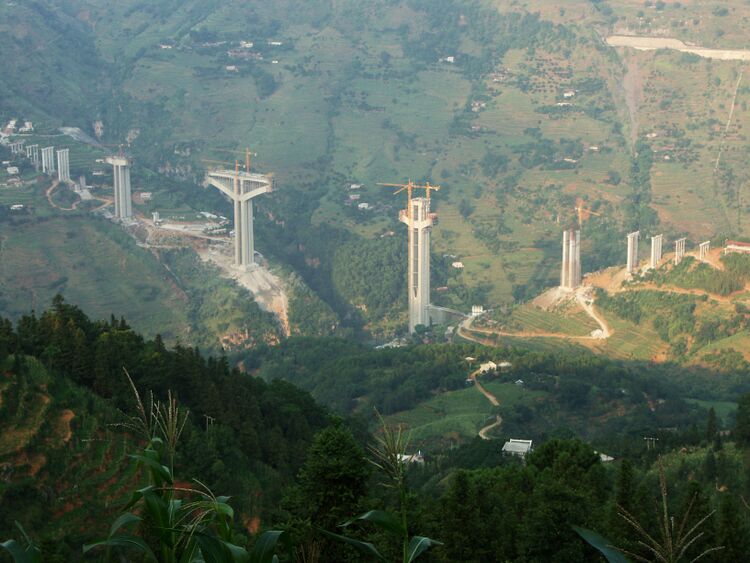

BeipanjiangBeam7 copy.jpg

Image by Eric Sakowski / HighestBridges.com

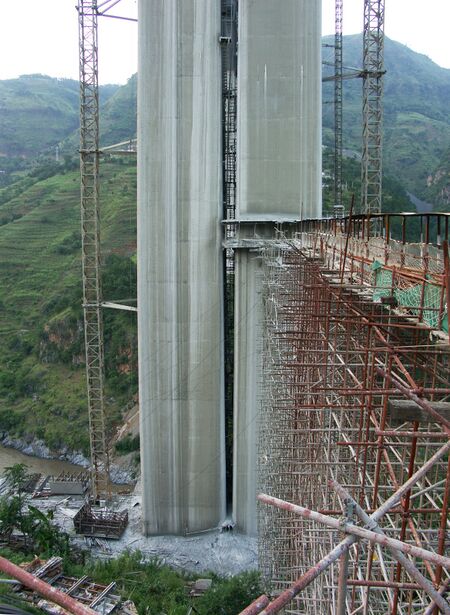

BeipanjiangBeam23 copy.jpg

Image by Eric Sakowski / HighestBridges.com





Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com





Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

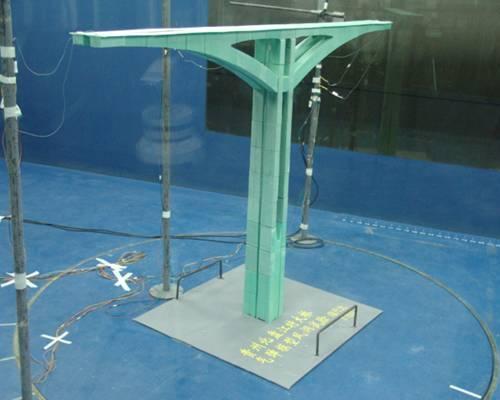

Wind tunnel testing on the tallest pier and half the span.



Image by Eric Sakowski / HighestBridges.com















A sign showing the rough 8 kilometer drive to the east side of the bridge construction. Image by Eric Sakowski / HighestBridges.com


Other arch-beam hybrids in China include the Liuzhi Bridge, Ganxi Bridge, the Beipanjiang Bridge Shuipan, the Yunnanzhuang Bridge, Lijia Jialing Bridge and Liaojiaxi Jialing Metro Bridge.



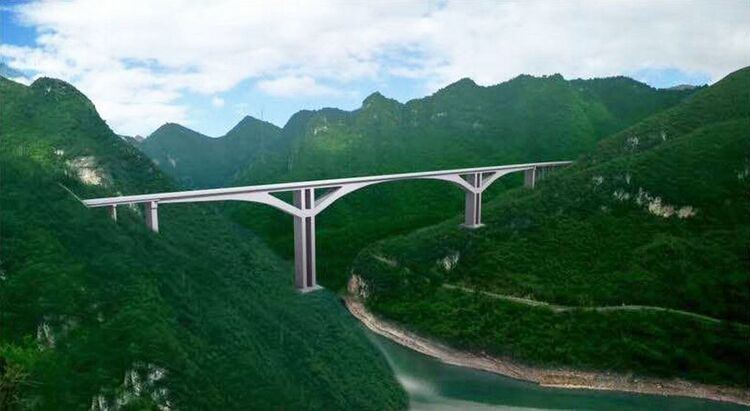

Ganxi Bridge.

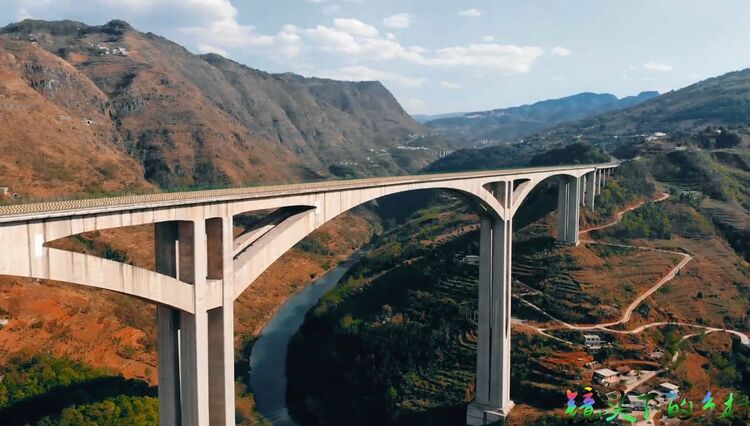

Beipanjiang Bridge ShuipanLateDay.jpg

Beipanjiang Bridge Shuipan with a 290 meter main span.

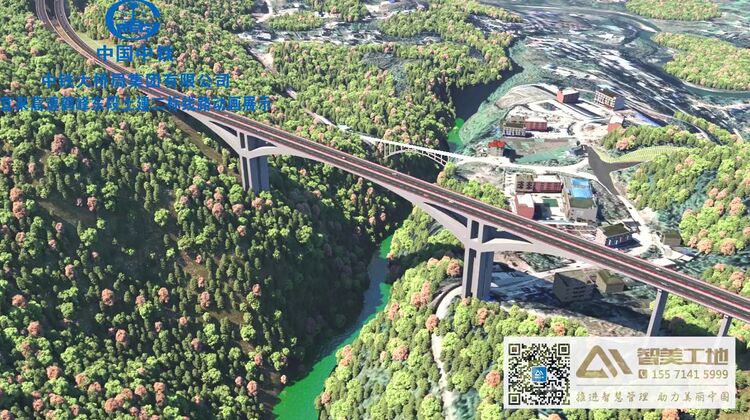

Yunnanzhuang Bridge with a 280 meter main span.


LiJia Jialing 245mtrSpan.jpg

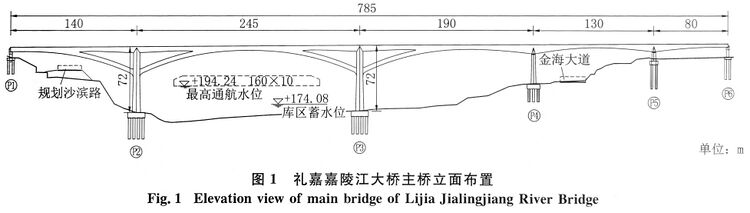

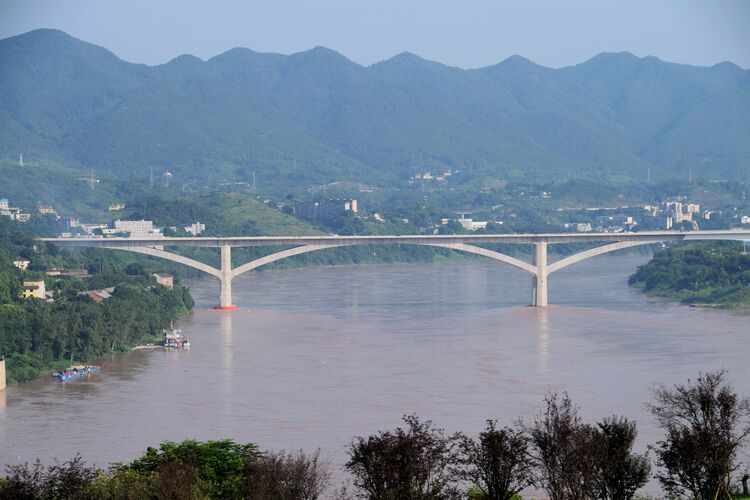

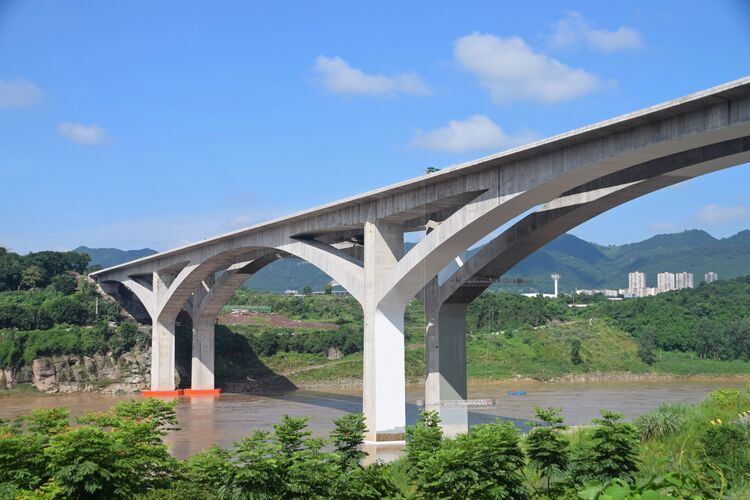

Lijia Jialing Bridge with a 245 meter main span.


LiJia Jialing 245mtrs.jpg


Liaojiaxi bridge.jpg

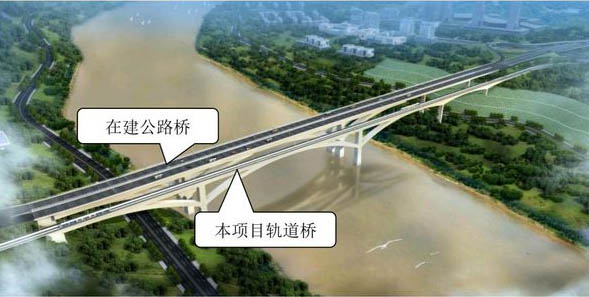

Liaojiaxi Jialing Metro Railway Bridge next to Lijia Jialing Bridge.

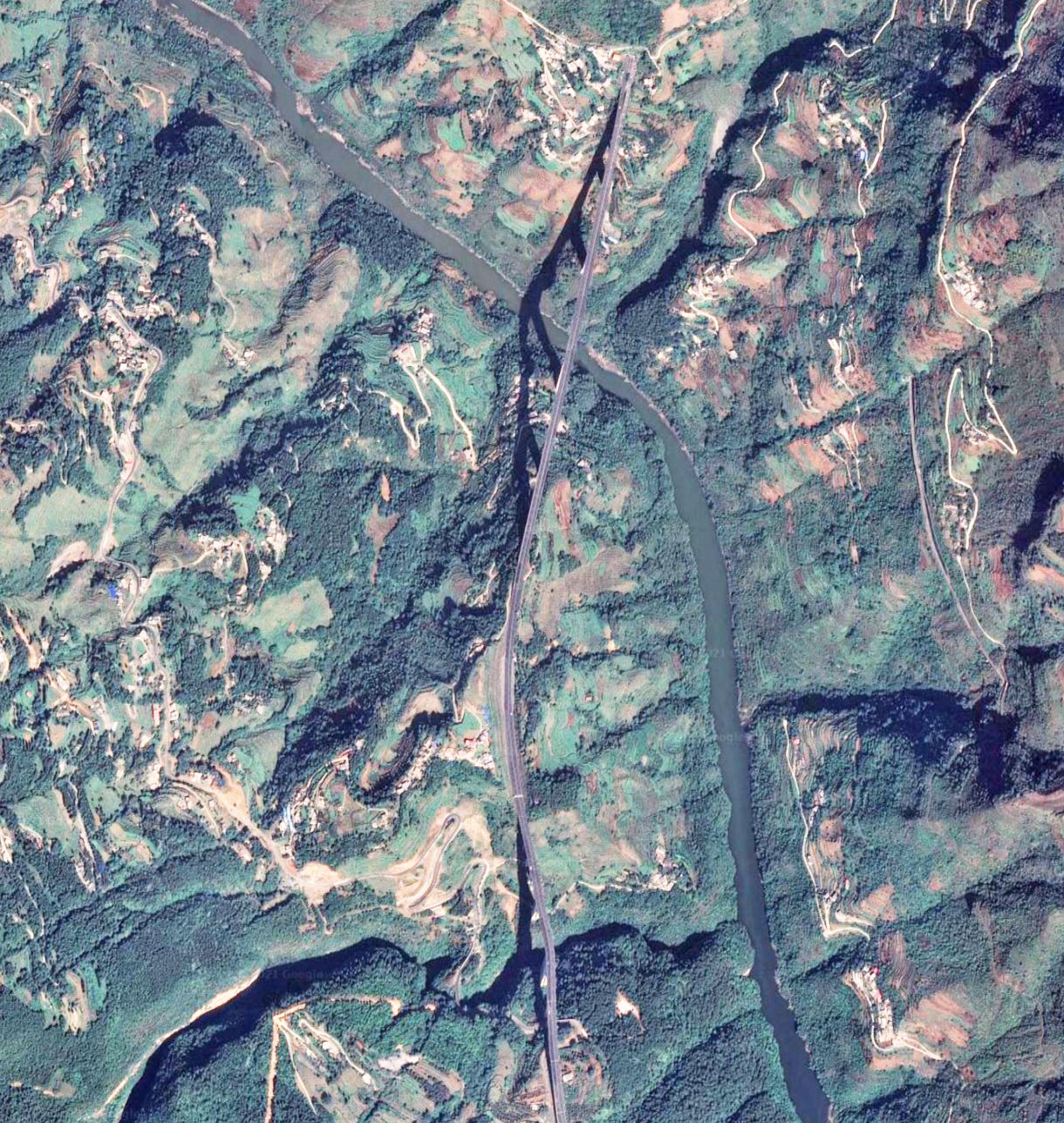

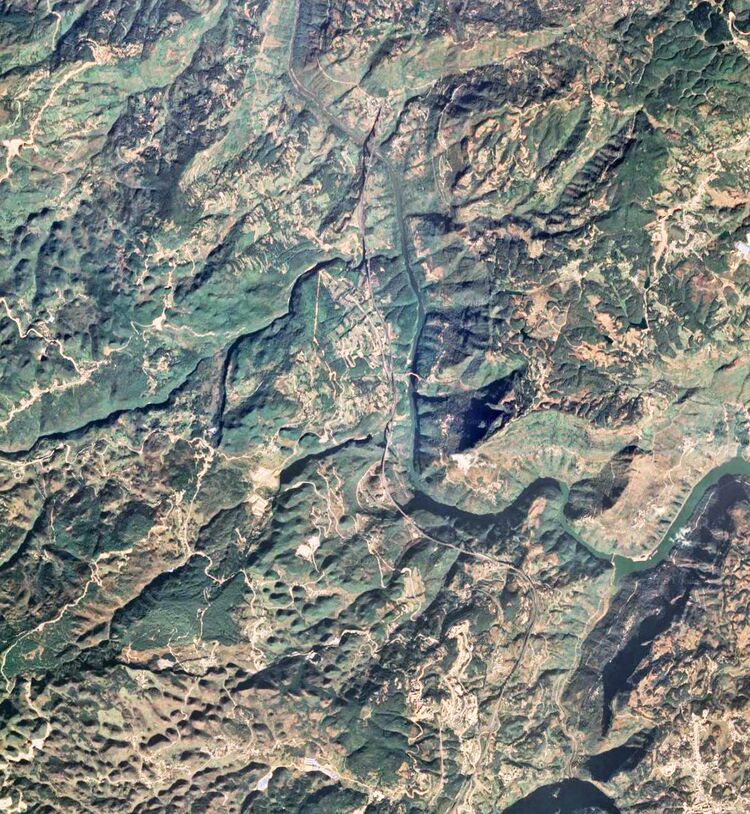

Beipanjiang Bridge Shuipan satellite image.





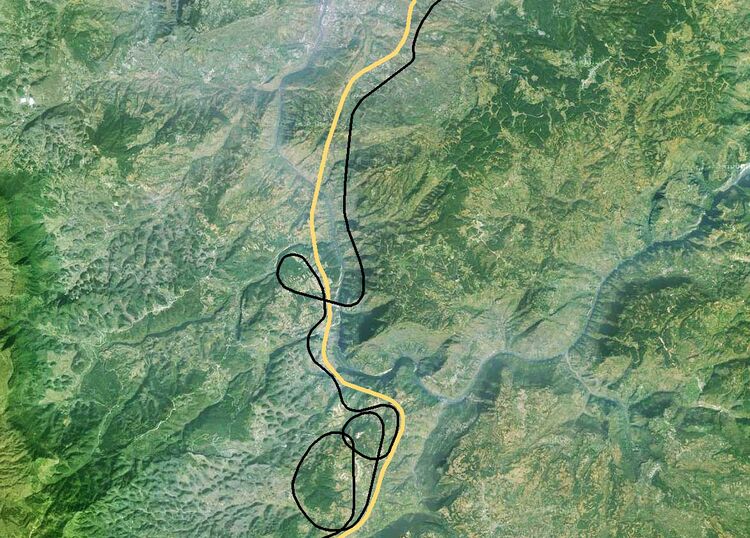

A wider view showing the giant tunnel spirals of the Shuibai Railway that were necessary to reduce the steepness of the railway grade that descends hundreds of meters down into the Beipanjiang River gorge.

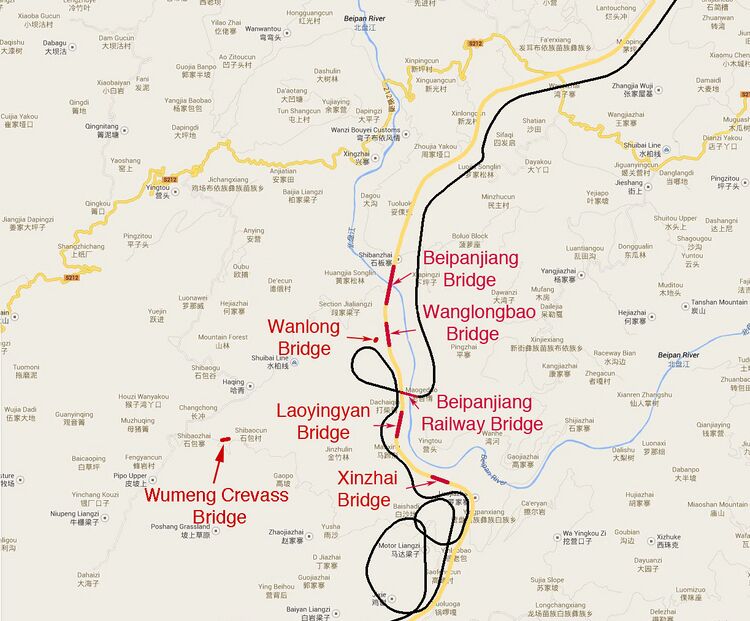

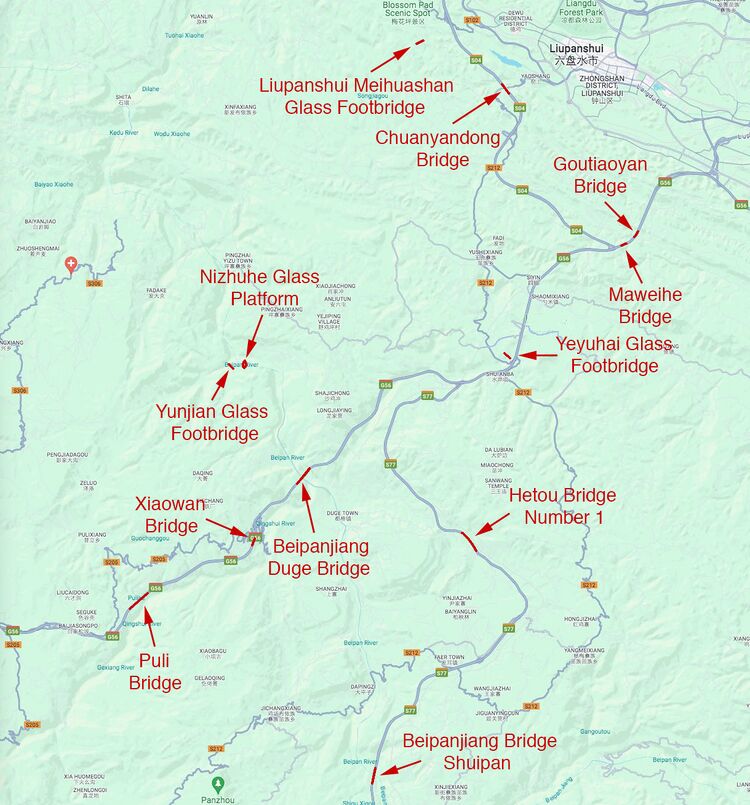

Beipanjiang Bridge Shuipan expressway location map.
