Falanggou Bridge

From HighestBridges.com
Jump to navigationJump to search

Falanggou Bridge
法朗沟特大桥
Linkouzhen, Guizhou, China
679 feet high / 207 meters high
738 foot span / 225 meter span
2015

Falanggou closure 20150605.jpg

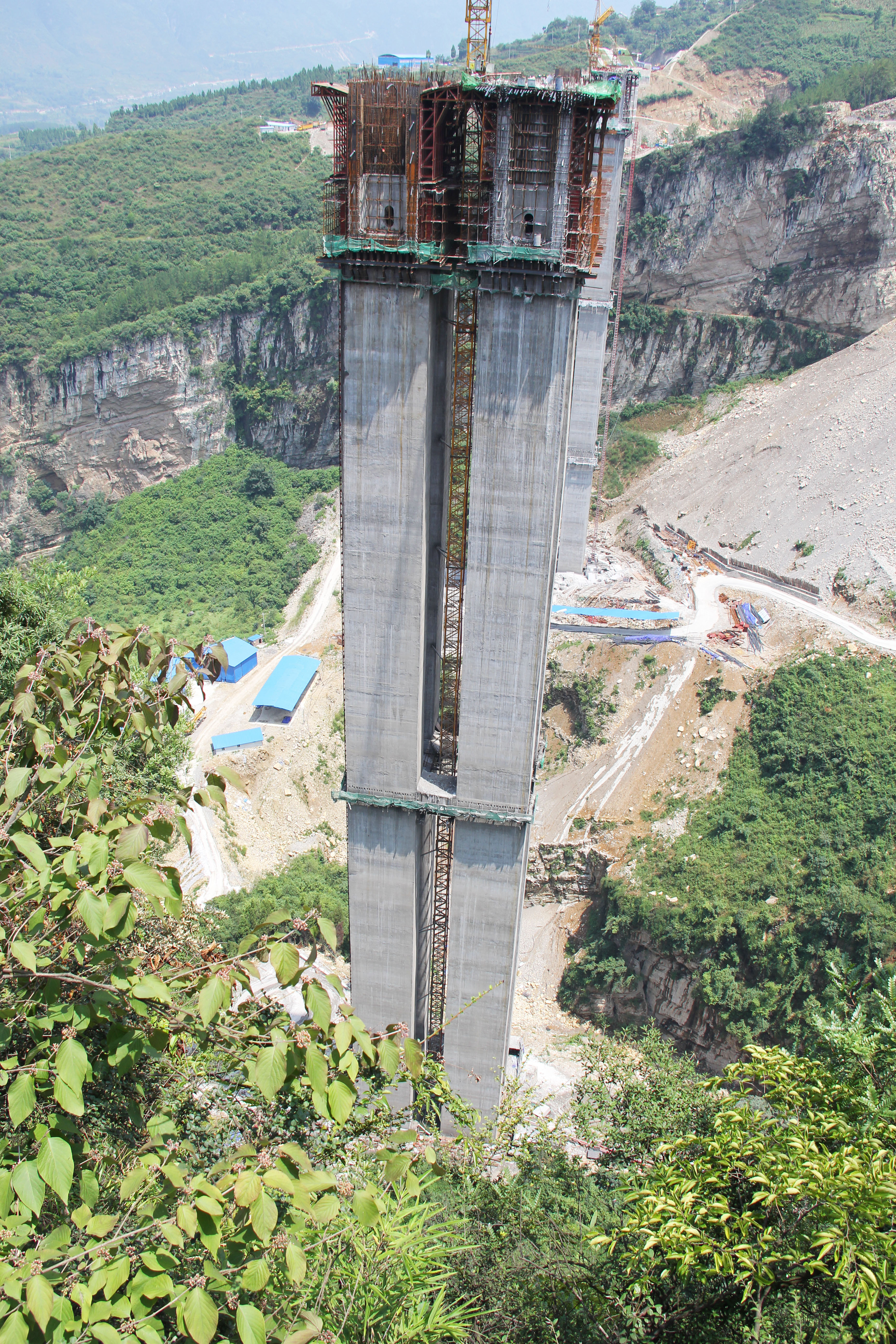

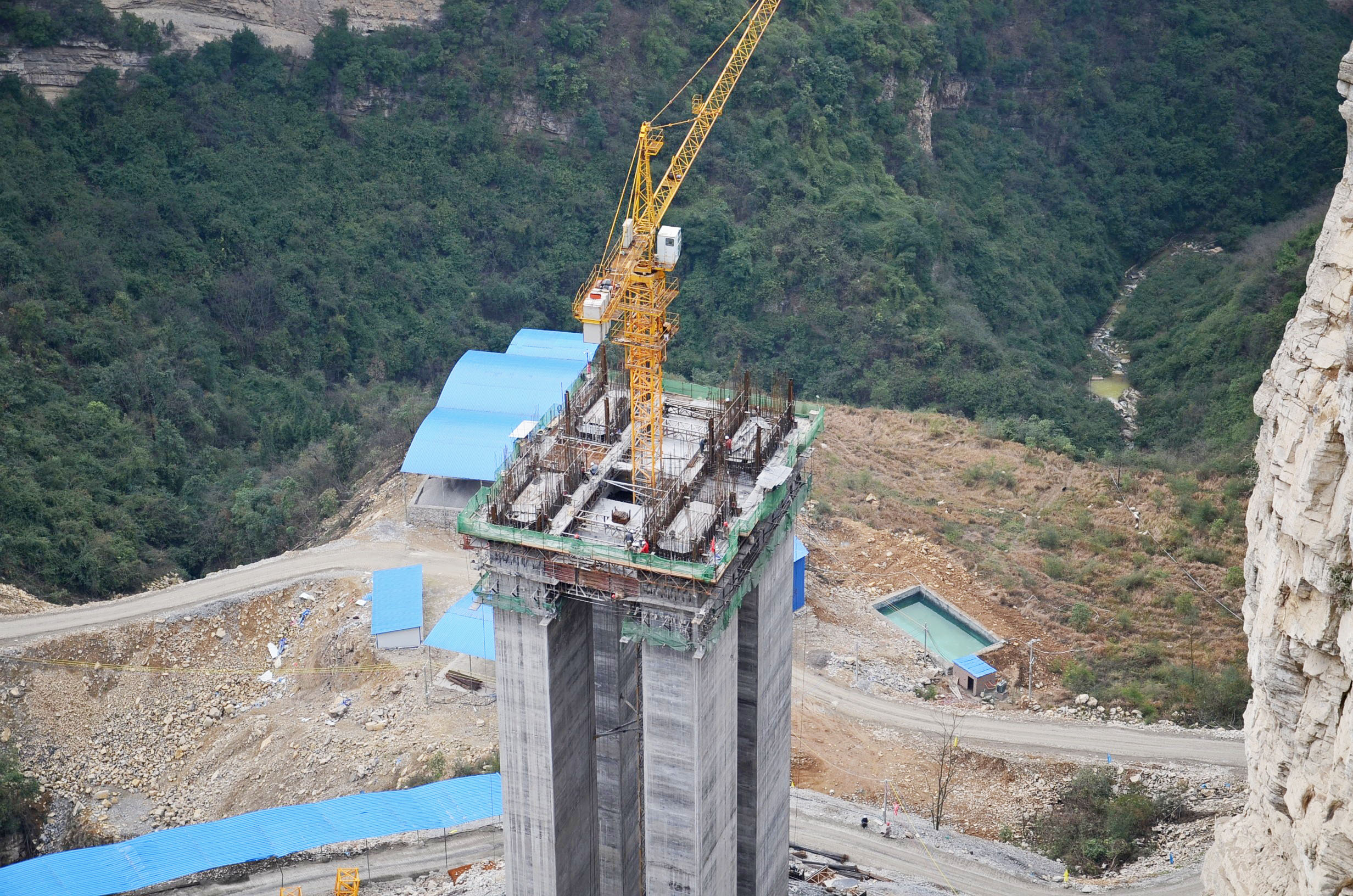

The Falanggou Bridge crosses a deep gully on the upper slopes of the Chishui River gorge just a few miles south of the Guizhou/Chongqing border before the G76 Expressway crosses the giant Chishuihe Bridge before continuing north towards the Yangtze River and the Chongqing City region. The main span is supported on piers 138 and 120 meters tall.

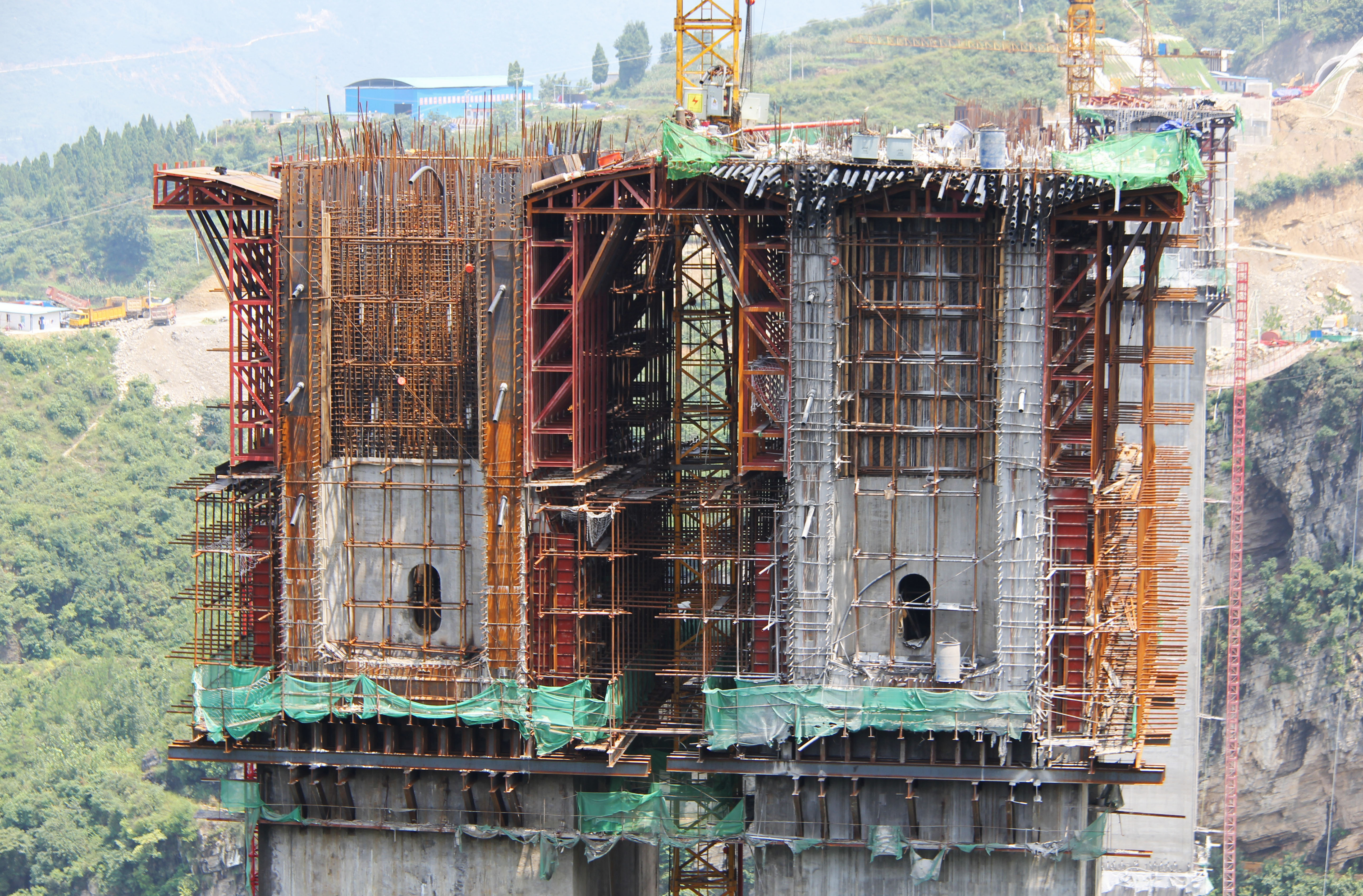

The single box cell beam is 12 meters wide with a depth of 13.5 meters over the pier and a depth of 5 meters at midspan. The full width of the deck is 24 meters.

Just a few kilometers further north on the same expressway is the 190 meter high Nianziping beam bridge with a height of 623 feet / 190 meters while an hours drive south on the same expressway is the Zongqihe arch crossing with a deck height of 866 feet / 264 meters.



Falanggou Bridge Elevation



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

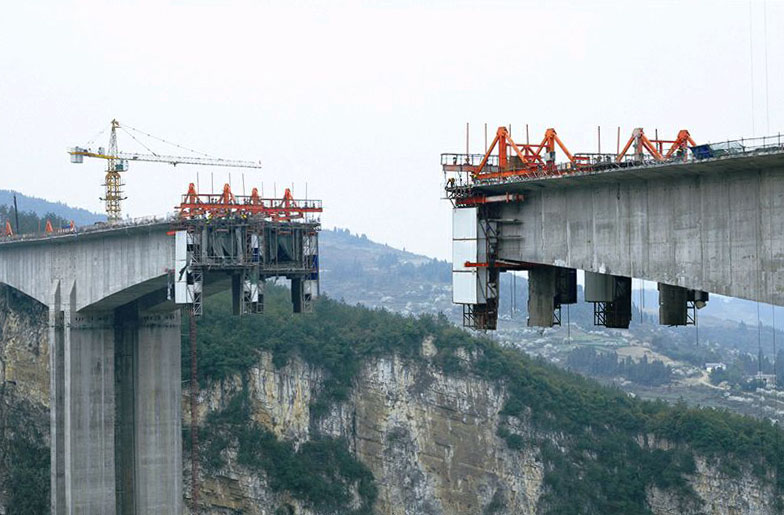

Falanggou bridge.jpg





Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

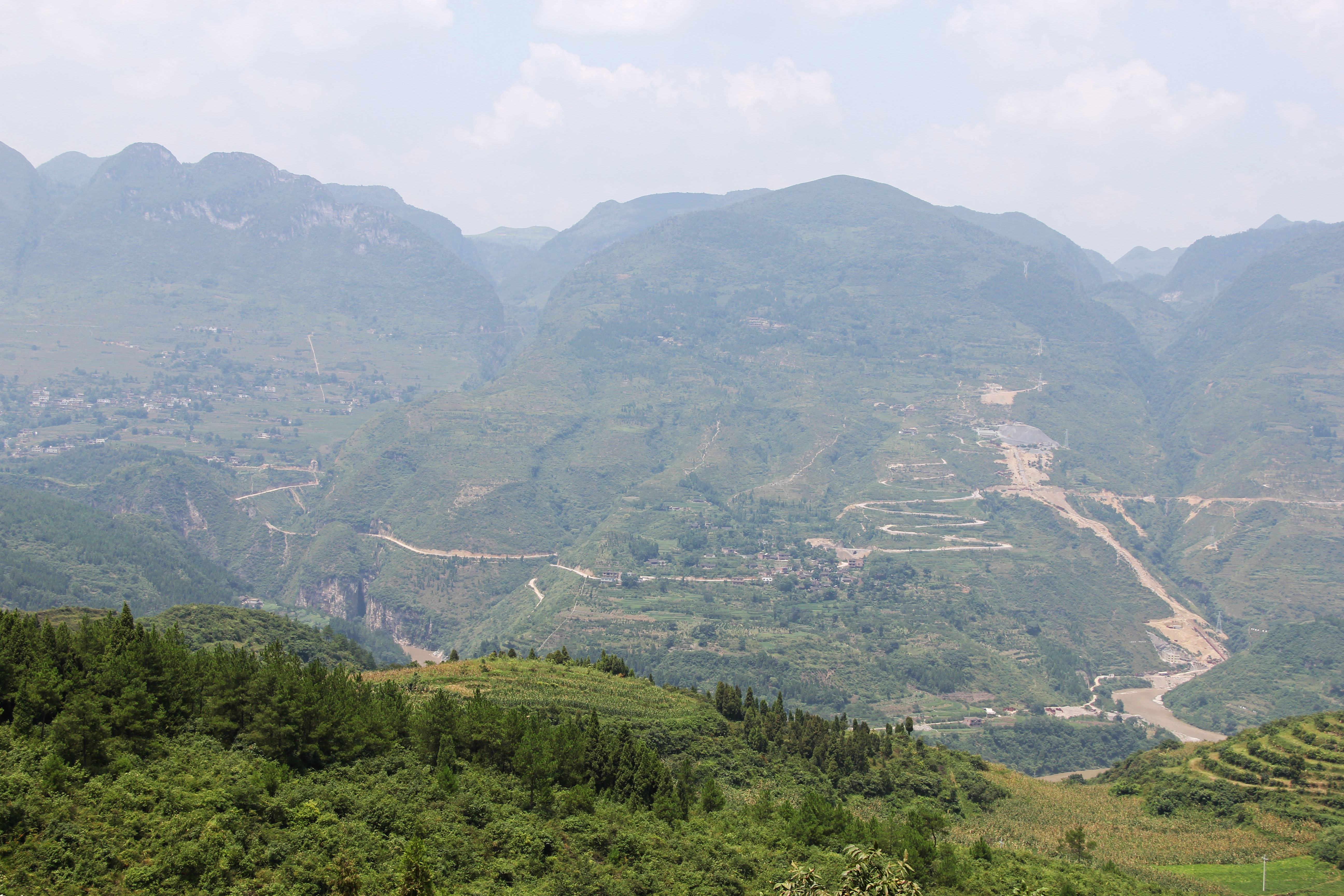

Chishui River Canyon. Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

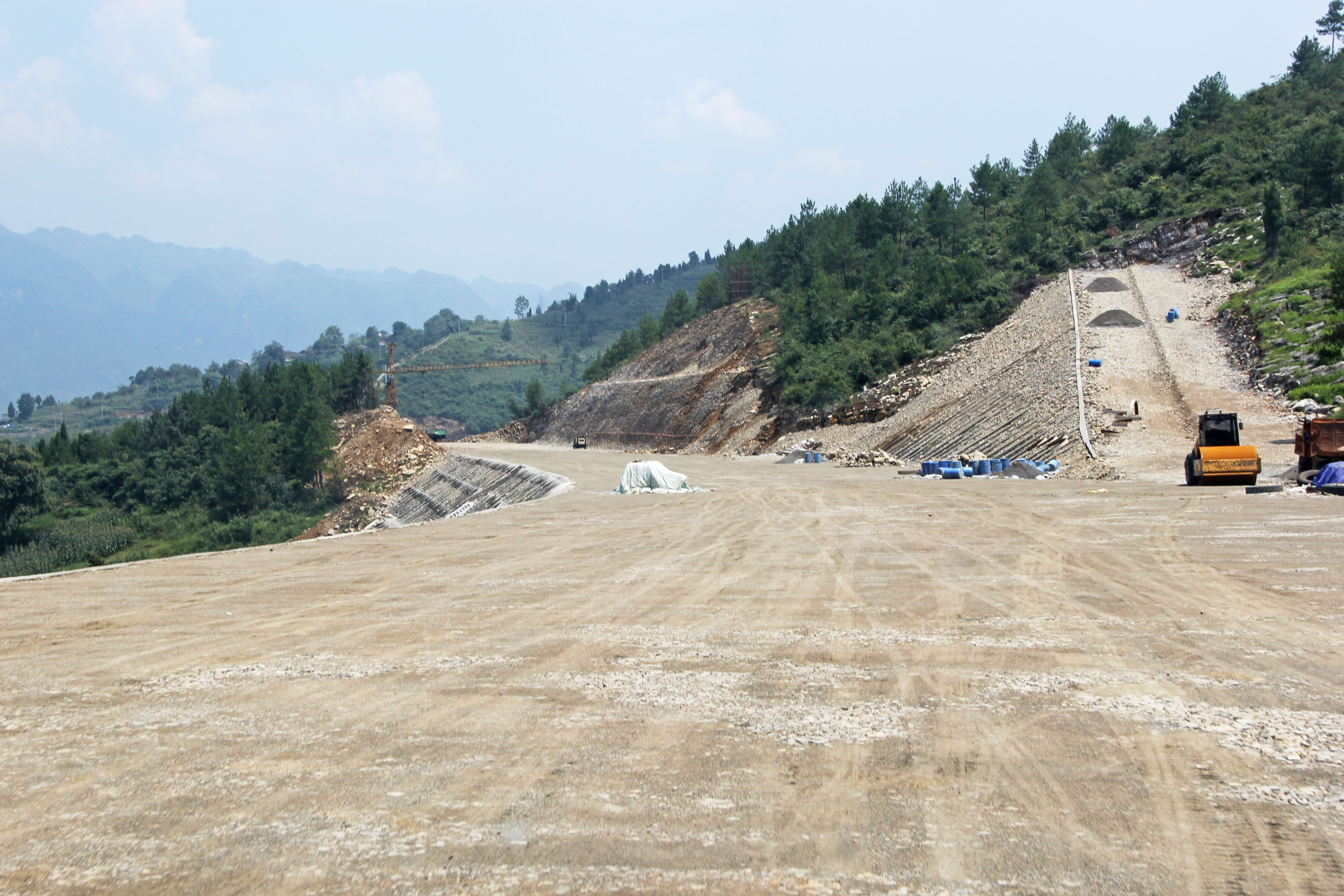

Approach from west side. Image by Eric Sakowski / HighestBridges.com















Construction workers excavate the East side foundation at the edge of the canyon.

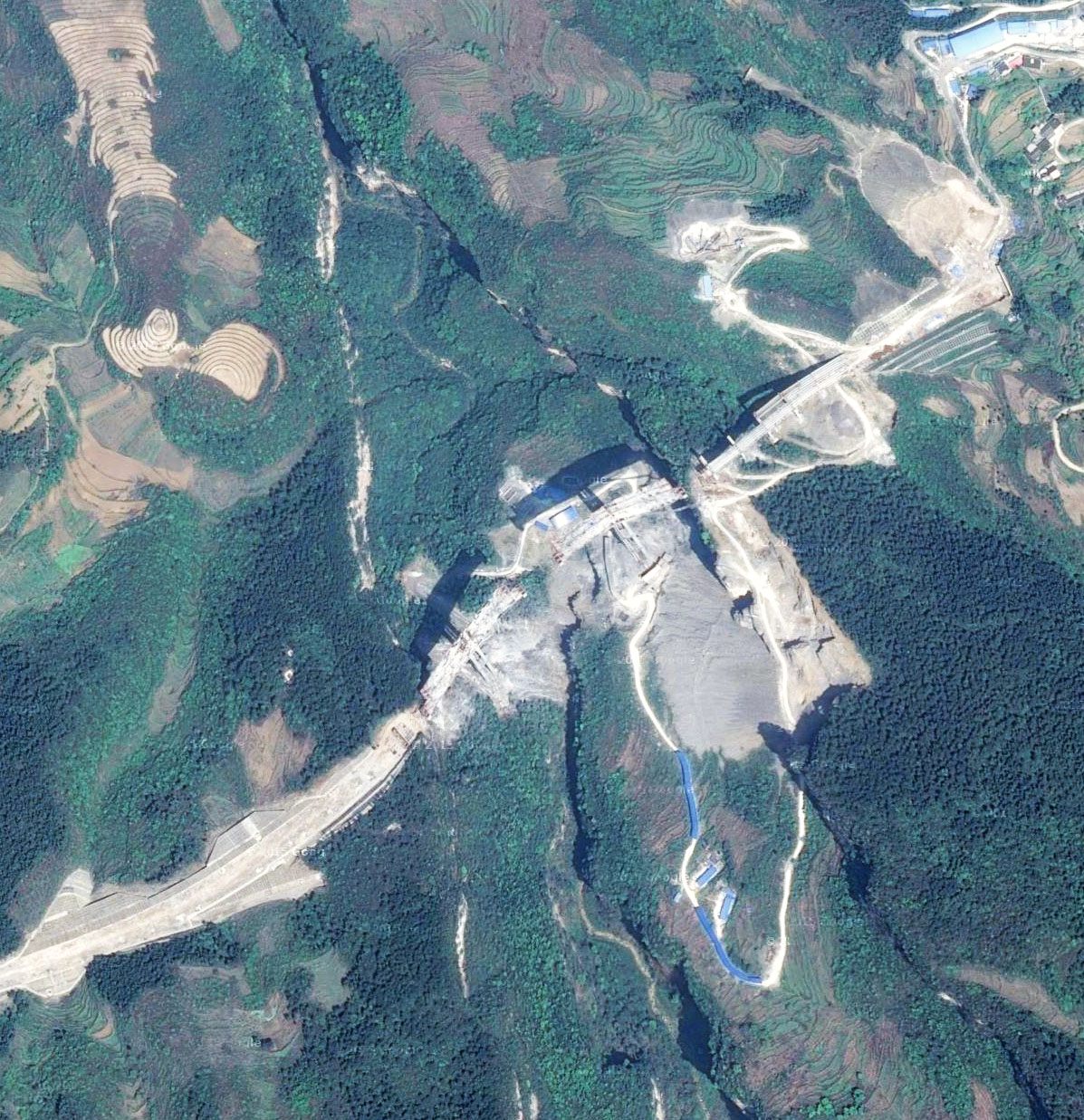

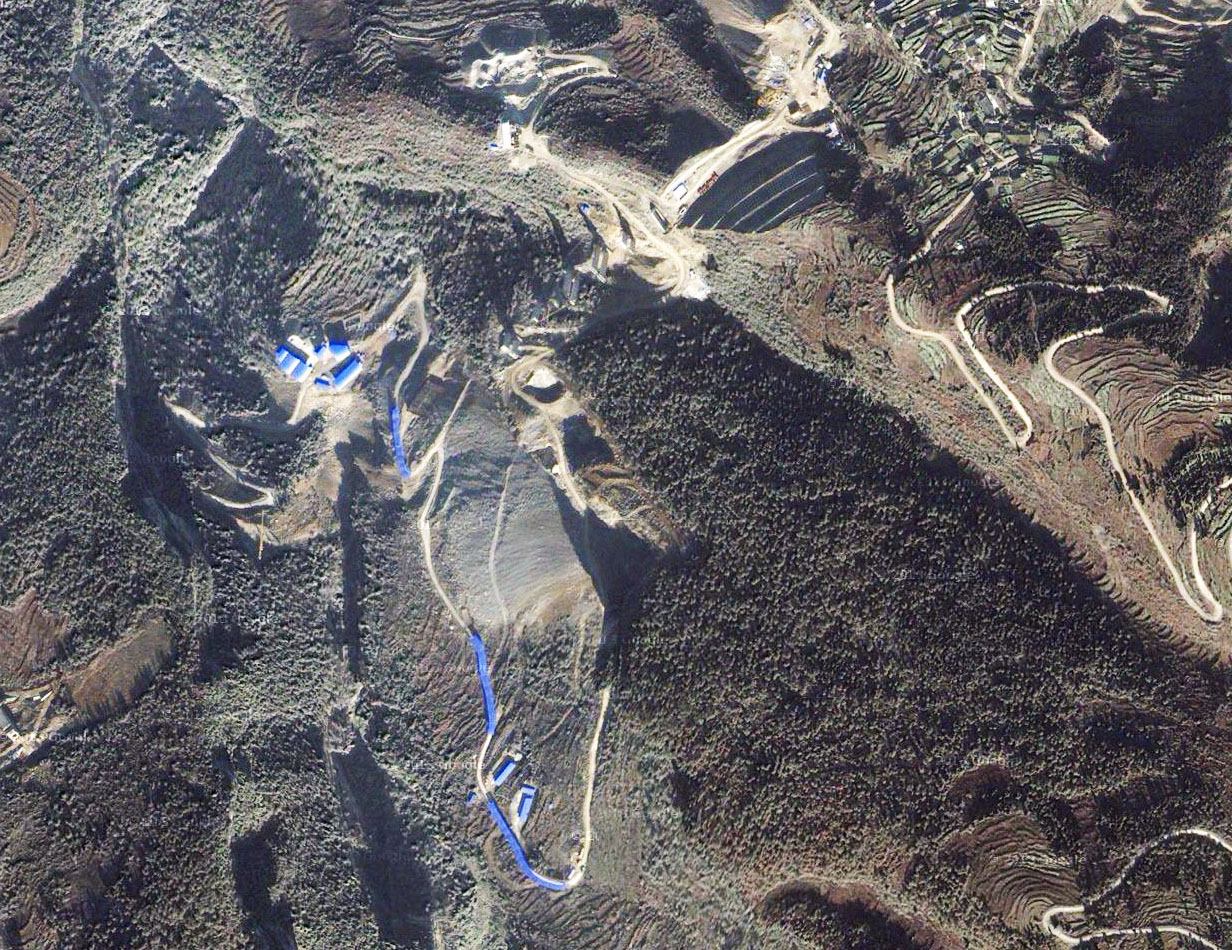

Falanggou Bridge satellite image.

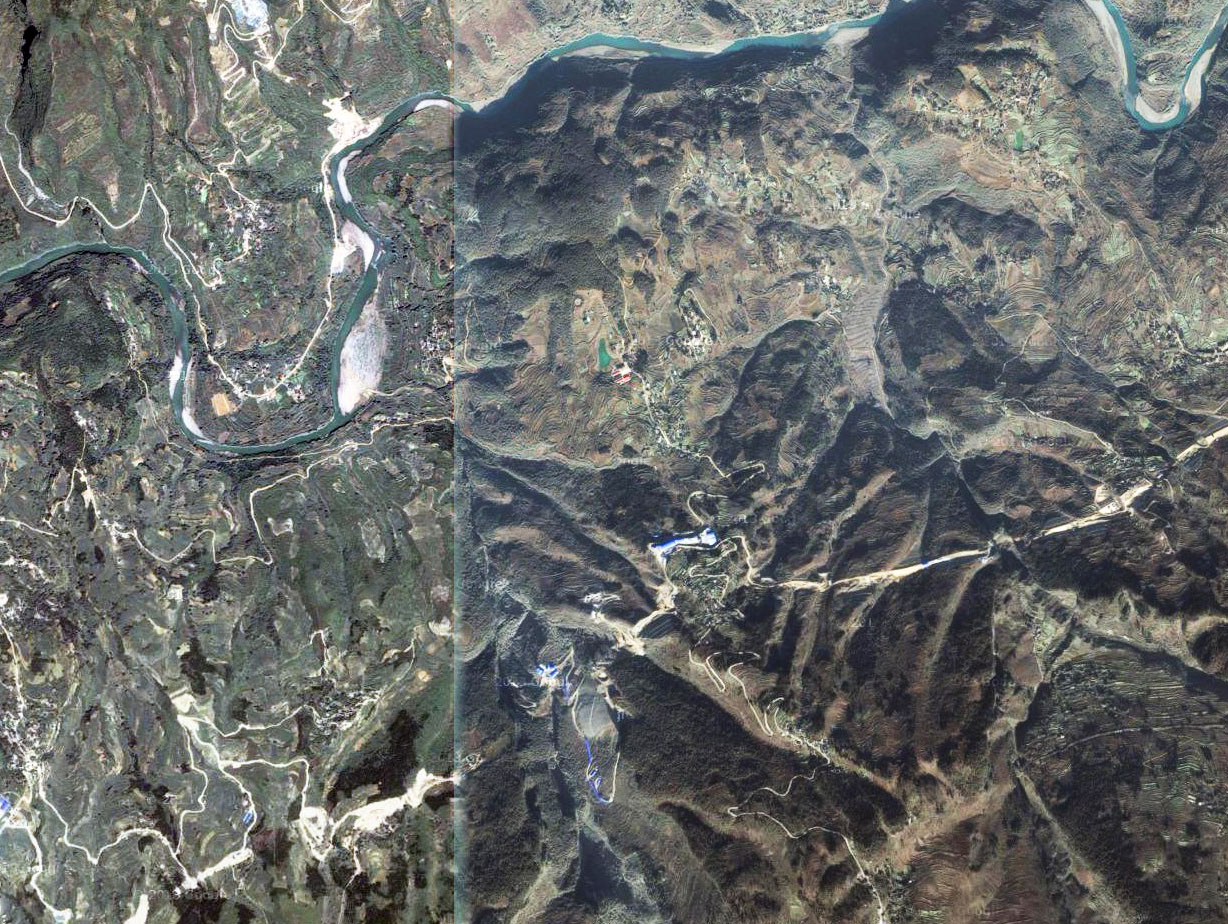

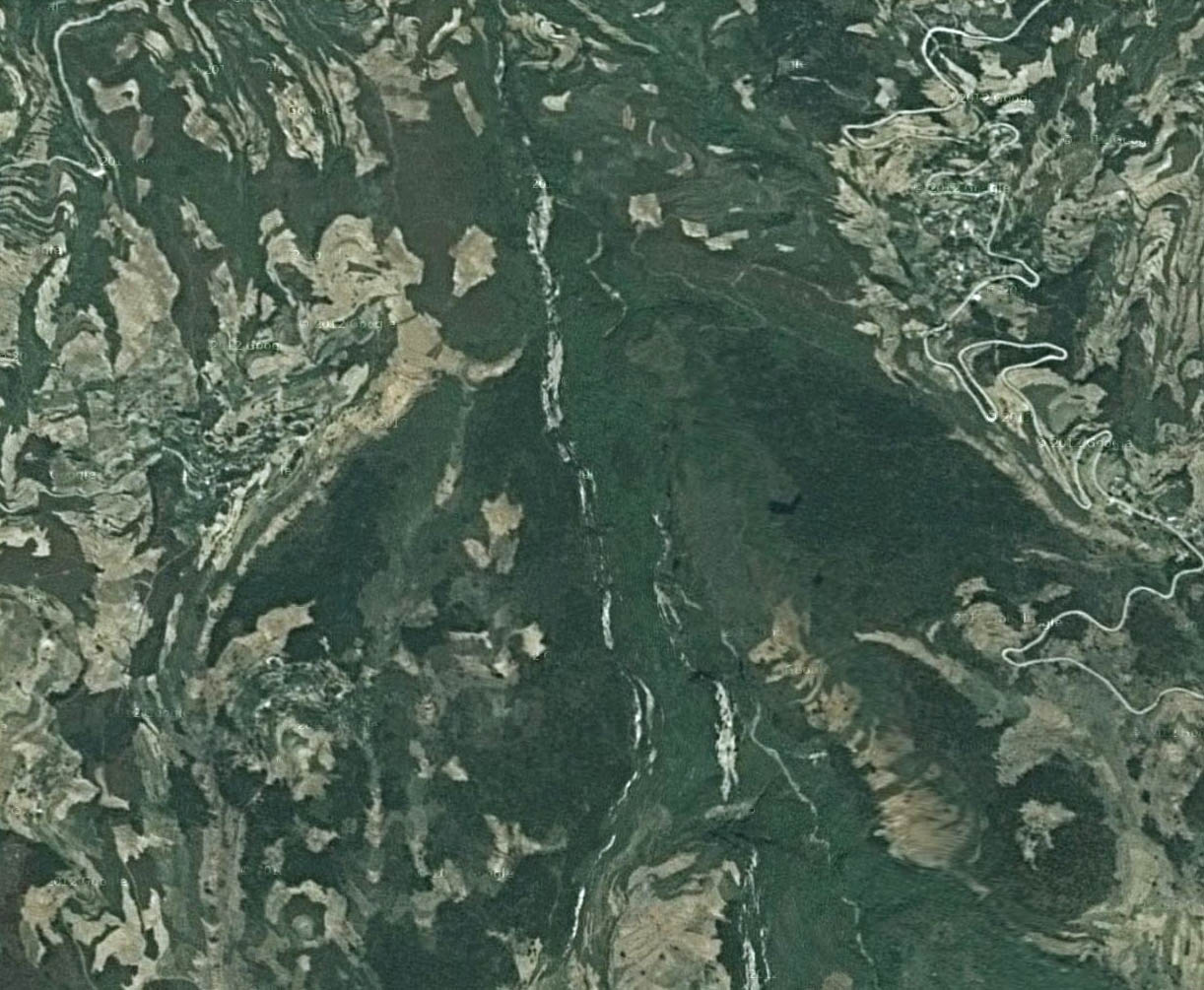

An older satellite image of the Falanggou crossing.



Falanggou Bridge location map.
