Jinshajiang Bridge Hulukou
金沙江葫芦口大桥
Hulukouzhen, Sichuan, China
709 feet high / 216 meters high
2,152 foot span / 656 meter span
2017



With most of its height submerged under the deep reservoir formed by the 277 meter tall Baihetan Dam, it maybe be difficult for future generations to appreciate the height of this span without looking at photos taken soon after the completion of the crossing. The truss stiffened suspension bridge is situated on a dramatic location between two mountains near the original town of Hulukouzhen whose buildings are now hidden under a deep layer of water. The original 160 meter span arch bridge that once carried local roads S303, S212 and S310 is also forever entombed by the dark waters of the great Jinshshajiang (Yangtze River).

In 2024 the higher and longer Jinshajiang Chuandian Bridge was constructed about 1 kilometer downstream of the Hulukou suspension bridge on the S23 Dongchuan Gele to Qiaojia Hulukou Expressway with a height of 360 meters.

Located 37 kilometers downstream of the bridge, the Baihetan Dam is reported to be one of the 4 or 5 largest hydroelectric dam producers in the world.

The lake is so deep and long that a second large suspension bridge was constructed 110 kilometers from the dam near Gele, Yunnan Province. Known as the Jindong Jinshajiang Bridge, the 914 meter long structure has a main span of 730 meters.



Jinshajiang Bridge Baihetan Elevation



Jinshajiang Baihetan and Chuandian Bridge Elevations


Jinshajiang Bridge Hulukou and Qiaojia.jpg


Jinshajiang Bridge Hulukou and Qiaojia3.jpg


Jinshajiang bridge Hulukou closure 20160409.jpg


Hulukou 201604.jpg



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com


Jinshajiang Bridge HulukouAnchorages.jpg

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com




Hulukou east tower.jpg

In 2021 a landslide near the east tower was caused by the partial filling of the Baihetan reservoir.



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com





Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com













Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

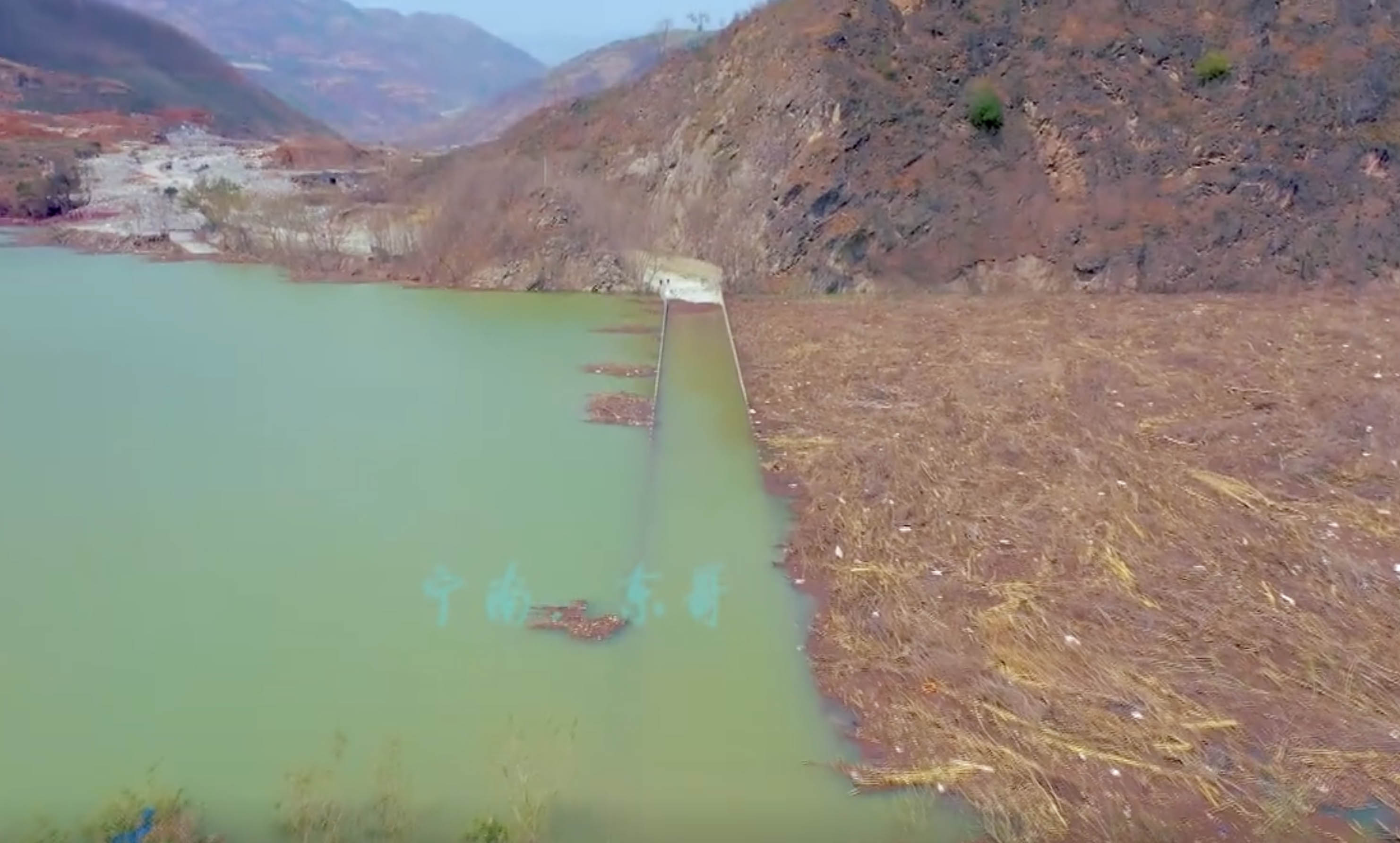

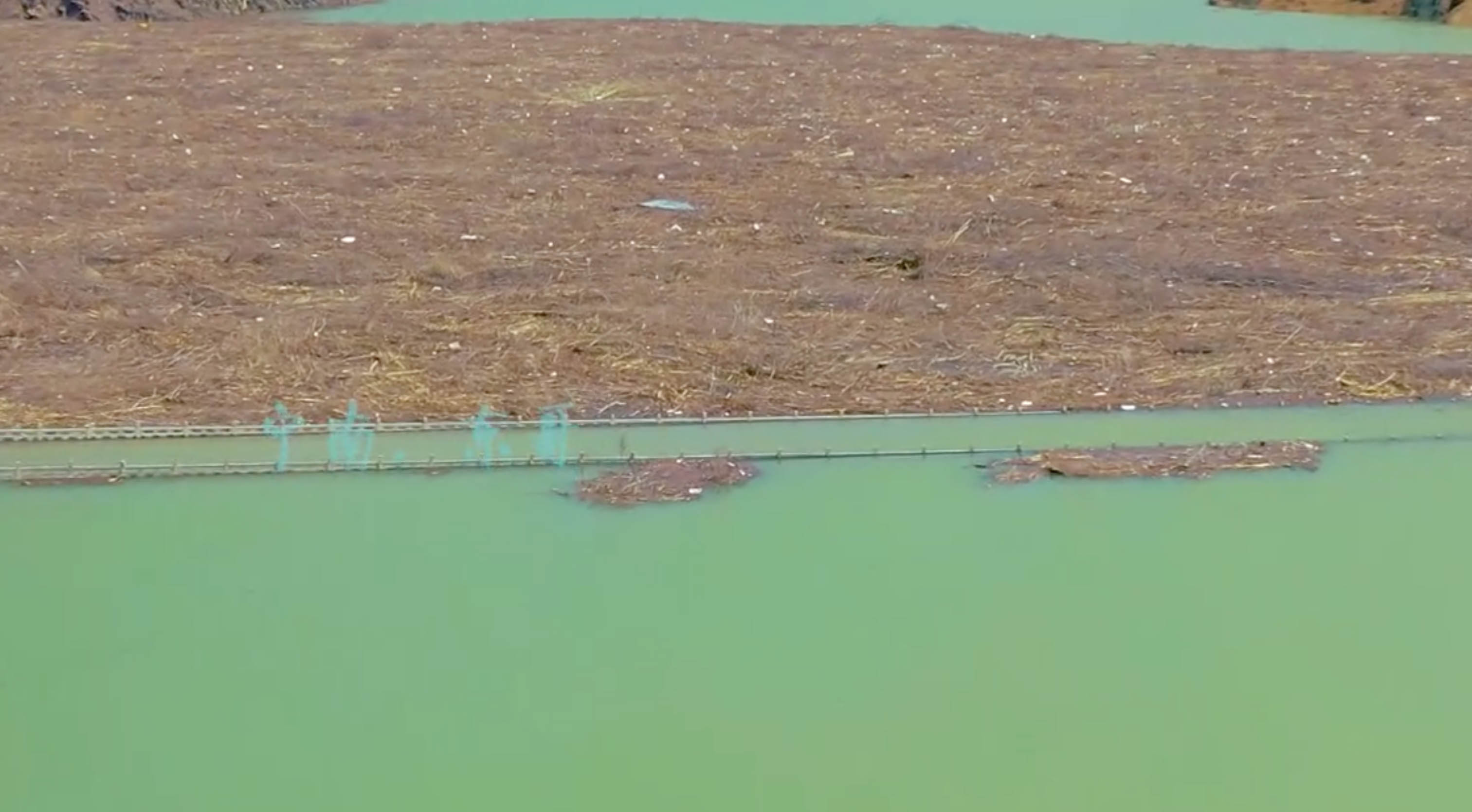

The Hulukou Jinshajiang arch bridge before it was submerged under 200 meters of water. Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

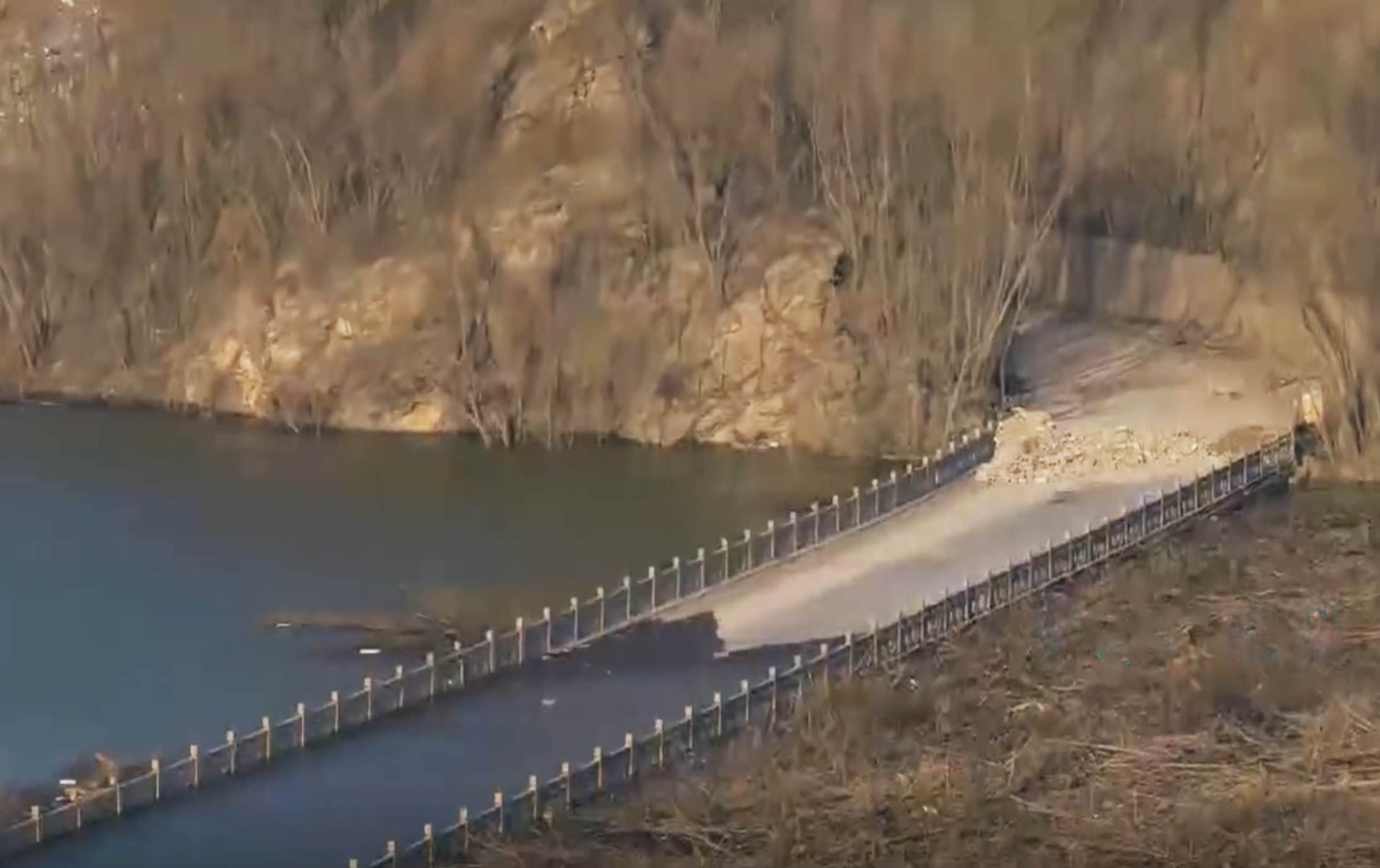

The Hulukou arch bridge before construction began on the suspension bridge.



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com


Jinshajiang Hulukou bridge656mtrSpan.jpg

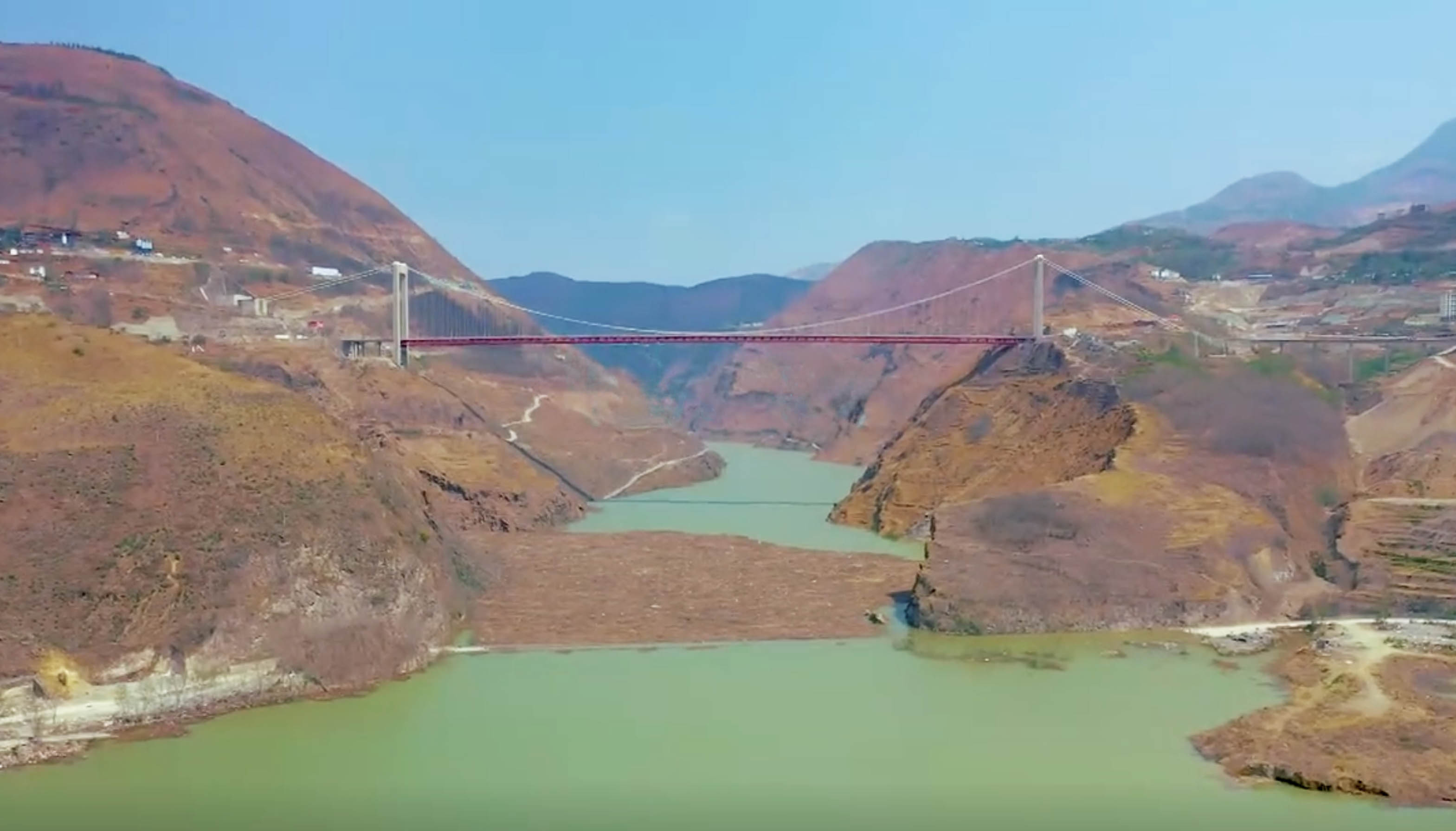

The Jinshajiang Bridge Baihetan crosses the canyon between the two mountains in the foreground.








Hulukou JinshajiangTower.jpg


Hulukou JinshajiangConstruction.jpg


Hulukou JinshajiangFoundation.jpg


Hulukou JinshajiangTowerHole.jpg





A view of the canyon looking upstream.









Hulukouzhen town before it was abandoned from the rising lake behind Baihetan Dam.


BaihetanDamModel copy.jpg

Baihetan Dam model.


BaihetanDamDiagram copy.jpg


BaihetanDamModel2 copy.jpg



Construction access bridges across the Jinshajiang River near the Baihetan Dam construction site.



Another set of catenary construction access bridges near the Baihetan Dam.


JinshaDams&Lakes copy.jpg

Diagram showing the 6 great dams of the Yangtze and Jinshajiang Rivers.



Jinshajiang Bridge Baihetan satellite image.





Jinshajiang Bridge Baihetan location map.
