Kaizhouhu Bridge
开州湖特大桥
Mipingxiang, Guizhou, China
1,001 feet high / 305 meters high
3,609 foot span / 1,100 meter span
2021



One of the longest span high level crossings in the world, the Kaizhouhu Bridge has a tower to tower distance of 1,100 meters that soars 220 meters above the reservoir formed by the giant Goupitan Dam across the nearby Wu River. The full height drop to the original level of the Qingshui River below the deck is approximately 305 meters.

The 1,257 meter long Kaizhouhu Bridge has a span configuration of 3x30 +1,100 +2x30 meters supported by towers 139 and 135 meters tall. Kaizhou refers to the name of the Lake below the bridge that was created by the Goupitan Dam.

18 kilometers upstream of the Kaizhouhu Bridge is the even higher and longer Qingshuihe Bridge on the Guiyang to Weng'an expressway that opened in 2015.

There are also two high beam bridges on the eastern end of the Kaiyang to Weng'an expressway called Baixi and Wudaohe.



Kaizhouhu Bridge Elevation


Kaizhouhu Bridge draw.jpg


Kaizhouhu BridgeCloudsLake.jpg


Kaizhouhu BridgeSideReservoir.jpg


Kaizhouhu BridgeTowerWater.jpg


Kaizhouhu BridgeSunset.jpg

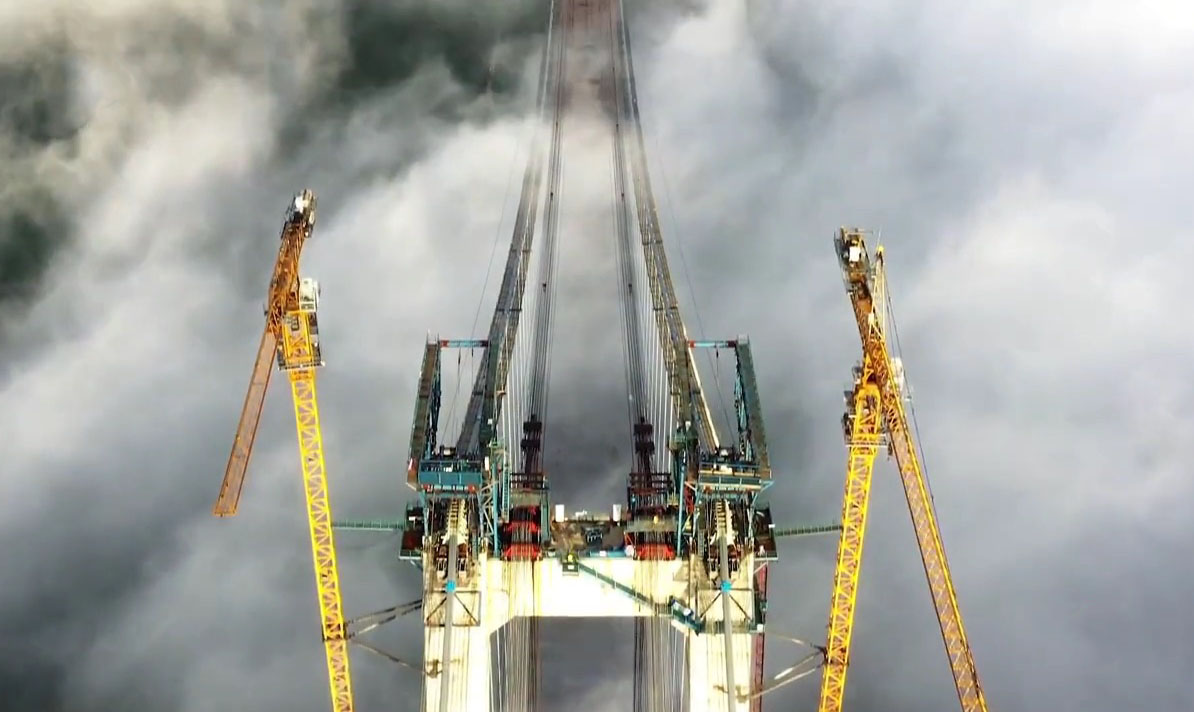

Kaizhouhu BridgeCloudsCranes.jpg


Kaizhouhu BridgeSideBlueTruss.jpg


Kaizhouhu BridgeEastLookingWest.jpg


Kaizhouhu BridgeClouds.jpg


Kaizhouhu BridgeSideClouds.jpg







































Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



A view of the west side cable anchorage tunnels. Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com


Kaizhouhu Elev Add.JPG



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com















Kaizhouhu Bridge satellite image.





Kaizhouhu Bridge location map.
