Wubuhe Bridge
五布河特大桥
Dongwenquanzhen, Chongqing, China
(525) feet high / (160) meters high
591 foot span / 180 meter span
2024

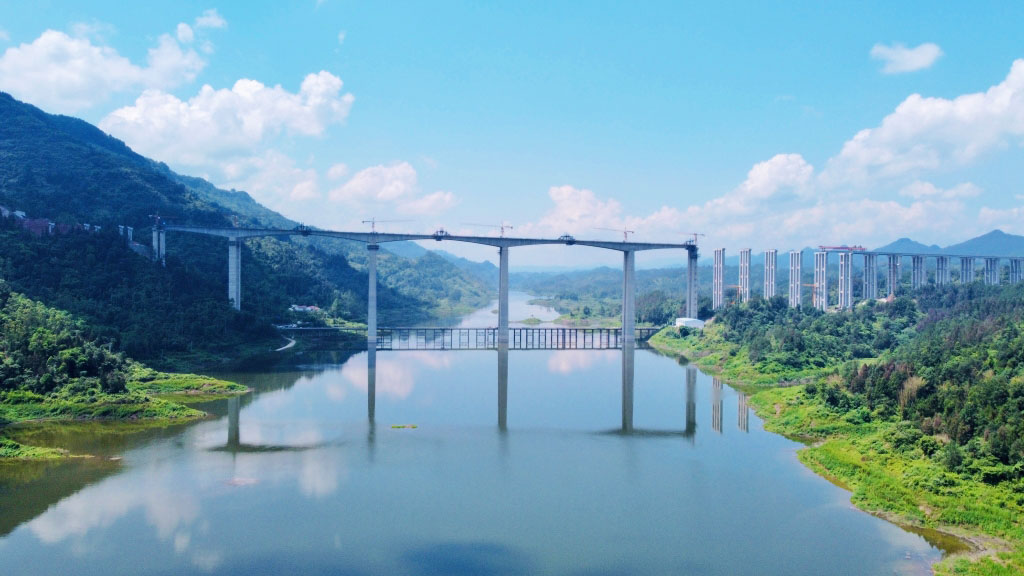

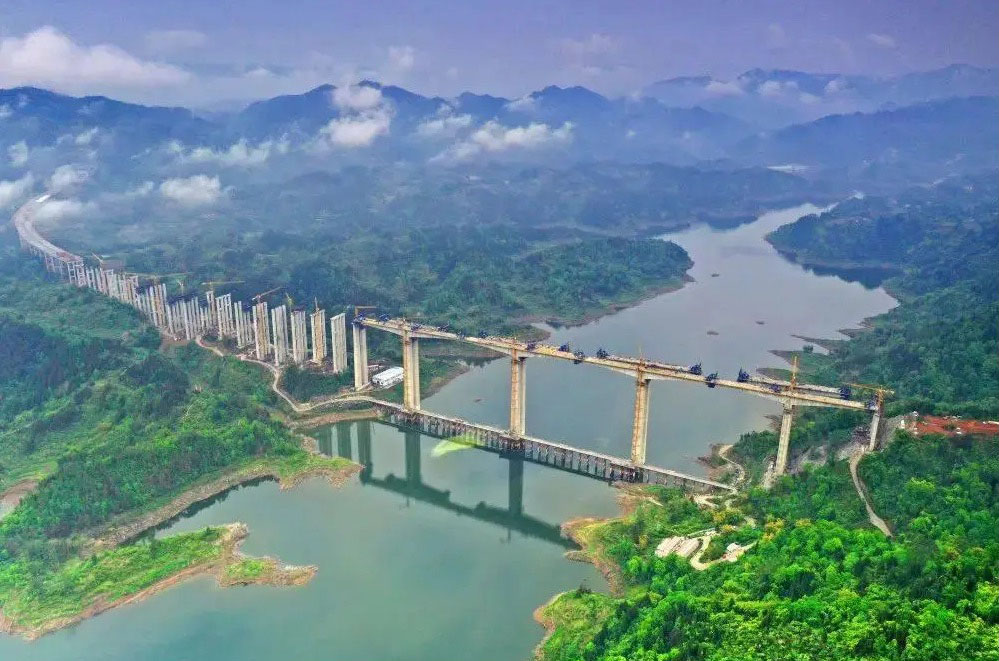

Wubuhe Bridge is a giant 2 kilometer long viaduct that crosses a wide valley on the new G65 Chongqing to Pengshui 2nd expressway that is 6 lanes wide. The span configuration will be 30x40 +95+3x180+95 +3x40 meters. The tallest pier will be 145 meters and will be partially submerged beneath a reservoir formed by the Guanjingkou Dam.

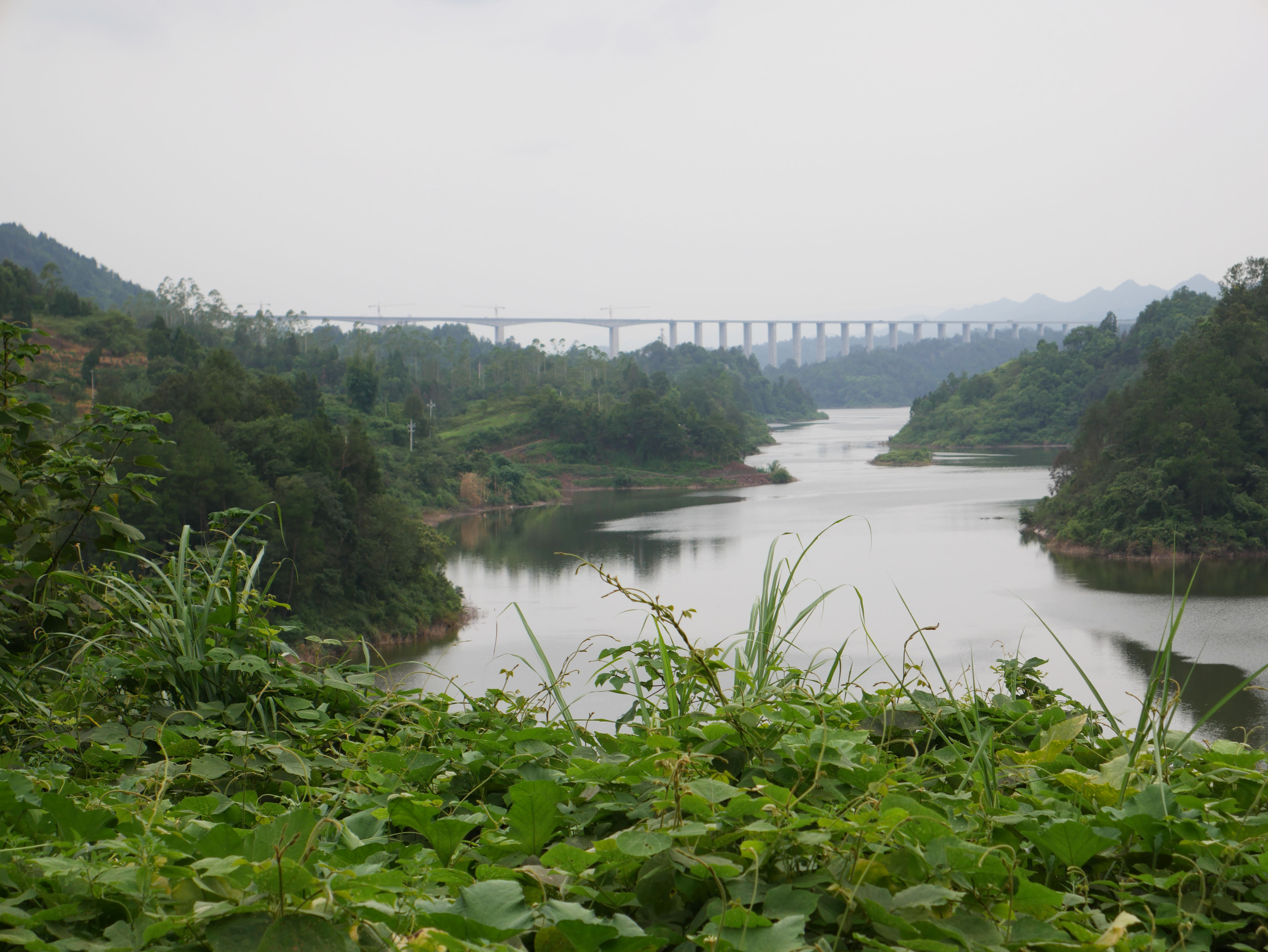

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com


Guanjingkou Dam3.jpg


Guanjingkou Dam.jpeg


Guanjingkou Dam2.jpg







Wubuhe Bridge satellite image.




Wubuhe Bridge.JPG

Wubuhe Bridge location map.






G65 Chongqing to Pengshui 2nd expressway.JPG
