Xujiazhai Bridge
徐家寨大桥
Qianxi, Guizhou, China
436 feet high / 133 meters high
361 foot span / 110 meter span
2017

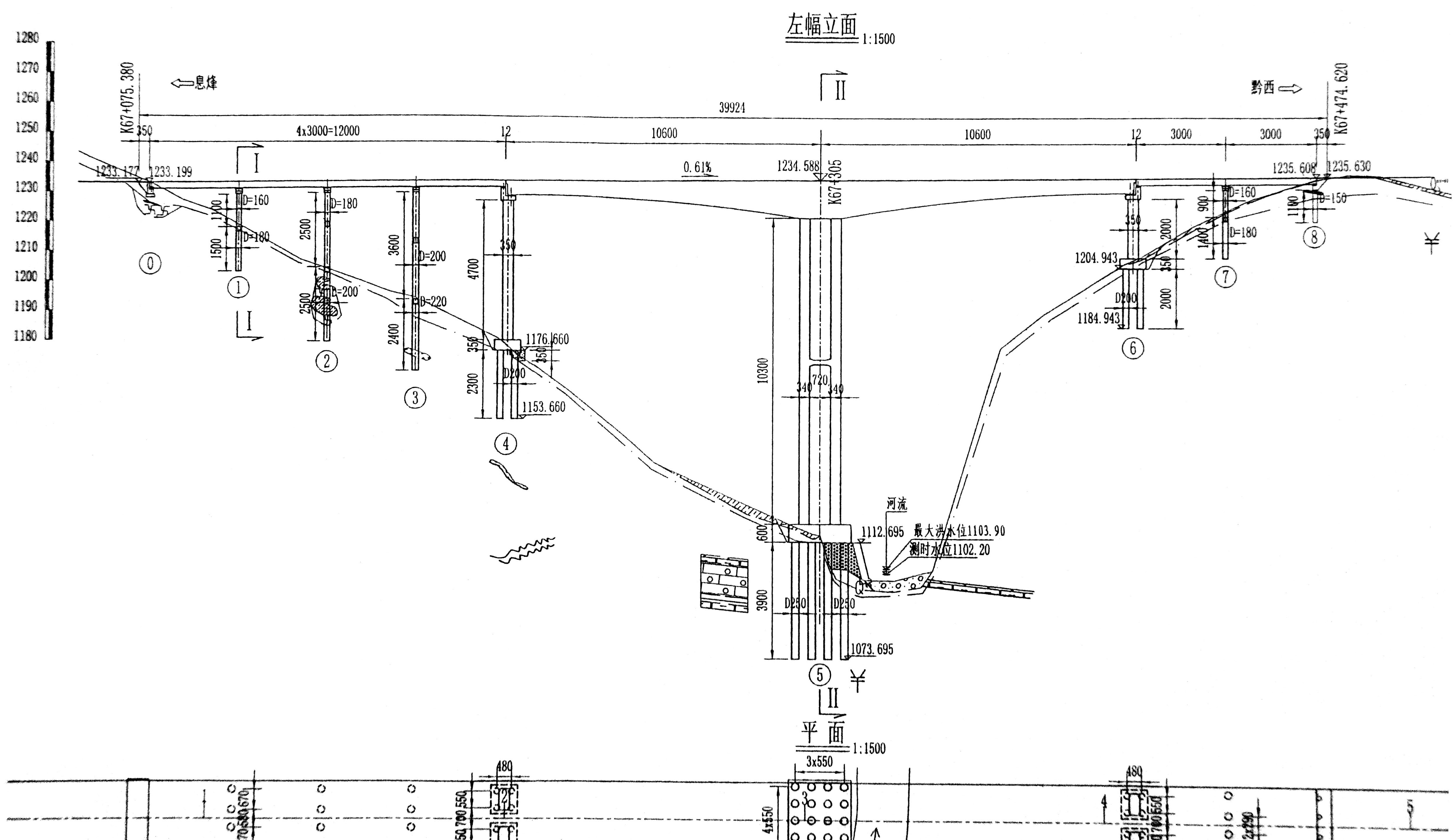

Xujiazhai Bridge is the highest and tallest structure on the west end of the S30 Xiqian Expressway that connects the city of Qianxi with Xifeng. The T-Beam design consists of two cantilevered spans of 110 meters on a central pier 103 meters tall. The west end has 2 approach spans of 30 meters while the east end has 4 approach spans of 30 meters.

The city of Qianxi and nearby Bijie city have among the greatest concentration of high bridges in the world.



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

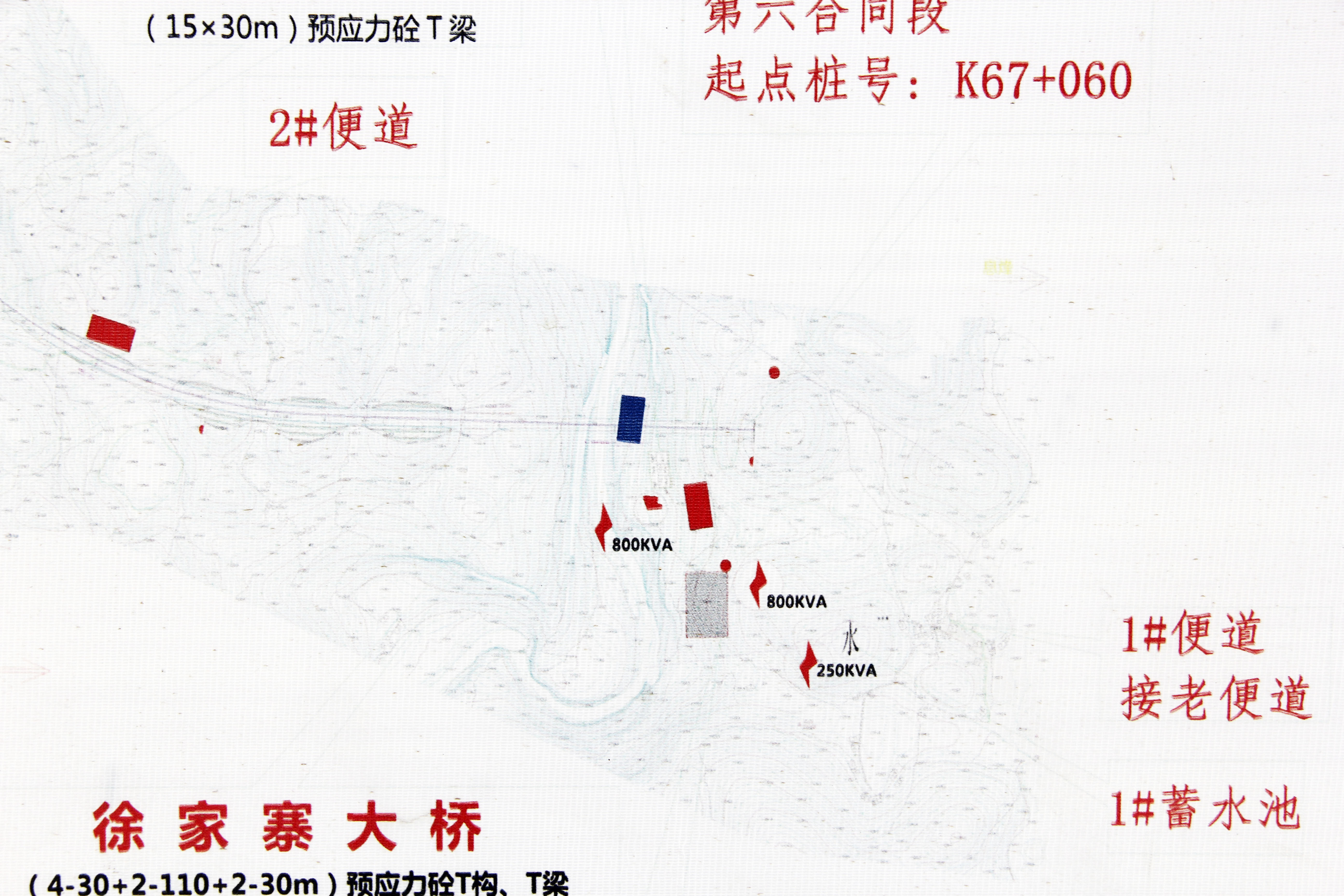

Xujiazhai Bridge and expressway plan.



Xujiazhai Bridge location map.
