Zigui Yangtze River Bridge
秭归长江大桥
Xiangxizhen, Hubei, China
(787) feet high / (240) meters high
1,667 foot span / 508 meter span
2019

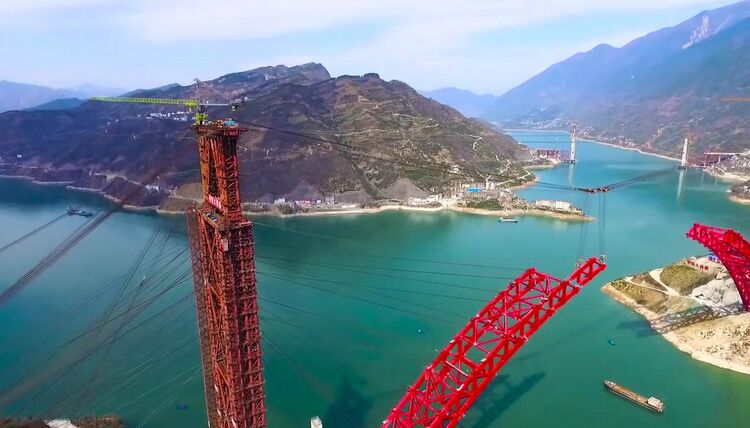

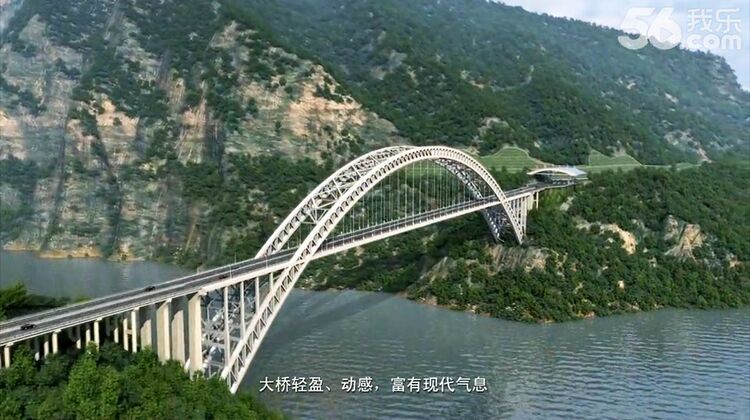

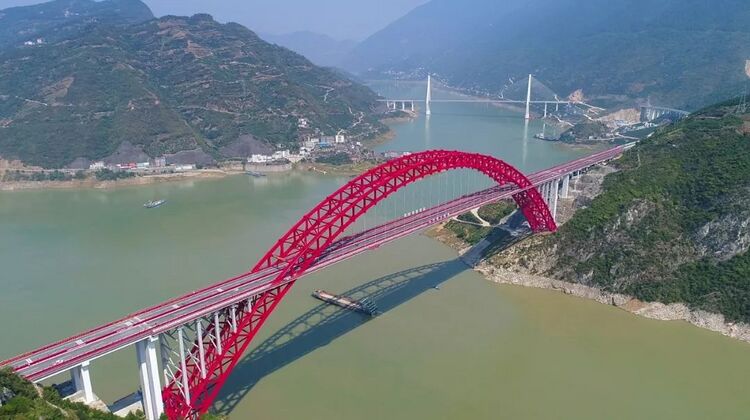

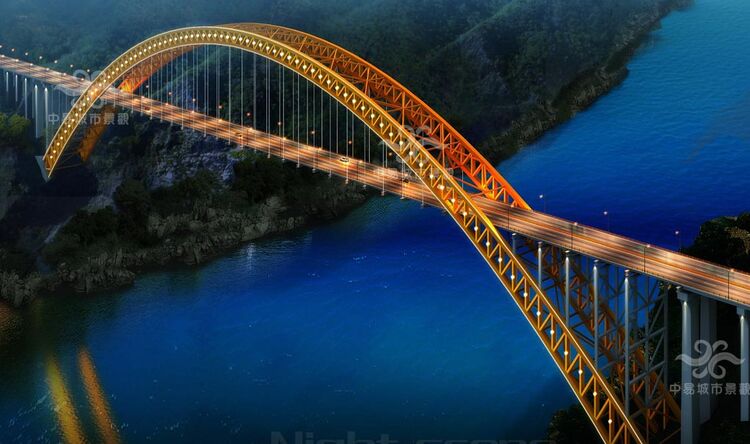

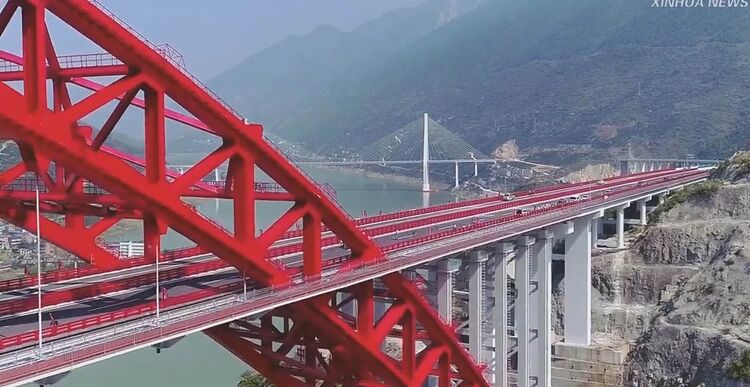

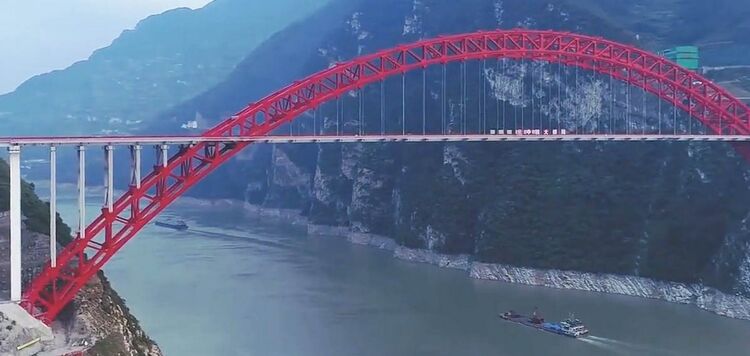

Xiangxi Yangtze RiverCompletion.jpeg


One of the 20 longest span arch bridges in the world, the Zigui Yangtze River Bridge is the most downstream crossing of the giant 3 Gorges reservoir, the largest man-made lake in the world. As a "gateway" to the lower end of the famous 3 Gorges region, the engineers opted for a spectacular arch similar to the Wushan Bridge located about 100 kilometers upstream.

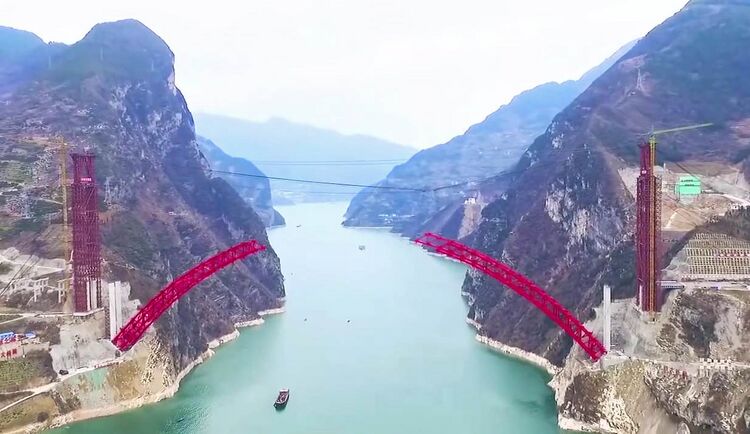

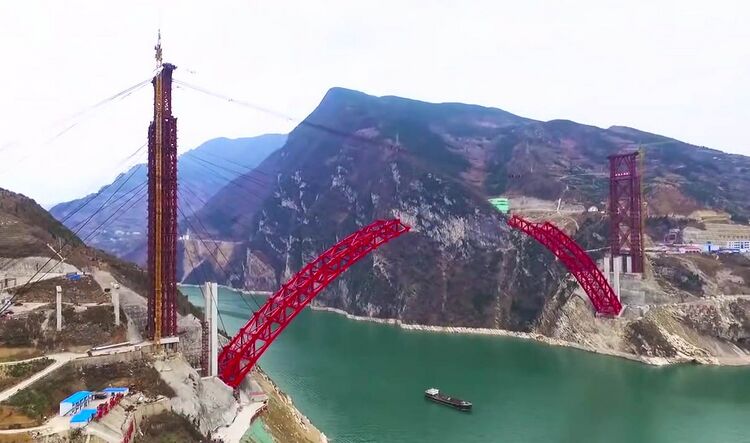

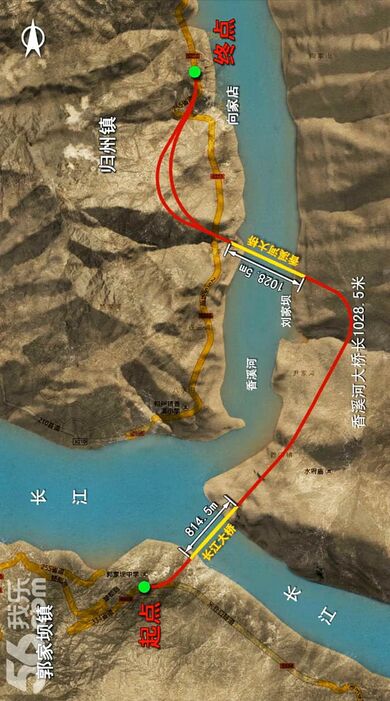

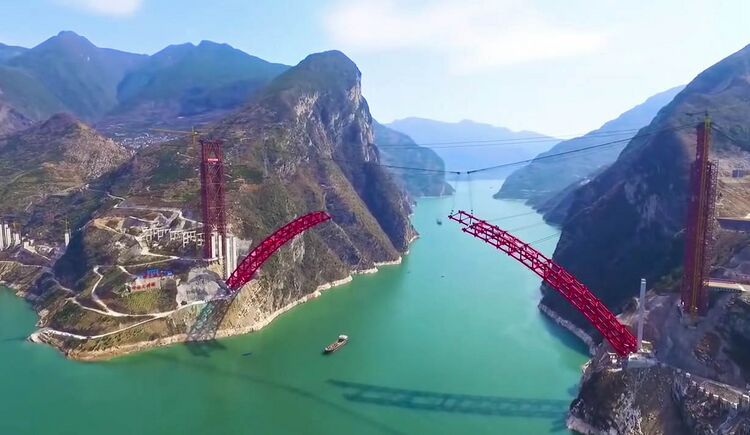

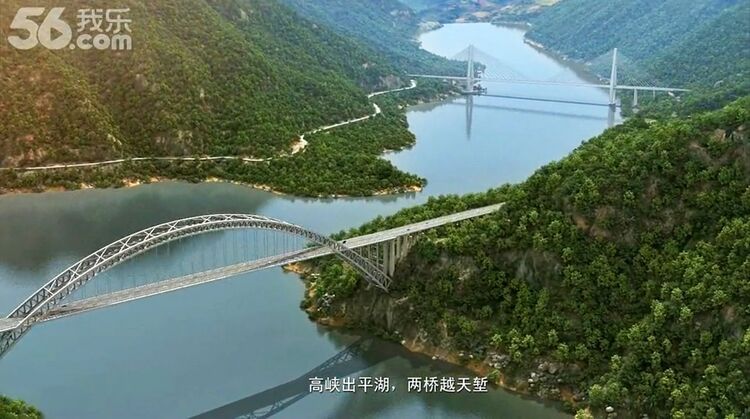

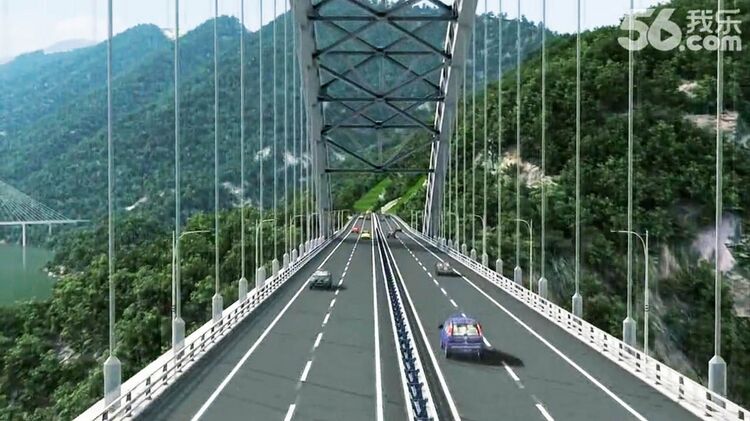

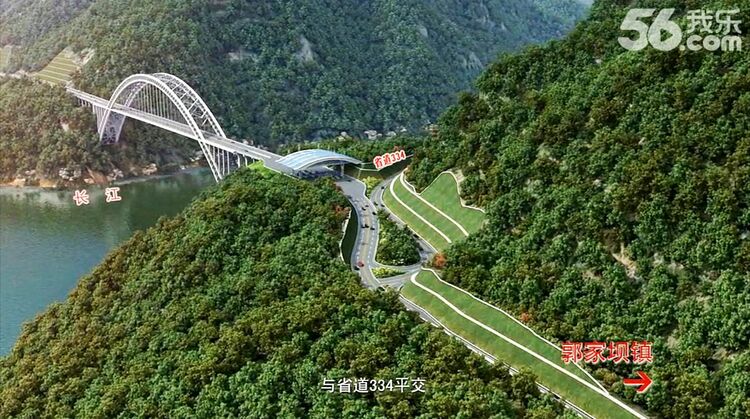

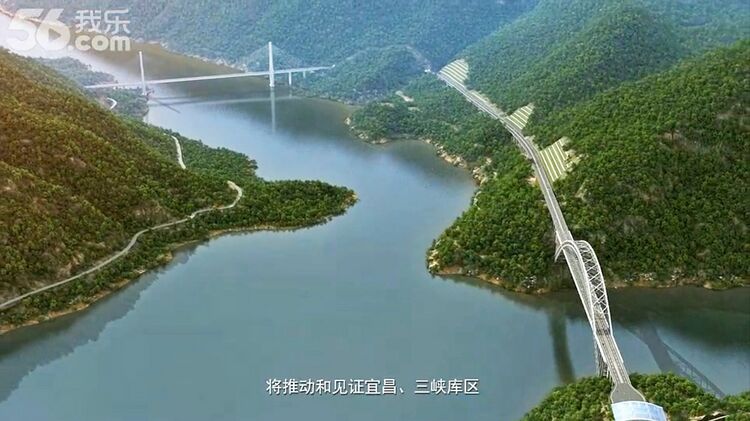

The 508 meter through-arch span is actually part of a new connector expressway that also includes the equally beautiful Xiangxihe cable stayed bridge. The 5.5 kilometer route will allow citizens of Zigui County on the south side of the Yangtze River to cross over to route S255 on the north side of the river.

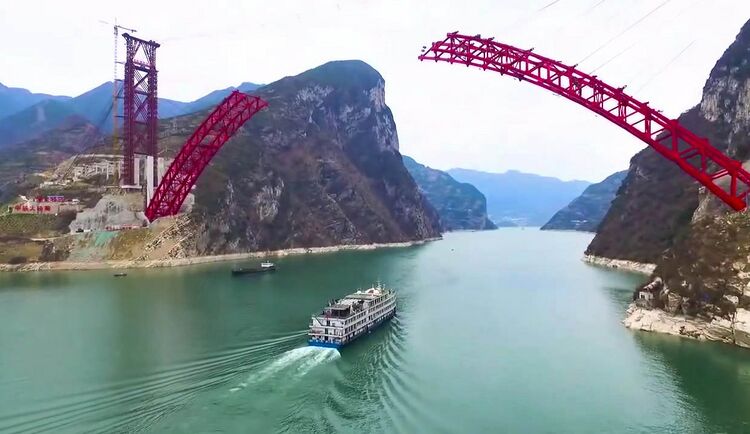

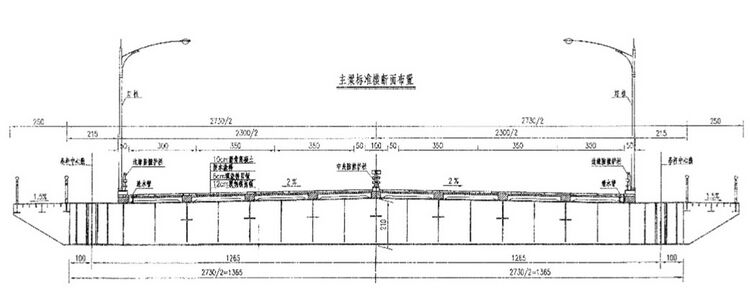

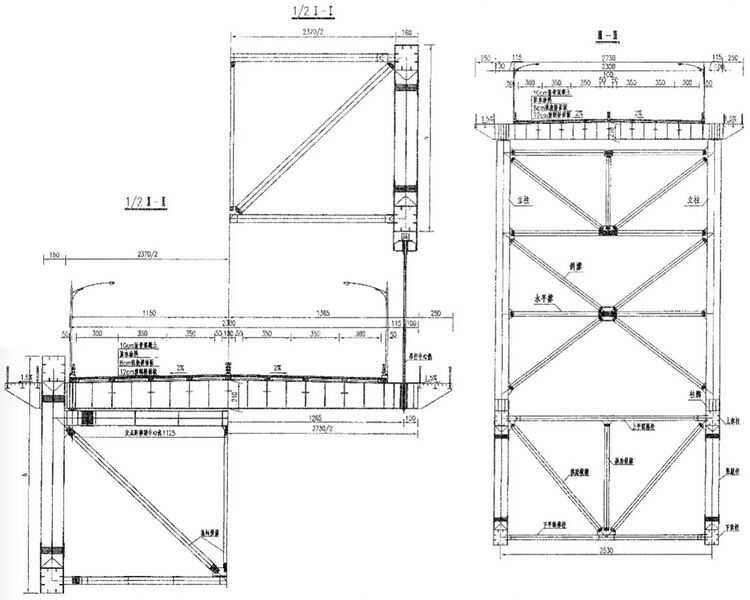

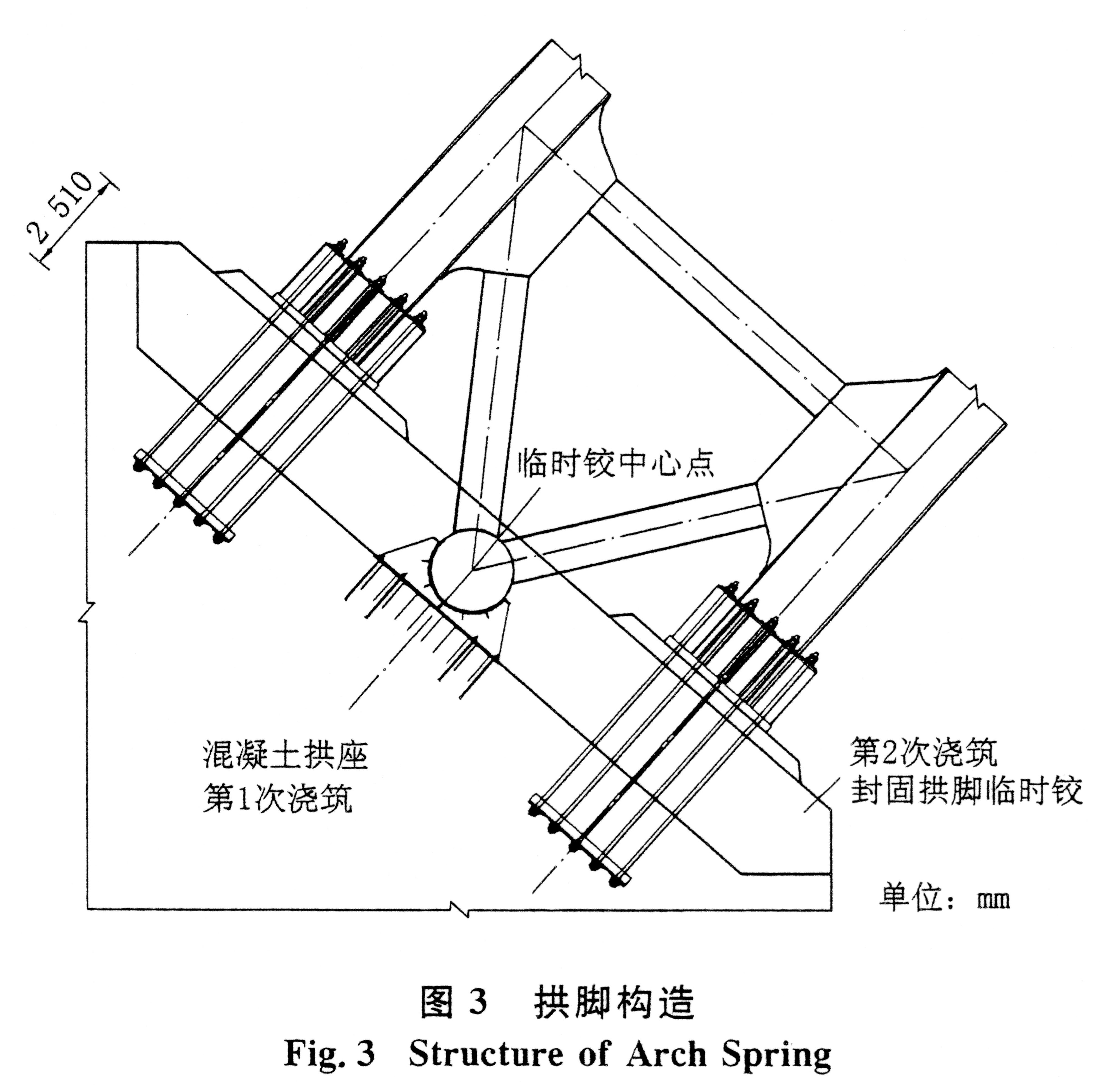

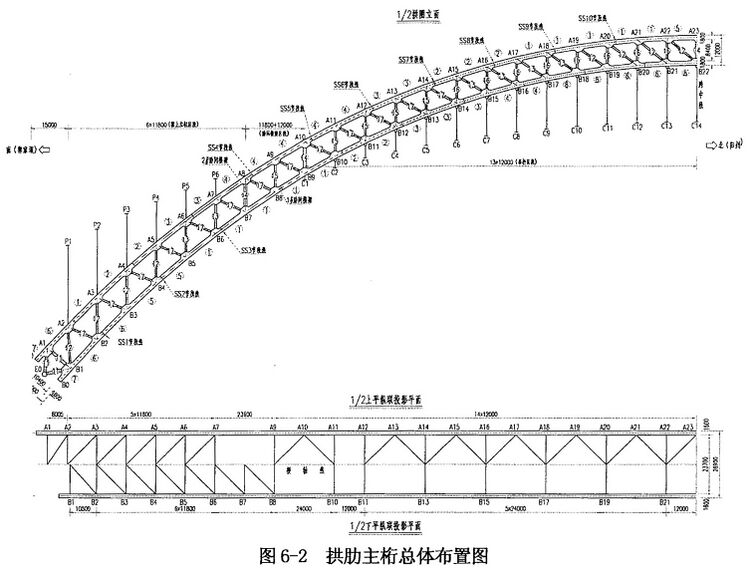

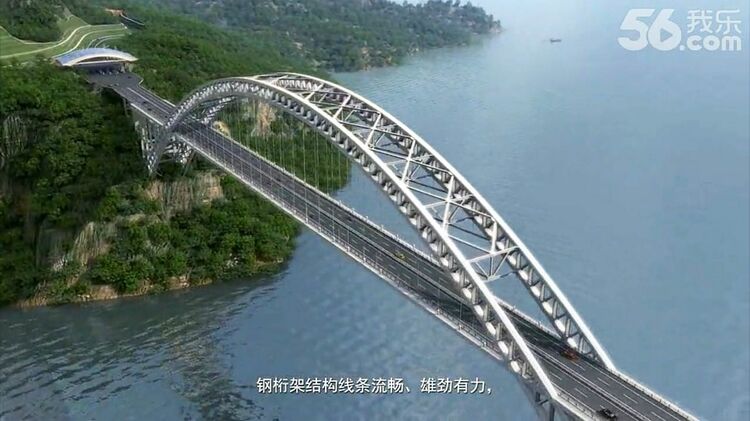

The Xiangxi arch bridge has a total length of 814.5 meters including approach spans on the north side and will consist of hollow square box beams similar to the Daninghe Bridge on the G42 expressway 100 kilometers to the west. The height of 240 meters is an estimate based on the road deck approximately 117 meters above a full reservoir plus another 123 meters of water to the old surface level of the Yangtze River which itself is probably 30 meters above the bottom of the river.

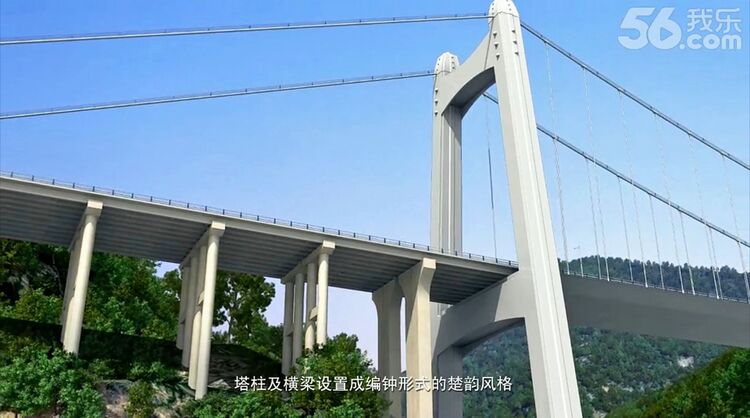

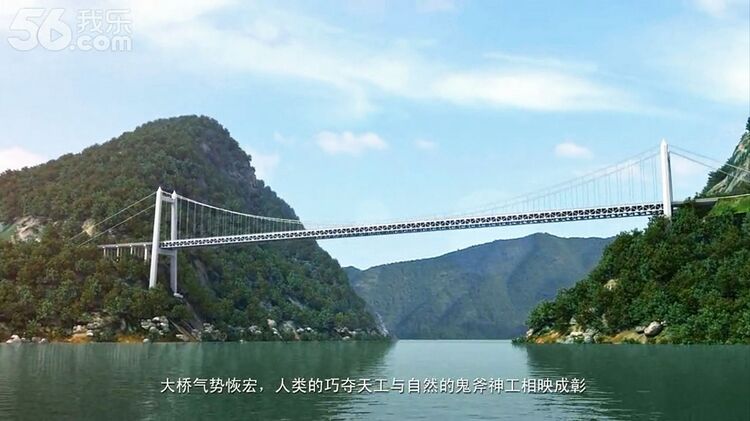

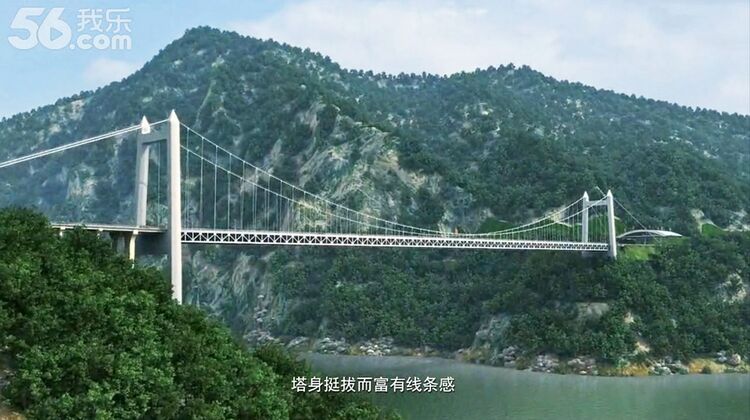

A suspension bridge design was also studied that would have had a span of 540 meters.

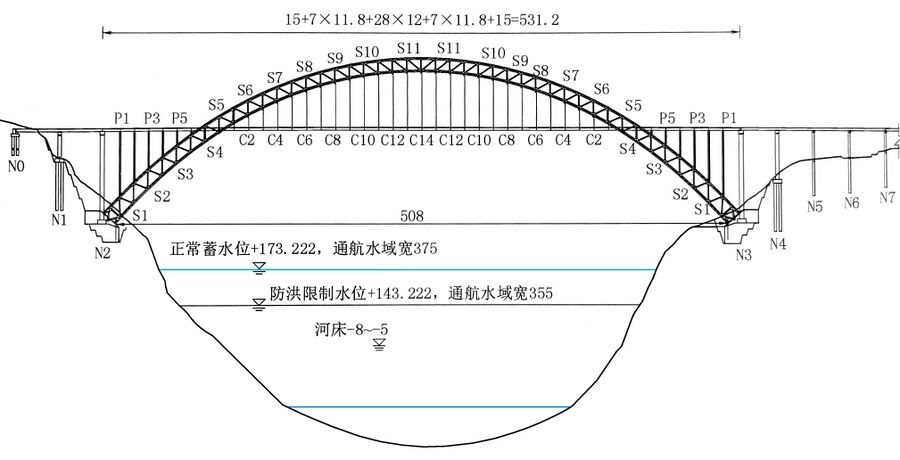

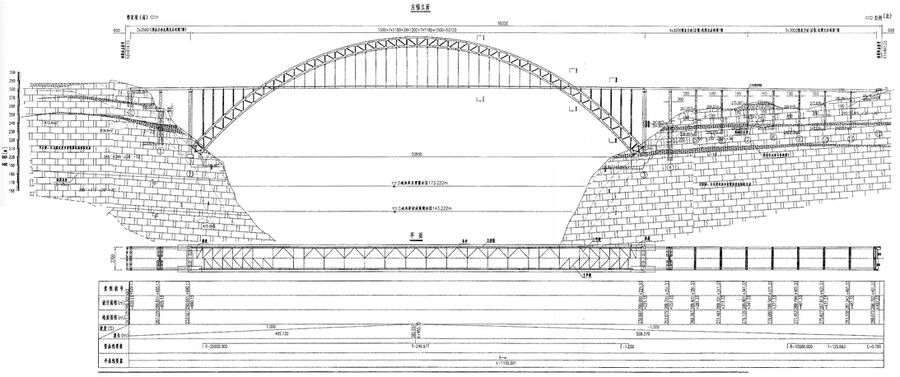

Zigui Yangtze River Bridge Elevation

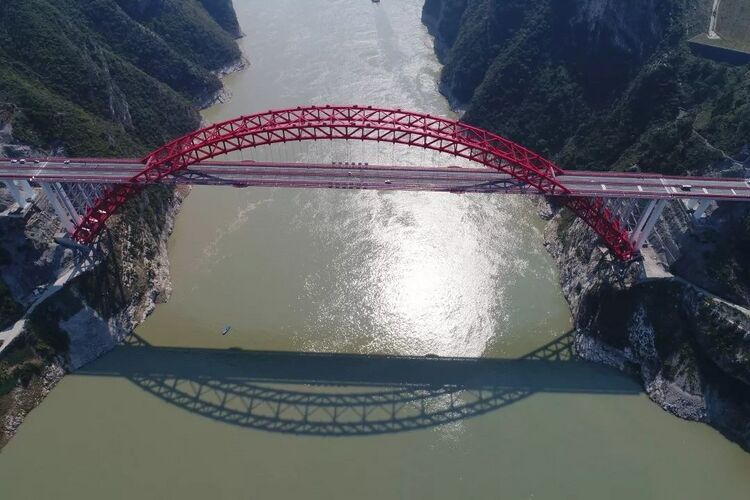

Xiangxi Yangtze RiverOpenRiver.jpeg






756Xiangxi YangtzeWiderRiver copy.JPG

Zigui Yangtze River Bridge. Image by Eric Sakowski / HighestBridges.com




757XiangxiYangtzeModel2 copy.JPG

Image by Eric Sakowski / HighestBridges.com


758XiangxiYangtzeModel3 copy.JPG

Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com


759XiangxiYangtze11 copy.JPG

Image by Eric Sakowski / HighestBridges.com


760XiangxiYangtze13 copy.JPG

Image by Eric Sakowski / HighestBridges.com




762XiangxiYangtzeTowerHighline2 copy.JPG

Image by Eric Sakowski / HighestBridges.com


763XiangxiYangtze24 copy.JPG

Image by Eric Sakowski / HighestBridges.com


764XiangxiYangtze25 copy.JPG

Image by Eric Sakowski / HighestBridges.com



Image by John Filmer.


766XiangxiYangtze27 copy.JPG

Image by Eric Sakowski / HighestBridges.com



Image by John Filmer.


768XiangxiYangtze29 copy.JPG

Image by Eric Sakowski / HighestBridges.com



Image by John Filmer.


770XiangxiYangtze33 copy.JPG

Image by Eric Sakowski / HighestBridges.com


771XiangxiYangtze34 copy.JPG

Image by Eric Sakowski / HighestBridges.com


772XiangxiYangtze41 copy.JPG

Image by Eric Sakowski / HighestBridges.com


773XiangxiYangtze43 copy.JPG

Image by Eric Sakowski / HighestBridges.com


774XiangxiYangtzeRender26 copy.JPG

Image by Eric Sakowski / HighestBridges.com


775XiangxiYangtzeRender28 copy.JPG

Image by Eric Sakowski / HighestBridges.com


776XiangxiYangtzeRender29 copy.JPG

Image by Eric Sakowski / HighestBridges.com


780XiangxiYangtze52 copy.JPG

Image by Eric Sakowski / HighestBridges.com


781XiangxiYangtze61 copy.JPG

Image by Eric Sakowski / HighestBridges.com


782XiangxiYangtze63 copy.JPG

Image by Eric Sakowski / HighestBridges.com








784XiangxiYangtze69 copy.JPG

Image by Eric Sakowski / HighestBridges.com


785XiangxiYangtze74 copy.JPG

Image by Eric Sakowski / HighestBridges.com


786XiangxiYangtze76 copy.JPG

Image by Eric Sakowski / HighestBridges.com


787XiangxiYangtze79 copy.JPG

Image by Eric Sakowski / HighestBridges.com


788XiangxiYangtze85 copy.JPG

Image by Eric Sakowski / HighestBridges.com






















760XiangxiYangtze13 copy.JPG



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com



Image by Eric Sakowski / HighestBridges.com

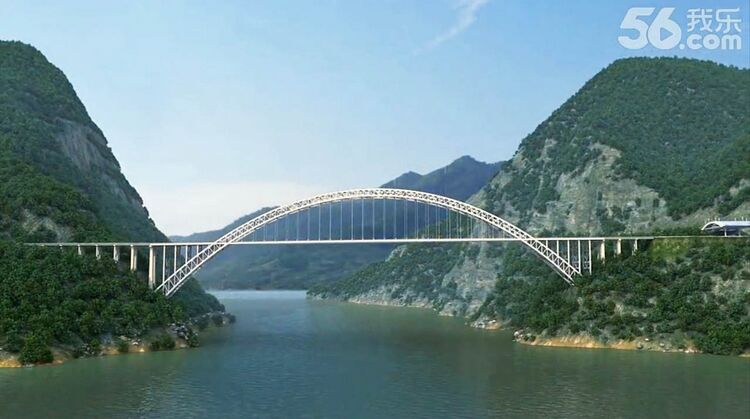

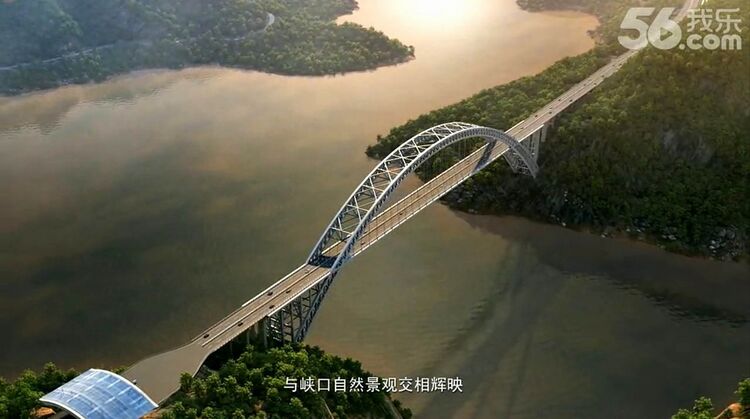

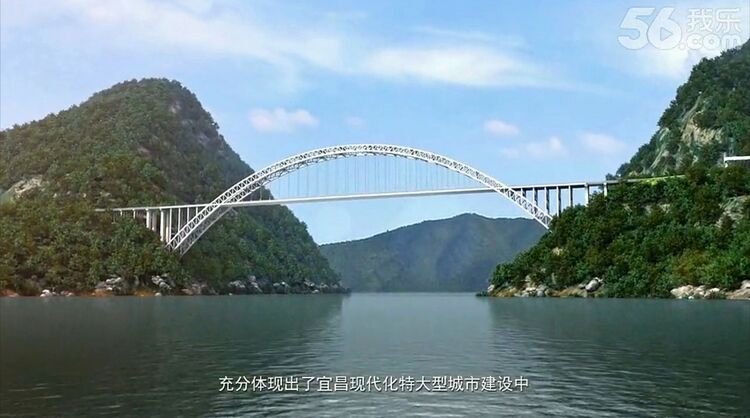

The first renders were for an arch with a span of 498 meters before it was enlarged slightly to 508 meters.

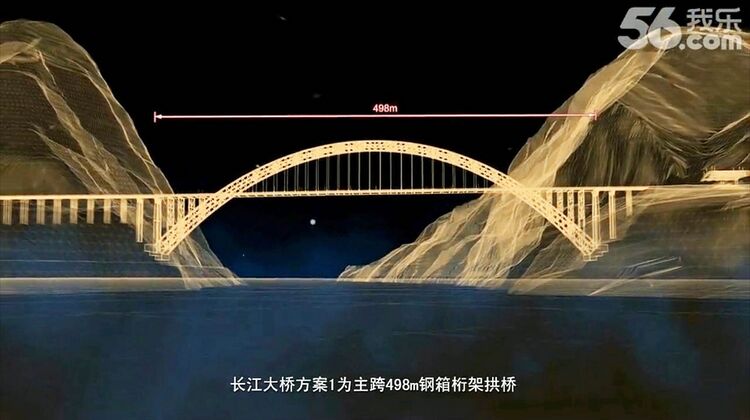

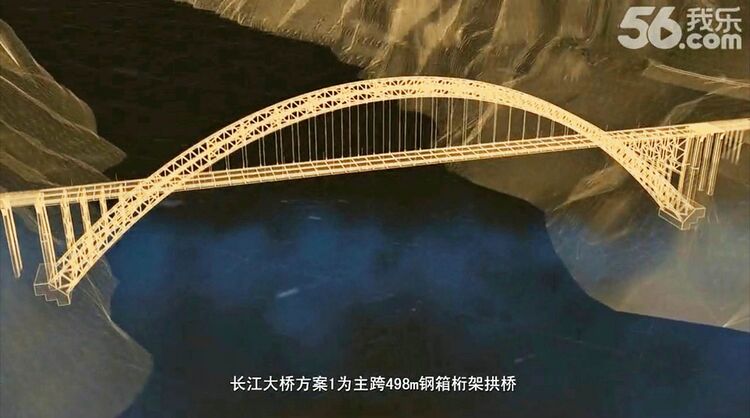

The original 498 meter arch span design.













Alternate Zigui Yangtze River Bridge Bridge proposal.



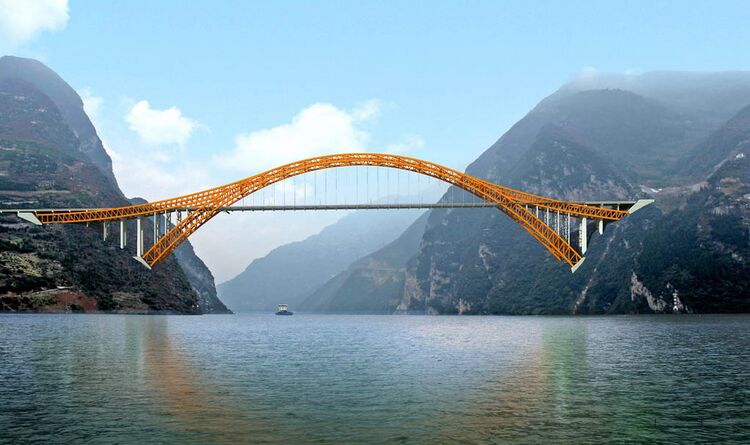

Zigui Yangtze River Bridge proposal with additional arch trusses swooping alongside the road deck.

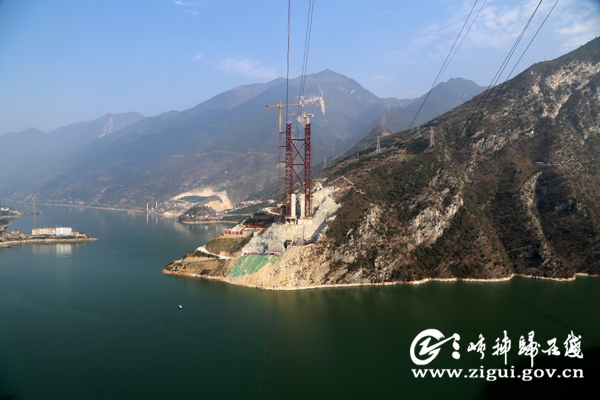

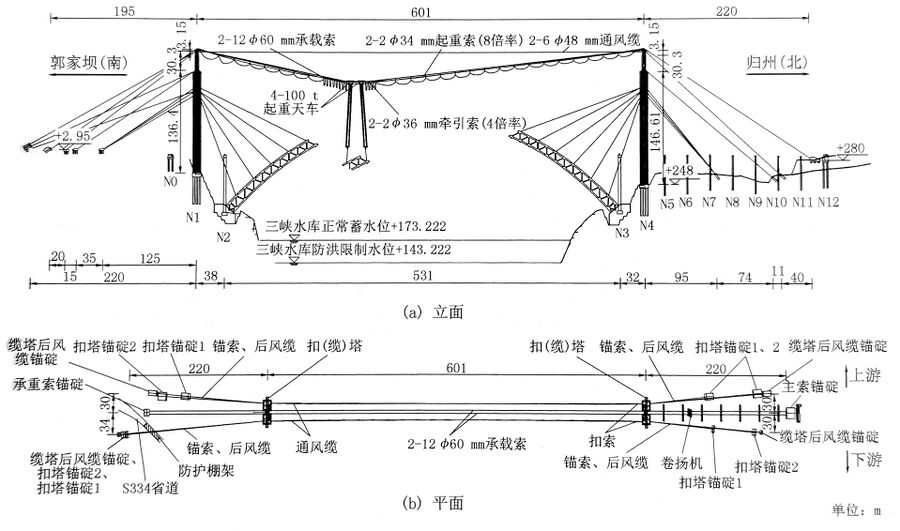

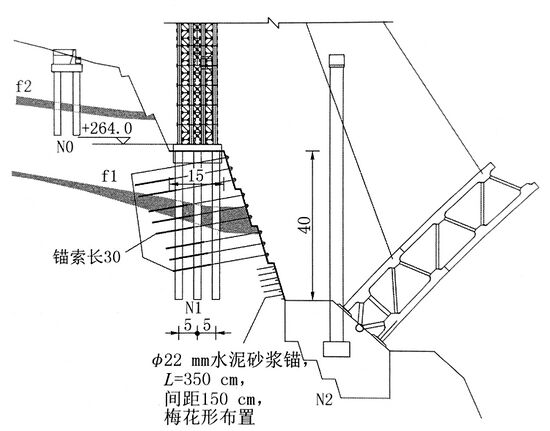

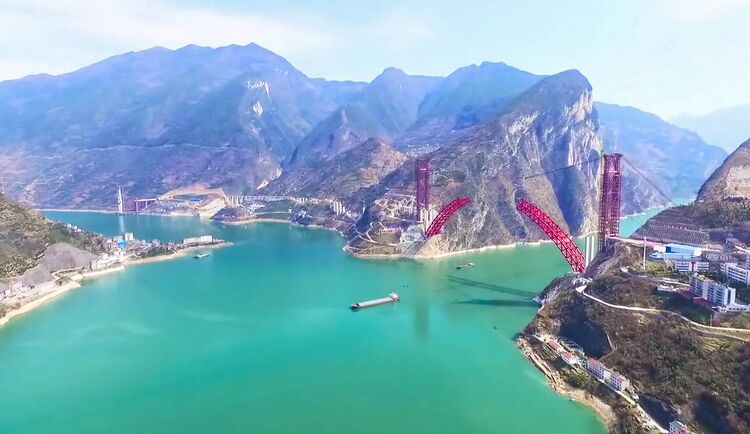

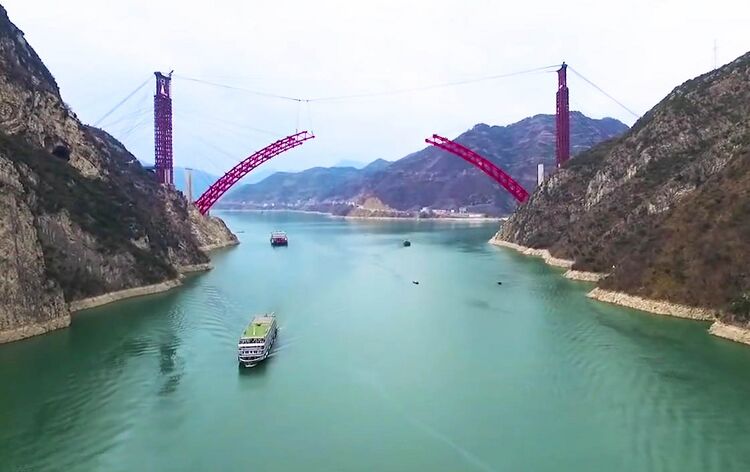

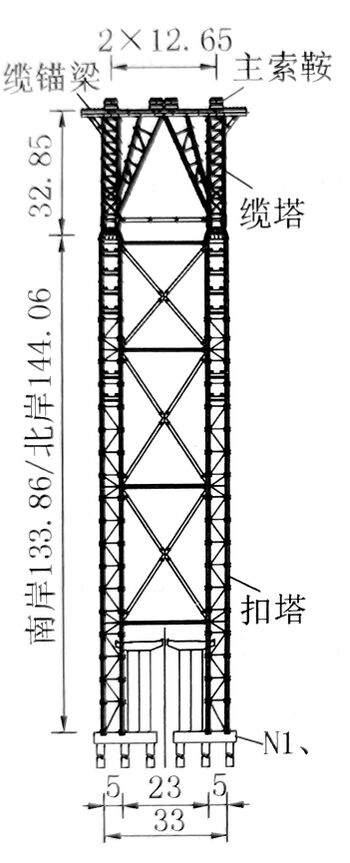

Xiangxi Yangtze Reservoir Highline.jpg

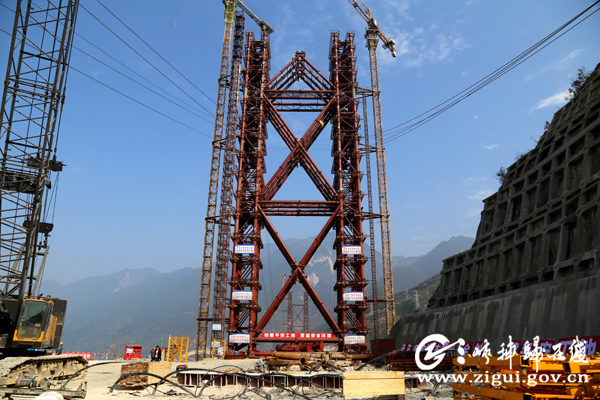

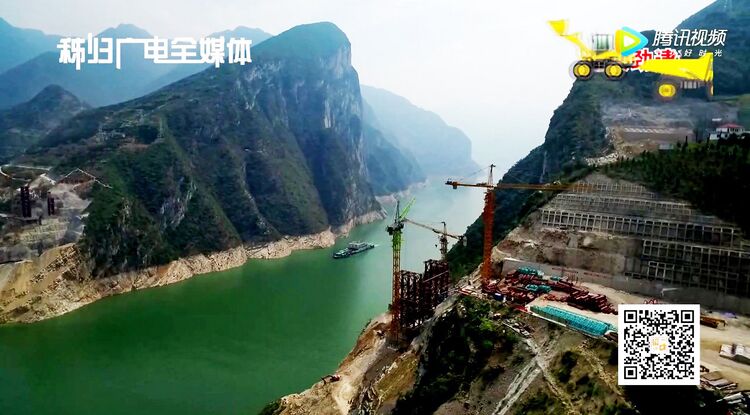

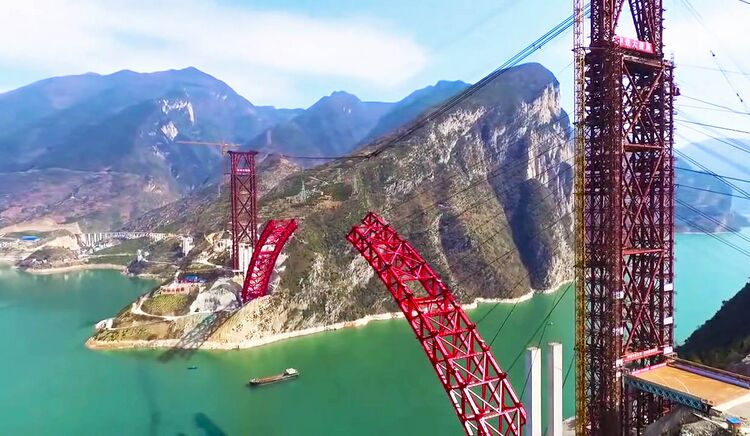

Xiangxi Yangtze Highline Const.jpg

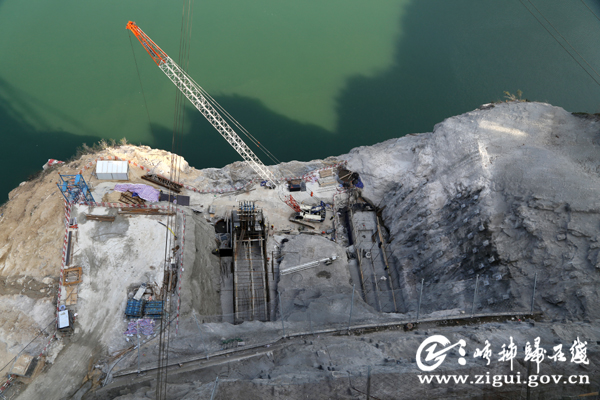

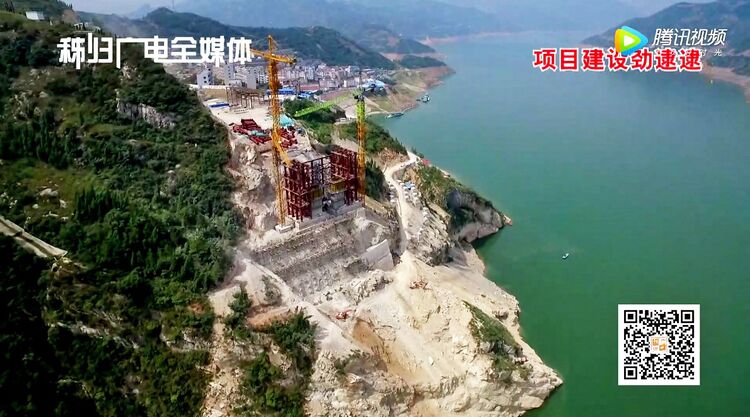

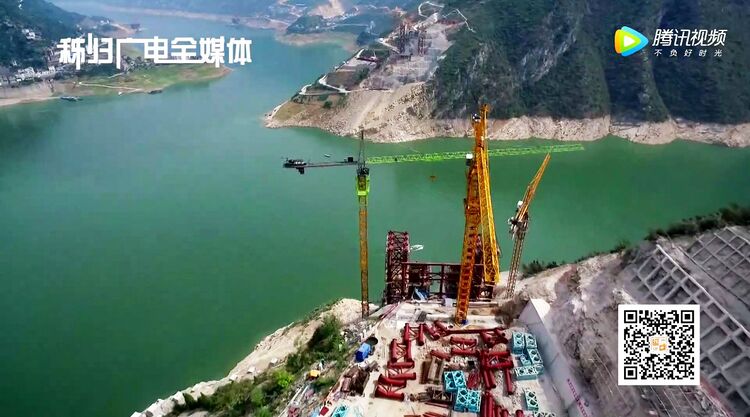

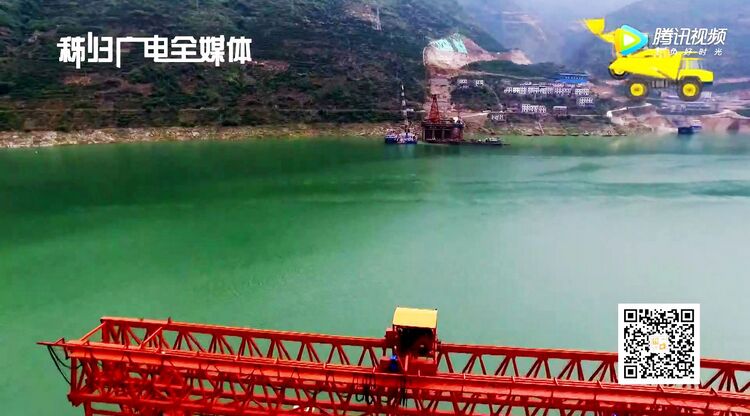

Xiangxi Yangtze Arch Foundation.jpg

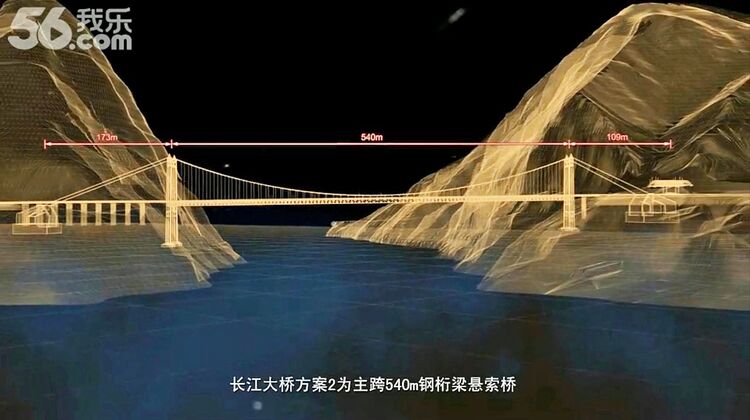

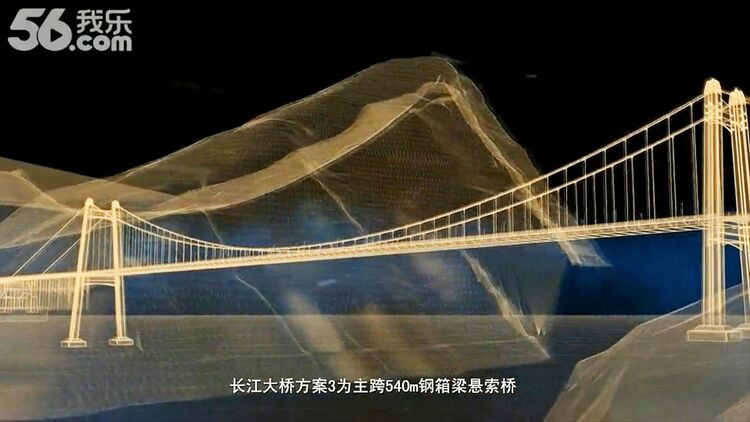

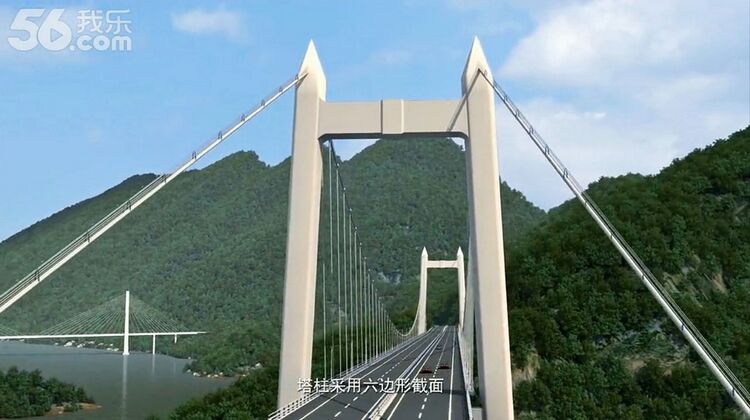

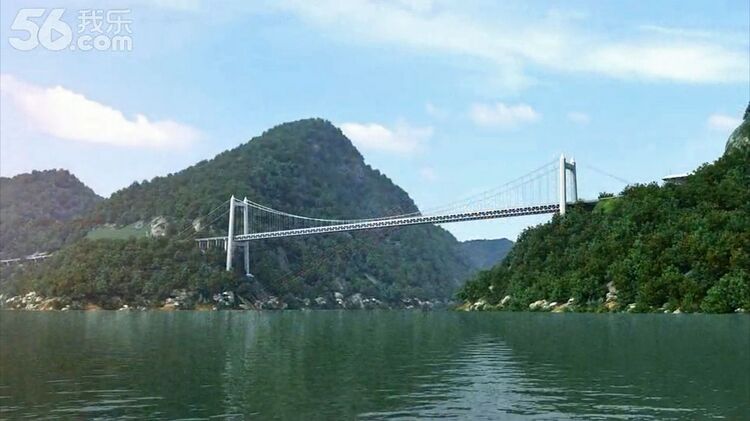

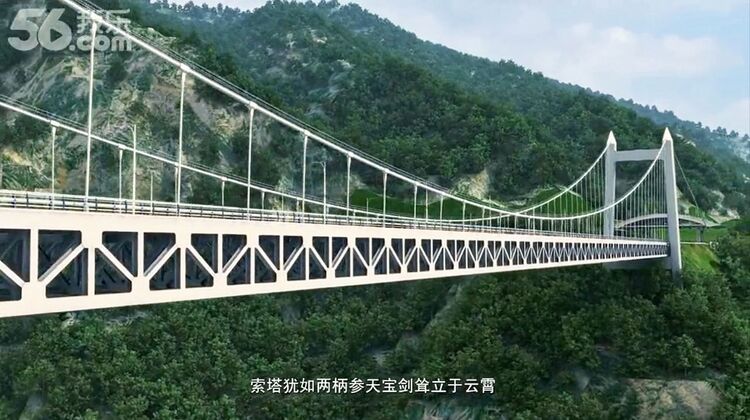

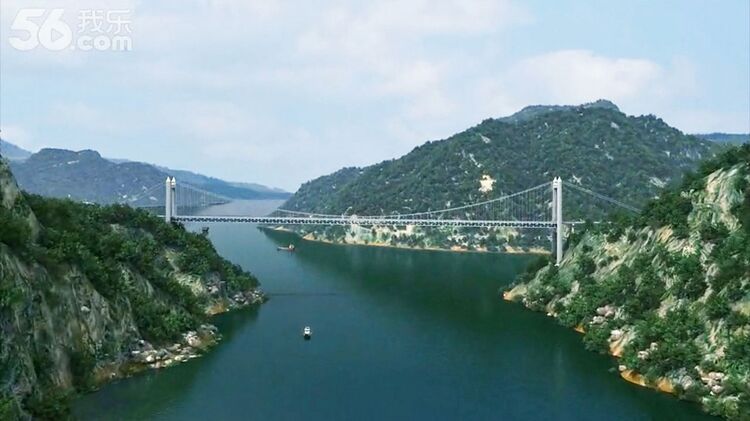

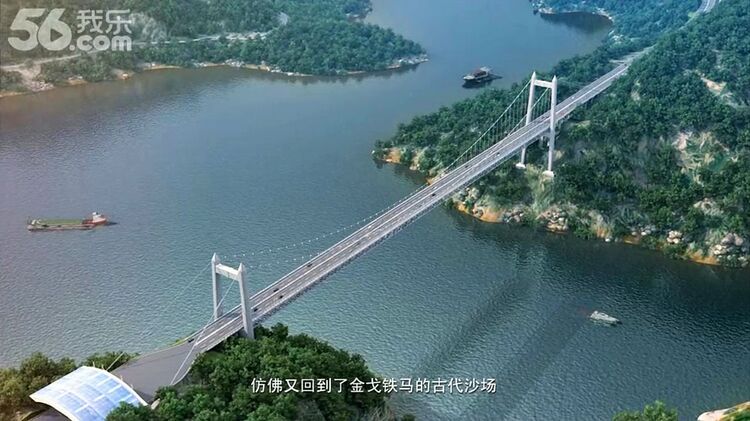

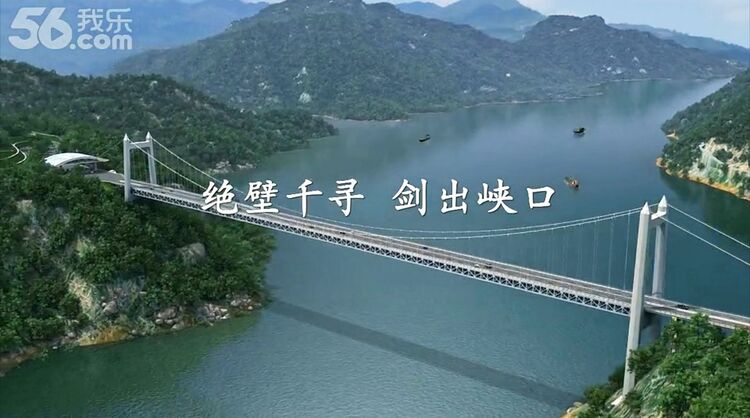

Zigui Yangtze River Bridge Suspension Bridge Proposal

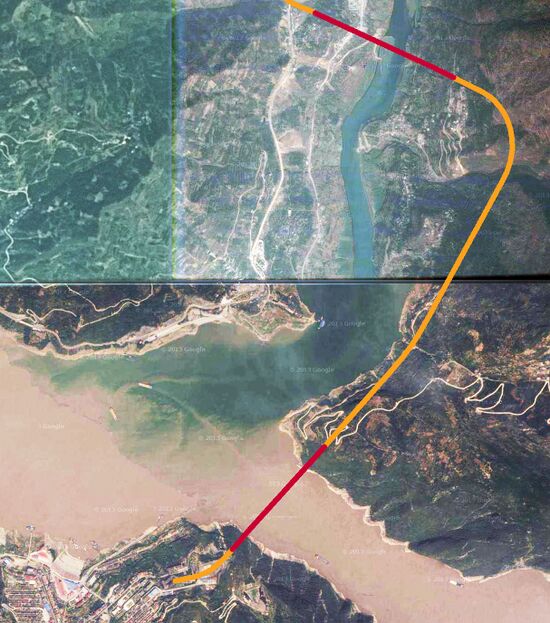

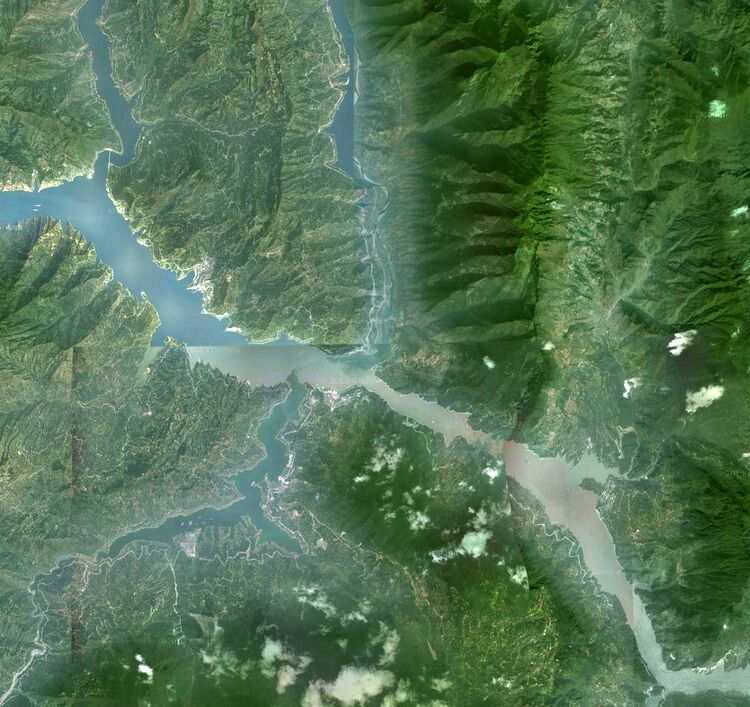

Zigui Yangtze River Bridge satellite image.

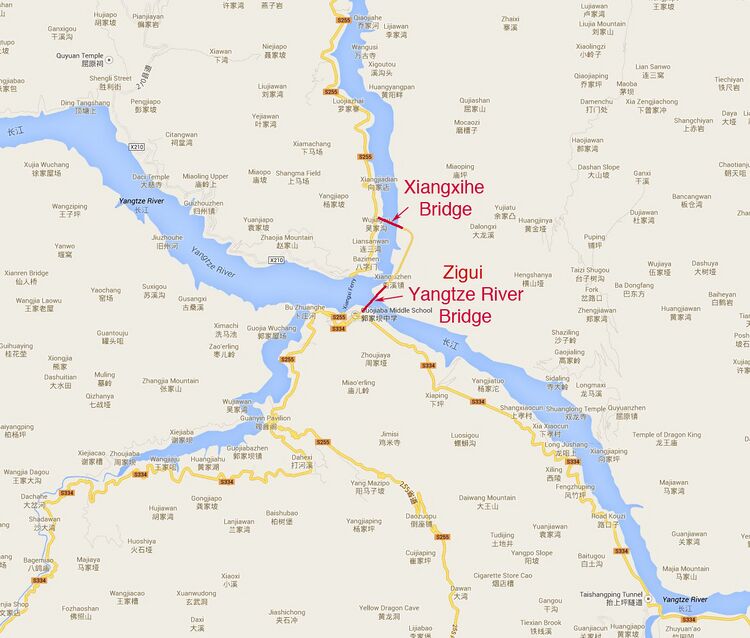

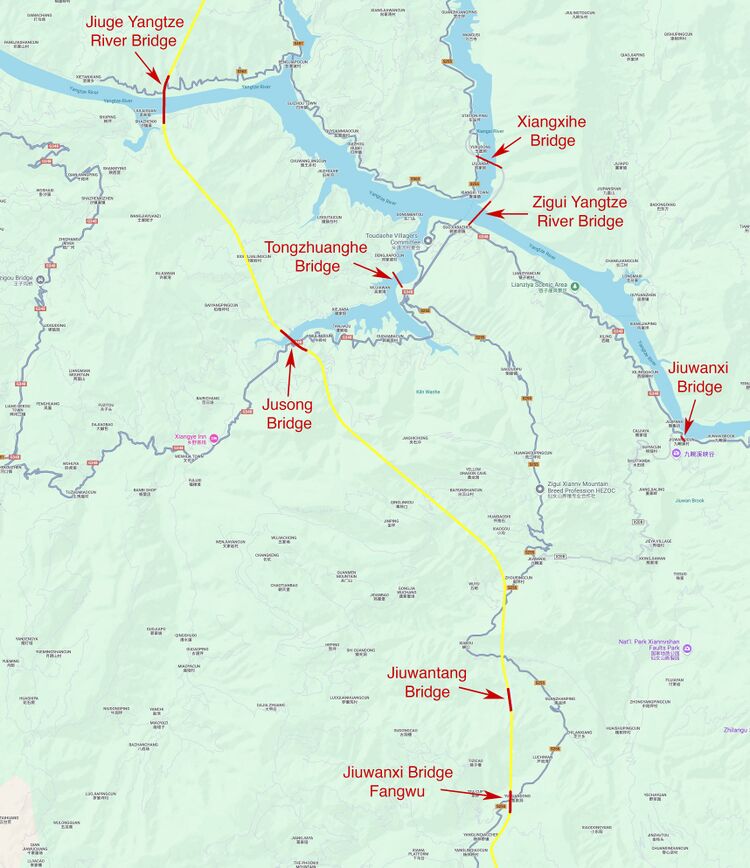

Zigui Yangtze River Bridge location map.
