Changjiahe G65W Bridge
常家河特大桥
Yanchixiang, Shaanxi, China
(338) feet high / (103) meters high
459 foot span / 140 meter span
2014

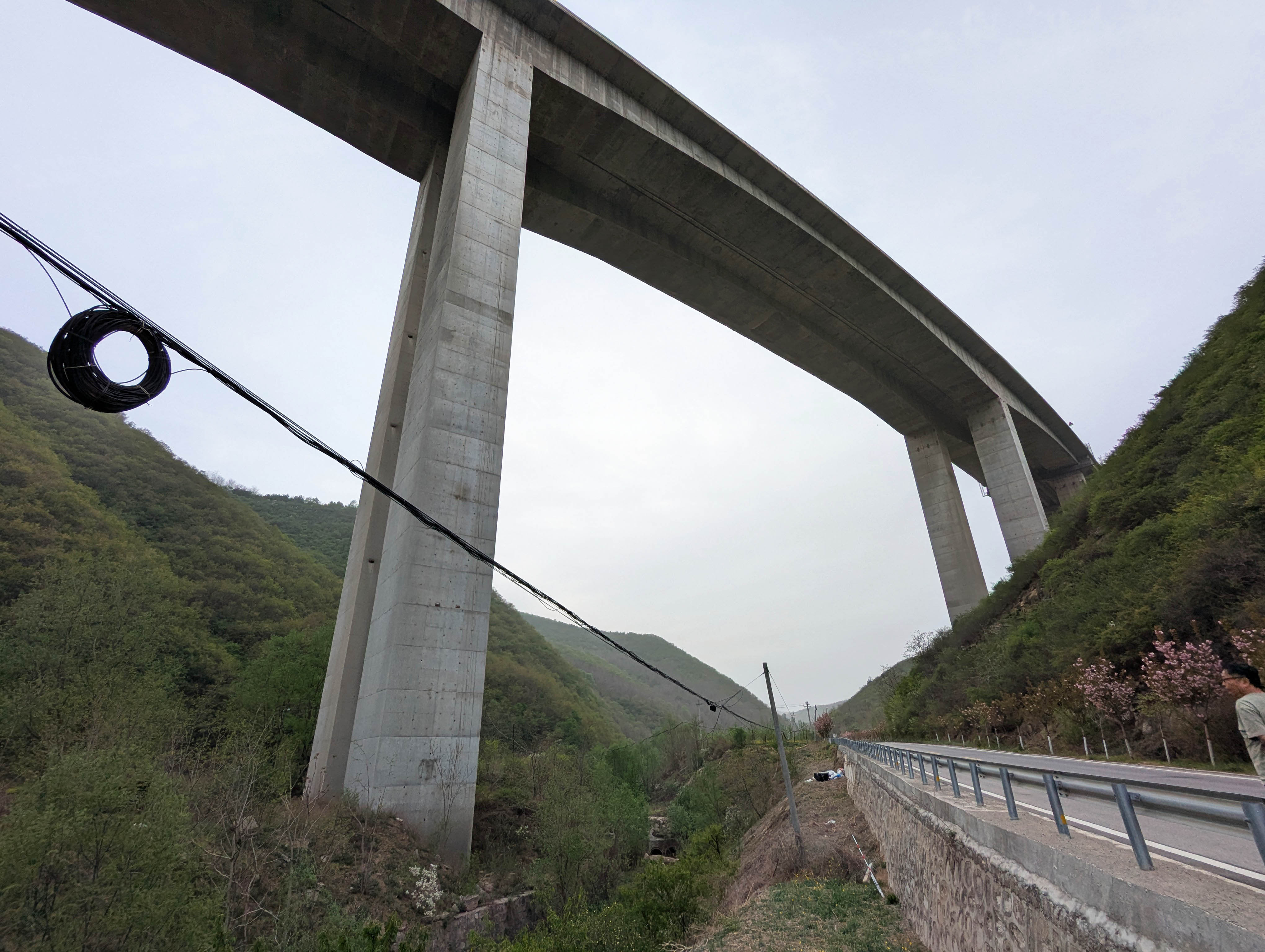

One of many high beam bridges on the G65W Expressway, the crossing of the Changjia River was made via a double span structure with many approach spans making for a structure 2,687 meters long. The span configuration is 5x30 +75+2x140+75 +12x40+54x30 meters on piers as tall as 90 meters.

The nearby Wangjiahe Bridge is one of the largest and most spectacular extradosed bridges in China with 4 main spans of 230 meters that curve across piers as tall as 142 meters.







Changjiahe G65W Bridge satellite image.





Changjiahe G65W Bridge location map.
