Shuilong Bridge
水龙特大桥
Chenzhou, Hunan, China
(295) feet high / (90) meters high
374 foot span / 114 meter span
2012



Shuilong Bridge is a very long viaduct and interchange that connects the G76 and G4 Expressways just south of the large city of Chenzhou. There are two main crossings, each composed of a double beam configuration of 63+114+114+63 meters. The higher beam group is on the west end and is supported on piers 68, 72 and 68 meters tall.

Several kilometers to the southeast on the G76 is the giant Chishi Bridge, one of the largest viaducts in the world with towers as tall as 287 meters.

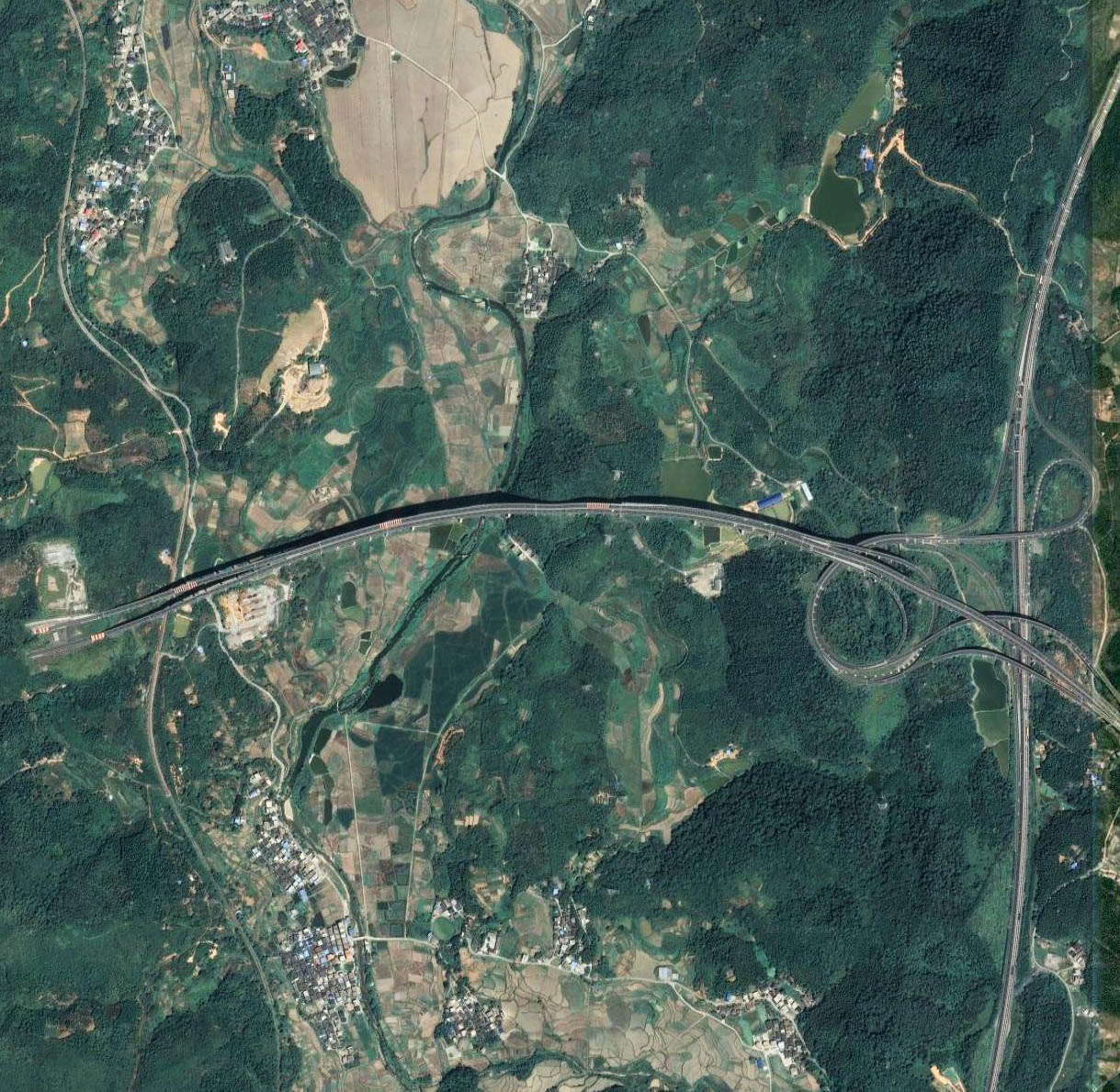

Shuilong Bridge satellite image.



Shuilong Bridge location map.
